2009.5 Peugeot 308 SW BL key

!
i
79
ACCESS
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
control button.
Therefore, never leave anyone in-
side the vehicle when it is dead-
locked.
Deadlocking using the remote
control
Deadlocking using the key The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.

 Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle. Deadlocking is confi rmed by fi xed
lighting of the direction indicators for
approximately two seconds.
According to version, the door mirrors
fold at the same time.

 Turn the key to the right in the
driver's door lock to lock the vehicle
completely and hold it in this
position for more than two seconds
to close the windows automatically
in addition to locking (according to
version).

 Turn the key to the right again
within fi ve seconds to deadlock the
vehicle. Folding the key

 First press button A to fold the key. Locating your vehicle
This function allows you to identify your
vehicle from a distance, particularly in
poor light. Your vehicle must be locked.

 Press the closed padlock on the
remote control.
This will switch on the courtesy lamps
and the direction indicators will fl ash for
a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

!
81
ACCESS
Lost keys
Visit a PEUGEOT dealer with the vehicle's V5 registration docume nt and your
personal identifi cation documents.
The PEUGEOT dealer will be able to retrieve the ke y code and the transponder
code required to order a replacement key. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reinitialised.
The remote control does not operate when the key is in the ignition, even
when the ignition is switched off, except for reinitialisat ion.
Locking the vehicle
Driving with the doors locked may make access to t he passenger compartment
by the emergency services more diffi cult in an emer gency.
As a safety precaution (with children on board), r emove the key from the ignition
when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifi cations to the electronic engine immobi liser system;
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure that the
keys in your possession are the only ones which can start the vehicle .

i
!
80
ACCESS
Starting the vehicle

 Insert the key in the ignition switch.
The system recognises the starting code.

 Turn the key fully towards the
dashboard to position 3 (Starting) .

 When the engine starts, release the
key.
Switching the vehicle off

 Immobilise the vehicle.

 Turn the key fully towards you to
position 1 (Stop) .

 Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.

 First of all, use the key in the lock to
unlock or lock your vehicle.

 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation

 Switch off the ignition.

 Turn the key to position 2 (Ignition) .

 Press the closed padlock immedi-
ately for a few seconds.

 Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. If the battery is fl at, you are in-
formed by lighting of this war-
ning lamp, an audible signal
and a message on the multi-
function screen.
This replacement battery is available
from PEUGEOT dealers.
Key left in the "Ignition"
position
If the key has been left in the ignition
switch, the ignition will be switched
off automatically after one hour.
To switch the ignition back on, turn
the key to position
1 (Stop) , then
back to position 2 (Ignition) .

 Unclip the casing using a coin at the
notch.

 Slide the fl at battery out of its
location.

 Slide the new battery into its location
observing the original direction.

 Clip the casing.

 Reinitialise the remote control.
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

!
i
83
ACCESS

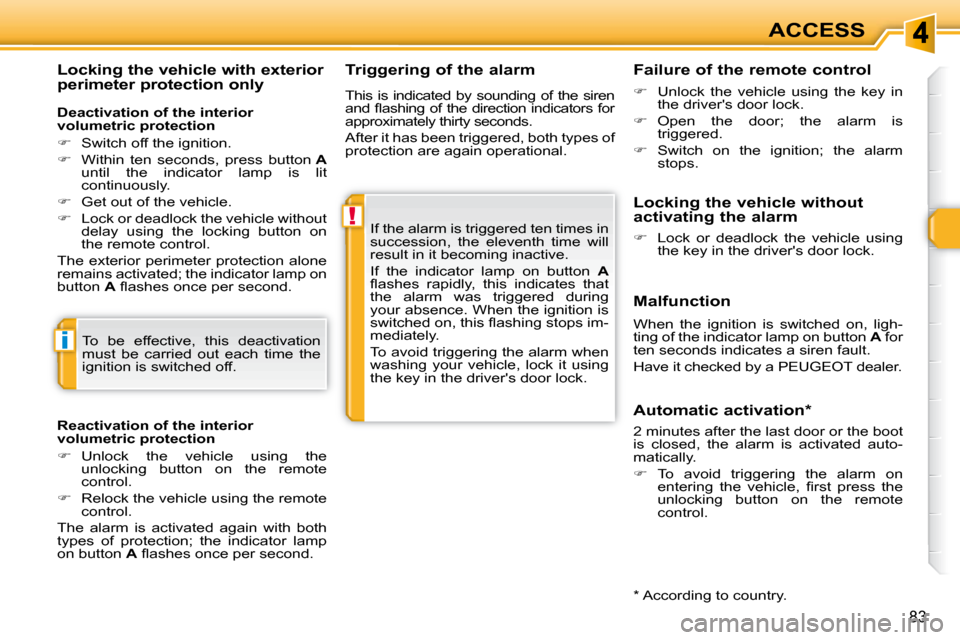

Triggering of the alarm
If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is
triggered.

 Switch on the ignition; the alarm
stops.
Malfunction

 Lock or deadlock the vehicle using
the key in the driver's door lock.
Automatic activation *
This is indicated by sounding of the siren
and fl ashing of the direction indicators for
approximately thirty seconds.
After it has been triggered, both types of
protection are again operational.
Failure of the remote control
Locking the vehicle without
activating the alarm
When the ignition is switched on, ligh-
ting of the indicator lamp on button
A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
* According to country.
2 minutes after the last door or the boot
is closed, the alarm is activated auto-
matically.

 To avoid triggering the alarm on
entering the vehicle, fi rst press the
unlocking button on the remote
control.
To be effective, this deactivation
must be carried out each time the
ignition is switched off.
Reactivation of the interior
volumetric protection

 Unlock the vehicle using the
unlocking button on the remote
control.

 Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator lamp
on button A fl ashes once per second.
Locking the vehicle with exterior
perimeter protection only
Deactivation of the interior
volumetric protection

 Switch off the ignition.

 Within ten seconds, press button A
until the indicator lamp is lit
continuously.

 Get out of the vehicle.

 Lock or deadlock the vehicle without
delay using the locking button on
the remote control.
The exterior perimeter protection alone
remains activated; the indicator lamp on
button A fl ashes once per second.

!
i
!
85
ACCESS
This control also deactivates the
interior controls for the rear doors
(refer to the section "Child safety -
§ Electric child lock").
Any other status of the indicator
light indicates a malfunction of the
electric child lock. Have it checked
by a PEUGEOT dealer.

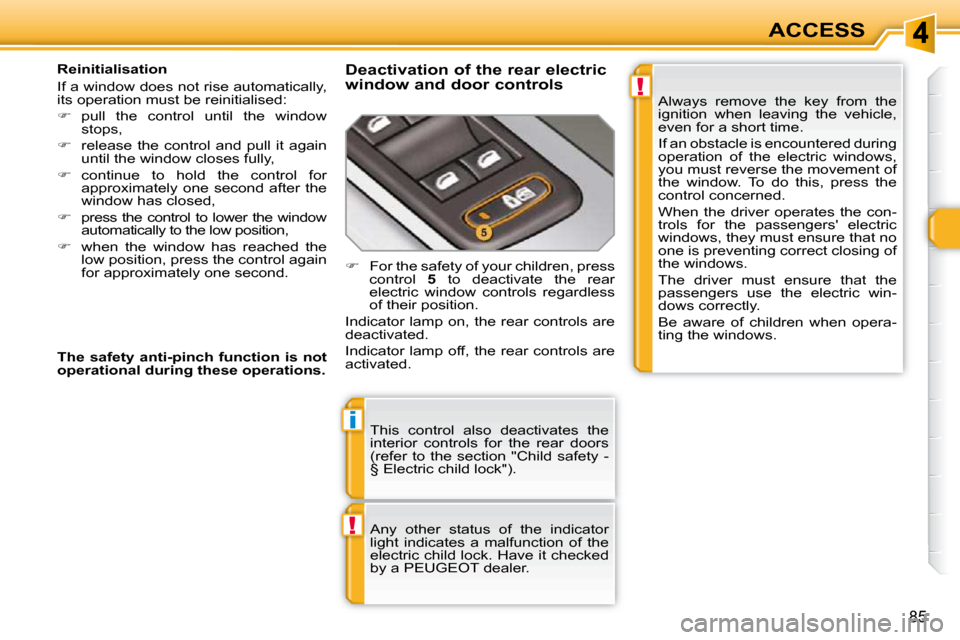

Reinitialisation
If a window does not rise automatically,
its operation must be reinitialised:

 pull the control until the window
stops,

 release the control and pull it again
until the window closes fully,

 continue to hold the control for
approximately one second after the
window has closed,

 press the control to lower the window
automatically to the low position,

 when the window has reached the
low position, press the control again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
If an obstacle is encountered during
operation of the electric windows,
you must reverse the movement of
the window. To do this, press the
control concerned.
When the driver operates the con-
trols for the passengers' electric
windows, they must ensure that no
one is preventing correct closing of
the windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when opera-
ting the windows.
Deactivation of the rear electric
window and door controls

 For the safety of your children, press
control 5 to deactivate the rear
electric window controls regardless
of their position.
Indicator lamp on, the rear controls are
deactivated.
Indicator lamp off, the rear controls are
activated.

The safety
anti
-
pinch
function is not
operational during these operations.

!
86
ACCESS
DOORS

 After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle. From inside

 Pull on the front door control to open
the door; this unlocks the vehicle
completely.

 Pull on the rear door control to
open the door; this unlocks the door
concerned only. Closing
When a door is not closed correctly:
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Opening
From outside
Version with deadlocking
The interior door controls do not
operate when the vehicle is dead-
locked.

i
!
i
87
ACCESS
If the vehicle is locked or dead-
locked from the outside, the red in-
dicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the auto-
matic central locking does not take
place.
If the boot or the rear screen is
open, the automatic central locking
of the doors is active.

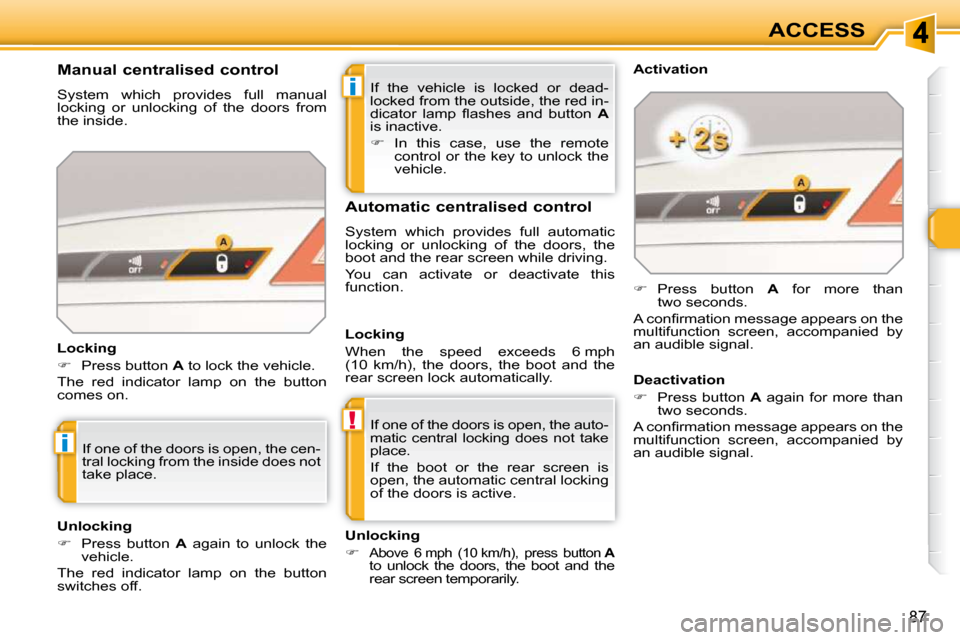

Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on. Automatic centralised control
System which provides full automatic
locking or unlocking of the doors, the
boot and the rear screen while driving.
You can activate or deactivate this
function. Activation

 Press button A for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.
Unlocking


Above 6 mph (10 km/h), press button A to unlock the doors, the boot and the
rear screen temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking

 Press button A again to unlock the
vehicle.
The red indicator lamp on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors, the boot and the
rear screen lock automatically.
Deactivation

 Press button A again for more than
two seconds.
A confi rmation message appears on the
multifunction screen, accompanied by
an audible signal.

88
ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening

 After unlocking the vehicle com-
pletely using the remote control or
the key, pull the handle and raise
the tailgate.
BOOT
-
when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
lamp comes on, accompanied by an
audible signal and a message on
the multifunction screen for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking

 Fold back the rear seats to gain
access to the lock from inside the
boot.


Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors

 Pull the interior door opening control. Closing

 Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
