2009.5 Peugeot 308 SW BL engine
[x] Cancel search: enginePage 237 of 329
12
222
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines 1.6
litre
Turbo HDI 16V 112
hp
2
litre
Turbo HDI
16V 136
hp
2
litre
Turbo HDI
16V 140
hp
Gearboxes Manual
Electronic gear control
Manual Manual
Model codes:
4E...
9HR-8 9HR-8/P RHR-H RHF-8
- Unladen weight 1 410 1 413 1 473 1 473
- Kerb weight 1 485 1 488 1 548 1 548
- Payload 560 562 560 560
- Gross vehicle weight (GVW) 1 970 1 975 2 033 2 033
- Gross train weight (GTW)
on a 12 % gradient 3 120 3 125 3 583 3 583
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 150 1 150 1 550 1 550
- Braked trailer * (with load transfer within the GTW limit) 1 400 1 300 1 700 1 700
- Unbraked trailer 740 740 750 750
- Recommended nose weight 60 60 70 70
Page 238 of 329
12
223
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6
litre
Turbo HDI
16V 90
hp
1.6
litre
Turbo HDI
16V 110
hp
Gearboxes
Manual Manual
Model codes:
4H...
9HX-B 9HX-C 9HZ-C 9HZ-H
- Unladen weight 1 480 1 467 1 486 1 495
- Kerb weight 1 555 1 542 1 561 1 570
- Payload 640 633 654 655
- Gross vehicle weight (GVW) 2 120 2 100 2 140 2 150
- Gross train weight (GTW)
on a 12 % gradient 3 120 3 100 3 140 3 150
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 000 1 000 1 000 1 000
- Braked trailer * (with load transfer within the GTW limit) 1 350 1 400 1 400 1 400
- Unbraked trailer 750 750 740 750
- Recommended nose weight 75 60 75 60
Page 239 of 329
12
224
TECHNICAL DATA
* The weight of the braked trailer can be increased, w ithin the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded to wing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mention ed
must be reduced by 10 % for each additional 1 000 metres of a ltitude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engines 2
litre
Turbo HDI 16V 136
hp
2
litre
Turbo HDI
16V 140
hp
2
litre
Turbo HDI
16V 163
hp
Gearboxes Manual Auto. Manual Auto.
Model codes:
4H...
RHR-H RHR-J RHF-8 RHH-A
- Unladen weight 1 575 1 600 1 575 1 603
- Kerb weight 1 650 1 675 1 650 1 678
- Payload 640 640 640 642
- Gross vehicle weight (GVW) 2 215 2 240 2 215 2 245
- Gross train weight (GTW)
on a 12 % gradient 3 615 3 640 3 615 3 445
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 1 400 1 400 1 200
- Braked trailer * (with load transfer within the GTW limit) 1 650 1 650 1 650 1 200
- Unbraked trailer 750 750 750 750
- Recommended nose weight 70 70 70 56
Page 241 of 329
12
i
226
TECHNICAL DATA
IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation and tracking of your vehicle. If the tyre pressures are too low,
this increases fuel consumption.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
A. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN)
under the bonnet.
This number is engraved on the bodywork near the damper support.
To gain access to it, raise the plastic cover.
B. VIN
on the windscreen lower
c r o s s m e m b e r .
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer's plate.
This plate is riveted onto the engine mounting.
or
D. Manufacturer's label.
This number is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e r i g h t
hand centre pillar. This plate/label also indicates the
kerb weight, the gross vehicle
weight (GVW) and the gross train
weight (GTW).
E. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e f r o n t p i l l a r , on the driver's side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour code.

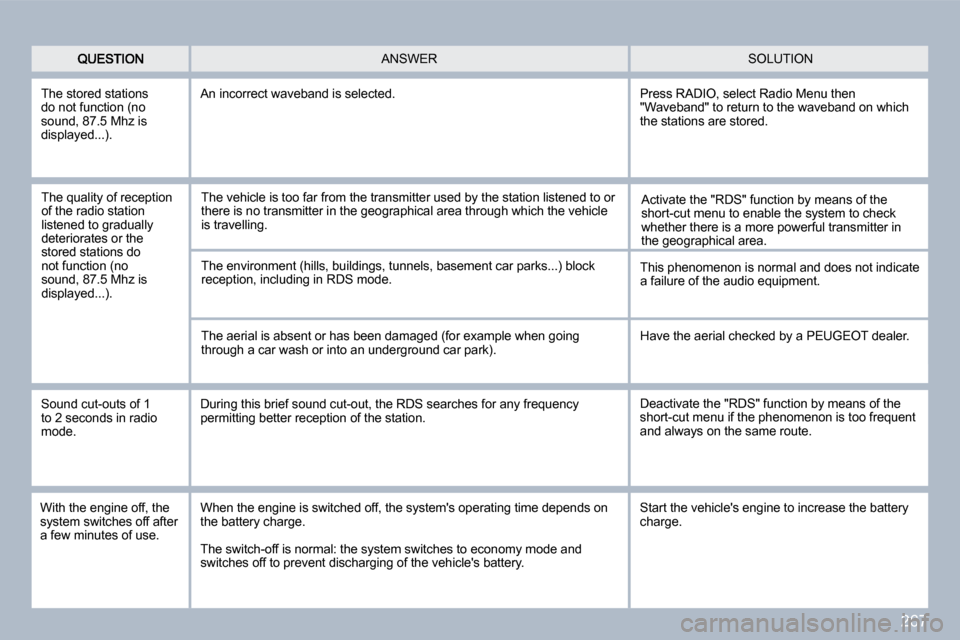

Page 280 of 329
267
SOLUTION ANSWER
The stored stations do not function (no s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
An incorrect waveband is selected.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
Activate the "RDS" function by means of the short-cut menu to enable the system to check whether there is a more powerful transmitter in the geographical area.
Press RADIO, select Radio Menu then "Waveband" to return to the waveband on which the stations are stored.
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k reception, including in RDS mode.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequent and always on the same route.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's oper ating time depends on the battery charge.
T h e s w i t c h - o f f i s n o r m a l : t h e s y s t e m s w i t c h e s t o e c o n o m y m o d e a n d switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer. The aerial is absent or has been damaged (for exam ple when going t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .

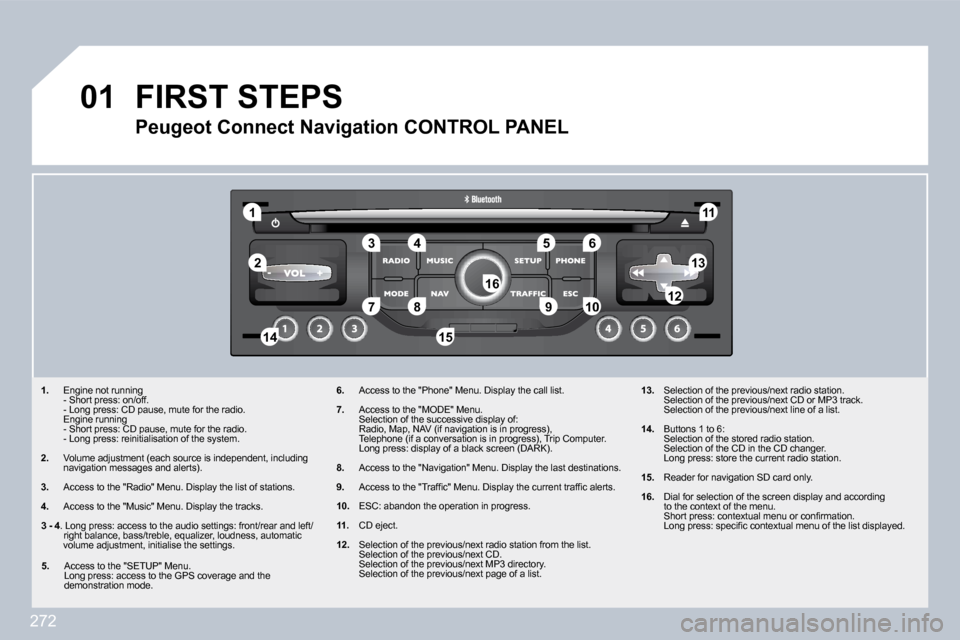

Page 285 of 329
272
0 1
1 1
5 5
1 0 1 0
2 2
3 3 4 4 6 6
1 3 1 3
1 1 1 1
9 9
1 4 1 4 1 5 1 5
7 7 8 8 1 2 1 2 1 6 1 6
1 . Engine not running - Short press: on/off. - L o n g p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . Engine running - S h o r t p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . - L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m .
2 . V o l u m e a d j u s t m e n t ( e a c h s o u r c e i s i n d e p e n d e n t , i n c l u d i n g n a v i g a t i o n m e s s a g e s a n d a l e r t s ) .
3 . Access to the "Radio" Menu. Display the list of stations.
4 . Access to the "Music" Menu. Display the tracks.
6 . Access to the "Phone" Menu. Display the call list .
7 . Access to the "MODE" Menu. Selection of the successive display of: R a d i o , M a p , N A V ( i f n a v i g a t i o n i s i n p r o g r e s s ) , T e l e p h o n e ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) , T r i p C o m p u t e r . L o n g p r e s s : d i s p l a y o f a b l a c k s c r e e n ( D A R K ) .
8 . Access to the "Navigation" Menu. Display the las t destinations.
9 . A c c e s s t o t h e " T r a f fi c " M e n u . D i s p l a y t h e c u r r e n t t r a f fi c a l e r t s .
1 0 . ESC: abandon the operation in progress.
1 1 . C D e j e c t .
1 2 . S e l e c t i o n o f t h e p r e v i o u s / n e x t r a d i o s t a t i o n f r o m t h e l i s t . Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
1 3 . Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
1 4 . Buttons 1 to 6: Selection of the stored radio station. Selection of the CD in the CD changer. Long press: store the current radio station.
1 5 . Reader for navigation SD card only.
1 6 . Dial for selection of the screen display and acco rding t o t h e c o n t e x t o f t h e m e n u . S h o r t p r e s s : c o n t e x t u a l m e n u o r c o n fi r m a t i o n . L o n g p r e s s : s p e c i fi c c o n t e x t u a l m e n u o f t h e l i s t d i s p l a y e d .
F I R S T S T E P S
P e u g e o t C o n n e c t N a v i g a t i o n C O N T R O L P A N E L
3 - 4 . 3 - 4 3 - 4Long press: access to the audio settings: front/rear and left/ r i g h t b a l a n c e , b a s s / t r e b l e , e q u a l i z e r , l o u d n e s s , a u t o m a t i c v o l u m e a d j u s t m e n t , i n i t i a l i s e t h e s e t t i n g s .
5 . Access to the "SETUP" Menu. Long press: access to the GPS coverage and the d e m o n s t r a t i o n m o d e .

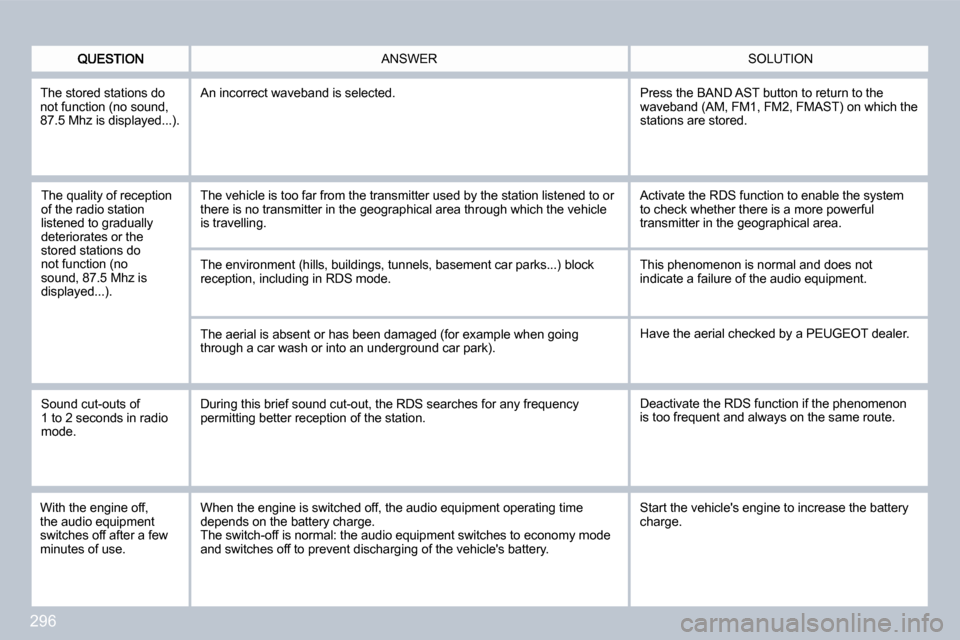

Page 309 of 329
296
SOLUTION ANSWER
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do n o t f u n c t i o n ( n o sound, 87.5 Mhz is d i s p l a y e d . . . ) .
T h e v e h i c l e i s t o o f a r f r o m t h e t r a n s m i t t e r u s e d b y t h e s t a t i o n l i s t e n e d t o o r t h e r e i s n o t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a t h r o u g h w h i c h t h e v e h i c l e is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k r e c e p t i o n , i n c l u d i n g i n R D S m o d e .
T h e a e r i a l i s a b s e n t o r h a s b e e n d a m a g e d ( f o r e x a m p l e w h e n g o i n g t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
A c t i v a t e t h e R D S f u n c t i o n t o e n a b l e t h e s y s t e m t o c h e c k w h e t h e r t h e r e i s a m o r e p o w e r f u l t r a n s m i t t e r i n t h e g e o g r a p h i c a l a r e a .
T h i s p h e n o m e n o n i s n o r m a l a n d d o e s n o t i n d i c a t e a f a i l u r e o f t h e a u d i o e q u i p m e n t .
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to 2 seconds in radio m o d e .
During this brief sound cut-out, the RDS searches for any frequency p e r m i t t i n g b e t t e r r e c e p t i o n o f t h e s t a t i o n . D e a c t i v a t e t h e R D S f u n c t i o n i f t h e p h e n o m e n o n i s t o o f r e q u e n t a n d a l w a y s o n t h e s a m e r o u t e .
With the engine off, t h e a u d i o e q u i p m e n t switches off after a few m i n u t e s o f u s e .
W h e n t h e e n g i n e i s s w i t c h e d o f f , t h e a u d i o e q u i p m e n t o p e r a t i n g t i m e depends on the battery charge. T h e s w i t c h - o f f i s n o r m a l : t h e a u d i o e q u i p m e n t s w i t c h e s t o e c o n o m y m o d e and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do n o t f u n c t i o n ( n o s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
An incorrect waveband is selected. Press the BAND AST button to return to the w a v e b a n d ( A M , F M 1 , F M 2 , F M A S T ) o n w h i c h t h e stations are stored.

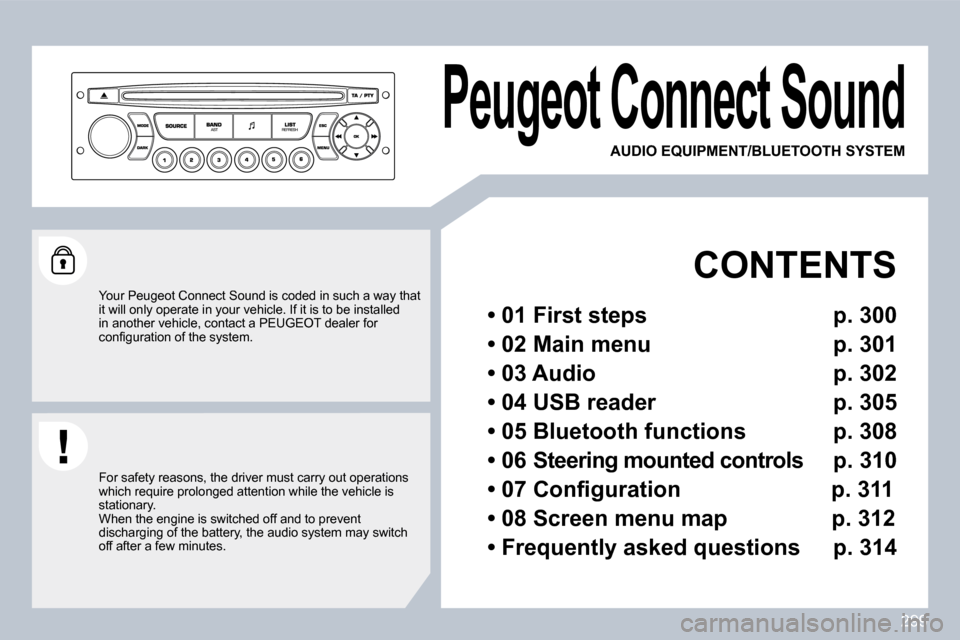

Page 312 of 329
299
P e u g e o t C o n n e c t S o u n d
CONTENTS
• 0 1 F i r s t s t e p s p . 3 0 0
• 0 2 M a i n m e n u p . 3 0 1
• 0 3 A u d i o p . 3 0 2
• 0 4 U S B r e a d e r p . 3 0 5
• 0 5 B l u e t o o t h f u n c t i o n s p . 3 0 8
• 0 6 S t e e r i n g m o u n t e d c o n t r o l s p . 3 1 0
• 0 7 C o n fi g u r a t i o n p . 3 1 1
• 0 8 S c r e e n m e n u m a p p . 3 1 2
• F r e q u e n t l y a s k e d q u e s t i o n s p . 3 1 4
Your Peugeot Connect Sound is coded in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dealer for c o n fi g u r a t i o n o f t h e s y s t e m .
F o r s a f e t y r e a s o n s , t h e d r i v e r m u s t c a r r y o u t o p e r a t i o n s which require prolonged attention while the vehicle is stationary. When the engine is switched off and to prevent d i s c h a r g i n g o f t h e b a t t e r y , t h e a u d i o s y s t e m m a y s w i t c h o f f a f t e r a f e w m i n u t e s .
A U D I O E Q U I P M E N T / B L U E T O O T H S Y S T E M
P e u g e o t C o n n e c t S o u n d P e u g e o t C o n n e c t S o u n d
