Page 2 of 329

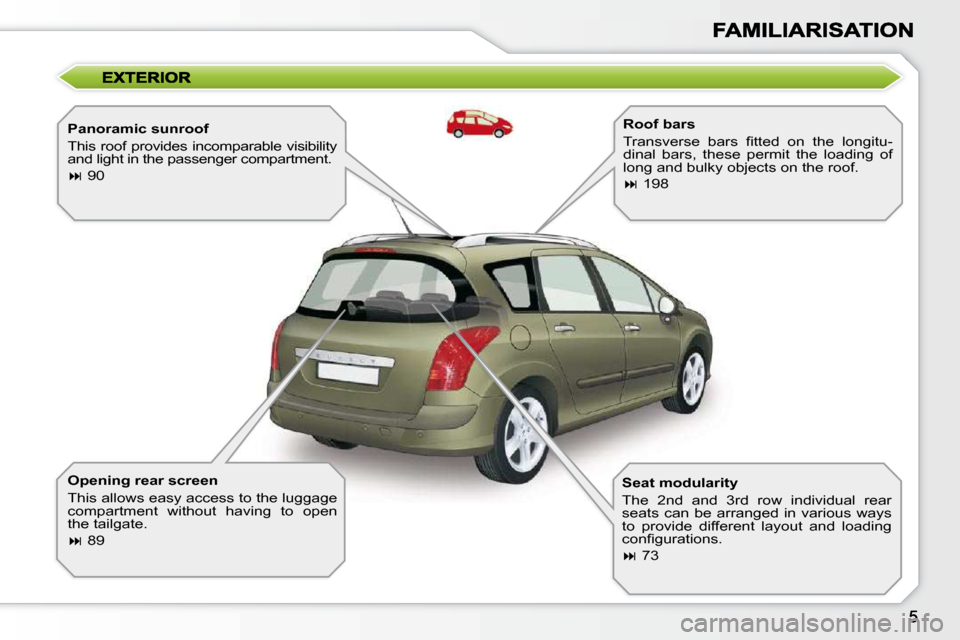

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Opening rear screen
This allows easy access to the luggage
compartment without having to open
the tailgate.
89 Roof bars
T r a n s v e r s e b a r s fi t t e d o n t h e l o n g i t u -
dinal bars, these permit the loading of
long and bulky objects on the roof.
198
Seat modularity
The 2nd and 3rd row individual rear
seats can be arranged in various ways
to provide different layout and loading
c o n fi g u r a t i o n s .
73
Page 9 of 329
i
!

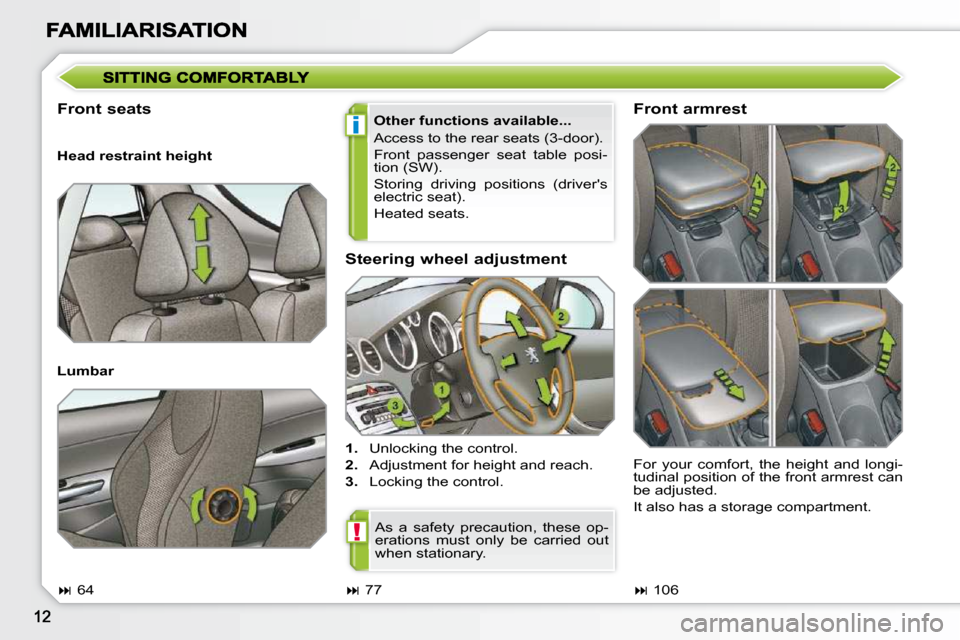

Steering wheel adjustment
1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
Front seats
Other functions available...
Access to the rear seats (3-door).
Front passenger seat table posi-
tion (SW).
Storing driving positions (driver's
electric seat).
Heated seats.
Head restraint height
Lumbar Front armrest
64
106
77 For your comfort, the height and longi-
tudinal position of the front armrest can
be adjusted.
It also has a storage compartment.
As a safety precaution, these op-
erations must only be carried out
when stationary.
Page 15 of 329

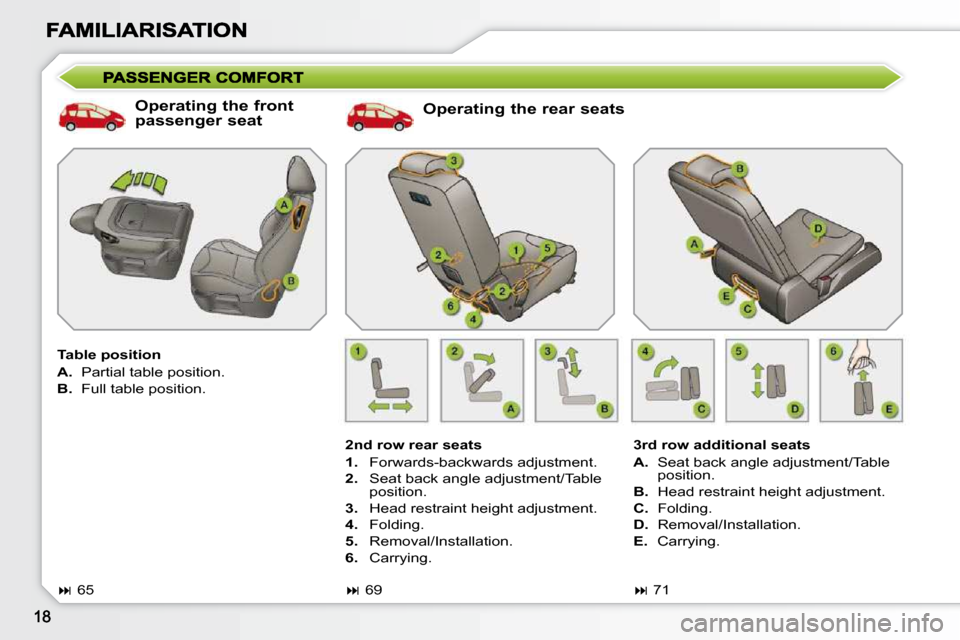

Operating the rear seats
2nd row rear seats
1. Forwards-backwards adjustment.
2. Seat back angle adjustment/Table
position.
3. Head restraint height adjustment.
4. Folding.
5. Removal/Installation.
6. Carrying.
69 3rd row additional seats
A. Seat back angle adjustment/Table
position.
B. Head restraint height adjustment.
C. Folding.
D. Removal/Installation.
E. Carrying.
71
Operating the front
passenger seat
Table position
A. Partial table position.
B. Full table position.
65
Page 16 of 329

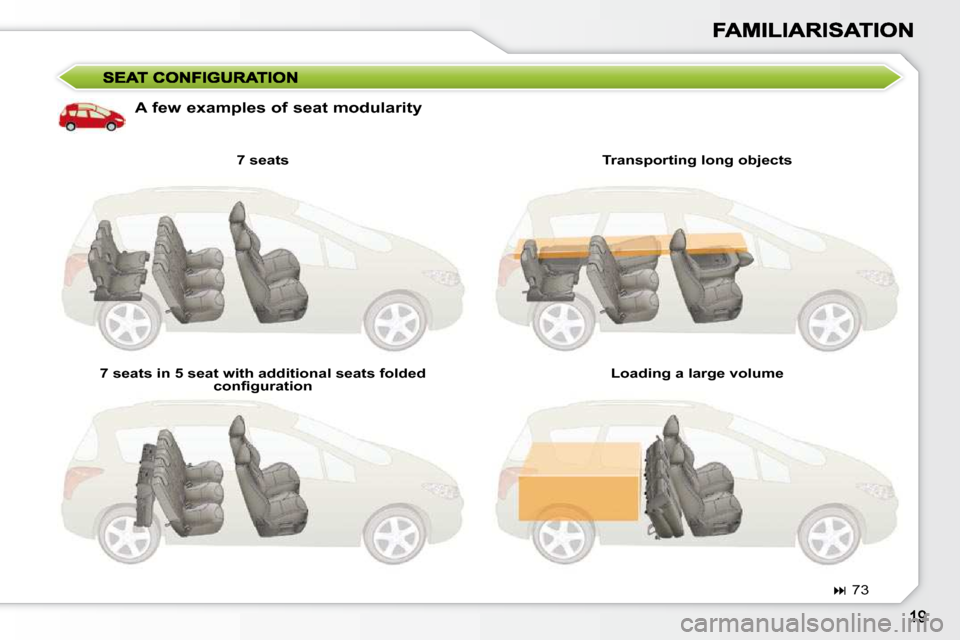

A few examples of seat modularity 7 seats
7 seats in 5 seat with additional seats folded c o n fi g u r a t i o n Transporting long objects
Loading a large volume
73
Page 27 of 329
!
30
INSTRUMENTS and CONTROLS Engine autodiagnostics
system.
If this comes on, it indicates
the occurrence of a fault in the
engine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Low fuel level.
W h e n t h i s fi r s t c o m e s o n , y o u
have approximately 6 litres of
fuel left in the tank.
It is imperative that you refuel to avoid
running out of fuel.
This warning lamp comes on again
each time the ignition is switched on,
u n t i l s u f fi c i e n t f u e l h a s b e e n a d d e d .
Capacity of the tank: approximately
60 litres . Maximum coolant
temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high. Stop the vehicle as
soon as it is safe to do so.
Airbags.
If this comes on, it indicates the
occurrence of a fault in one of
the airbag or seat belt preten-
sioner systems.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened their seat belt. According to
version and/or country, the unfastening
of the seat belt only may be detected for
the front passenger.
It also indicates that one or more rear
passengers have unfastened their seat
belt (on the 2nd row rear seats only on
the SW with panoramic sunroof).
Water in diesel * .
If this comes on, it indicates the
presence of water in the diesel
fi l t e r .
There is a risk of damage to the injection
system on Diesel engines. Door open.
A door, the boot or the rear
screen is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle as soon as it is safe to
do so.
S p e c i fi c w a r n i n g l a m p s
* According to country.
Dynamic stability control
(ESP/ASR).
The ESP/ASR system is put
into service automatically when
the vehicle is started.
Unless the system has been deactivat-
ed, if this warning lamp and the indicator
lamp on the button come on continuously,
this indicates the occurrence of a fault in
the ESP/ASR system or in the hill start
assist system. -
if the speed is below 6 mph (10 km/h), this
warning lamp comes on continuously.
- if the speed is higher than 6 mph (10 km/h),
this warning lamp comes on continuously,
accompanied by an audible signal.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.
Page 61 of 329

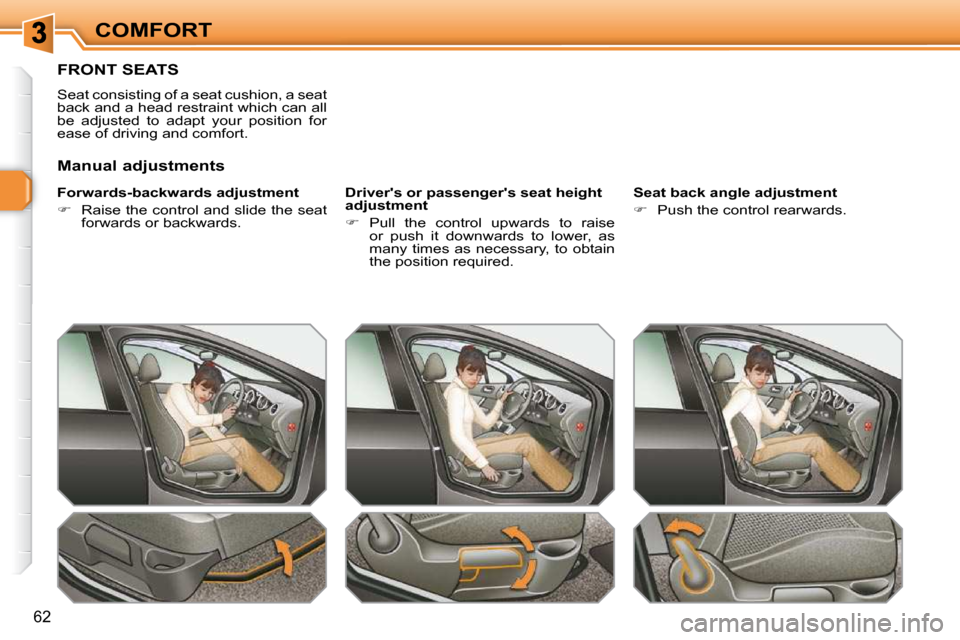

62
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Raise the control and slide the seat
forwards or backwards. D r i v e r ' s o r p a s s e n g e r ' s s e a t h e i g h t
a d j u s t m e n t
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required. S e a t b a c k a n g l e a d j u s t m e n t
Push the control rearwards.
M a n u a l a d j u s t m e n t s
Page 62 of 329
i

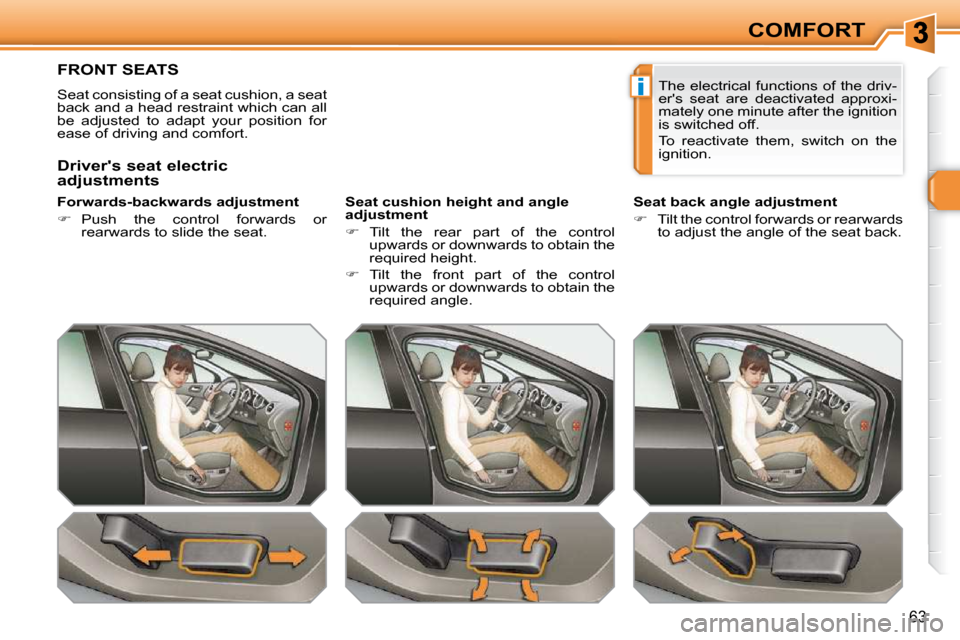

63
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Push the control forwards or
rearwards to slide the seat. S e a t c u s h i o n h e i g h t a n d a n g l e
a d j u s t m e n t
Tilt the rear part of the control
upwards or downwards to obtain the
required height.
Tilt the front part of the control
upwards or downwards to obtain the
required angle. S e a t b a c k a n g l e a d j u s t m e n t
Tilt the control forwards or rearwards
to adjust the angle of the seat back.
D r i v e r ' s s e a t e l e c t r i c
a d j u s t m e n t s The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.
Page 64 of 329
i
65
COMFORT

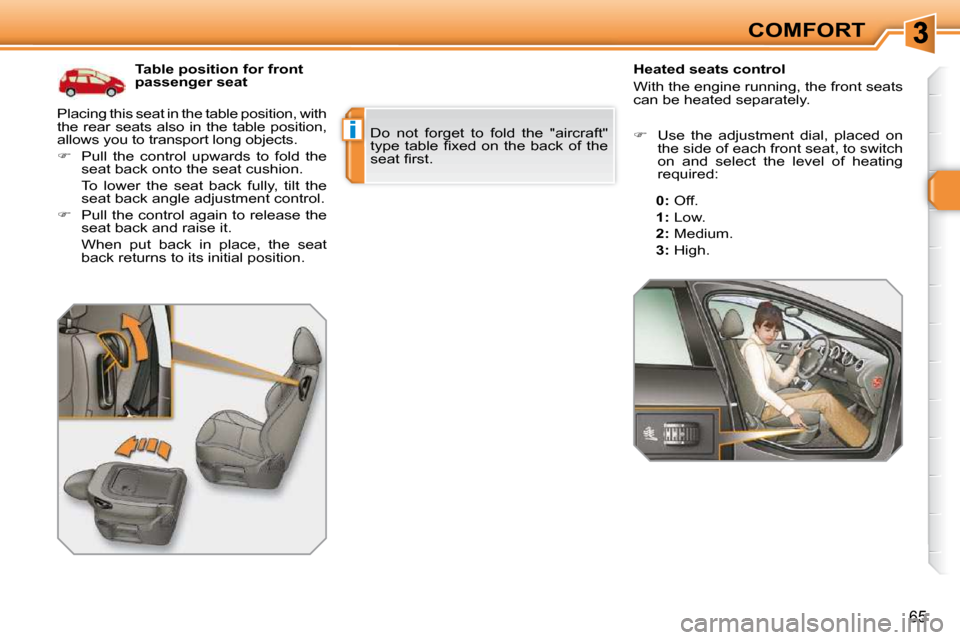

Table position for front
passenger seat Heated seats control
With the engine running, the front seats
can be heated separately.
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating
required:
0
: Off.
1
: Low.
2
: Medium.
3
: High.
Placing this seat in the table position, with
the rear seats also in the table position,
allows you to transport long objects.
Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.
Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position. D o n o t f o r g e t t o f o l d t h e " a i r c r a f t "
t y p e t a b l e fi x e d o n t h e b a c k o f t h e
s e a t fi r s t .
