2009.5 Peugeot 308 SW BL Dag engine
[x] Cancel search: enginePage 164 of 313
11
i

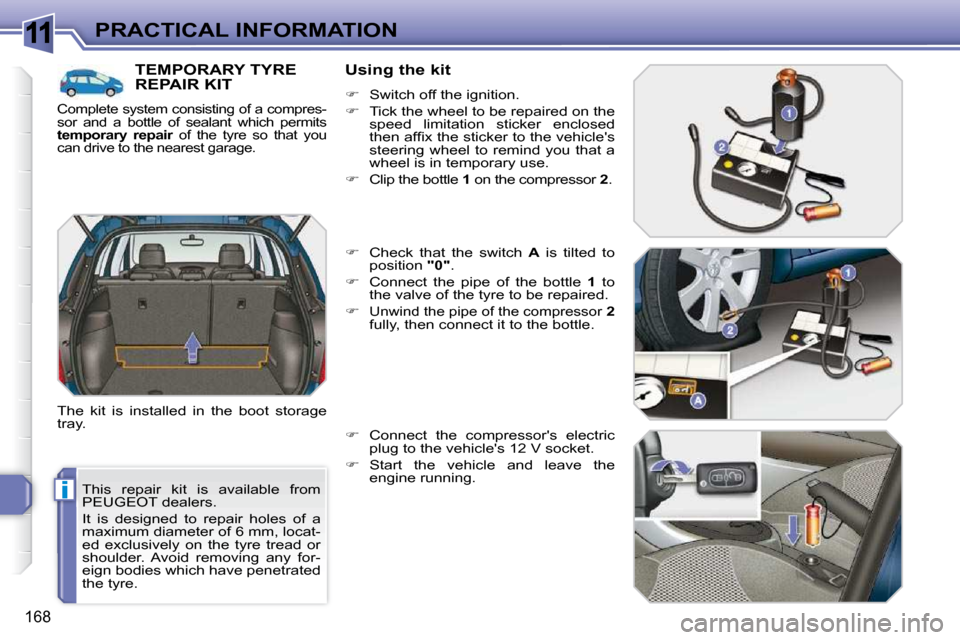

168
PRACTICAL INFORMATION
This repair kit is available from
PEUGEOT dealers.
It is designed to repair holes of a
m a x i m u m d i a m e t e r o f 6 m m , l o c a t -
e d e x c l u s i v e l y o n t h e t y r e t r e a d o r
shoulder. Avoid removing any for-
eign bodies which have penetrated
the tyre.
TEMPORARY TYRE REPAIR KIT
Complete system consisting of a compres-
sor and a bottle of sealant which permits
temporary repair of the tyre so that you
can drive to the nearest garage.
The kit is installed in the boot storage
tray. Using the kit
Switch off the ignition.
Tick the wheel to be repaired on the
speed limitation sticker enclosed
t h e n a f fi x t h e s t i c k e r t o t h e v e h i c l e ' s
steering wheel to remind you that a
wheel is in temporary use.
Clip the bottle 1 on the compressor 2 .
Check that the switch A is tilted to
position "0" .
Connect the pipe of the bottle 1 to
the valve of the tyre to be repaired.
Unwind the pipe of the compressor
2
fully, then connect it to the bottle.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
Start the vehicle and leave the
engine running.
Page 166 of 313
11
i
!
!
170
PRACTICAL INFORMATION I f t h e v e h i c l e i s fi t t e d w i t h t y r e u n d e r -
i n fl a t i o n d e t e c t i o n , t h e t y r e u n d e r -
i n fl a t i o n w a r n i n g l i g h t w i l l r e m a i n o n
after the wheel has been repaired
until the system is reinitialised by a
PEUGEOT dealer.
T a k e c a r e , t h e b o t t l e o f fl u i d c o n -
tains ethylene-glycol. This product
is harmful if swallowed and causes
i r r i t a t i o n t o t h e e y e s . K e e p i t o u t o f
reach of children.
T h e e x p i r y d a t e o f t h e fl u i d i s i n d i -
cated on the base of the bottle.
The bottle is designed for a single
use; even if only partly used, it must
be replaced.
After use, do not discard the bottle
into the environment, take it to a
PEUGEOT dealer or to an organi-
sation responsible for its collec-
tion.
Do not forget to obtain a new bot-
t l e o f fi l l i n g p r o d u c t , a v a i l a b l e f r o m
PEUGEOT dealers.
Connect the compressor's electric
plug to the vehicle's 12 V socket
again.
Start the vehicle again and leave the
engine running.
Adjust the pressure using the
c o m p r e s s o r ( t o i n fl a t e : s w i t c h A in
position "1" ; t o d e fl a t e : s w i t c h A in
position "0" and press button B ) ,
in accordance with the vehicle's
tyre pressure label (located on the
d o o r a p e r t u r e o n t h e d r i v e r ' s s i d e ) ,
then remember to check that the
l e a k i s fi l l e d c o r r e c t l y ( n o f u r t h e r
loss of pressure after several miles
[ k i l o m e t r e s ] ) .
Remove the compressor, then store
the whole kit.
Visit a PEUGEOT dealer as
soon as possible to have the
tyre repaired or replaced by a
technician.
Drive at reduced speed (50 mph
[ 8 0 k m / h ] m a x ) f o r n o m o r e t h a n
a p p r o x i m a t e l y 1 2 5 m i l e s ( 2 0 0 k m ) .
Page 184 of 313
11
188
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure sealing of
t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
e l e c t r o v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I 1 6 V ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Purge canister, turbine discharge and Turbo
p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 A V e h i c l e s p e e d s e n s o r , A B S / E S P c o n t r o l u n i t .
F7 10 A P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
engine coolant level detector.
F8 25 A Starter motor control.
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
( D i e s e l ) .
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n
c o i l s , e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
h e a t e r s , f u e l p u m p , e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l :
e l e c t r o v a l v e s , h e a t e r s ) .
F11 40 A Air conditioning blower.
Page 189 of 313
11
!
i
193
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the negative
t e r m i n a l ( - ) .
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
clean them.
Connect one end of the green
or black cable to the negative
t e r m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 190 of 313
11
!
i
194
PRACTICAL INFORMATION A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
t h i s t i m e :
- it will be maintained for
10 minutes with the hands-free
kit of your PC Sound,
- it will be maintained for 10 minutes with the PC Nav or the PC Com
3D, then it will transfer to your
telephone depending on the
telephone model.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
l a m p s , e t c . f o r a m a x i m u m c o m b i n e d
duration of thirty minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the
e n g i n e a n d l e t i t r u n :
- for less than ten minutes, to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
fi v e m i n u t e s ,
- for more than ten minutes, to use the equipment for up to
a p p r o x i m a t e l y t h i r t y m i n u t e s .
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 191 of 313
11
!i

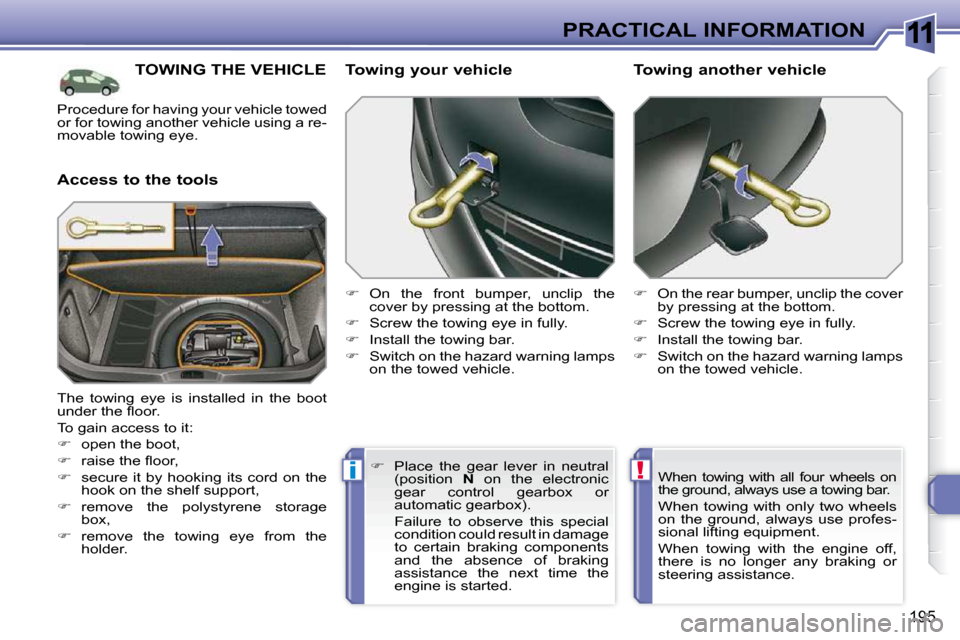

195
PRACTICAL INFORMATION
TOWING THE VEHICLE
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing at the bottom.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the boot
u n d e r t h e fl o o r .
T o g a i n a c c e s s t o i t :
open the boot,
r a i s e t h e fl o o r ,
secure it by hooking its cord on the
hook on the shelf support,
remove the polystyrene storage
b o x ,
remove the towing eye from the
holder. When towing with all four wheels on
the ground, always use a towing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the electronic
g e a r c o n t r o l g e a r b o x o r
a u t o m a t i c g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Procedure for having your vehicle towed
or for towing another vehicle using a re-
movable towing eye.
Page 192 of 313
11
!i

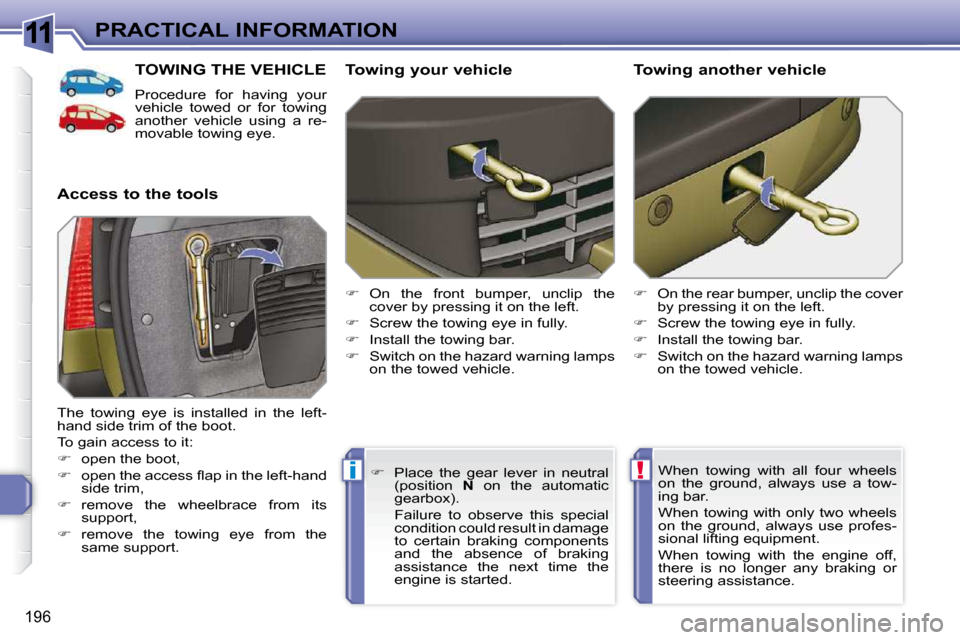

196
PRACTICAL INFORMATION
TOWING THE VEHICLE
Procedure for having your
vehicle towed or for towing
another vehicle using a re-
movable towing eye.
Access to the tools Towing your vehicle
On the front bumper, unclip the
cover by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
On the rear bumper, unclip the cover
by pressing it on the left.
Screw the towing eye in fully.
Install the towing bar.
Switch on the hazard warning lamps
on the towed vehicle.
Towing another vehicle
The towing eye is installed in the left-
hand side trim of the boot.
T o g a i n a c c e s s t o i t :
open the boot,
o p e n t h e a c c e s s fl a p i n t h e l e f t - h a n d
side trim,
remove the wheelbrace from its
support,
remove the towing eye from the
same support. When towing with all four wheels
on the ground, always use a tow-
ing bar.
When towing with only two wheels
on the ground, always use profes-
sional lifting equipment.
When towing with the engine off,
there is no longer any braking or
steering assistance.
Place the gear lever in neutral
(position N on the automatic
g e a r b o x ) .
Failure to observe this special condition could result in damage
to certain braking components
and the absence of braking
a s s i s t a n c e t h e n e x t t i m e t h e
engine is started.
Page 193 of 313
11
i
i
197
PRACTICAL INFORMATION
TOWING A TRAILER, A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
T h e m a x i m u m t o w i n g l o a d o n a l o n g
slope depends on the gradient and the
ambient temperature.
In all cases, pay attention to the coolant
temperature.
Side wind
Take into account the increased
sensitivity to side wind.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.
To lower the engine speed, reduce
your speed. Braking
Towing a trailer increases the braking
distance.
Tyres
Check the tyre pressures of the towing
vehicle and of the trailer, observing the
recommended pressures.
Lighting
Check the electrical lighting and
signalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
If the warning lamp and the
STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suitable for the attachment of a
trailer or caravan with additional lighting
and signalling.
Distribution of loads
Distribute the load in the trailer so
that the heaviest items are as close
a s p o s s i b l e t o t h e a x l e a n d t h e n o s e
w e i g h t a p p r o a c h e s t h e m a x i m u m
p e r m i t t e d w i t h o u t e x c e e d i n g i t .
Air density decreases with altitude, thus
reducing engine performance. Above
1 0 0 0 m e t r e s , t h e m a x i m u m t o w i n g l o a d
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Driving with a trailer subjects the towing
v e h i c l e t o m o r e s i g n i fi c a n t s t r e s s a n d i t s
driver must be particularly careful.
We recommend the use of genuine
PEUGEOT towbars and their har-
nesses that have been tested and
approved from the design stage
o f y o u r v e h i c l e , a n d t h a t t h e fi t -
ting of the towbar is entrusted to a
PEUGEOT dealer.
I f t h e t r a i l e r i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative
t h a t i t i s fi t t e d u s i n g t h e e l e c t r i c a l
pre-equipment installed at the rear
of the vehicle, in accordance with
the manufacturer's instructions.
