Page 223 of 313
12
i
226
TECHNICAL DATA
IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation and tracking of your vehicle. If the tyre pressures are too low,
this increases fuel consumption.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
A. V e h i c l e I d e n t i fi c a t i o n N u m b e r
(VIN)
under the bonnet.
This number is engraved on the bodywork near the damper support.
To gain access to it, raise the plastic cover.
B. VIN
on the windscreen lower
c r o s s m e m b e r .
This number is indicated on a self- adhesive label which is visible
through the windscreen.
C. Manufacturer's plate.
This plate is riveted onto the engine mounting.
or
D. Manufacturer's label.
This number is indicated on a self- d e s t r o y i n g l a b e l a f fi x e d t o t h e r i g h t
hand centre pillar. This plate/label also indicates the
kerb weight, the gross vehicle
weight (GVW) and the gross train
weight (GTW).
E. Tyre/paint label.
T h i s l a b e l i s a f fi x e d t o t h e f r o n t p i l l a r , on the driver's side.
It bears the following information:
- t h e t y r e i n fl a t i o n p r e s s u r e s w i t h a n d without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e i n fl a t i o n p r e s s u r e o f t h e s p a r e wheel,
- the paint colour code.
Page 262 of 313
267

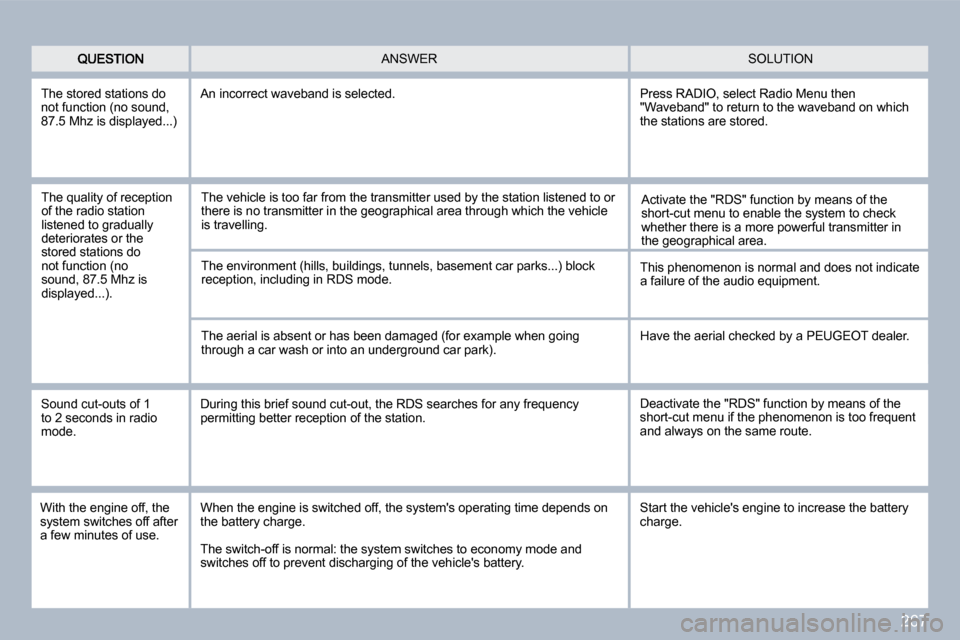

SOLUTION ANSWER
The stored stations do not function (no sound, 8 7 . 5 M h z i s d i s p l a y e d . . . )
An incorrect waveband is selected.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no s o u n d , 8 7 . 5 M h z i s d i s p l a y e d . . . ) .
Activate the "RDS" function by means of the short-cut menu to enable the system to check whether there is a more powerful transmitter in the geographical area.
Press RADIO, select Radio Menu then "Waveband" to return to the waveband on which the stations are stored.
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
T h e e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s . . . ) b l o c k reception, including in RDS mode.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequent and always on the same route.
With the engine off, the system switches off after a few minutes of use.
When the engine is switched off, the system's oper ating time depends on the battery charge.
T h e s w i t c h - o f f i s n o r m a l : t h e s y s t e m s w i t c h e s t o e c o n o m y m o d e a n d switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer. The aerial is absent or has been damaged (for exam ple when going t h r o u g h a c a r w a s h o r i n t o a n u n d e r g r o u n d c a r p a r k ) .
Page 312 of 313
Handbook Supplement
TRAJECTORY CONTROL SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP) Reactivation
131
If this warning lamp comes on in
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.
This also deactivates the emergency
braking assistance and the automatic
lighting of the hazard warning lamps.
Deactivation
Press the "ESP OFF" button, located
in the centre of the dashboard. This document describes the special
features of your 308 GTi.
Refer to the handbook for all other
d e s c r i p t i o n s a n d s p e c i fi c a t i o n s , a n d
also to the servicing booklet for petrol
engine servicing.
WELCOME
These systems are reactivated automa-
tically each time the ignition is switched
off.
You can also press the "ESP OFF"
button again to reactivate them
manually.
Page 313 of 313
12
!
TECHNICAL DATA
ENGINE AND GEARBOX
MODEL:
Model code: 4C...
5FU-8
PETROL ENGINE
1.6 litre THP 16V
200 bhp
Cubic capacity (cm 3
) 1 598
Bore x stroke (mm) 77 x 85.8
Max power: EU standard (kW) 147
Max power engine speed (rpm) 5 500
Max torque: EU standard (Nm) 275
Max torque engine speed (rpm) 1 700
Fuel Unleaded
Catalytic converter Yes
GEARBOX Manual
(6-speed)
OIL CAPACITIES (in litres)
E n g i n e ( w i t h fi l t e r r e p l a c e m e n t ) 4.25
Gearbox - Final drive 1.9
WEIGHTS (in kg)
Petrol engine
1.6 litre THP 16V
200 bhp
Gearbox Manual
Model code: 4C... 5FU-8
- Unladen weight 1 399
- Kerb weight 1 474
- Payload 451
- Gross vehicle weight (GVW) 1 850
- Gross train weight (GTW)
on a 12 % gradient 1 850
TOWING A TRAILER...
AN. 10308.A040
197
Y o u r v e h i c l e c a n n o t b e fi t t e d w i t h a t o w i n g d e v i c e .
The make-up of the sporty exhaust system does not
allow it.
