11
i
!
!
170

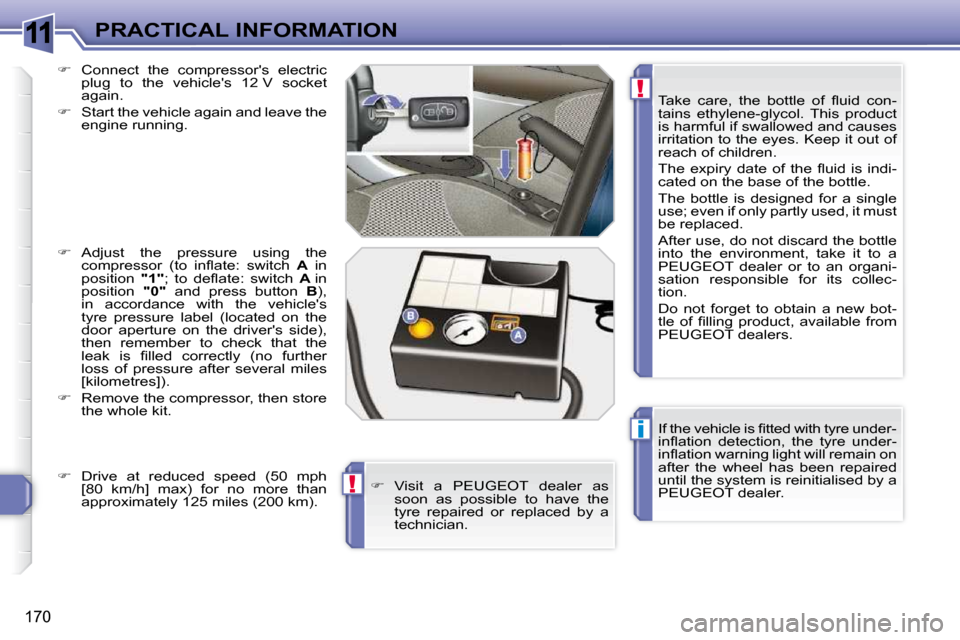

PRACTICAL INFORMATION I f t h e v e h i c l e i s fi t t e d w i t h t y r e u n d e r -
i n fl a t i o n d e t e c t i o n , t h e t y r e u n d e r -
i n fl a t i o n w a r n i n g l i g h t w i l l r e m a i n o n
after the wheel has been repaired
until the system is reinitialised by a
PEUGEOT dealer.
T a k e c a r e , t h e b o t t l e o f fl u i d c o n -
tains ethylene-glycol. This product
is harmful if swallowed and causes
i r r i t a t i o n t o t h e e y e s . K e e p i t o u t o f
reach of children.
T h e e x p i r y d a t e o f t h e fl u i d i s i n d i -
cated on the base of the bottle.
The bottle is designed for a single
use; even if only partly used, it must
be replaced.
After use, do not discard the bottle
into the environment, take it to a
PEUGEOT dealer or to an organi-
sation responsible for its collec-
tion.
Do not forget to obtain a new bot-
t l e o f fi l l i n g p r o d u c t , a v a i l a b l e f r o m
PEUGEOT dealers.
Connect the compressor's electric
plug to the vehicle's 12 V socket
again.
Start the vehicle again and leave the
engine running.
Adjust the pressure using the
c o m p r e s s o r ( t o i n fl a t e : s w i t c h A in
position "1" ; t o d e fl a t e : s w i t c h A in
position "0" and press button B ) ,
in accordance with the vehicle's
tyre pressure label (located on the
d o o r a p e r t u r e o n t h e d r i v e r ' s s i d e ) ,
then remember to check that the
l e a k i s fi l l e d c o r r e c t l y ( n o f u r t h e r
loss of pressure after several miles
[ k i l o m e t r e s ] ) .
Remove the compressor, then store
the whole kit.
Visit a PEUGEOT dealer as
soon as possible to have the
tyre repaired or replaced by a
technician.
Drive at reduced speed (50 mph
[ 8 0 k m / h ] m a x ) f o r n o m o r e t h a n
a p p r o x i m a t e l y 1 2 5 m i l e s ( 2 0 0 k m ) .
Page 171 of 313
11
ii
175
PRACTICAL INFORMATION
T y r e u n d e r - i n fl a t i o n d e t e c t i o n
T h e s p a r e w h e e l i s n o t fi t t e d w i t h
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer. Putting the wheel back in place
Store the corresponding tools in the
b o x a n d c l o s e t h e c o v e r .
P o s i t i o n t h e b o x o n t h e g r o u n d a n d
centre the spare wheel on it.
Position the black plastic centring
cone (on the steel or "space-saver"
t y p e w h e e l o n l y ) .
P a s s t h e h o o k i n t o t h e b o x c o v e r .
R a i s e t h e w h e e l / b o x a s s e m b l y
underneath the vehicle by tightening
the winch control nut using the
wheelbrace 1 .
Tighten fully and check that the
w h e e l i s h o r i z o n t a l l y fl u s h a g a i n s t
t h e fl o o r .
C l o s e t h e fl a p w i t h t h e e y e t o l o c k
the winch.
If you purchase a wheel of standard
size to replace the "space-saver"
type spare wheel, the spacer, lo-
cated underneath the vehicle, must
be removed. Consult a PEUGEOT
dealer.
Page 180 of 313
11
184
PRACTICAL INFORMATION

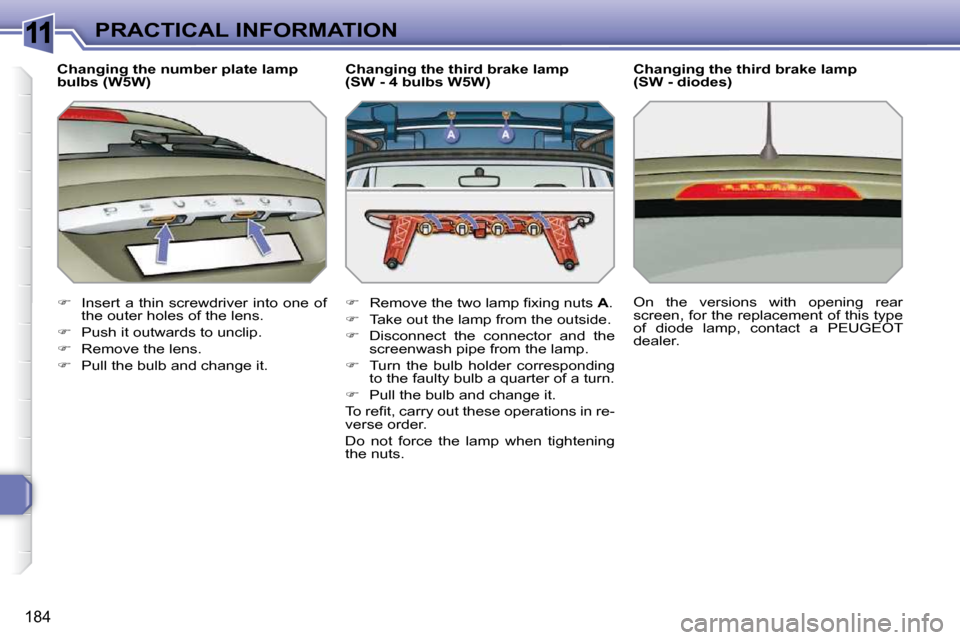

Changing the number plate lamp
bulbs (W5W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it. Changing the third brake lamp
(SW - diodes)
On the versions with opening rear
screen, for the replacement of this type
of diode lamp, contact a PEUGEOT
dealer.
Changing the third brake lamp
(SW - 4 bulbs W5W)
R e m o v e t h e t w o l a m p fi x i n g n u t s A .
Take out the lamp from the outside.
Disconnect the connector and the
screenwash pipe from the lamp.
Turn the bulb holder corresponding
to the faulty bulb a quarter of a turn.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Do not force the lamp when tightening
the nuts.
Page 181 of 313
11
!
i
185

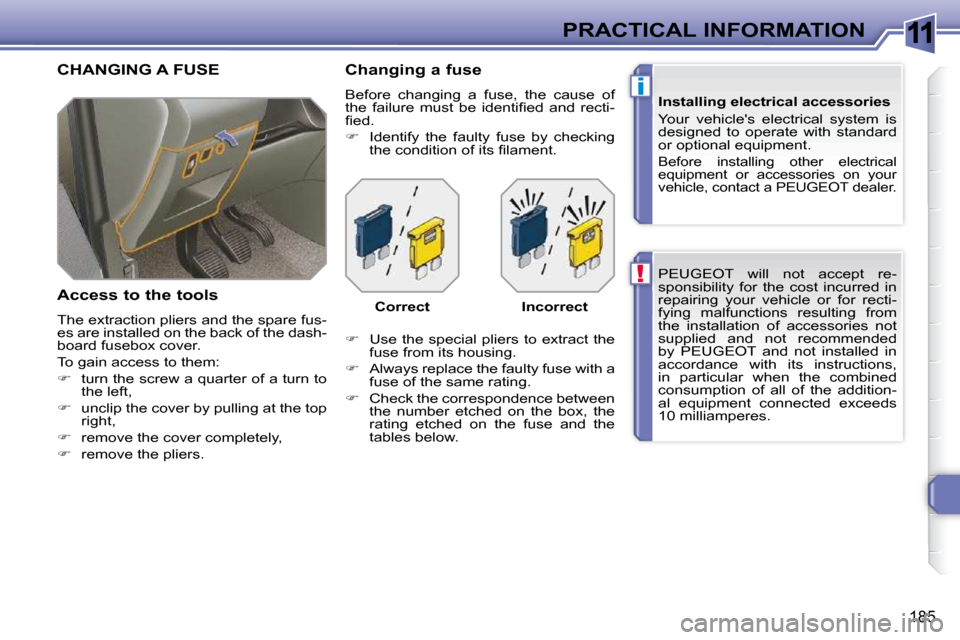

PRACTICAL INFORMATION PEUGEOT will not accept re-
sponsibility for the cost incurred in
repairing your vehicle or for recti-
fying malfunctions resulting from
the installation of accessories not
supplied and not recommended
by PEUGEOT and not installed in
accordance with its instructions,
in particular when the combined
consumption of all of the addition-
a l e q u i p m e n t c o n n e c t e d e x c e e d s
10 milliamperes.
Installing electrical accessories
Your vehicle's electrical system is
designed to operate with standard
or optional equipment.
B e f o r e i n s t a l l i n g o t h e r e l e c t r i c a l
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Access to the tools
T h e e x t r a c t i o n p l i e r s a n d t h e s p a r e f u s -
es are installed on the back of the dash-
b o a r d f u s e b o x c o v e r .
T o g a i n a c c e s s t o t h e m :
turn the screw a quarter of a turn to
the left,
unclip the cover by pulling at the top
right,
remove the cover completely,
remove the pliers. Changing a fuse
B e f o r e c h a n g i n g a f u s e , t h e c a u s e o f
t h e f a i l u r e m u s t b e i d e n t i fi e d a n d r e c t i -
fi e d .
Identify the faulty fuse by checking
t h e c o n d i t i o n o f i t s fi l a m e n t .
U s e t h e s p e c i a l p l i e r s t o e x t r a c t t h e
fuse from its housing.
Always replace the faulty fuse with a
fuse of the same rating.
Check the correspondence between
t h e n u m b e r e t c h e d o n t h e b o x , t h e
rating etched on the fuse and the
tables below.
Correct Incorrect
Page 184 of 313
11
188
PRACTICAL INFORMATION
Engine compartment fuses
T h e f u s e b o x i s p l a c e d i n t h e e n g i n e
compartment near the battery (left-hand
s i d e ) .
Access to the fuses
Unclip the cover.
Change the fuse (see corresponding
p a r a g r a p h ) .
W h e n y o u h a v e fi n i s h e d , c l o s e t h e
cover carefully to ensure sealing of
t h e f u s e b o x . Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit supply, injection pump and EGR
e l e c t r o v a l v e s ( 2 l H D I 1 6 V ) , i n j e c t o r s ( 2 l H D I 1 6 V ) .
F2 15 A Horn.
F3 10 A Front/rear wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Purge canister, turbine discharge and Turbo
p r e s s u r e r e g u l a t i o n e l e c t r o v a l v e s ( 1 . 6 l T H P 1 6 V ) ,
o i l v a p o u r h e a t e r ( 1 . 6 l T H P 1 6 V ) , d i e s e l h e a t e r
( 1 . 6 l H D I 1 6 V ) .
F6 10 A V e h i c l e s p e e d s e n s o r , A B S / E S P c o n t r o l u n i t .
F7 10 A P o w e r s t e e r i n g c o n t r o l u n i t , a u t o m a t i c g e a r b o x ,
engine coolant level detector.
F8 25 A Starter motor control.
F9 10 A Diagnostic socket, directional headlamps, air
fl o w s e n s o r ( D i e s e l ) , p a r t i c l e e m i s s i o n fi l t e r p u m p
( D i e s e l ) .
F10 30 A E n g i n e c o n t r o l u n i t a c t u a t o r s ( p e t r o l : i g n i t i o n
c o i l s , e l e c t r o v a l v e s , o x y g e n s e n s o r s , i n j e c t o r s ,
h e a t e r s , f u e l p u m p , e l e c t r o n i c t h e r m o s t a t ) ( D i e s e l :
e l e c t r o v a l v e s , h e a t e r s ) .
F11 40 A Air conditioning blower.
Page 189 of 313
11
!
i
193
PRACTICAL INFORMATION Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a 6 - s p e e d
e l e c t r o n i c g e a r c o n t r o l g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit
initialisation of the electronic sys-
tems. However, if problems are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the panoramic sunroof blind,
- the GPS satellite navigation
system.
Charging the battery using a
battery charger
Disconnect the battery from the
vehicle.
Follow the instructions for use
provided by the manufacturer of the
charger.
Reconnect starting with the negative
t e r m i n a l ( - ) .
Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
g r e e n i s h d e p o s i t ) , r e m o v e t h e m a n d
clean them.
Connect one end of the green
or black cable to the negative
t e r m i n a l ( - ) o f t h e s l a v e b a t t e r y B .
Connect the other end of the green
or black cable to the earth point C
on the broken down vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Page 190 of 313
11
!
i
194
PRACTICAL INFORMATION A fl a t b a t t e r y p r e v e n t s t h e e n g i n e
from starting (refer to the corre-
s p o n d i n g p a r a g r a p h ) .
If the telephone is being used at
t h i s t i m e :
- it will be maintained for
10 minutes with the hands-free
kit of your PC Sound,
- it will be maintained for 10 minutes with the PC Nav or the PC Com
3D, then it will transfer to your
telephone depending on the
telephone model.
ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
s u f fi c i e n t l e v e l o f c h a r g e i n t h e b a t t e r y .
After the engine has stopped, you can
still use functions such as the audio and
telematics system, windscreen wip-
ers, dipped beam headlamps, courtesy
l a m p s , e t c . f o r a m a x i m u m c o m b i n e d
duration of thirty minutes. Exiting economy mode
These functions are reactivated auto-
m a t i c a l l y n e x t t i m e t h e v e h i c l e i s d r i v e n .
In order to resume the use of these
functions immediately, start the
e n g i n e a n d l e t i t r u n :
- for less than ten minutes, to use t h e e q u i p m e n t f o r a p p r o x i m a t e l y
fi v e m i n u t e s ,
- for more than ten minutes, to use the equipment for up to
a p p r o x i m a t e l y t h i r t y m i n u t e s .
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
CHANGING A WIPER BLADE
Removing
Raise the corresponding wiper arm.
Unclip the wiper blade and remove it.
Fitting
Put the corresponding new wiper
blade in place and clip it.
Fold down the wiper arm carefully.
Before removing a front wiper
blade
Within one minute after switching off
the ignition, operate the wiper stalk
to position the wiper blades vertically
on the windscreen.
After fitting a front wiper blade
Switch on the ignition.
Operate the wiper stalk again to
park the wiper blades.
LOAD REDUCTION MODE
System which manages the use of cer-
tain functions according to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the heated rear screen...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
Page 234 of 313
239
7
8
1 0
9
1 1
0 3
Repeat steps 5 to 7 for the "Street" and "House number" functions.
To delete a destination; from steps 1 to 3, select "ChooChoose from last destinations". A long press on one of the destinations displays a list o list of actions from w h i c h y o u c a n s e l e c t :
Select the "Save to address book" function to record thord the address e n t e r e d i n a d i r e c t o r y fi l e . P r e s s O K t o c o n fi r m t h e s e l e c t i o n . e n t e r e d i n a d i r e c t o r y fi l e . P r e s s O K t o c o n fi r m t h e s e l e c t i o n . The PC Com 3D permits the recording of more than 4 0an 4 000 contact fi l e s .
To speed up the process, the post code can be enteredtered directly after selecting the "Postal code" function. Use the virtual keypad to enter the letters and digits. S e l e c t t h e r o u t e t y p e : "Fast route", "Short route", or " O p t i m i z e d r o u t e " a n d p r e s s O K t o c o n fi r m .
Then select "Start route guidance" a n d t h e p r e s s O K t o c o n fi r m .
It is also possible to select a destination via "Choose frose from address book" or "Choose from last destinations", by select ing ating a junction, a town centre, geographic coordinates, or directly on the "n the "Map".
CHOOSE FROM ADDRESS BOOK CHOOSE FROM LAST DST DESTINATIONS
START ROUTE GUIDANCE
It is possible to scroll the map using the 4-direction navigator. It is possible to select its orientation via the short-cut menu of the "Full screen map". Press OK then select " M a p S e t t i n g s " a n d c o n fi r m .
Select the road with the colour corresponding to the route chosen a n d p r e s s O K t o c o n fi r m a n d s t a r t guidance.
Turn the ring and select OK. P r e s s O K t o c o n fi r m .
DELETE ENTRY DELETE LISTE LIST
N A V I G A T I O N - G U I D A N C E
