101
VISIBILITY

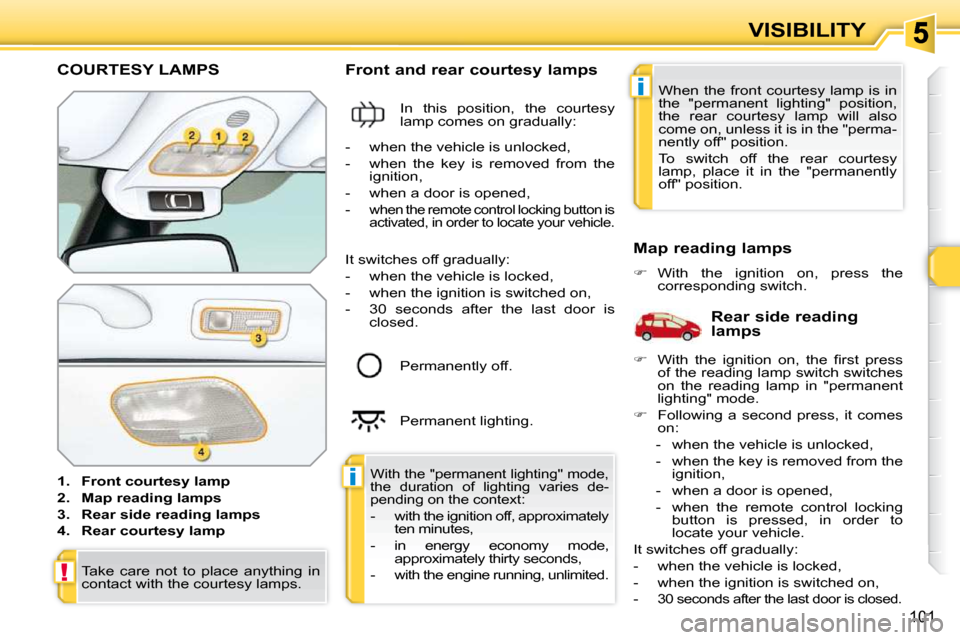

COURTESY LAMPS
1. Front courtesy
lamp
2. Map reading
lamps
3. Rear side reading
lamps
4. Rear courtesy
lamp Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
With the ignition on, press the
corresponding switch. With the "permanent lighting" mode,
the duration of lighting varies de-
pending on the context:
- with the ignition off, approximately ten minutes,
- in energy economy mode, approximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
-
when the remote control locking button is
activated, in order to locate your vehicle.
Permanently off.
Permanent lighting. When the front courtesy lamp is in
the "permanent lighting" position,
the rear courtesy lamp will also
come on, unless it is in the "perma-
nently off" position.
To switch off the rear courtesy
lamp, place it in the "permanently
off" position.
Rear side reading
lamps
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.
Take care not to place anything in
contact with the courtesy lamps.
W i t h t h e i g n i t i o n o n , t h e fi r s t p r e s s
of the reading lamp switch switches
on the reading lamp in "permanent
lighting" mode.
Following a second press, it comes
on:
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking button is pressed, in order to
locate your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
-
30 seconds after the last door is closed.
Page 107 of 313
i
i
113
FITTINGS

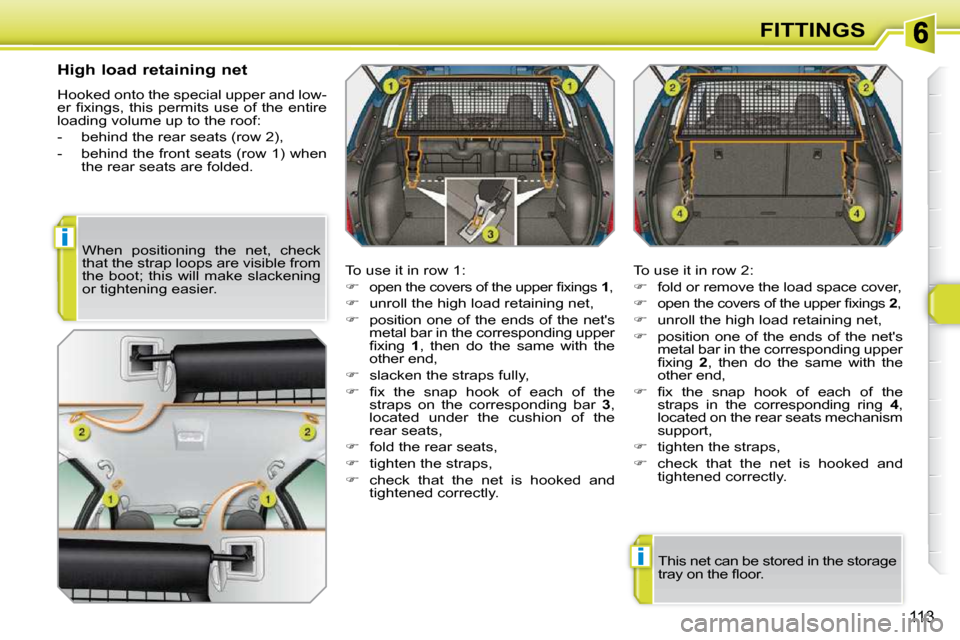

High load retaining net
Hooked onto the special upper and low-
e r fi x i n g s , t h i s p e r m i t s u s e o f t h e e n t i r e
loading volume up to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when the rear seats are folded.
To use it in row 1:
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 1 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding upper
fi x i n g 1 , then do the same with the
other end,
slacken the straps fully,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps on the corresponding bar 3 ,
located under the cushion of the
rear seats,
fold the rear seats,
tighten the straps,
check that the net is hooked and
tightened correctly. To use it in row 2:
fold or remove the load space cover,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 2 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding upper
fi x i n g 2 , then do the same with the
other end,
fi x t h e s n a p h o o k o f e a c h o f t h e
straps in the corresponding ring 4 ,
located on the rear seats mechanism
support,
tighten the straps,
check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
t h e b o o t ; t h i s w i l l m a k e s l a c k e n i n g
or tightening easier.
This net can be stored in the storage
t r a y o n t h e fl o o r .
Page 110 of 313
i
116
FITTINGS

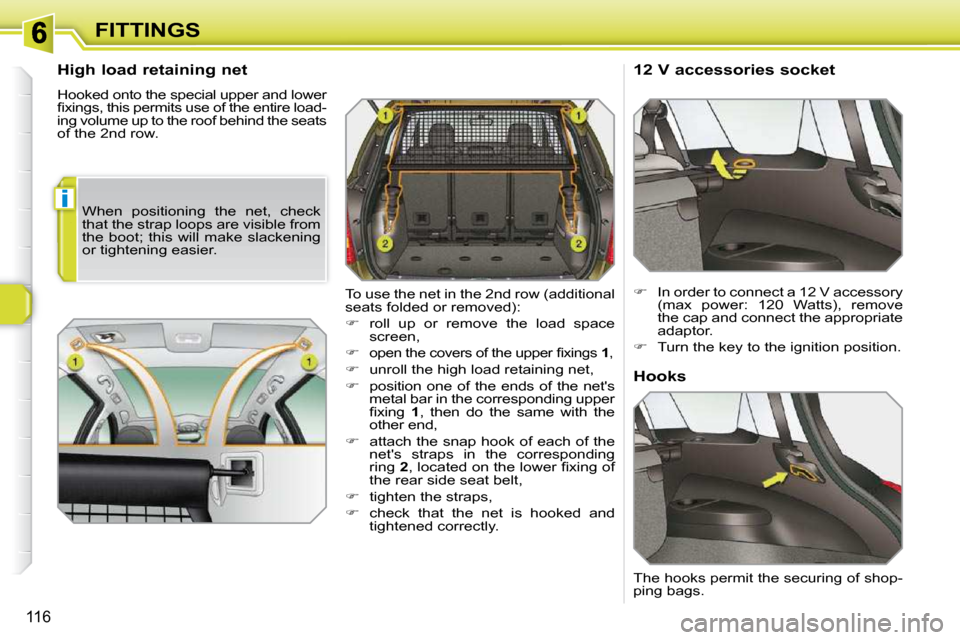

High load retaining net
Hooked onto the special upper and lower
fi x i n g s , t h i s p e r m i t s u s e o f t h e e n t i r e l o a d -
ing volume up to the roof behind the seats
of the 2nd row. 12 V accessories socket
In order to connect a 12 V accessory
( m a x p o w e r : 1 2 0 W a t t s ) , r e m o v e
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
To use the net in the 2nd row (additional
seats folded or removed):
roll up or remove the load space
screen,
o p e n t h e c o v e r s o f t h e u p p e r fi x i n g s 1 ,
unroll the high load retaining net,
position one of the ends of the net's
metal bar in the corresponding upper
fi x i n g 1 , then do the same with the
other end,
attach the snap hook of each of the
net's straps in the corresponding
ring 2 , l o c a t e d o n t h e l o w e r fi x i n g o f
the rear side seat belt,
tighten the straps,
check that the net is hooked and
tightened correctly. Hooks
The hooks permit the securing of shop-
ping bags.
When positioning the net, check
that the strap loops are visible from
t h e b o o t ; t h i s w i l l m a k e s l a c k e n i n g
or tightening easier.
Page 111 of 313
!i
117
FITTINGS

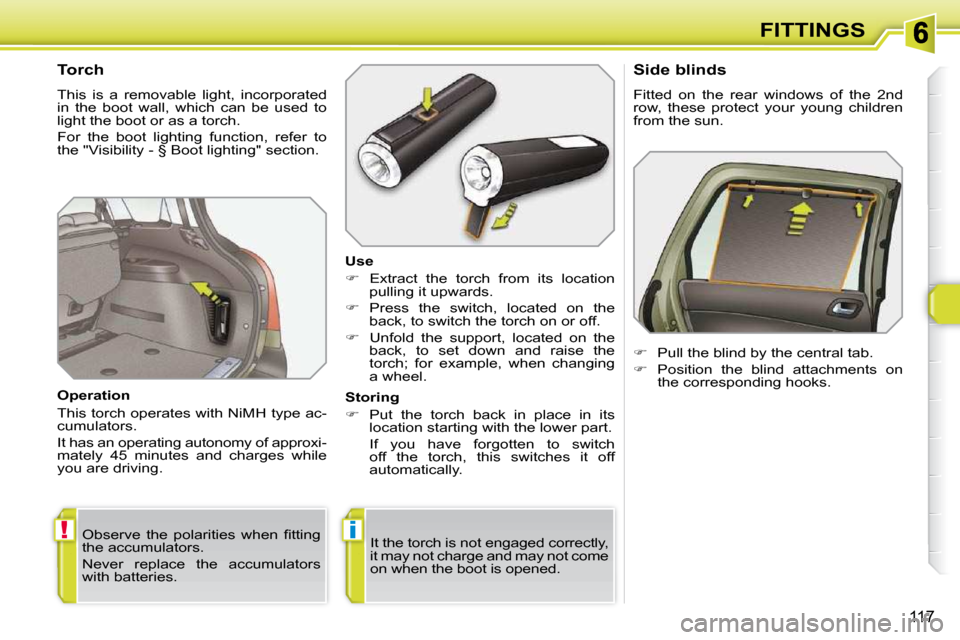

Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
For the boot lighting function, refer to
t h e " V i s i b i l i t y - § B o o t l i g h t i n g " s e c t i o n .
Operation
This torch operates with NiMH type ac-
cumulators.
I t h a s a n o p e r a t i n g a u t o n o m y o f a p p r o x i -
mately 45 minutes and charges while
you are driving. Use
E x t r a c t t h e t o r c h f r o m i t s l o c a t i o n
pulling it upwards.
Press the switch, located on the
back, to switch the torch on or off.
U n f o l d t h e s u p p o r t , l o c a t e d o n t h e
back, to set down and raise the
t o r c h ; f o r e x a m p l e , w h e n c h a n g i n g
a wheel.
Storing
Put the torch back in place in its
location starting with the lower part.
If you have forgotten to switch off the torch, this switches it off
automatically. Side blinds
Fitted on the rear windows of the 2nd
row, these protect your young children
from the sun.
Pull the blind by the central tab.
Position the blind attachments on
the corresponding hooks.
O b s e r v e t h e p o l a r i t i e s w h e n fi t t i n g
the accumulators.
Never replace the accumulators
with batteries. It the torch is not engaged correctly,
it may not charge and may not come
on when the boot is opened.

Page 125 of 313
!
i
i
i
129
SAFETY
TYRE UNDER-INFLATION DETECTION
System which automatically and contin-
uously checks the pressure of the tyres
while driving. All repairs and changing of tyres on
a w h e e l fi t t e d w i t h t h i s s y s t e m m u s t
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
b y y o u r v e h i c l e ( e x a m p l e : fi t t i n g
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not eliminate the
need to have the tyre pressures
checked regularly (refer to the
" I d e n t i fi c a t i o n m a r k i n g s " s e c t i o n ) t o
ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be checked cold, at least once a month. Re-
member to check the pressure of
the spare wheel.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
S e n s o r s fi t t e d i n e a c h v a l v e t r i g g e r a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal,
to locate the wheel concerned.
Check the tyre pressures as soon
as possible.
This check must be carried out when
the tyres are cold.
Flat tyre The
STOP warning lamp comes
on and/or this warning lamp
is displayed on the instrument
panel, accompanied by an au-
dible signal and a message on
the multifunction screen locat-
ing the wheel concerned.
Stop as soon as it is safe to do so,
avoiding any sudden movement of
the steering wheel and the brakes.
Repair or change the damaged
w h e e l ( p u n c t u r e d o r v e r y d e fl a t e d
tyre), and have the tyre pressure
checked as soon as possible.
Puncture
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning lamp is displayed
on the instrument panel and/or
a message appears on the mul-
tifunction screen, accompanied
by an audible signal, to locate the wheel
or wheels which are not detected or to
indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
s e n s o r a r e fi t t e d .
If your vehicle is equipped with a
s p a r e w h e e l , t h i s i s n o t fi t t e d w i t h
a sensor.
Page 127 of 313
!
SAFETY
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
repair and assembly procedures
used by PEUGEOT dealers.
After an impact, have these systems
checked by a PEUGEOT dealer.
Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
in the centre of the dashboard.
If this warning lamp comes on on
the instrument panel and the indi-
cator lamp on the button comes
on, this indicates that the ASR and
ESP systems are deactivated.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h)
(except in the case of the 1.6 l THP 16V
175 bhp petrol engine).
Press the "ESP OFF" button again
to reactivate them manually. Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the multi-
function screen, this indicates a
malfunction of these systems.
Have the systems checked by a PEUGEOT
dealer.
TRAJECTORY CONTROL SYSTEMS
Activation
These systems are activated automati-
cally each time the vehicle is started.
They come into operation in the event
of a grip or trajectory problem.
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel.
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
trajectory required by the driver, within
the limits of the laws of physics.
Page 129 of 313
133
SAFETY
Seat belt not fastened/unfastened
warning lamp When the ignition is switched
on, this warning lamp comes
on, either on the instrument
panel or on the seat belt and
passenger's front airbag warning lamps
display, if the driver and/or the front pas-
senger has not fastened their seat belt.
From approximately 12 mph (20 km/h)
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible sig-
nal of increasing volume. Once these
two minutes have elapsed, this warning
lamp remains on until the driver and/or
the front passenger fastens their seat
belt.
* According to version and/or country.
Seat belt not fastened/unfastened
warning lamps display
1. Front seat belts not fastened/
unfastened warning lamp.
2. Driver's seat belt not fastened/
unfastened warning lamp.
3. Front passenger's seat belt not
fastened/unfastened or unfastened
warning lamp * .
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened. Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t -
ted with a three-point seat
belt with pretensioner and
for the side seats a force
limiter.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar
to the top of the backrest to prevent
the tongue from knocking against
the side trim.
Page 130 of 313
134
SAFETY
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar
to the top of the backrest to prevent
the tongue from knocking against
the side trim. Seat belt unfastened warning lamp
This warning lamp comes on,
either on the instrument panel
or on the seat belt and pas-
senger's front airbag warning
lamps display, when one or more rear
passengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n -
utes accompanied by an audible sig-
nal of increasing volume. Once these
two minutes have elapsed, this warning
lamp remains on until the one or more
rear passengers fasten their seat belt.
1. Rear seat belts unfastened warning
lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt unfastened warning lamps
display
When the ignition is switched on, with
the engine running or when the vehicle
is moving at less than 12 mph (20 km/h),
the corresponding warning lamps
4 , 5
and 6 come on in red for approximately
30 seconds, if the seat belt is not fas-
tened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning lamp 4 , 5 or 6 comes on
in red, accompanied by an audible sig-
nal and a message on the multifunction
screen, if a rear passenger has unfas-
tened their seat belt.
2nd row rear seat belts
T h e r e a r s e a t s a r e e a c h fi t -
ted with a three-point seat
belt, with force limiter and, for the outer
seats, a pretensioner.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
