2009.5 Citroen C8 Owner's Manual

9.84
The traffi c announcement (TA) is displayed. I do not receive any traffi c information.
Tune to a radio station which broadcasts traffi c information. The radio station is not part of the regional traffi c information network.
QUESTION SOLUTION RESPONSE
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used b y the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the RDS function if the phenomenon is too frequent and always on the same route.
With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipme nt operating time depends on the battery charge. The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected. Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which the stations are stored.
The message "the audio system is overheated" appears on the display.
Switch the audio system off for a few minutes to allow the system to cool. In order to protect the installation if the surrounding temperature is too high, the audio equipment switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.

QUESTION SOLUTION RESPONSE
The TRAFFIC INFO box is ticked. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways , ...) are listed for the traffi c information.
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is dependent on the traffi c information available.
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
Does the emergency call function work without a SIM card?
No, European regulations impose the presence of a SIM card in order to make an emergency call. Insert a valid SIM card in the slot on the NaviDrive.
My SIM card is not recognised. The NaviDrive accepts 3.3 V SIM cards, the old 5 V and 1.8 V SIM cards are not recognised. Contact your telephone operator.
After changing a wheel, the system loses its location.
The NaviDrive uses the wheel rotation information to improve the GPS locating function. If a wheel is changed or defl ates suddenly, the system recalculates the location. For approximately ten mi nutes, this recalculation may affect the quality of the locating function.
Wait until the system has completed its recalculation. The location on the map is incorrect or inaccurate.
The table below groups together the answers to the most frequently asked questions concerning your Na viDrive.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 4 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 4 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel, ...) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.

9.86
QUESTION SOLUTION RESPONSE
There is a long waiting time after inserting a CD or SD card.
When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone's Bluetooth function may be deactiva ted or the equipment may not be visible. - Check that your telephone's Bluetooth function is activated. - Check that your telephone is visible.
The table below groups together the answers to th e most frequently asked questions concerning your M yWay.
The route calculation is not successful. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a toll motorway). Check the exclusion criteria.
QUESTION SOLUTION RESPONSE

9.419.41
The MyWay is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of operate in your vehicle. If it is to be installed in another le. If it i
the system.
This MyWay equipment will become available DURING THE COURSE OF THE YEAR .
MyWay
CONTENTS

9.42
1
5
10
01
2
346
13
11
9
1415
78121
6
1. On/Off. CD/SD card pause, mute for the radio. Long press: reinitialisation of the system.
2. Volume adjustment.
3. Access to the RADIO menu. Displaying of the list o f stations.
4. Access to the MUSIC menu. Displaying of the tracks .
7. Access to the MODE menu. Selection of the successive displaying of: Radio, Map, NAV(if navigation is in progress), Telephone (if a conversation is in progress), Trip Computer. Long press: displaying of a black screen (DARK).
8. Access to the NAVIGATION menu. Displaying of the l ast destinations.
9. Access to the TRAFFIC menu. Displaying of the current traffi c alerts.
10. ESC: abandon the operation in progress.
11. CD eject.
12. Selection of the previous/next radio station from the list. Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
13. Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
14. Buttons 1 to 6: Selection of the stored radio station. Selection of the CD in the CD changer. Long press: storing of the current radio station.
15. SD card reader.
16. Dial for selection from the display on the screen and according to the context of the menu. Short press: confi rmation.
FIRST STEPS
MyWay CONTROL PANEL
3 - 4 Long press: access to the settings: front/rear and left/right balance, bass/treble, equalizer, loudness, automati c volume adjustment, initialise the settings.
5. Access to the SETUP menu. Long press: access to the GPS coverage and the demonstration mode.
6. Access to the PHONE menu. Displaying of the call l ist.

01
9.43
FIRST STEPS
Opening of the RADIO or MUSIC menu depending on the source currently in use.
Opening of the Trip Computer menu.
When not in communication: displaying ofthe Telephone menu, make a call from thetelephone number selected. Pick up (incoming call). Hang up (call in progress).
Selection andconfi rmation.
On the menus and lists, a long press on certain functions permits access to additional menus. For example: a long press on a navigation destination permits saving of this destination to the address book.
There is no long press on the buttons of the additional control (with the exception of the NAV button and the central dial).
This symbol present on the pages of this handbook specifi es that the control panel button is also available via the additional control.
ADDITIONAL CONTROL

9.44
02 GENERAL OPERATION
For a detailed global view of the menus available, refer to section 10.
Press the MODE button several times in succession for access to the following menus:
For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no addition al product.
RADIO/MUSIC MEDIA PLAYERS
TELEPHONE(If a conversation is in progress)
TRIP COMPUTER TRIP COMPUTERTRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If guidance is in progress)
SETUP: system language, date and time, display, vehicle settings, unit and system settings,"Demo mode".
TRAFFIC: TMC information and messages.

02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1

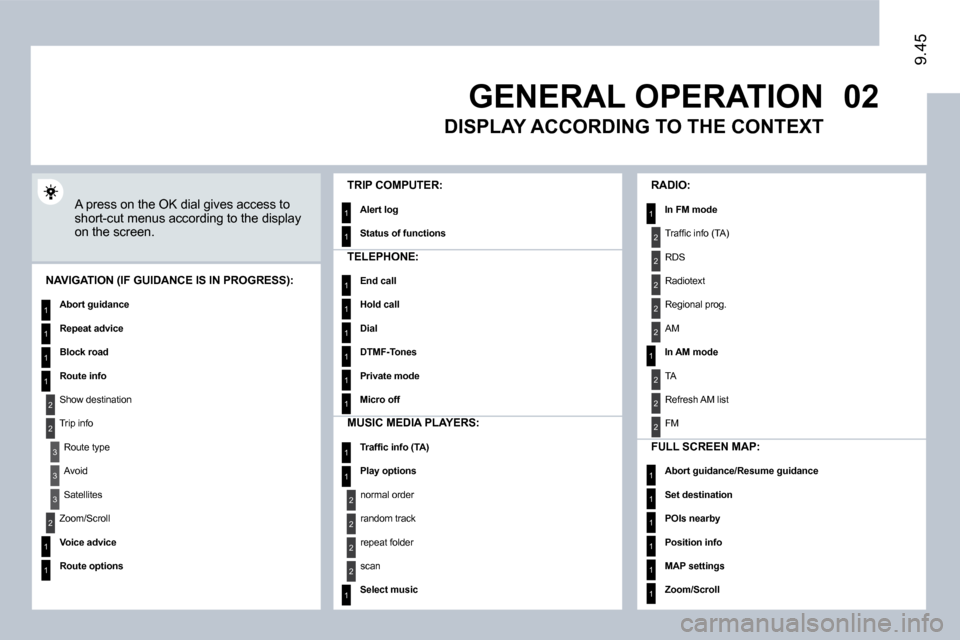

9.45
GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the display on the screen.
TRIP COMPUTER:
Alert log
Status of functions
MUSIC MEDIA PLAYERS:
Traffi c info (TA)
Play options
normal order
random track
repeat folder
scan
Select music
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
Abort guidance
Repeat advice
Block road
Route info
Show destination
Trip info
Route type
Avoid
Satellites
Zoom/Scroll
Voice advice
Route options
RADIO:
In FM mode
Traffi c info (TA)
RDS
Radiotext
Regional prog.
AM
In AM mode
TA
Refresh AM list
FM
FULL SCREEN MAP:
Abort guidance/ Resume guidance
Set destination
POIs nearby
Position info
MAP settings
Zoom/Scroll
TELEPHONE:
End call
Hold call
Dial
DTMF-Tones
Private mode
Micro off
DISPLAY ACCORDING TO THE CONTEXT
