2009.5 Citroen C8 Owner's Manual

136
Changing a wiper blade
CHANGING A WINDSCREEN
WIPER BLADE
- Reconnect the windscreen-wash pipe and push back the wiper arm.

To return the windscreen wipers
to their normal position, switch on
the ignition and operate the wipers
stalk. Placing the wiper blades
in the special position
- Less than a minute after switching
off the ignition, operate the wipers
stalk to position the wiper blades
along the windscreen uprights
(special position).
Changing a windscreen wiper blade
- Lift the wiper arm, then disconnect the windscreen-wash pipe.
- Unclip the blade and remove it.
- Fit the new blade. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.

137
TROUBLESHOOTING
7
Having your vehicle towed
From the rear
- unclip the top of the cover using a coin,
- screw in the removable towing eye until it locks.
TOWING YOUR VEHICLE
Special features of the
automatic gearbox
When being towed with four wheels on
the road, it is essential to observe the
following rules:
- selector lever in position N ,
- tow the vehicle at a speed below 30 mph (50 km/h) over a distance
limited to 30 miles (50 km)
maximum,
- do not add oil to the gearbox.
When towing with the engine switched
off, there is no braking or steering
assistance.
Without lifting (4 wheels on the road)
You should always use a towbar.
The removable towing eye is inside the
engine compartment.
From the front
- unclip the cover by pressing the
bottom part,
- screw in the removable towing eye until it locks. Lifting (2 wheels on the road only)
It is preferable to raise the vehicle
using professional lifting equipment.
VEHICLES FITTED WITH A
MANUAL GEARBOX
(diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position. Failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance the next time the
engine is started.
Put the gear lever in neutral.
Failure to observe this rule may
result in damage to certain
components.

Petrol and Diesel technical data
138

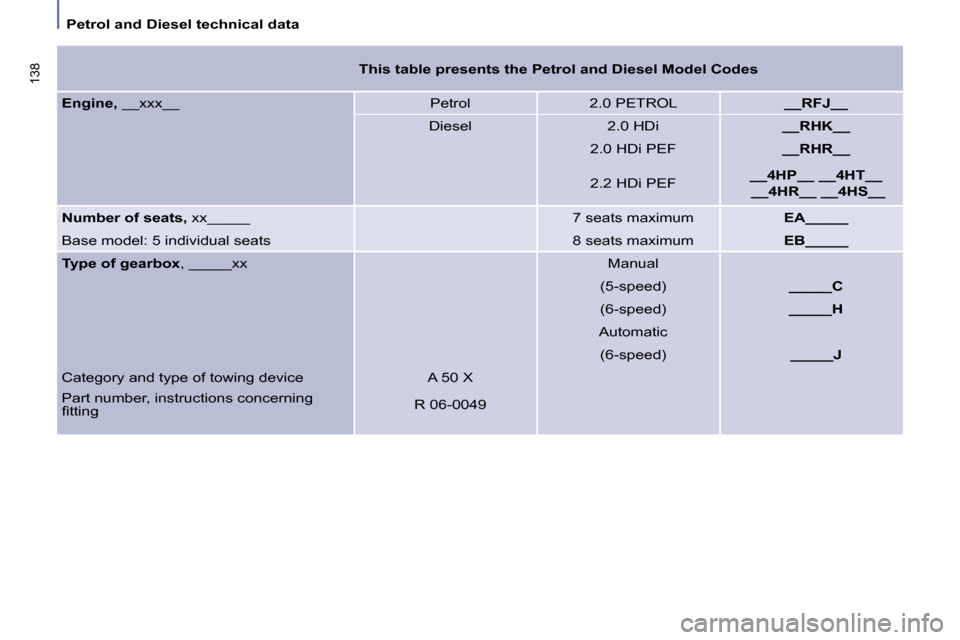

This table presents the Petrol and Diesel Model Codes

Engine, __xxx__ Petrol 2.0 PETROL __RFJ__
Diesel 2.0 HDi __RHK__
2.0 HDi PEF __RHR__
2.2 HDi PEF
__4HP__ __4HT__
__4HR__ __4HS__

Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____

Type of gearbox , _____xx Manual
(5-speed) _____C
(6-speed) _____H
Automatic
(6-speed) _____J
Category and type of towing device A 50 X

Part number, instructions concerning
fi tting R 06-0049

139
Petrol and Diesel technical data
TECHNICAL DATA
8

PETROL ENGINE

Model codes
E_RFJ__

Engines
2.0 PETROL
Manual (5-speed)
Power (bhp) 140
Max. power: EU standard (KW) 103
Capacity (cm
3 ) 1 997
Bore x stroke (mm) 85 x 88
Number of valves 16
Max. power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 200
Max. torque engine speed (rpm) 4 000
Fuel RON 95 - RON 98
Catalytic converter Yes
Electronic injection Yes

Oil capacities (in litres)
Engines (with fi lter replacement) 5.0

PETROL CONSUMPTION
As per EC Directive 80/1268 (as amended) in MPG (li tres/100 km)

Model codes Engines Gearbox Urban driving
Extra-urban
driving
Mixed driving
Emission of
CO2 by mass
(g/km)

E_RFJ__ 2.0 PETROL Manual 12.0 7.3 9.0 213
The consumption values, presented here, are the values communica ted at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the
accessories.

Petrol and Diesel technical data
138
This table presents the Petrol and Diesel Model Codes

Engine, __xxx__ Petrol 2.0 PETROL __RFJ__
Diesel 2.0 HDi __RHK__
2.0 HDi PEF __RHR__
2.2 HDi PEF
__4HP__ __4HT__
__4HR__ __4HS__

Number of seats, xx_____ 7 seats maximum EA_____
Base model: 5 individual seats 8 seats maximum EB_____

Type of gearbox , _____xx Manual
(5-speed) _____C
(6-speed) _____H
Automatic
(6-speed) _____J
Category and type of towing device A 50 X

Part number, instructions concerning
fi tting R 06-0049

Petrol and Diesel technical data
142 DIESEL ENGINES

Model codes E_RHKH E_RHRH

E_4H TH/PH E_4H RJ/SJ

Engines
2.0 HDi 2.0 HDi PEF 2.2 HDi PEF
Manual Manual Manual Automatic
(6-speed) (6-speed)
(6-speed)
Power (bhp) 120 136 163 170
Max. power: EU standard (KW) 88 100 125/120 120/ 125
Capacity (cm
3 ) 1 997 1 997 2 179
Bore x stroke (mm) 85 x 88 85 x 88 85 x 96
Number of valves 16 16 16
Max. power engine speed (rpm) 4 000 4 000 4 000
Max. torque: EU standard (Nm) 300 320 370 400
Max. torque engine speed (rpm) 2 000 2 000 1 500 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particle emission fi lter (PEF) No Yes Yes
Electronic injection Yes Yes Yes

Oil capacities (in litres)

Engines (with fi lter replacement) 5 5 5

139
Petrol and Diesel technical data
TECHNICAL DATA
8

PETROL ENGINE

Model codes
E_RFJ__

Engines
2.0 PETROL
Manual (5-speed)
Power (bhp) 140
Max. power: EU standard (KW) 103
Capacity (cm
3 ) 1 997
Bore x stroke (mm) 85 x 88
Number of valves 16
Max. power engine speed (rpm) 6 000
Max torque: EU standard (Nm) 200
Max. torque engine speed (rpm) 4 000
Fuel RON 95 - RON 98
Catalytic converter Yes
Electronic injection Yes

Oil capacities (in litres)
Engines (with fi lter replacement) 5.0

PETROL CONSUMPTION
As per EC Directive 80/1268 (as amended) in MPG (li tres/100 km)

Model codes Engines Gearbox Urban driving
Extra-urban
driving
Mixed driving
Emission of
CO2 by mass
(g/km)

E_RFJ__ 2.0 PETROL Manual 12.0 7.3 9.0 213
The consumption values, presented here, are the values communica ted at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of the
accessories.

143
Petrol and Diesel technical data
TECHNICAL DATA
8
The consumption values, presented here, are the values communicated at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use of
accessories.
DIESEL CONSUMPTION
As per EC Directive 80/1268 (as amended) in MPG (litres/100 km)

Model codes Engines Gearbox Urban driving
Extra-urban
driving
Mixed driving
Emission
of CO
2 by
mass (g/km)

E_RHKH 2.0 HDi Manual 6 8.8 5.8 6.9 182

E_RHRH 2.0 HDi PEF Manual 6 9.0 6.0 7.1 188

E_4HTH

2.2 HDi PEF Manual 6 9.2 6.1 7.2 191

E_4HPH

E_4HRJ
Automatic 6 11 6.6 8.2 218

E_4HSJ
