8-6
1
2
3
4
5
6
78
9
10
11

10
*
Swingarm pivots

Check operation and for excessive play, and
replace bearings if necessary.

Lubricate with molybdenum disulfide grease.
√√√
11
*
Upper and lower
arm pivots


Lubricate with lithium-soap-based grease.
√√√
12 Drive chain

Check chain slack and adjust if necessary.

Check rear wheel alignment and correct if necess-
sary.

Clean and lubricate.
√√√√√
13
*
Drive chain rollers


Check for wear and replace if necessary.
√√√
14
*
Chassis fasteners


Make sure that all nuts, bolts, and screws are
properly tightened.
√√√√√
15
*
Shock absorber
assemblies


Check operation and correct if necessary.

Check for oil leakage and replace if necessary.
√√√
16
*
Rear suspension
relay arm and con-
necting arm pivot-
ing points


Check operation and correct if necessary.

Lubricate with lithium-soap-based grease.
√√√√
17
*
Steering shaft


Lubricate with lithium-soap-based grease.
√√√
18
*
Steering system


Check operation and repair or replace if damaged.

Check toe-in and adjust if necessary.
√√√√√
19
*
Engine mount


Check for cracks or other damage, and replace if
necessary.
√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320

8-7
1
2
3
4
5
6
78
9
10
11

20 Engine oil

Change.

Check ATV for oil leakage, and correct if neces-
sary.
√ √√√
21Engine oil filter ele-
ment

Clean or replace if necessary.
√√√
22 Cooling system

Check coolant level and ATV for coolant leakage,
and correct if necessary.
√√√√√

Replace coolant. Every 2 years
23
*
Moving parts and
cables

Lubricate.
√√√√
24
*
Throttle lever hous-
ing and cable


Check operation and correct if necessary.

Check throttle cable free play and adjust if neces-
sary.

Lubricate throttle lever housing and cable.
√√√√√
25
*
Front and rear brake
switches

Check operation and correct if necessary.
√√√√√
26
*
Lights and switches

Check operation and correct if necessary.

Adjust headlight beams.
√√√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth 1 3 6 6 12
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320

8-8
1
2
3
4
5
6
78
9
10
11

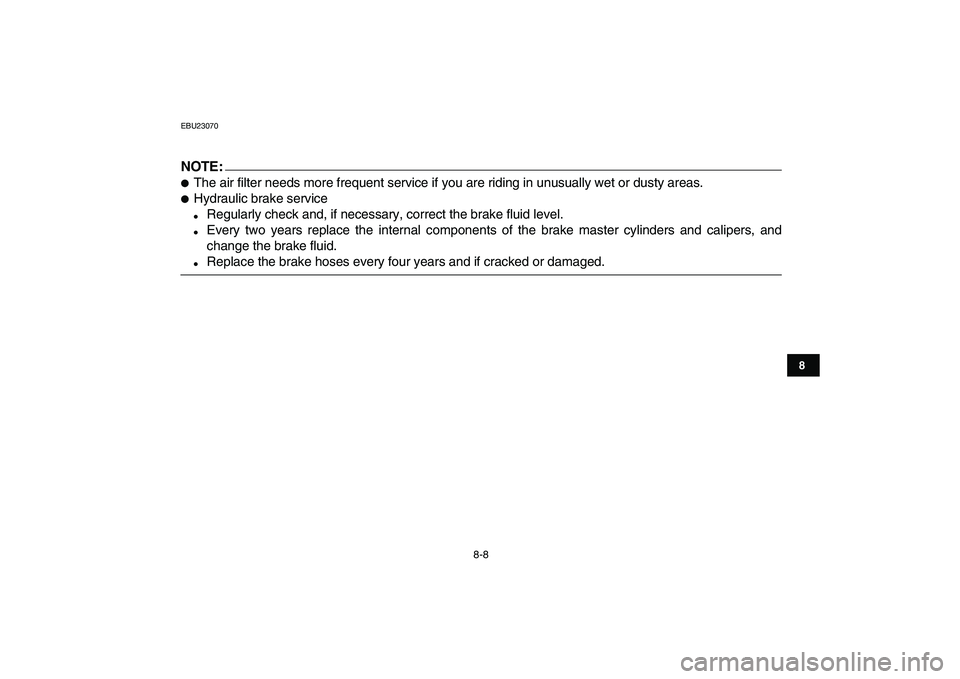

EBU23070
NOTE:


The air filter needs more frequent service if you are riding in unusually wet or dusty areas.

Hydraulic brake service

Regularly check and, if necessary, correct the brake fluid level.

Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.

Replace the brake hoses every four years and if cracked or damaged.

8-9
1
2
3
4
5
6
78
9
10
11

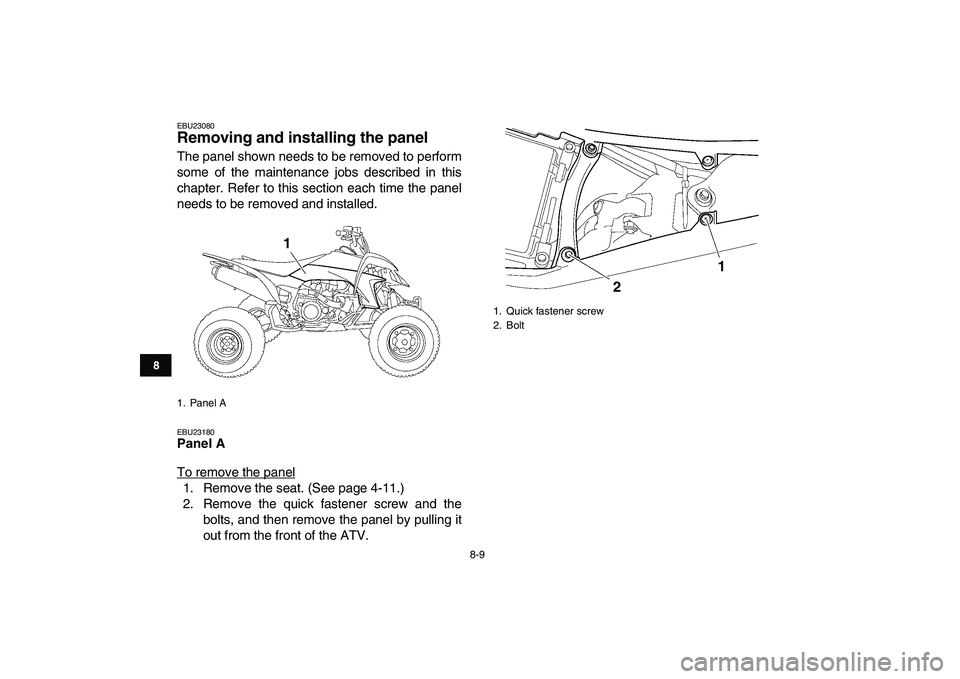

EBU23080
Removing and installing the panel
The panel shown needs to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time the panel
needs to be removed and installed.
EBU23180
Panel A
To remove the panel
1. Remove the seat. (See page 4-11.)
2. Remove the quick fastener screw and the
bolts, and then remove the panel by pulling it
out from the front of the ATV.

1. Panel A
1

1. Quick fastener screw
2. Bolt
1
2

8-10
1
2
3
4
5
6
78
9
10
11

To install the panel1. Place the panel in the original position, and
then install the quick fastener screw and the
bolts.
2. Install the seat.
EBU23241
Checking the spark plug
The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
1. Bolt
1

1. Projection
2. Slot
1
1 22

8-11
1
2
3
4
5
6
78
9
10
11

dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the seat. (See page 4-11.)
2. Remove the bolts and the quick fastener
screws shown.
3. Remove the fuel tank cap by turning it coun-
terclockwise.
WARNING
EWB01870

Always turn off the engine before removing
the fuel tank cap.

Do not remove the fuel tank cap immediately
after the engine has been running and is still
very hot.

Do not spill gasoline on the engine, exhaust
pipe or muffler.

Never remove the fuel tank cap while smok-
ing, or in the vicinity of sparks, open flames,
or other sources of ignition such as the pilot
lights of water heaters and clothes dryers.
4. Pull the panel backward, and then remove the
panel.
5. Install the fuel tank cap by turning it clockwise.
6. Remove the bolt, lift the rear of the fuel tank,
and then tilt it back.
1. Panel
2. Bolt
3. Quick fastener screw
4. Fuel tank cap
2
4
3
1

8-12
1
2
3
4
5
6
78
9
10
11

7. Remove the spark plug cap.CAUTION:
ECB00390
Do not use any tools to remove or install the
spark plug cap, otherwise the ignition coil cou-
pler may be damaged. The spark plug cap may
be difficult to remove because the rubber seal
on the end of the cap fits tightly. To remove the
spark plug cap, simply twist it back and forth
while pulling it out; to install it, twist it back and
forth while pushing it in.
8. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
1. Bolt
1

1. Spark plug cap
1

8-13
1
2
3
4
5
6
78
9
10
11

kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
NOTE:

If the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.
2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
To install the spark plug
1. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
1. Spark plug wrench
1

Specified spark plug:
NGK/CR8E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
1. Spark plug gap
