IMPORTANT MANUAL INFORMATION
EBU17341FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
Failure to follow WARNING instructions could result in severe injury
or death
to the ATV operator, a bystander, or a person inspecting or
repairing the ATV.
A CAUTION indicates special precautions that must be taken to avoid
damage to the ATV.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:
NOTE:
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM
Page 23 of 134
4-1
4
EBU17731
INSTRUMENT AND CONTROL FUNCTIONS
EBU17760Main switch The positions of the main switch are as follows:
ON
All electrical systems are supplied with power. The
headlights and taillight come on when the light
switch is on, and the engine can be started. The
key cannot be removed.
OFF
All electrical systems are off. The key can be re-
moved.
1. Main switch
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM
Page 52 of 134

6-7
6
EBU20900Parking on a slope
WARNING
EWB00870Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the ATV transversely across the
incline, apply the parking brake, stop the en-
gine, shift into first gear, and then block the
front and rear wheels with rocks or other ob-
jects.Do not park the ATV at all on hills that are so
steep you could not walk up them easily.
1. Bring the ATV to a stop by applying the front
brake.
2. With the front and rear brake applied, pull the
clutch lever, shift into the neutral position, re-
lease the clutch lever, and then apply the
parking brake.
3. Stop the engine by setting the engine stop
switch to “”.
4. With the front and rear brakes applied, pull the
clutch lever, shift into first gear, and then re-
lease the clutch lever, brake lever and brake
pedal.NOTE:Make sure that the neutral indicator light goes off.
5. Turn the key to “OFF”.
1. Locked positionU5YT64E0.book Page 7 Monday, April 9, 2007 1:03 PM
Page 116 of 134
8-38
82. Make sure to properly connect the battery
leads to the battery terminals.
CAUTION:ECB00630Always keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.To charge a sealed-type (MF) battery, a spe-
cial constant-voltage battery charger is re-
quired. Using a conventional battery charger
will damage the battery. If you do not haveaccess to a constant-voltage battery charg-
er, have a Yamaha dealer charge your bat-
tery.EBU25242Replacing the fuse The fuse holder is located under the seat. (See
page 4-11.)
If the fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.
1. Positive battery terminal
2. Negative battery terminal
1. Fuse
2. Spare fuse
U5YT64E0.book Page 38 Monday, April 9, 2007 1:03 PM
Page 117 of 134

8-39
8
CAUTION:ECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.EBU25541Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.1. Remove the headlight bulb holder cover at the
rear of the headlight by pulling it off.
2. Remove the headlight bulb holder by pushing
it inward and turning it counterclockwise. Specified fuse:
15.0 A
1. Headlight bulb holder cover
U5YT64E0.book Page 39 Monday, April 9, 2007 1:03 PM
Page 130 of 134
11-1
11
EBU26000
CONSUMER INFORMATION
EBU26011Identification numbers Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.EBU26030Vehicle identification number
The vehicle identification number is stamped into
the frame.1. Key identification number
U5YT64E0.book Page 1 Monday, April 9, 2007 1:03 PM
Page 132 of 134

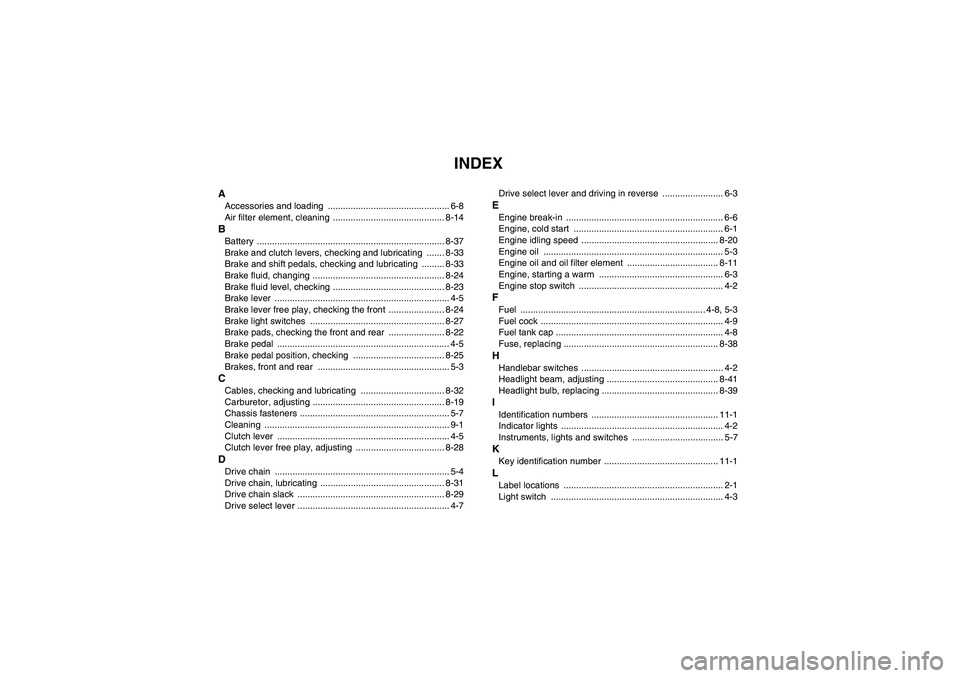

INDEX
