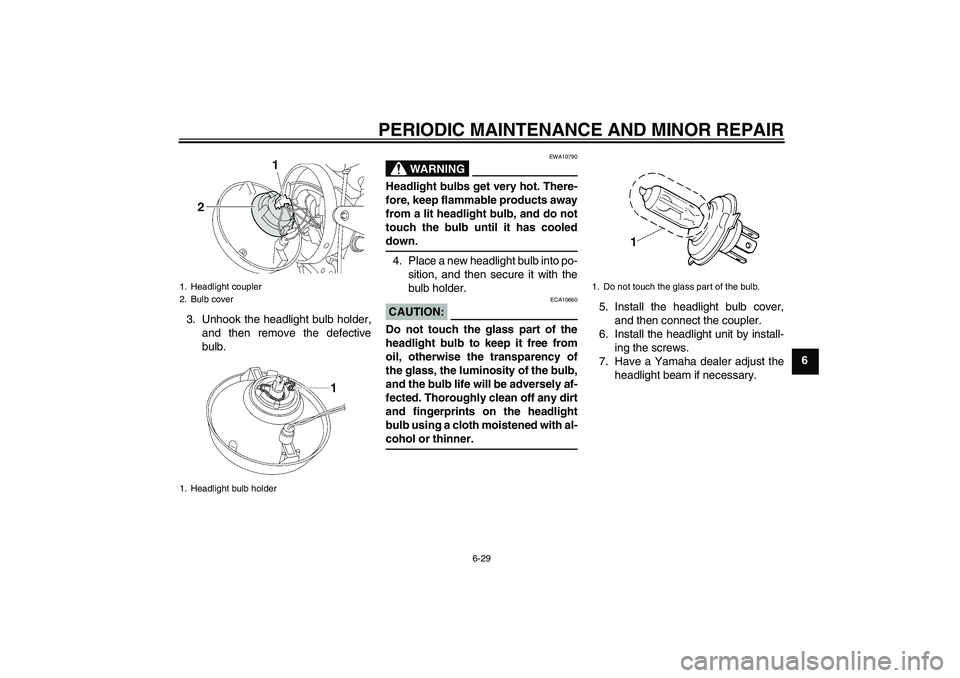

Page 73 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6 3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-cohol or thinner.5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Headlight coupler
2. Bulb cover
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U5WME5E0.book Page 29 Wednesday, December 5, 2007 10:30 AM
Page 74 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
6
EAU24181
Tail/brake light This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24202
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
1. Screw
1. Turn signal light bulb
U5WME5E0.book Page 30 Wednesday, December 5, 2007 10:30 AM
Page 75 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU24310
Replacing the license plate
light bulb 1. Remove the license plate light unit
by removing the screws.
2. Remove the socket (together with
the bulb) by pulling it out.3. Remove the defective bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the license plate light unit by
installing the screws.
EAU33541
Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
1. License plate light unit
2. Screw
1. License plate light bulb socket
1. Screw
U5WME5E0.book Page 31 Wednesday, December 5, 2007 10:30 AM
Page 76 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
63. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the headlight unit by install-
ing the screws.
EAU24360
Front wheel
EAU38890
To remove the front wheel
WARNING
EWA10820
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Place the motorcycle on the cen-
terstand.
2. Loosen the front wheel axle pinch
bolt, then the wheel axle and the
brake caliper bolts.3. Remove the brake hose holder on
each side by removing the bolt.
4. Remove the brake caliper on each
side by removing the bolts.
CAUTION:
ECA11050
Do not apply the brake after the
brake calipers have been removed,
otherwise the brake pads will beforced shut.
5. Pull the wheel axle out, and then
remove the wheel.
1. Auxiliary light bulb socket
1. Wheel axle
2. Front wheel axle pinch bolt
1. Brake caliper bolt
2. Brake hose holder
3. Brake caliper
4. Bolt
U5WME5E0.book Page 32 Wednesday, December 5, 2007 10:30 AM
Page 77 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAU33660
To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Install the brake calipers by install-
ing the bolts.NOTE:Make sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brakediscs.
4. Install the brake hose holders by
installing the bolts.
5. Take the motorcycle off the center-
stand so that the front wheel is on
the ground.
6. Tighten the wheel axle, the front
wheel axle pinch bolt and the
brake caliper bolts to the specified
torques.7. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080
Rear wheel
EAU25161
To remove the rear wheel
WARNING
EWA10820
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Loosen the axle nut and the brake
caliper bolts.
2. Disconnect the brake torque rod
from the brake caliper bracket by
removing the nut and the bolt.
Tightening torques:
Wheel axle:
72 Nm (7.2 m·kgf, 52 ft·lbf)
Front wheel axle pinch bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
1. Axle nut
U5WME5E0.book Page 33 Wednesday, December 5, 2007 10:30 AM
Page 78 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
6
3. Place the motorcycle on the cen-
terstand.
4. Remove the axle nut and the brake
caliper by removing the bolts.
CAUTION:
ECA11300
Do not apply the brake after the
brake caliper has been removed,
otherwise the brake pads will beforced shut.5. Loosen the locknuts, and then turn
the drive chain slack adjusting bolt
on each side of the swingarm fully
in direction (a).
6. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:The drive chain does not need to be
disassembled in order to remove andinstall the rear wheel.
7. While supporting the wheel and
the brake caliper bracket, pull the
wheel axle out.8. Remove the brake caliper bracket
and the wheel.
EAU25841
To install the rear wheel
1. Place the wheel and the brake cal-
iper bracket in the original position.
2. Insert the wheel axle through the
brake caliper bracket and wheel
from the right-hand side, and then
install the axle nut.
3. Install the drive chain onto the rear
sprocket, and then adjust the drive
chain slack. (See page 6-19.)
4. Connect the brake torque rod to
the brake caliper bracket by install-
ing the bolt and the nut.
5. Install the brake caliper by install-
ing the bolts.NOTE:Make sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brakedisc.
6. Take the motorcycle off the center-
stand so that the rear wheel is on
the ground.
1. Brake caliper bolt
2. Brake torque rod
3. Bolt
4. Brake caliper bracket
5. Brake caliper
6. Nut
1. Wheel axle
2. Drive chain slack adjusting bolt
3. Locknut
U5WME5E0.book Page 34 Wednesday, December 5, 2007 10:30 AM
Page 79 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6 7. Tighten the axle nut, brake caliper
bolts and brake torque rod nut to
the specified torques.
EAU25850
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
Tightening torques:
Axle nut:
150 Nm (15.0 m·kgf, 110 ft·lbf)
Brake caliper bolt:
40 Nm (4.0 m·kgf, 29 ft·lbf)
Brake torque rod nut:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U5WME5E0.book Page 35 Wednesday, December 5, 2007 10:30 AM
Page 80 of 94
PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU42600
Troubleshooting chart
WARNING
EWA10840
Keep away open flames and do not smoke while checking or working on the fuel system.
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plugs
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gaps, or replace the spark plugs.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Operate the electric starter.
U5WME5E0.book Page 36 Wednesday, December 5, 2007 10:30 AM
