SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2175 mm (85.6 in)
Overall width:
785 mm (30.9 in)
Overall height:
1460 mm (57.5 in)
Seat height:
790 mm (31.1 in)
Wheelbase:
1455 mm (57.3 in)
Ground clearance:
165 mm (6.50 in)
Minimum turning radius:
2300 mm (90.6 in)Weight:With oil and fuel:
167.0 kg (368 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124.6 cm³
Bore × stroke:
52.0 × 58.6 mm (2.05 × 2.31 in)
Compression ratio:
11.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30, SAE10W40, SAE15W40,
SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter element replacement:
1.40 L (1.48 US qt) (1.23 Imp.qt)
With oil filter element replacement:
1.50 L (1.59 US qt) (1.32 Imp.qt)Final transmission oil:Type:
SAE10W30 type SE motor oil
Quantity:
0.21 L (0.22 US qt) (0.18 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.20 L (0.21 US qt) (0.18 Imp.qt)
Radiator capacity (including all routes):
1.02 L (1.08 US qt) (0.90 Imp.qt)
Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
10.5 L (2.77 US gal) (2.31 Imp.gal)
Fuel reserve amount:
2.7 L (0.72 US gal) (0.60 Imp.gal)Fuel injection:Throttle body:
Manufacturer:
AISAN
Type/quantity:
EFI / 1Spark plug (s):Manufacturer/model:
NGK/CPR9EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Dry, centrifugal automaticTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
41/14 (2.929)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
44/12 (3.666)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
U16PE0E0.book Page 1 Tuesday, May 8, 2007 10:26 AM

SPECIFICATIONS
8-2
8
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
26.00 °
Trail:
96.0 mm (3.78 in)Front tire:Type:
Tubeless
Size:
120/70-16 M/C 57P
Manufacturer/model:
PIRELLI/SPORT DEMON FRONTRear tire:Type:
Tubeless
Size:
140/70-15 69P
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:
185 kg (408 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)Front:
170 kPa (25 psi) (1.70 kgf/cm²)
Rear:
190 kPa (28 psi) (1.90 kgf/cm²)
Loading condition:
90–185 kg (198–408 lb)
Front:
180 kPa (26 psi) (1.80 kgf/cm²)
Rear:
200 kPa (29 psi) (2.00 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
16 M/C x MT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
15 M/C x MT4.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
100.0 mm (3.94 in)Rear suspension:Type:
Unit swing
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GTX9-BS
Voltage, capacity:
12 V, 8.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Low beam headlight:
12 V, 55.0 W × 1
High beam headlight:
12 V, 55.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
U16PE0E0.book Page 2 Tuesday, May 8, 2007 10:26 AM

SPECIFICATIONS
8-3
8
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED x 2
Fuel level warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LEDFuses:Main fuse:
30.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
5.0 A
ECU fuse:
5.0 ABackup fuse:
5.0 A
U16PE0E0.book Page 3 Tuesday, May 8, 2007 10:26 AM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification numberZAUM0683
1
U16PE0E0.book Page 1 Tuesday, May 8, 2007 10:26 AM

CONSUMER INFORMATION
9-2
9
EAU26490

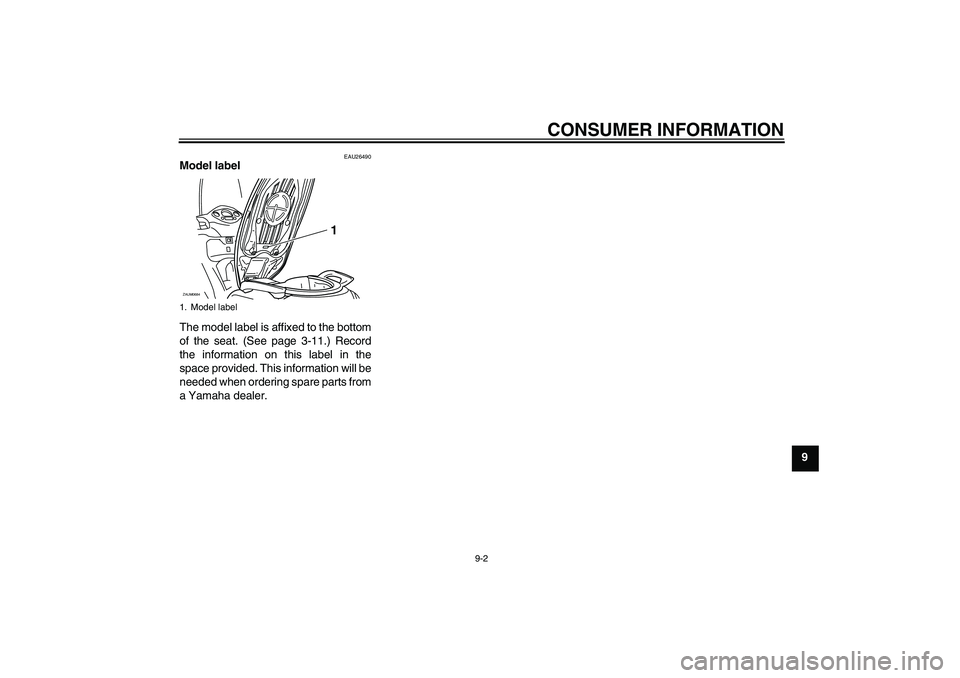

Model label
The model label is affixed to the bottom
of the seat. (See page 3-11.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model labelZAUM0684
1
U16PE0E0.book Page 2 Tuesday, May 8, 2007 10:26 AM
