2008 YAMAHA VITY 125 light

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Keyhole cover .................................3-2
Indicator, indicator lights and
warning light ................................3-2
Speedometer unit ...........................3-3
Self-diagnosis device ......................3-4
Fuel gauge ......................................3-4
Anti-theft alarm (optional) ...............3-4
Handlebar switches ........................3-5
Front brake lever ............................3-5
Rear brake lever .............................3-6
Fuel tank cap ..................................3-6
Fuel .................................................3-7
Catalytic converters ........................3-8
Seat ................................................3-8
Helmet holders ...............................3-9
Storage compartments ...................3-9
Carrier ...........................................3-10
Luggage hook ...............................3-11
Sidestand ......................................3-11
Ignition circuit cut-off system ........3-12PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-3
Braking ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-4
Engine break-in .............................. 5-4
Parking ........................................... 5-5
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-6
Checking the spark plug ................. 6-8
Engine oil ....................................... 6-9
Final transmission oil .................... 6-11
Air filter and V-belt case air filter
elements ................................... 6-12
Checking the throttle cable free
play ........................................... 6-15
Valve clearance ............................ 6-15
Tires ............................................. 6-15
Cast wheels .................................. 6-17Checking the front brake lever
free play .................................... 6-17
Adjusting the rear brake lever
free play .................................... 6-18
Checking the front brake pads
and rear brake shoes ............... 6-18
Checking the front brake fluid
level .......................................... 6-19
Changing the brake fluid .............. 6-20
Checking and lubricating the
cables ....................................... 6-20
Checking and lubricating the
throttle grip and cable ............... 6-21
Lubricating the front and rear
brake levers .............................. 6-21
Checking and lubricating the
centerstand and sidestand ....... 6-22
Checking the front fork ................. 6-22
Checking the steering .................. 6-23
Checking the wheel bearings ....... 6-23
Battery ......................................... 6-23
Replacing the fuse ....................... 6-25
Replacing the headlight bulb ....... 6-25
Replacing a front turn signal
light bulb ................................... 6-26
Rear turn signal light and
tail/brake light ........................... 6-27
Replacing the auxiliary light
bulb ........................................... 6-27
Troubleshooting ........................... 6-28
Troubleshooting chart .................. 6-29U4P7E1E0.book Page 1 Wednesday, December 12, 2007 9:37 AM

SAFETY INFORMATION
1-3
1When loading within this weight limit,
keep the following in mind:


Cargo and accessory weight
should be kept as low and close to
the scooter as possible. Make sure
to distribute the weight as evenly
as possible on both sides of the
scooter to minimize imbalance or
instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the scooter before
riding. Check accessory mounts
and cargo restraints frequently.


Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot test
all other accessories that may be avail-
able, you must personally be responsi-
ble for the proper selection, installationand use of non-Yamaha accessories.
Use extreme caution when selecting
and installing any accessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before using
it to make sure that it does not in
any way reduce ground clearance
or cornering clearance, limit sus-
pension travel, steering travel or
control operation, or obscure lights
or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to liftthe scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
scooter’s electrical system an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas


GASOLINE IS HIGHLY FLAMMA-
BLE:
Always turn the engine off when
refueling.
U4P7E1E0.book Page 3 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU45440
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.NOTE:The main switch/steering lock is
equipped with a keyhole cover. (Seepage 3-2.)
EAU45430
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.
NOTE:The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF” or thesidestand is moved down.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
ON
OPEN
OPENPUSH
LOCKOFF
1. Push.
2. Turn.12
U4P7E1E0.book Page 1 Wednesday, December 12, 2007 9:37 AM

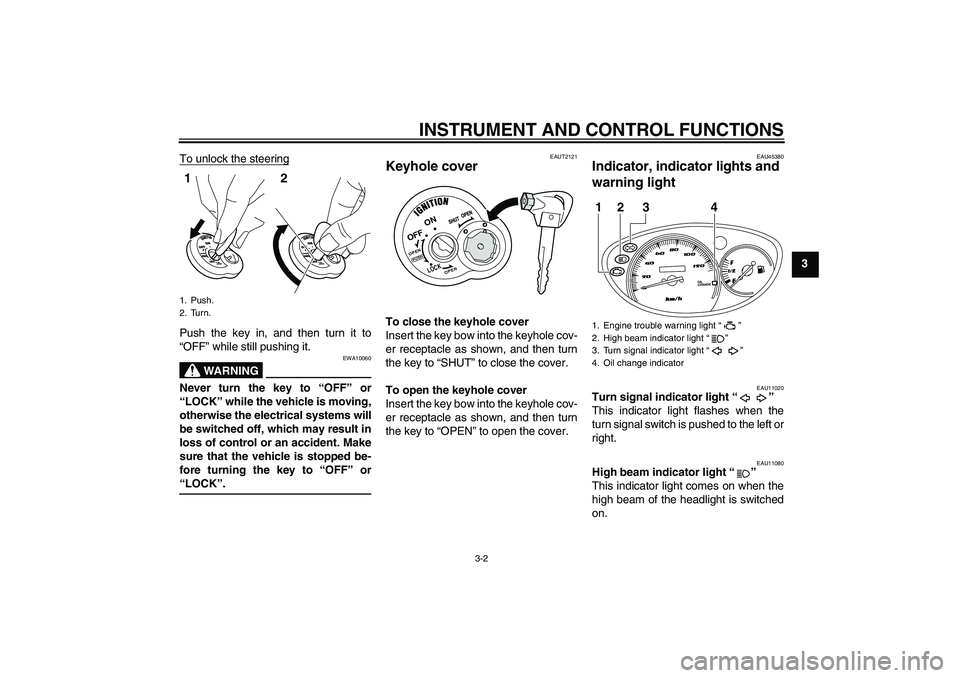

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3 To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAUT2121
Keyhole cover To close the keyhole cover
Insert the key bow into the keyhole cov-
er receptacle as shown, and then turn
the key to “SHUT” to close the cover.
To open the keyhole cover
Insert the key bow into the keyhole cov-
er receptacle as shown, and then turn
the key to “OPEN” to open the cover.
EAU45380
Indicator, indicator lights and
warning light
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Push.
2. Turn.12
ON
OPEN
OPENPUSH
LOCK
OFF
1. Engine trouble warning light“”
2. High beam indicator light“”
3. Turn signal indicator light“”
4. Oil change indicator
OIL
CHANGE
12 3 4
U4P7E1E0.book Page 2 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU45400
Oil change indicator
This indicator changes from green to
red every 2000 km (1200 mi) to indicate
that the engine oil should be changed.
After changing the engine oil, push the
oil change indicator reset switch in with
the main switch key.
If the engine oil is changed before the
2000 km (1200 mi) interval, the indica-
tor must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time.
NOTE:After resetting the oil change indicator
reset switch, the indicator changesfrom red to green.CAUTION:
ECA10280
After 1000 km (600 mi) of operation,the engine oil must be changed.
EAUT1931
Engine trouble warning light“”
This warning light flashes or stays on
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAUT1821
Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
1. Oil change indicator
2. Oil change indicator reset switch1
2
1. Speedometer
2. Odometer
OIL
CHANGE2 1
U4P7E1E0.book Page 3 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12090
Self-diagnosis device This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on or flash. If this occurs, have a
Yamaha dealer check the vehicle.CAUTION:
ECA11170
To prevent engine damage, be sure
to consult a Yamaha dealer as soonas possible if this occurs.
EAU45630
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red line, refuel as soon as possible.NOTE:Turning the key to “OFF” cancels thefuel gauge reading.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
1. Fuel gauge
2. Red line
OIL
CHANGE
1
2
U4P7E1E0.book Page 4 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12347
Handlebar switches Left
Right
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12720
Start switch“”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU12900
Front brake lever The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
1. Dimmer switch“/”
2. Turn signal switch“/”
3. Horn switch“”
1. Start switch“”
2 13
1
1. Front brake lever
1
U4P7E1E0.book Page 5 Wednesday, December 12, 2007 9:37 AM

PRE-OPERATION CHECKS
4-3
4
Brake leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-21
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-22
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-11 ITEM CHECKS PAGE
U4P7E1E0.book Page 3 Wednesday, December 12, 2007 9:37 AM
