EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
f
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
NOTE:
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10660
e
All electrical systems are off. The key
can be removed.
EAU10680
m
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “
e”
position, and then turn it to “
m”
while still pushing it.
3. Remove the key.
T
o unlock the steering
Push the key in, and then turn it to
“
e” while still pushing it.EWA10060
s s
WARNING
Never turn the key to “
e” or “m”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
Make sure that the vehicle is stop-
ped before turning the key to “
e”
or “
m”.
EAU11003
Indicator and warning lights
1. Coolant temperature warning light “y”
2. Oil level warning light “z”
3. Neutral indicator light “N”
4. Engine trouble warning light “ ”
5. Turn signal indicator light “
b”
EAU11020
Turn signal indicator light “cd”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU11060
Neutral indicator light “N”
This indicator light comes on when
the transmission is in the neutral posi-
tion.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 1

EAU11851
Tachometer
1. Tachometer
The electric tachometer allows the
rider to monitor the engine speed and
keep it within the ideal power range.
ECA10031
CAUTION:
Do not operate the engine in the
tachometer red zone.
Red zone: 10.000 r/min and above
EAU12345
Handlebar switches
1. Pass switch “j”
2. Dimmer switch “j/k”
3. Turn signal switch “c/d”
4. Horn switch“a”
1. Engine stop switch “
f/e”
2. Start switch “f”
EAU12380
Pass switch “j”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch “j/k”
Set this switch to “
j” for the high
beam and to “
k” for the low beam.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “
d”. To signal a left-hand
turn, push this switch to “
c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAU12660
Engine stop switch “f/e”
Set this switch to “
f” before starting
the engine. Set this switch to “
e” to
stop the engine in case of an emer-
gency, such as when the motorcycle
overturns or when the throttle cable is
stuck.
1
2
j
k
1
2
43
3
INSTRUMENT AND CONTROL FUNCTIONS
3-3
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 3

3
INSTRUMENT AND CONTROL FUNCTIONS
3-11
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 11

EAU15950
EWA10270
s s
WARNING
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised comple-
tely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
EAU16050
Starting a cold engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EWA10290
s s
WARNING
Before starting the engine,
check the function of the igni-
tion circuit cut-off system
according to the procedure
described on page 3-11.
Never ride with the sidestand
down.
1. Turn the fuel cock lever to “ON”.
2. Turn the key to “
f” and make
sure that the engine stop switch
is set to “
f”.
3. Shift the transmission into the
neutral position.
NOTE:
When the transmission is in the neu-
tral position, the neutral indicator lightshould be on, otherwise have a
Yamaha dealer check the electrical
circuit.
4. Turn the starter (choke) on and
completely close the throttle.
(See page 3-8.)
5. Start the engine by pushing the
start switch.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
ECA11410
CAUTION:
The 2-stroke engine oil level war-
ning light should come on when the
start switch is pushed, and it
should go off when the start switch
is released. If the warning light flic-
kers or remains on after starting,
immediately stop the engine, and
then check the 2-stroke engine oil
level and the vehicle for oil leakage.
5
OPERATION AND IMPORTANT RIDING POINTS
5-1
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 1

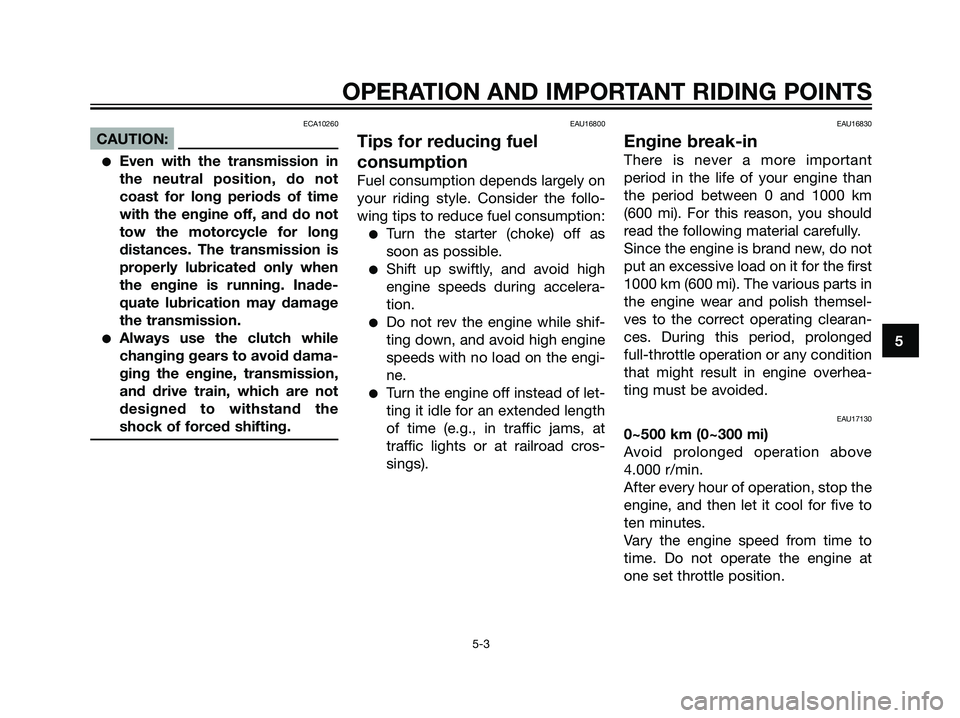

ECA10260
CAUTION:
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long
distances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
Always use the clutch while
changing gears to avoid dama-
ging the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
EAU16800
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
Turn the starter (choke) off as
soon as possible.
Shift up swiftly, and avoid high
engine speeds during accelera-
tion.
Do not rev the engine while shif-
ting down, and avoid high engine
speeds with no load on the engi-
ne.
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
EAU16830
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1000 km
(600 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themsel-
ves to the correct operating clearan-
ces. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAU17130
0~500 km (0~300 mi)
Avoid prolonged operation above
4.000 r/min.
After every hour of operation, stop the
engine, and then let it cool for five to
ten minutes.
Vary the engine speed from time to
time. Do not operate the engine at
one set throttle position.
5
OPERATION AND IMPORTANT RIDING POINTS
5-3
5WX-F8199-E2.qxd 13/9/06 10:58 Página 3

6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
Engine overheatingEWA10400
s s
WARNING
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See NOTE.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
NOTE:
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 33

2-stroke engine oil .....................................3-7
AAir filter element .......................................6-12
Anti-theft device housing ...........................3-9
Autolube pump, adjusting........................6-24
BBattery......................................................6-27
Brake and clutch levers, checking and
lubricating ..............................................6-24
Brake and shift pedals, checking and
lubricating ..............................................6-24
Brake fluid level, checking .......................6-19
Brake fluid, changing ...............................6-20
Brake lever .................................................3-5
Brake pedal ................................................3-5
Brake pedal free play, adjusting ..............6-17
CCables, checking and lubricating ............6-23
Carburetor, adjusting ...............................6-12
Care............................................................7-1
Catalytic converter .....................................3-6
Clutch lever ................................................3-4
Clutch lever free play, adjusting...............6-16
Coolant.......................................................6-9
Coolant temperature warning light ............3-2
Cowlings and panels, removing and
installing ...................................................6-5
DDimmer switch ...........................................3-3
Drive chain slack ......................................6-21
Drive chain, cleaning and lubricating.......6-22
EEngine break-in ..........................................5-3
Engine idling speed .................................6-13Engine stop switch ....................................3-3
Engine trouble warning light ......................3-2
Engine, starting a warm .............................5-2
FFront and rear brake pads, checking ......6-18
Front brake lever free play, checking.......6-17
Front fork, checking .................................6-25
Fuel ............................................................3-5
Fuel cock....................................................3-8
Fuel consumption, tips for reducing ..........5-3
Fuel tank breather/overflow hose ..............3-7
Fuel tank cap .............................................3-6
Fuse, replacing.........................................6-28
HHandlebar switches ...................................3-3
Headlight bulb, replacing .........................6-28
Horn switch ................................................3-3
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-10
Indicator and warning lights ......................3-1
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-29
MMain switch/steering lock ..........................3-1
Model label ................................................9-2
NNeutral indicator light.................................3-1
OOil level warning light .................................3-2
PParking .......................................................5-4
Part locations .............................................2-1
Pass switch ................................................3-3
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake light switch, adjusting ...........6-18
Rear view mirrors .......................................3-9
SSafety information ......................................1-1
Seat ............................................................3-9
Shift pedal ..................................................3-4
Shift pedal position, adjusting .................6-18
Shifting .......................................................5-2
Sidestand .................................................3-10
Sidestand, checking and lubricating .......6-25
Spark plug, checking .................................6-7
Specifications.............................................8-1
Speedometer unit ......................................3-2
Start switch ................................................3-4
Starter (choke) lever ...................................3-8
Starting a cold engine ................................5-1
Steering, checking ...................................6-26
Storage.......................................................7-3
TTachometer ................................................3-3
Throttle cable free play, adjusting ............6-12
Throttle grip and cable, checking and
lubricating ..............................................6-23
Tires .........................................................6-14
Tool kit ........................................................6-1
Transmission oil .........................................6-8
INDEX
5WX-F8199-E2.qxd 29/05/2006 14:23 Página 43
