2008 YAMAHA RHINO 700 jump start

General maintenance and lubrication
chart ................................................... 8-8
Hood ................................................... 8-17
Console .............................................. 8-21
Engine oil and oil filter cartridge ......... 8-25
Final gear oil ....................................... 8-39
Differential gear oil ............................. 8-47
Coolant ............................................... 8-53
Axle boots........................................... 8-57
Spark plug inspection ......................... 8-59
Cleaning the air filter element............. 8-65
Drive select lever box check hose ...... 8-77
V-belt cooling duct check hose........... 8-77
V-belt case drain plug......................... 8-79
Cleaning the spark arrester ................ 8-81
Valve clearance .................................. 8-83
Brakes ................................................ 8-85
Checking the front and rear brake
pads ................................................. 8-87
Checking the parking brake pads ....... 8-89
Checking the brake fluid level ............ 8-91
Brake fluid replacement...................... 8-95
Checking the brake pedal................... 8-95
Parking brake lever free play
adjustment........................................ 8-97
Brake light switch adjustment ........... 8-101
Cable inspection and lubrication ...... 8-103Brake pedal and accelerator pedal
lubrication ...................................... 8-105
Rear knuckle upper and lower pivot
lubrication ...................................... 8-107
Steering shaft lubrication ................. 8-111
Wheel removal ................................. 8-111
Tire replacement .............................. 8-113
Wheel installation ............................. 8-115
Battery.............................................. 8-119
Battery maintenance ........................ 8-123
Jump-starting ................................... 8-125
Fuse replacement ............................ 8-131
Replacing a headlight bulb............... 8-137
Headlight beam adjustment ............. 8-143
Tail/brake light bulb replacement ..... 8-145
Troubleshooting ............................... 8-151
Troubleshooting charts .................... 8-153
CLEANING AND STORAGE ................... 9-1
A. Cleaning .......................................... 9-1
B. Storage ............................................ 9-7
SPECIFICATIONS................................. 10-1
CONSUMER INFORMATION ............... 11-1
Identification number records............. 11-1
91011
EE.book Page 3 Wednesday, November 7, 2007 2:40 PM

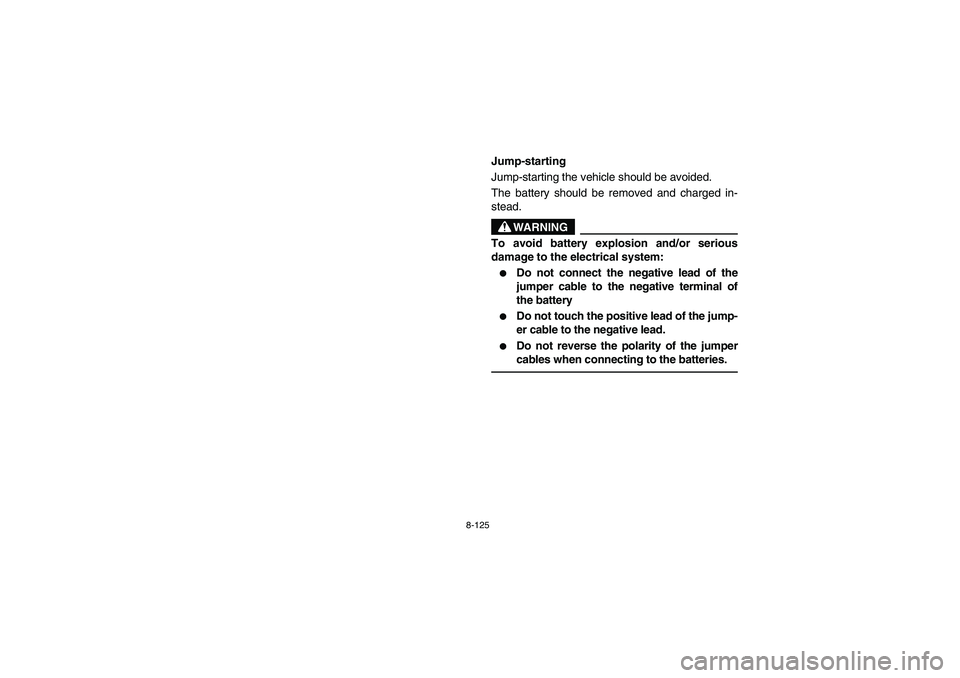

8-125
5B410022
Jump-starting
Jump-starting the vehicle should be avoided.
The battery should be removed and charged in-
stead.
WARNING
To avoid battery explosion and/or serious
damage to the electrical system:

Do not connect the negative lead of the
jumper cable to the negative terminal of
the battery


Do not touch the positive lead of the jump-
er cable to the negative lead.


Do not reverse the polarity of the jumper
cables when connecting to the batteries.
EE.book Page 125 Wednesday, November 7, 2007 2:40 PM

8-127
However, if the vehicle must be jump-started, pro-
ceed as follows.
1. Turn the key to “OFF”.
2. Open the hood. (See pages 8-17–8-19 for
hood opening and closing procedures.)
3. Remove the battery compartment cover.
(See pages 8-131–8-135 for battery compart-
ment cover removal and installation proce-
dures.)
4. Remove the console. (See pages 8-21–8-23
for console removal and installation proce-
dures.)
5. Using a charged 12-volt battery, connect the
positive lead of the jumper cable to the posi-
tive terminal of the battery in the vehicle and
the other end of the positive lead to the posi-
tive terminal of the charged battery.
EE.book Page 127 Wednesday, November 7, 2007 2:40 PM

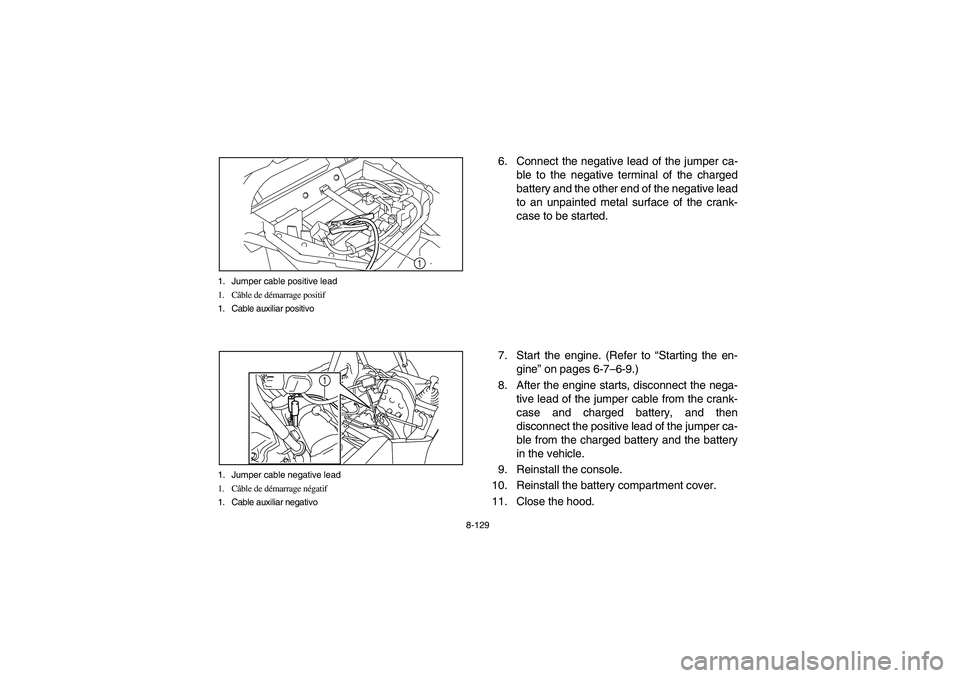

8-129 1. Jumper cable positive lead
1. Câble de démarrage positif
1. Cable auxiliar positivo
1
1. Jumper cable negative lead
1. Câble de démarrage négatif
1. Cable auxiliar negativo
1
6. Connect the negative lead of the jumper ca-
ble to the negative terminal of the charged
battery and the other end of the negative lead
to an unpainted metal surface of the crank-
case to be started.
7. Start the engine. (Refer to “Starting the en-
gine” on pages 6-7–6-9.)
8. After the engine starts, disconnect the nega-
tive lead of the jumper cable from the crank-
case and charged battery, and then
disconnect the positive lead of the jumper ca-
ble from the charged battery and the battery
in the vehicle.
9. Reinstall the console.
10. Reinstall the battery compartment cover.
11. Close the hood.
EE.book Page 129 Wednesday, November 7, 2007 2:40 PM
