2008 YAMAHA MAJESTY 400 light

TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Further safe-riding points .................1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Immobilizer system ..........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ...................................3-5
Tachometer .....................................3-5
Multi-function display .......................3-5
Anti-theft alarm (optional) ................3-9
Handlebar switches .........................3-9
Front brake lever ...........................3-11
Rear brake lever ............................3-11
Rear brake lock lever .....................3-11
ABS (for ABS models) ...................3-12
Fuel tank cap .................................3-13
Fuel ................................................3-14
Catalytic converters .......................3-14
Seats .............................................3-15
Adjusting the rider seat ..................3-16
Storage compartments ..................3-17
Adjusting the shock absorber
assemblies .................................3-18
Sidestand .......................................3-19Ignition circuit cut-off system ......... 3-20
PRE-OPERATION CHECKS
.............. 4-1
Pre-operation check list ................... 4-2
OPERATION AND IMPORTANT RIDING
POINTS
............................................... 5-1
Starting the engine .......................... 5-1
Starting off ....................................... 5-2
Acceleration and deceleration ......... 5-2
Braking ............................................ 5-2
Tips for reducing fuel
consumption ................................ 5-3
Engine break-in ............................... 5-4
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND MINOR
REPAIR
............................................... 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-3
Removing and installing cowlings and
panels .......................................... 6-7
Checking the spark plug ................ 6-11
Engine oil and oil filter element ..... 6-13
Final transmission oil ..................... 6-16
Coolant .......................................... 6-17
Air filter elements and check hoses and
V-belt case air filter element ...... 6-19
Checking the throttle cable free
play ............................................ 6-22Valve clearance ............................ 6-22
Tires .............................................. 6-22
Cast wheels .................................. 6-24
Front and rear brake lever free
play ............................................ 6-25
Adjusting the rear brake lock lever
cable .......................................... 6-26
Checking the front and rear brake
pads ........................................... 6-26
Checking the brake fluid level ....... 6-27
Changing the brake fluid ............... 6-28
Checking and lubricating the
cables ........................................ 6-28
Checking and lubricating the throttle
grip and cable ............................ 6-29
Lubricating the front and rear brake
levers ......................................... 6-29
Checking and lubricating the
centerstand and sidestand ........ 6-29
Checking the front fork .................. 6-30
Checking the steering ................... 6-31
Checking the wheel bearings ........ 6-31
Battery ........................................... 6-32
Replacing the fuses ...................... 6-33
Replacing a headlight bulb ........... 6-35
Tail/brake light ............................... 6-36
Replacing a front turn signal light
bulb ............................................ 6-36
Replacing a rear turn signal light
bulb ............................................ 6-37

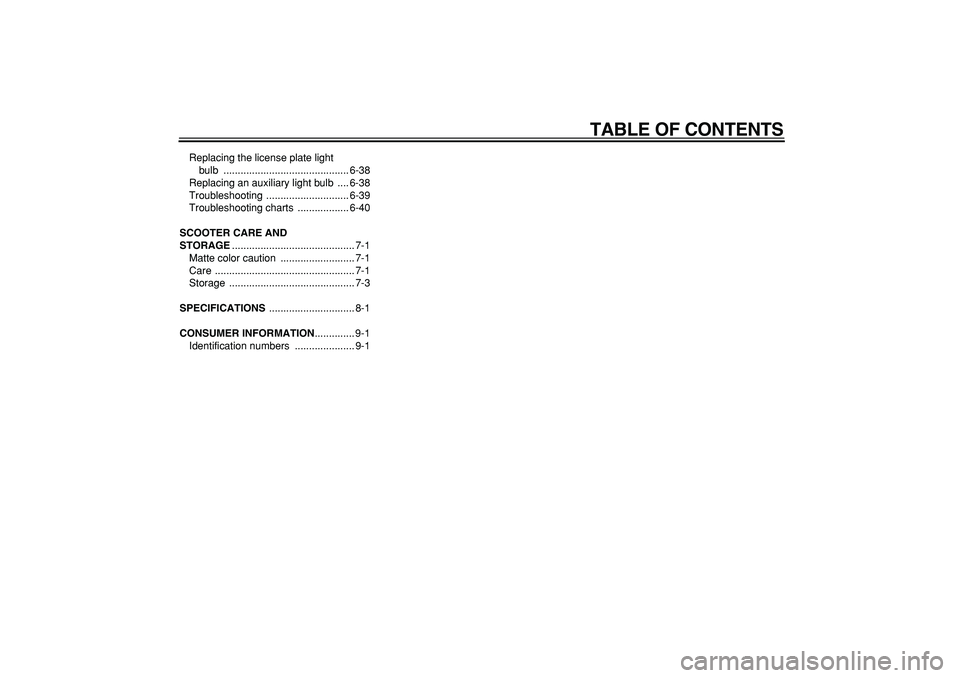

TABLE OF CONTENTS
Replacing the license plate light
bulb ............................................ 6-38
Replacing an auxiliary light bulb .... 6-38
Troubleshooting ............................. 6-39
Troubleshooting charts .................. 6-40
SCOOTER CARE AND
STORAGE
........................................... 7-1
Matte color caution .......................... 7-1
Care ................................................. 7-1
Storage ............................................ 7-3
SPECIFICATIONS
.............................. 8-1
CONSUMER INFORMATION
.............. 9-1
Identification numbers ..................... 9-1

SAFETY INFORMATION
1-3
1
When loading within this weight limit,
keep the following in mind:

Cargo and accessory weight
should be kept as low and close to
the scooter as possible. Make sure
to distribute the weight as evenly
as possible on both sides of the
scooter to minimize imbalance or
instability.

Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the scooter before
riding. Check accessory mounts
and cargo restraints frequently.

Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot test
all other accessories that may be avail-
able, you must personally be responsi-
ble for the proper selection, installationand use of non-Yamaha accessories.
Use extreme caution when selecting
and installing any accessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your scooter. Carefully
inspect the accessory before using
it to make sure that it does not in
any way reduce ground clearance
or cornering clearance, limit sus-
pension travel, steering travel or
control operation, or obscure lights
or reflectors.

Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.

Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamiceffects. Wind may attempt to lift
the scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by
large vehicles.

Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.

Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
scooter’s electrical system an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas

GASOLINE IS HIGHLY FLAMMA-
BLE:

Always turn the engine off when
refueling.

2-1
1
2
3
4
5
6
7
8
9

DESCRIPTION
EAU10410
Left view
10 1
2
3
5
67
8
4
11
9

1. Headlight (page 6-35)
2. Fuel tank cap (page 3-13)
3. Rear storage compartment (page 3-17)
4. V-belt case air filter element (page 6-19)
5. Owner’s tool kit (page 6-1)
6. Fuses (page 6-33)
7. Battery (page 6-32)
8. Shock absorber assembly spring preload adjusting ring (page 3-18)9. Air filter element (left) (page 6-19)
10. Engine oil filter element (page 6-13)
11. Sidestand (page 3-19, 6-29)

3-1
2
34
5
6
7
8
9

INSTRUMENT AND CONTROL FUNCTIONS
EAU10974
Immobilizer system
This vehicle is equipped with an immo-
bilizer system to help prevent theft by
re-registering codes in the standard
keys. This system consists of the fol-
lowing.

a code re-registering key (with a
red bow)

two standard keys (with a black
bow) that can be re-registered with
new codes

a transponder (which is installed in
the code re-registering key)

an immobilizer unit

an ECU (Electronic Control Unit)

an immobilizer system indicator
light (See page 3-3.)
The key with the red bow is used to reg-
ister codes in each standard key. Since
re-registering is a difficult process, take
the vehicle along with all three keys to
a Yamaha dealer to have them re-reg-
istered. Do not use the key with the red
bow for driving. It should only be used
for re-registering the standard keys. Al-
ways use a standard key for driving.
CAUTION:

ECA11821

DO NOT LOSE THE CODE
RE-REGISTERING KEY! CON-
TACT YOUR DEALER IMMEDI-
ATELY IF IT IS LOST! If the code
re-registering key is lost, regis-
tering new codes in the stan-
dard keys is impossible. The
standard keys can still be used
to start the vehicle, however if
code re-registering is required
(i.e., if a new standard key is
made or all keys are lost) the en-
tire immobilizer system must be
replaced. Therefore, it is highly
recommended to use either
standard key and keep the codere-registering key in a safe
place.

Do not submerse any key in wa-
ter.

Do not expose any key to exces-
sively high temperatures.

Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).

Do not place items that transmit
electrical signals close to any
key.

Do not place heavy items on any
key.

Do not grind any key or alter its
shape.

Do not disassemble the plastic
part of any key.

Do not put two keys of any im-
mobilizer system on the same
key ring.

Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.

Keep other immobilizer system
keys away from the main switch
1. Code re-registering key (red bow)
2. Standard keys (black bow)

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9as they may cause signal inter-

ference.
EAU10471
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.
NOTE:

Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code
re-registering key (red bow), keep it in a
safe place and only use it for code
re-registering.
EAU34121
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lightscome on, and the engine can be start-
ed. The key cannot be removed.
NOTE:

The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
EAU10941
(Parking)
The steering is locked, and the taillight,
license plate light and auxiliary lights
are on. The hazard lights and turn sig-
nal lights can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “ ”.
CAUTION:

ECA11020
Do not use the parking position for
an extended length of time, other-
wise the battery may discharge.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “”
This indicator light comes on when the
1. Turn signal indicator lights “ ” and “ ”
2. High beam indicator light “ ”
3. Immobilizer system indicator light
4. Engine trouble warning light “ ”
5. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)
123
4
5
ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9
high beam of the headlight is switched
on.

EAU11480
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11551
ABS warning light “” (for ABS
models)
CAUTION:

ECA10830
If the ABS warning light comes on or
flashes while riding, the ABS may be
defective. If this occurs, have a
Yamaha dealer check the electrical
circuit.
See page 3-12 for an explanation of the
ABS.The electrical circuit of the warning light
can be checked by setting the engine
stop switch to “” and turning the key
to “ON”. The warning light should come
on for a few seconds, and then go off. If
the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
WARNING

EWA11350
When the ABS warning light comes
on or flashes while riding, the brake
system reverts to conventional brak-
ing. Therefore, be careful not to
cause the wheel to lock during emer-
gency braking.
NOTE:

The ABS warning light may come on
while pushing the start switch and while
accelerating the engine with the scoot-
er on its centerstand, but this does not
indicate a malfunction.
EAU38620
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the keyto “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. (See page 3-5 for an expla-
nation of the self-diagnosis device.)
ABS
