2008 YAMAHA JOG50R engine

SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-3
Controls and instruments .................2-5
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-2

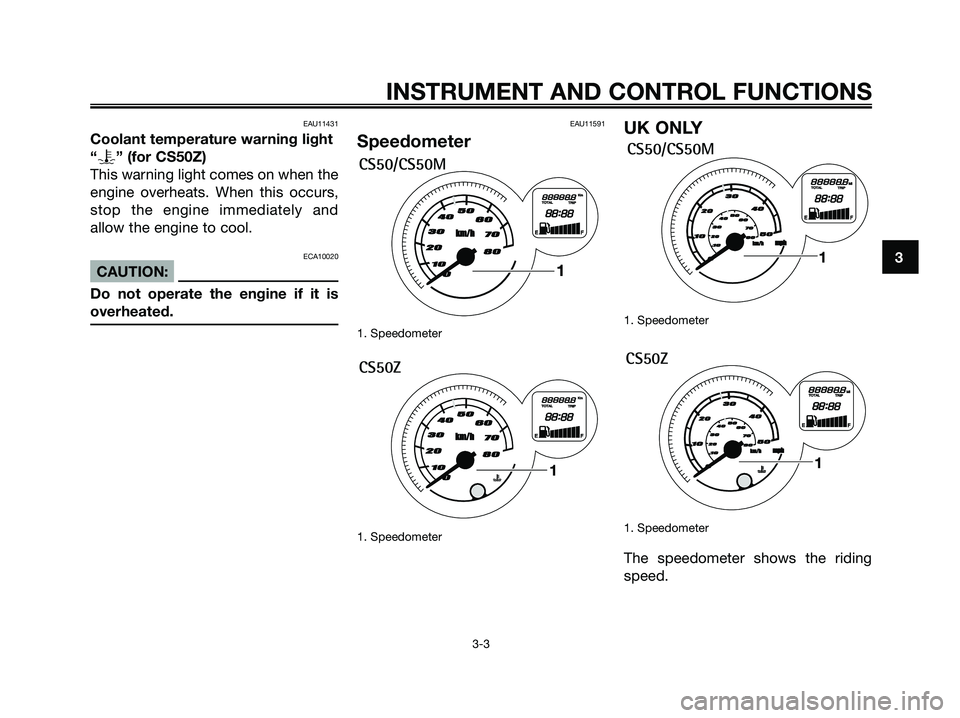

Speedometer ....................................3-3
Multi-function display .......................3-4
Handlebar switches ..........................3-6
Front brake lever...............................3-6
Rear brake lever................................3-7
Fuel and 2-stroke engine oil tank
caps ...............................................3-7
Fuel ...................................................3-8
Catalytic converter............................3-8
2-stroke engine oil ............................3-9
2-stroke engine oil tank ....................3-9
Kickstarter.......................................3-10
Seat.................................................3-10
Storage compartment.....................3-11
Luggage hook .................................3-12
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel
consumption..................................5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing the
cowling and panel .........................6-5
Checking the spark plug ..................6-6
Final transmission oil ........................6-7
Coolant (only for liquid-cooled
models) ..........................................6-8
Air filter element ................................6-9
Adjusting the carburetor .................6-10
Adjusting the throttle cable
free play .......................................6-10
Tires ................................................6-11
Cast wheels ....................................6-12
Checking the front brake lever
free play .......................................6-13
Adjusting the rear brake lever
free play .......................................6-13Checking the front brake pads
and rear brake shoes ..................6-14
Checking the brake fluid level ........6-15
Changing the brake fluid ................6-16
Checking and lubricating the
throttle grip and cable .................6-16
Lubricating the front and rear
brake levers .................................6-16
Checking and lubricanting the
centerstand .................................6-17
Checking the front fork ...................6-17
Checking the steering.....................6-18
Checking the wheel bearings .........6-19
Battery ............................................6-19
Replacing the fuse ..........................6-20
Replacing the headlight bulb
or a front turn signal light
bulb .............................................6-21
Replacing the tail/brake light
bulb or a rear turn signal light
bulb .............................................6-22
Replacing an auxiliary light
bulb .............................................6-23
Troubleshooting ..............................6-24
Troubleshooting charts ...................6-25
SCOOTER CARE AND STORAGE.....7-1
Matte color caution...........................7-1
Care ..................................................7-1
Storage .............................................7-3
TABLE OF CONTENTS
5RW-F8199-E4.QXD 19/11/07 08:01 Página 5

• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
●The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
• Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
●Never ride under the influence of
alcohol or other drugs.
●This scooter is designed for on-
road use only. It is not suitable for
off-road use.Protective apparel
The majority of fatalities from scooter
accidents are the result of head inju-
ries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
●Always wear an approved hel-
met.
●Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision which could delay
seeing a hazard.
●The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or redu-
cing abrasions or lacerations.
●Never wear loose-fitting clothes,
otherwise they could catch on
the control levers or wheels and
cause injury or an accident.
●Never touch the engine or
exhaust system during or after
operation. They become very hot
and can cause burns. Always
wear protective clothing that
covers your legs, ankles, and
feet.
●Passengers should also observe
the above precautions.
Modifications
Modifications made to this scooter
not approved by Yamaha, or the
removal of original equipment, may
render the scooter unsafe for use and
may cause severe personal injury.
Modifications may also make your
scooter illegal to use.
Loading and accessories
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution
of the scooter is changed. To avoid
the possibility of an accident, use
extreme caution when adding cargo
or accessories to your scooter. Use
extra care when riding a scooter that
has added cargo or accessories. Here
are some general guidelines to follow
if loading cargo or adding accessories
to your scooter:
Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
1
tSAFETY INFORMATION
1-2
5RW-F8199-E4.QXD 19/11/07 08:01 Página 8

When loading within this weight limit,
keep the following in mind:
●Cargo and accessory weight
should be kept as low and close
to the scooter as possible. Make
sure to distribute the weight as
evenly as possible on both sides
of the scooter to minimize imba-
lance or instability.
●Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
●Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a
slow steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use onthis scooter. Since Yamaha cannot
test all other accessories that may be
available, you must personally be res-
ponsible for the proper selection, ins-
tallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any
accessories.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
●Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-
ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such
accessories are not recom-
mended.
●Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Maximum load:
CS50 169 kg (373 lb)
CS50M 169 kg (373 lb)
CS50Z 166 kg (366 lb)
1
tSAFETY INFORMATION
1-3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 9

Gasoline and exhaust gas
●GASOLINE IS HIGHLY FLAMMA-
BLE:
• Always turn the engine off
when refueling.
• Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
• Never refuel while smoking or
in the vicinity of an open flame.
●Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within
a short time. Always operate your
scooter in an area that has ade-
quate ventilation.
●Always turn the engine off before
leaving the scooter unattended
and remove the key from the
main switch. When parking the
scooter, note the following:
• The engine and exhaust sys-
tem may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.• Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
• Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.
●If you should swallow any gasoli-
ne, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immedia-
tely. If any gasoline spills on your
skin or clothing, immediately
wash the affected area with soap
and water and change your clot-
hes.
EAU10371
Further safe-riding points
●Be sure to signal clearly when
making turns.
●Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowly
when stopping on a wet surface.
●Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
●Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
●Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
●The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
1
tSAFETY INFORMATION
1-4
5RW-F8199-E4.QXD 19/11/07 08:01 Página 10

EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
ON “f”
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
NOTE:
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10660
OFF “ e”
All electrical systems are off. The key
can be removed.
EAU10670
h
The 2-stroke engine oil level warning
light should come on. (See page 5-1.)
EAU10680
LOCK “ m”
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to the left.
1. Push
2. Turn
2. Push the key in from the “ e”
position, and then turn it to “ m”
while still pushing it.
3. Remove the key.
T
o unlock the steering
1. Push
2. Turn
Push the key in, and then turn it to
“ e ” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “ e
e
” or “ m
m
”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
Make sure that the vehicle is stop-
ped before turning the key to “ e e
”
or “ m
m
”.

m

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
5RW-F8199-E4.QXD 19/11/07 20:04 Página 17

EAU11003
Indicator and warning lights
For CS50/CS50M
1. Left turn signal indicator light “c”
2. Oil level warning light “z”
3. High beam indicator light “j”
4. Right turn signal indicator light “d”
For CS50Z
1. Left turn signal indicator light “c”
2. Coolant temperature warning light “y”
3. Oil level warning light “z”
4. High beam indicator light “j”
5. Right turn signal indicator light “d”
EAU11030
Turn signal indicator lights “c” and
“d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU11180
Oil level warning light “z”
This warning light comes on when the
key is in the “h” position or when the
oil level in the 2-stroke engine oil tank
is low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
Yamalube 2 or equivalent 2-stroke
engine oil of either JASO grade “FC”
or ISO grades “EG-C” or “EG-D”. The
warning light should go off after the 2-
stroke engine oil tank has been refi-
lled.
NOTE:
If the warning light does not come on
when the key is in the “h” position or
does not go off after the 2-stroke
engine oil tank has been refilled, have
a Yamaha dealer check the electrical
circuit.
ECA10010
CAUTION:
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
km/h
01020304050607080
1
2345
km/h
01020304050607080
1
234
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 18

EAU11431
Coolant temperature warning light
“y” (for CS50Z)
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
EAU11591
Speedometer
1. Speedometer
1. Speedometer
UK ONLY
1. Speedometer
1. Speedometer
The speedometer shows the riding
speed.
km/hmph
0
10
20
3040
50
01020304050
60
70
80
CS50Z
1
km/hmph
0
10
20
3040
50
01020304050
60
70
80
1
CS50/CS50M
km/h
010
20
30405060
70
80
CS50Z
1
km/h
010
20
30405060
70
80
CS50/CS50M
1
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 19

EAU12347
Handlebar switches
1. Dimmer switch “j/k”
2. Turn signal switch “c/d”
3. Horn switch “a”
1. Start “g”
EAU12400
Dimmer switch “j/k”
Set this switch to “j” for the high
beam and to “k” for the low beam.
EAU12460
Turn signal switch “c/d”
To signal a right-hand turn, push this
switch to “d”. To signal a left-hand
turn, push this switch to “c”. When
released, the switch returns to the
center position. To cancel the turn
signal lights, push the switch in after it
has returned to the center position.
EAU12500
Horn switch “a”
Press this switch to sound the horn.
EAUM1131
Start switch “g”
Push this switch while applying the
front or rear brake to crank the engine
with the starter.
ECA10050
CAUTION:
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12900
Front brake lever
1. Front brake lever
The front brake lever is located on the
right handlebar grip. To apply the
front brake, pull this lever toward the
handlebar grip.
1
Right
1
2
3 Left
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 22
