2008 YAMAHA JOG50R engine

EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAU13201
Fuel and 2-stroke engine oil
tank caps
1. Oil tank cap
2. Fuel tank cap
The fuel tank cap and the 2-stroke
engine oil tank cap are located under
the seat. (See page 3-10.)
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, turn it
clockwise.
2-stroke engine oil tank cap
To remove the 2-stroke engine oil tank
cap, pull it off.
To install the 2-stroke engine oil tank
cap, push it into the oil tank opening.
EWA10140
s s
WARNING
Make sure that the fuel and 2-stro-
ke engine oil tank caps are properly
installed before riding the scooter.
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 23

EAU13211
Fuel
1. Fuel tank filler tube
2. Fuel level
Make sure that there is sufficient fuel
in the tank. Fill the fuel tank to the
bottom of the filler tube as shown.
EWA10880
s s
WARNING
●Do not overfill the fuel tank,
otherwise it may overflow
when the fuel warms up and
expands.
●Avoid spilling fuel on the hot
engine.
ECA10070
CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU13270
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.
EAU13431
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
●Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
●Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●Do not allow the engine to idle
too long.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
5.5 L (1.45 US gal) (1.21 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal) (0.42 Imp.gal)
1
2
ZAUM0020
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 24

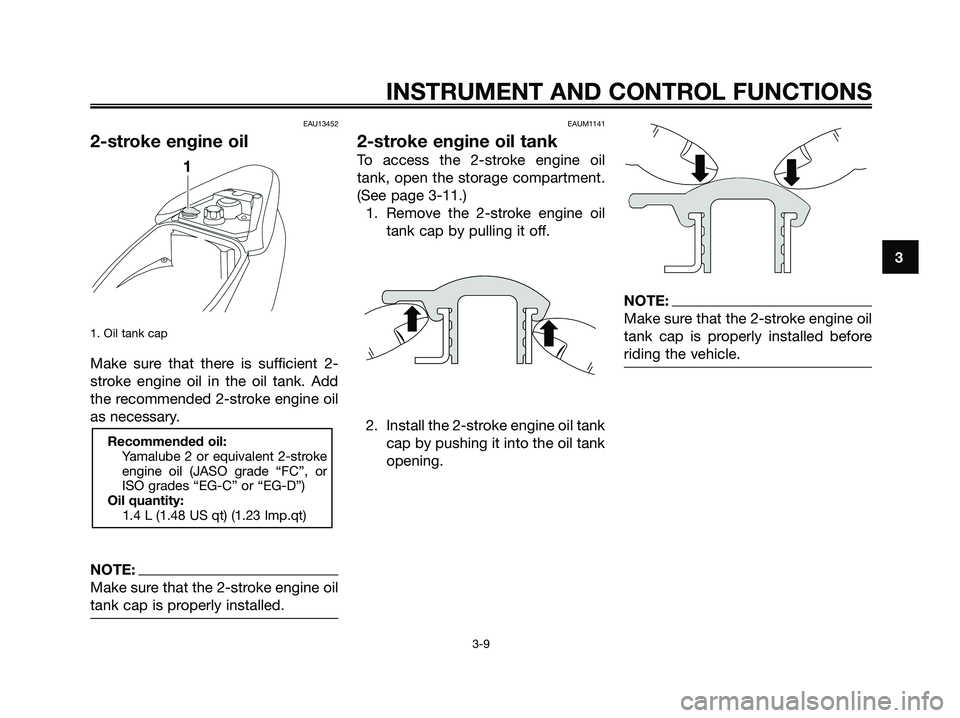

EAU13452
2-stroke engine oil
1. Oil tank cap
Make sure that there is sufficient 2-
stroke engine oil in the oil tank. Add
the recommended 2-stroke engine oil
as necessary.
NOTE:
Make sure that the 2-stroke engine oil
tank cap is properly installed.
EAUM1141
2-stroke engine oil tank
To access the 2-stroke engine oil
tank, open the storage compartment.
(See page 3-11.)
1. Remove the 2-stroke engine oil
tank cap by pulling it off.
2. Install the 2-stroke engine oil tank
cap by pushing it into the oil tank
opening.
NOTE:
Make sure that the 2-stroke engine oil
tank cap is properly installed before
riding the vehicle.
Recommended oil:
Yamalube 2 or equivalent 2-stroke
engine oil (JASO grade “FC”, or
ISO grades “EG-C” or “EG-D”)
Oil quantity:
1.4 L (1.48 US qt) (1.23 Imp.qt)
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 25

EAUS1050
Kickstarter
To start the engine, push the kickstar-
ter down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
1. Kickstarter
EAU14160
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.
1. Open
NOTE:
Do not push inward when turning the
key.
3. Fold the rider up.
1. Seat
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
NOTE:
Make sure that the seat is properly
secured before riding.
1
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
5RW-F8199-E4.QXD 19/11/07 08:01 Página 26

PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-8
• Check fuel line for leakage.
• Check oil level in oil tank.
2-stroke engine oil• If necessary, add recommended oil to specified level. 3-9
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-7
• Check coolant level in reservoir.
Coolant (for CS50Z)• If necessary, add recommended coolant to specified level. 6-8
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 6-13, 6-14, 6-15
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
Rear brake• Lubricate cable if necessary.
6-13, 6-14
• Check lever free play.
• Adjust if necessary.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
6-10, 6-16
• If necessary, have Yamaha dealer adjust cable free play and lubricate
cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-11, 6-12
• Check air pressure.
• Correct if necessary.
Brake levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-16
5RW-F8199-E4.QXD 19/11/07 08:01 Página 30

EAU15980
EWA10870
s s
WARNING
●Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
●Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
●For safety, always start the
engine with the centerstand
down.
EAU16561
Starting a cold engineECA10250
CAUTION:
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
1. Turn the key to “h”, and when
the oil level warning light comes
on, turn it to “f”.
ECA10240
CAUTION:
If the oil level warning light does
not come on, have a Yamaha dealer
check the electrical circuit.
2. Close the throttle completely.
3. While applying the front or rear
brake, start the engine by pus-hing the start switch or by pus-
hing the kickstarter lever down.
NOTE:
If the engine fails to start by pushing
the start switch, release the switch,
wait a few seconds, and then try
again. Each starting attempt should
be as short as possible to preserve
the battery. Do not crank the engine
more than 5 seconds on any one
attempt. If the engine does not start
with the starter motor, try using the
kickstarter.
ECA11040
CAUTION:
For maximum engine life, never
accelerate hard when the engine is
cold!
ZAUM0367
m
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
5RW-F8199-E4.QXD 19/11/07 08:01 Página 32

EAU16761
Starting off
NOTE:
Before starting off, allow the engine to
warm up.
1. While pulling the rear brake lever
with your left hand and holding
the grab bar with your right hand,
push the scooter off the centers-
tand.
1. Grab bar
2. Rear brake lever
2. Sit astride the seat, and then
adjust the rear view mirrors.
3. Switch the turn signals on.4. Check for oncoming traffic, and
then slowly turn the throttle grip
(on the right) in order to take off.
5. Switch the turn signals off.
EAU16780
Acceleration and
deceleration
The speed can be adjusted by ope-
ning and closing the throttle. To incre-
ase the speed, turn the throttle grip in
direction (a). To reduce the speed,
turn the throttle grip in direction (b).
(b)
(a)
ZAUM0199
OPERATION AND IMPORTANT RIDING POINTS
5-2
5
5RW-F8199-E4.QXD 19/11/07 08:01 Página 33

EAU16792
Braking
1. Close the throttle completely.
2. Apply both front and rear brakes
simultaneously while gradually
increasing the pressure.
EWA10300
s s
WARNING
●Avoid braking hard or suddenly
(especially when leaning over
to one side), otherwise the sco-
oter may skid or overturn.
●Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Therefore, slow
down when approaching suchareas and cross them with cau-
tion.
●Keep in mind that braking on a
wet road is much more difficult.
●Ride slowly down a hill, as bra-
king downhill can be very diffi-
cult.
EAU16820
Tips for reducing fuel
consumption
Fuel consumption depends largely on
your riding style. Consider the follo-
wing tips to reduce fuel consumption:
●Avoid high engine speeds during
acceleration.
●Avoid high engine speeds with no
load on the engine.
●Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at
traffic lights or at railroad cros-
sings).
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
