2008 YAMAHA FJR1300AS Owners Manual

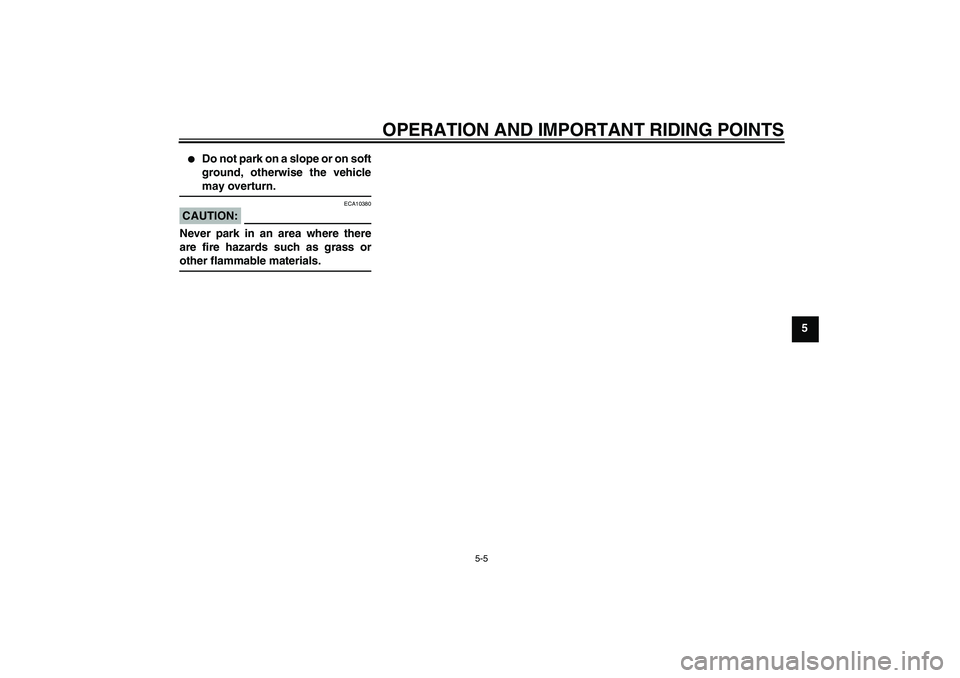

OPERATION AND IMPORTANT RIDING POINTS
5-5
5


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.
U2D2E2E0.book Page 5 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
6
EAU17240
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING
EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealerdo it for you.
EAU17360
Owner’s tool kit The owner’s tool kit is located under the
rider seat. (See page 3-22.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:If you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
WARNING
EWA10350
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-es.
1. Owner’s tool kit
U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km (24000 mi)
4*Air filter elementClean.√√
Replace.√√
5*YCC-S clutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
11*Wheel bearingsCheck bearing for looseness or
damage.√√√√
12*SwingarmCheck operation and for exces-
sive play.√√√√
Lubricate with lithium-soap-based
grease.Every 50000 km (30000 mi)
13*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 20000 km (12000 mi)
14*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
15Brake lever pivot
shaftLubricate with silicone grease.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
16Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
17Shift pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
18Sidestand, center-
standCheck operation.
Lubricate.√√√√√
19*Sidestand switchCheck operation.√√√√√√
20*Front forkCheck operation and for oil leak-
age.√√√√
21*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
22*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based
grease.√√
23*Fuel injectionAdjust engine idling speed and
synchronization.√√√√√√
24 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
25Engine oil filter car-
tridgeReplace.√√√
26*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U2D2E2E0.book Page 4 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU40550
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake and YCC-S clutch service
Regularly check and, if necessary, correct the brake and YCC-S clutch fluid levels.
27 Final gear oilCheck oil level and vehicle for oil
leakage.
Change.√√√√√
28*Front and rear brake
switchesCheck operation.√√√√√√
29Moving parts and
cablesLubricate.√√√√√
30*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
31*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
32*Muffler and exhaust
pipeCheck the screw clamp(s) for
looseness.√√√√√
33*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)U2D2E2E0.book Page 5 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6 Every two years replace the internal components of the brake master cylinders and calipers as well as YCC-S clutch
master and release cylinders, and change the brake and YCC-S clutch fluids.
Replace the brake and YCC-S clutch hoses every four years and if cracked or damaged.
U2D2E2E0.book Page 6 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU18771
Removing and installing pan-
els The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU39550
Panel A
To remove the panelRemove the bolts and the quick fasten-
er, and then take the panel off.To install the panel
Place the panel in the original position,
and then install the bolts and the quick
fastener.
EAU39592
Panels B and C
To remove one of the panels1. Remove the seats. (See page
3-22.)
2. Remove the bolts and the quick
fastener screws, and then take the
panel off.
1. Panel A
1. Panel B
1. Panel C
1. Panel A
2. Bolt
3. Quick fastener
U2D2E2E0.book Page 7 Thursday, October 11, 2007 9:15 AM
