2008 YAMAHA FJR1300AS front

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
YCC-S system ................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-3
Indicator and warning lights ............3-4
Speedometer ..................................3-7
Tachometer ....................................3-7
Multi-function display ......................3-7
Anti-theft alarm (optional) .............3-14
Handlebar switches ......................3-15
Shift pedal .....................................3-17

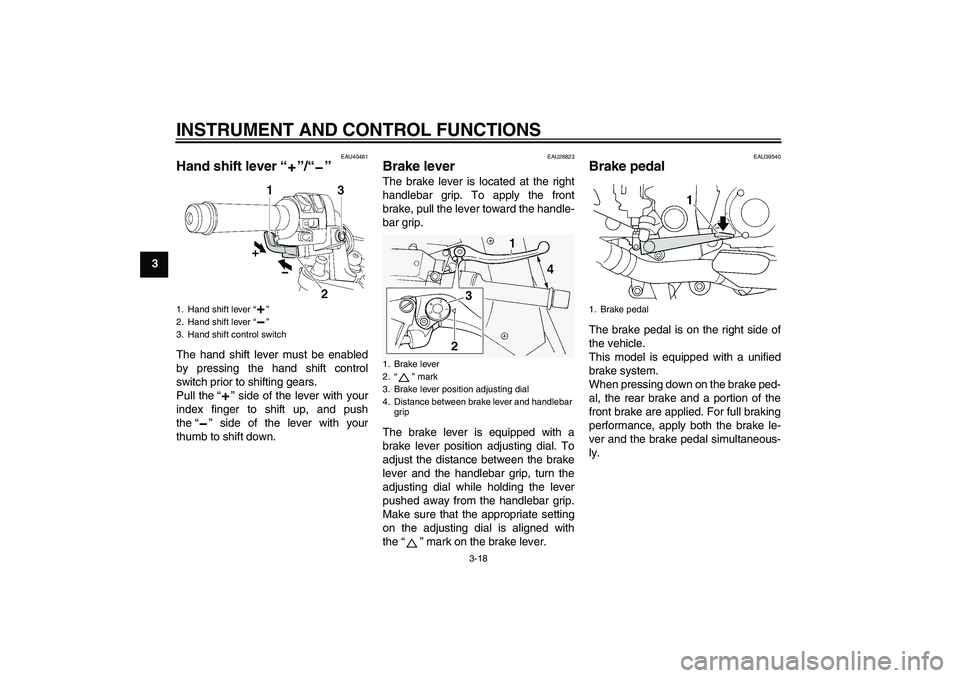

Hand shift lever .............................3-18
Brake lever ...................................3-18
Brake pedal ..................................3-18
ABS ..............................................3-19
Fuel tank cap ................................3-20
Fuel ...............................................3-20
Fuel tank breather/overflow
hose ..........................................3-21
Catalytic converters ......................3-22
Seats ............................................3-22
Adjusting the rider seat height ......3-23
Storage compartment ...................3-25Accessory box .............................. 3-26
Adjusting the headlight beams ..... 3-27
Handlebar position ....................... 3-27
Opening and closing the
cowlings .................................... 3-27
Rear view mirrors ......................... 3-28
Adjusting the front fork ................. 3-29
Adjusting the shock absorber
assembly ................................... 3-30
Grip warmer adjusting knob ......... 3-32
Sidestand ..................................... 3-32
Ignition circuit cut-off system ........ 3-33
Auxiliary DC jack .......................... 3-35
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2Removing and installing panels ..... 6-7
Checking the spark plugs .............. 6-8
Engine oil and oil filter cartridge ..... 6-9
Final gear oil ................................ 6-12
Coolant ........................................ 6-14
Air filter element ........................... 6-15
Checking the engine idling
speed ........................................ 6-16
Checking the throttle cable free
play ........................................... 6-16
Valve clearance ........................... 6-16
Tires ............................................. 6-17
Cast wheels ................................. 6-19
YCC-S clutch ............................... 6-20
Rear brake light switch ................ 6-20
Checking the front and rear
brake pads ................................ 6-20
Checking the brake and YCC-S
clutch fluid levels ...................... 6-21
Changing the brake and YCC-S
clutch fluids ............................... 6-22
Checking and lubricating the
cables ....................................... 6-23
Checking and lubricating the
throttle grip and cable ............... 6-23
Checking and lubricating the
brake and shift pedals .............. 6-23
Checking and lubricating the
brake lever ................................ 6-24
Checking and lubricating the
centerstand and sidestand ....... 6-24U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

TABLE OF CONTENTS
Lubricating the swingarm pivots ... 6-25
Lubricating the rear suspension ... 6-25
Checking the front fork ................. 6-25
Checking the steering ................... 6-26
Checking the wheel bearings ....... 6-27
Battery .......................................... 6-27
Replacing the fuses ...................... 6-28
Headlight bulb .............................. 6-30
Front turn signal light .................... 6-30
Replacing a rear turn signal light
bulb or a tail/brake light bulb ..... 6-30
Replacing the license plate light
bulb ........................................... 6-31
Auxiliary light bulb ........................ 6-32
Troubleshooting ............................ 6-32
Troubleshooting charts ................. 6-33
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM

SAFETY INFORMATION
1-3
1Loading
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
When loading within this weight limit,
keep the following in mind:

Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Make
sure to distribute the weight as
evenly as possible on both sides of
the motorcycle to minimize imbal-
ance or instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.


Never attach any large or heavy
items to the handlebar, front fork,
or front fender. These items, in-
cluding such cargo as sleepingbags, duffel bags, or tents, can
create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.

Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
Maximum load:
208 kg (459 lb)
U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM

DESCRIPTION
2-1
2
EAU10410
Left view1. Accessory box (page 3-26)
2. Front fork spring preload adjusting bolt (page 3-29)
3. Front fork rebound damping force adjusting knob (page 3-29)
4. Owner’s tool kit (page 6-1)
5. Rider seat (page 3-22)
6. Passenger seat (page 3-22)
7. Final gear oil filler bolt (page 6-12)
8. Final gear oil drain bolt (page 6-12)9. YCC-S clutch fluid reservoir (page 6-21)
10.Shock absorber assembly spring preload adjusting lever (page 3-30)
11.Air filter element (page 6-15)
12.Shift pedal (page 3-17)
13.Engine oil filler cap (page 6-9)
14.Engine oil filter cartridge (page 6-9)
15.Engine oil level check window (page 6-9)U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

DESCRIPTION
2-2
2
EAU10420
Right view1. Storage compartment (page 3-25)
2. Fuel tank cap (page 3-20)
3. Fuse box (page 6-28)
4. Windshield (page 3-15)
5. Battery (page 6-27)
6. Main fuse (page 6-28)
7. Front fork compression damping force adjusting screw (page 3-29)
8. Brake pedal (page 3-18)9. Shock absorber assembly rebound damping force adjusting knob
(page 3-30)
10.Rear brake fluid reservoir (page 6-21)
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM

DESCRIPTION
2-3
2
EAU10430
Controls and instruments1. Rear view mirror (page 3-28)
2. Left handlebar switches (page 3-15)
3. Tachometer (page 3-7)
4. Speedometer (page 3-7)
5. Multi-function display (page 3-7)
6. Front brake fluid reservoir (page 6-21)
7. Right handlebar switches (page 3-15)
8. Brake lever (page 3-18)9. Throttle grip (page 6-16)
10.Main switch/steering lock (page 3-3)
11.Headlight beam adjusting knob (page 3-27)
12.Grip warmer adjusting knob (page 3-32)
13.Hand shift lever (page 3-18)U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAUM1131
Start switch“”
Push this switch while applying the
front or rear brake to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU40381
Hand shift control switch
The hand shift control switch enables
shifting gears with the hand shift lever.
When the switch is set to enable hand
shifting, the hand shift control indicator
light will come on.NOTE:

The shift pedal can be used to shift
gears whether the hand shift lever
is enabled or not.


When the main switch is turned to
“OFF”, the hand shifting mode will
automatically be disabled. Press
1. Hand shift lever
2. Hand shift control switch
3. Hand shift control indicator light
U2D2E2E0.book Page 16 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
EAU40481
Hand shift lever“”/“” The hand shift lever must be enabled
by pressing the hand shift control
switch prior to shifting gears.
Pull the“” side of the lever with your
index finger to shift up, and push
the“” side of the lever with your
thumb to shift down.
EAU26823
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with
the“” mark on the brake lever.
EAU39540
Brake pedal The brake pedal is on the right side of
the vehicle.
This model is equipped with a unified
brake system.
When pressing down on the brake ped-
al, the rear brake and a portion of the
front brake are applied. For full braking
performance, apply both the brake le-
ver and the brake pedal simultaneous-
ly.
1. Hand shift lever“”
2. Hand shift lever“”
3. Hand shift control switch
1. Brake lever
2.“” mark
3. Brake lever position adjusting dial
4. Distance between brake lever and handlebar
grip
1. Brake pedal
U2D2E2E0.book Page 18 Thursday, October 11, 2007 9:15 AM
