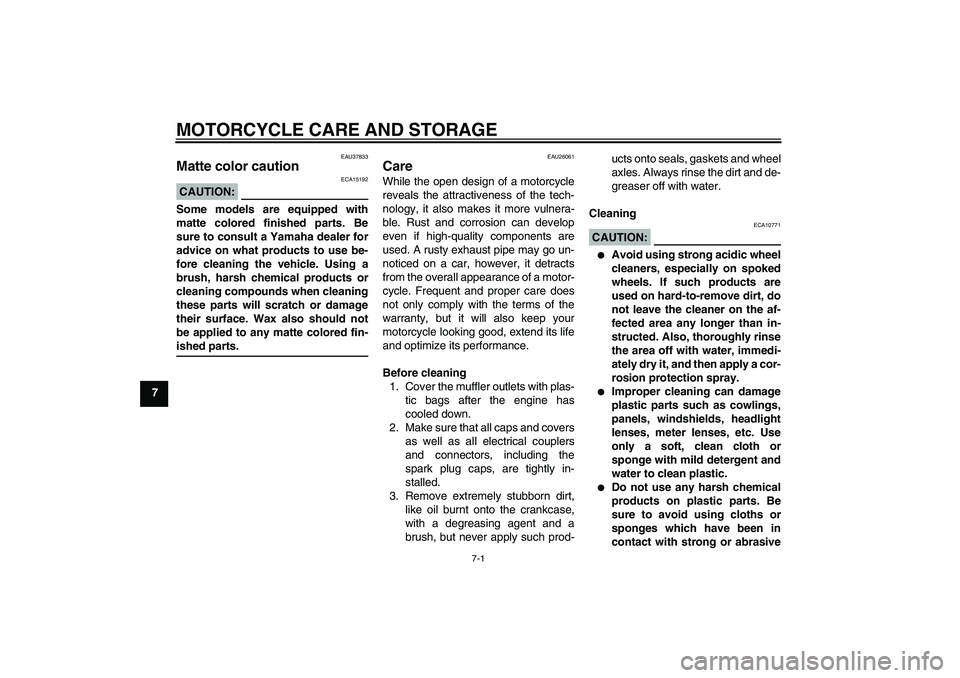

MOTORCYCLE CARE AND STORAGE
7-1
7
EAU37833
Matte color caution CAUTION:
ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-ished parts.
EAU26061
Care While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your
motorcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlets with plas-
tic bags after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
CAUTION:
ECA10771


Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.


Improper cleaning can damage
plastic parts such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc. Use
only a soft, clean cloth or
sponge with mild detergent and
water to clean plastic.


Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

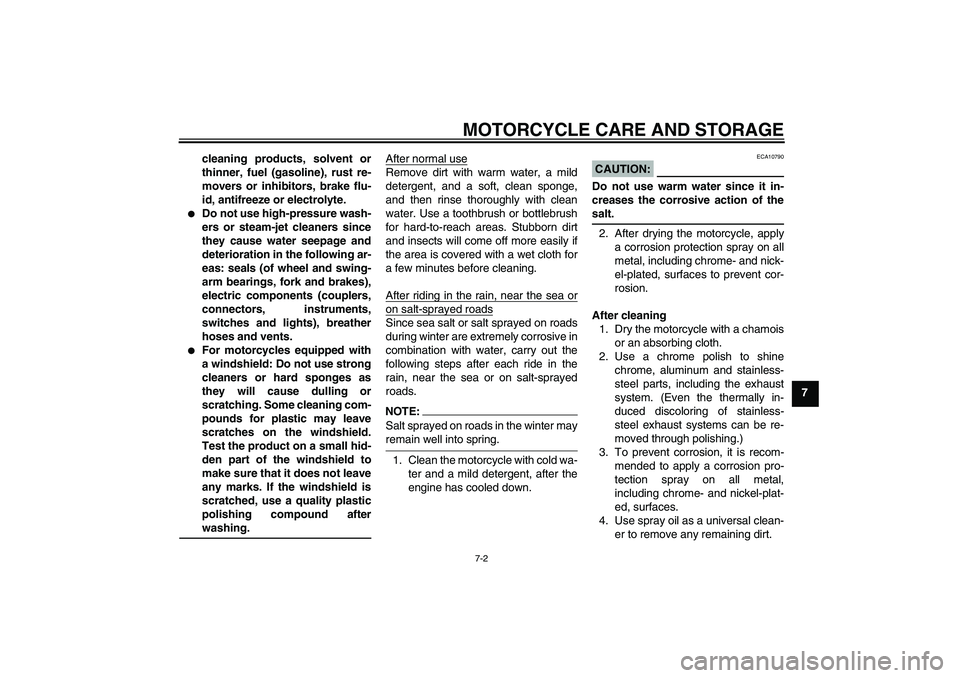

MOTORCYCLE CARE AND STORAGE
7-2
7 cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound afterwashing.After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:Salt sprayed on roads in the winter mayremain well into spring.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
CAUTION:
ECA10790
Do not use warm water since it in-
creases the corrosive action of thesalt.
2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces to prevent cor-
rosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean-
er to remove any remaining dirt.
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM

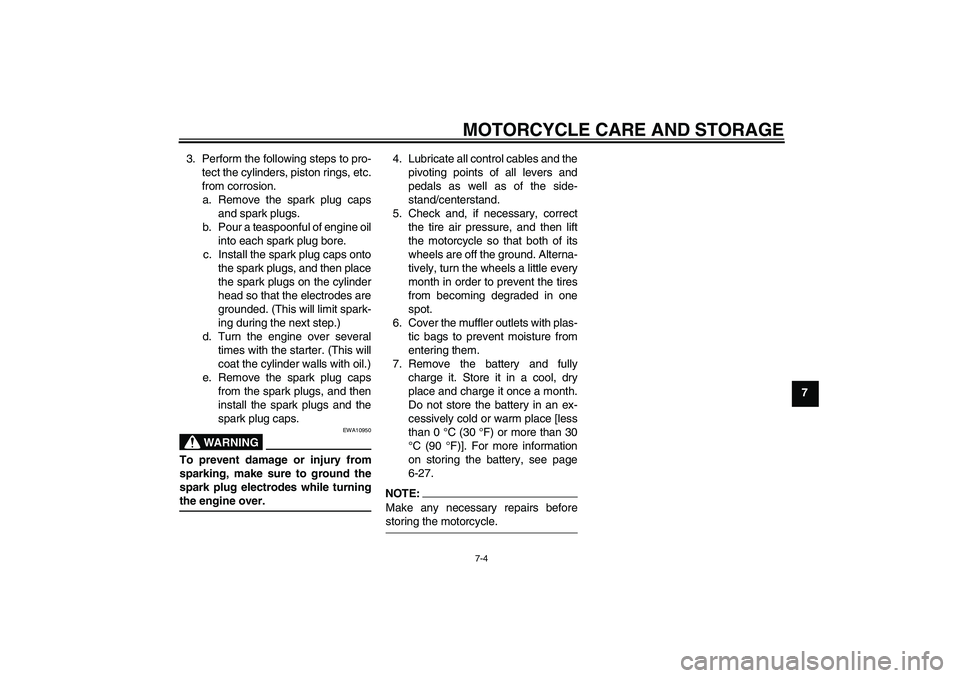

MOTORCYCLE CARE AND STORAGE
7-4
7 3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-27.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U2D2E2E0.book Page 4 Thursday, October 11, 2007 9:15 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height:
1450 mm (57.1 in)
Seat height:
805 mm (31.7 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
130 mm (5.12 in)
Minimum turning radius:
3100 mm (122.0 in)Weight:With oil and fuel:
295.0 kg (650 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
1298.0 cm³
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio:
10.80 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-40, SAE 10W-50, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt) (3.52 Imp.qt)Final gear oil:Type:
Shaft drive gear oil
Quantity:
0.20 L (0.21 US qt) (0.18 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
2.60 L (2.75 US qt) (2.29 Imp.qt)Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
25.0 L (6.61 US gal) (5.50 Imp.gal)
Fuel reserve amount:
5.5 L (1.45 US gal) (1.21 Imp.gal)
Fuel injection:Throttle body:
Manufacturer:
MIKUNI
Type/quantity:
42EHS/4Spark plug (s):Manufacturer/model:
NGK/CR8E
Manufacturer/model:
DENSO/U24ESR-N
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
75/48 (1.563)
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
35/37 × 21/27 × 33/9 (2.698)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot and left hand
Gear ratio:
1st:
43/17 (2.529)
2nd:
39/22 (1.773)
U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

SPECIFICATIONS
8-3
8
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Auxiliary DC jack fuse:
3.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse:
10.0 A
U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM

INDEX
AABS ...................................................... 3-19
ABS warning light ................................... 3-6
Accessory box ...................................... 3-26
Air filter element.................................... 6-15
Anti-theft alarm (optional) ..................... 3-14
Auxiliary DC jack .................................. 3-35
Auxiliary light bulb................................. 6-32BBattery .................................................. 6-27
Brake and shift pedals, checking and
lubricating ........................................... 6-23
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-21
Brake and YCC-S clutch fluids,
changing ............................................. 6-22
Brake lever ........................................... 3-18
Brake lever, checking and lubricating ... 6-24
Brake pedal .......................................... 3-18CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converters .............................. 3-22
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Coolant ................................................. 6-14
Cowlings, opening and closing ............. 3-27DDimmer switch ...................................... 3-15EEngine break-in ...................................... 5-4
Engine idling speed, checking .............. 6-16
Engine oil and oil filter cartridge ............. 6-9
Engine stop switch................................ 3-16Engine trouble/YCC-S indicators and
warning light .......................................... 3-5
FFinal gear oil.......................................... 6-12
Front and rear brake pads, checking .... 6-20
Front fork, adjusting .............................. 3-29
Front fork, checking...............................6-25
Front turn signal light............................. 6-30
Fuel ....................................................... 3-20
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-21
Fuel tank cap......................................... 3-20
Fuses, replacing .................................... 6-28GGrip warmer adjusting knob ..................3-32HHandlebar position, adjusting ................ 3-27
Handlebar switches ............................... 3-15
Hand shift control switch ....................... 3-16
Hand shift lever ..................................... 3-18
Hazard switch........................................ 3-16
Headlight beams, adjusting ................... 3-27
Headlight bulb ....................................... 6-30
High beam indicator light......................... 3-5
Horn switch ........................................... 3-16IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-33
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-6
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1
LLicense plate light bulb, replacing......... 6-31MMain switch/steering lock ........................ 3-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-7NNeutral indicator light .............................. 3-5OOil level warning light .............................. 3-5PPanels, removing and installing .............. 6-7
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-15
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch ......................... 6-20
Rear suspension, lubricating ................ 6-25
Rear view mirrors.................................. 3-28
Rider seat height, adjusting .................. 3-23SSafety information ................................... 1-1
Seats..................................................... 3-22
Shifting .................................................... 5-2
Shift pedal ............................................. 3-17
Shock absorber assembly, adjusting .... 3-30
Sidestand .............................................. 3-32
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Speedometer .......................................... 3-7
U2D2E2E0.book Page 1 Thursday, October 11, 2007 9:15 AM

INDEXStarting the engine .................................. 5-1
Start switch ........................................... 3-16
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Storage compartment ........................... 3-25
Swingarm pivots, lubricating ................. 6-25TTachometer ............................................. 3-7
Throttle cable free play, checking ......... 6-16
Throttle grip and cable, checking and
lubricating ........................................... 6-23
Tires ...................................................... 6-17
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-32
Troubleshooting charts ......................... 6-33
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-30
Turn signal switch ................................. 3-15VValve clearance .................................... 6-16
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-27
Wheels .................................................. 6-19
Windshield position adjusting switch..... 3-15YYCC-S clutch ........................................ 6-20
YCC-S system ........................................ 3-1
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM
