2008 YAMAHA FJR1300AS fuses

TABLE OF CONTENTS
Lubricating the swingarm pivots ... 6-25
Lubricating the rear suspension ... 6-25
Checking the front fork ................. 6-25
Checking the steering ................... 6-26
Checking the wheel bearings ....... 6-27
Battery .......................................... 6-27
Replacing the fuses ...................... 6-28
Headlight bulb .............................. 6-30
Front turn signal light .................... 6-30
Replacing a rear turn signal light
bulb or a tail/brake light bulb ..... 6-30
Replacing the license plate light
bulb ........................................... 6-31
Auxiliary light bulb ........................ 6-32
Troubleshooting ............................ 6-32
Troubleshooting charts ................. 6-33
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Matte color caution ......................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U2D2E2E0.book Page 2 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional batterycharger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU23658
Replacing the fuses The main fuse, the fuse boxes and the
ABS motor fuse are located under pan-
el A. (See page 6-7.)1. Main fuse
2. Fuse box
3. ABS motor fuse
4. ABS motor spare fuse
U2D2E2E0.book Page 28 Thursday, October 11, 2007 9:15 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Right radiator fan fuse
3. Left radiator fan fuse
4. Hazard fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. ABS solenoid fuse
7. Fuel injection system fuse
8. Headlight fuse
9. Signaling system fuse
10.ABS control unit fuse
11.Ignition fuse
12.Auxiliary DC jack fuse
13.YCC-S motor control fuse
14.Spare fuse
20
0
2
714
8 9
10 11
12 13
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Backup fuse:
10.0 A
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS solenoid fuse:
20.0 A
ABS control unit fuse:
10.0 A
Auxiliary DC jack fuse:
3.0 A
ABS motor fuse:
30.0 A
YCC-S motor control fuse:
30.0 A
U2D2E2E0.book Page 29 Thursday, October 11, 2007 9:15 AM

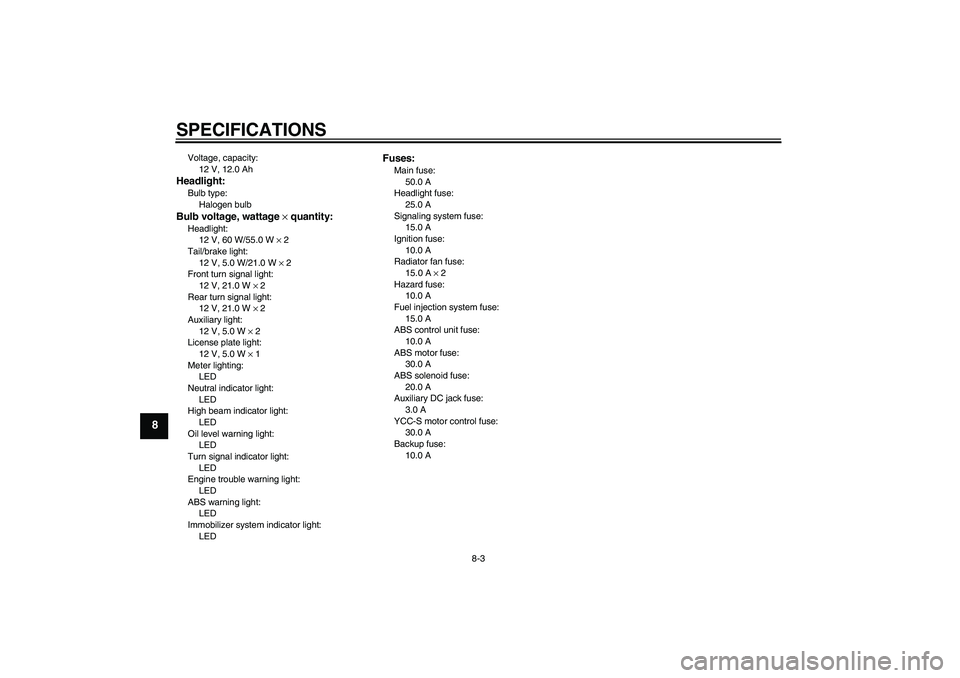

SPECIFICATIONS
8-3
8
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Auxiliary DC jack fuse:
3.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse:
10.0 A
U2D2E2E0.book Page 3 Thursday, October 11, 2007 9:15 AM

INDEX
AABS ...................................................... 3-19
ABS warning light ................................... 3-6
Accessory box ...................................... 3-26
Air filter element.................................... 6-15
Anti-theft alarm (optional) ..................... 3-14
Auxiliary DC jack .................................. 3-35
Auxiliary light bulb................................. 6-32BBattery .................................................. 6-27
Brake and shift pedals, checking and
lubricating ........................................... 6-23
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-21
Brake and YCC-S clutch fluids,
changing ............................................. 6-22
Brake lever ........................................... 3-18
Brake lever, checking and lubricating ... 6-24
Brake pedal .......................................... 3-18CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converters .............................. 3-22
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Coolant ................................................. 6-14
Cowlings, opening and closing ............. 3-27DDimmer switch ...................................... 3-15EEngine break-in ...................................... 5-4
Engine idling speed, checking .............. 6-16
Engine oil and oil filter cartridge ............. 6-9
Engine stop switch................................ 3-16Engine trouble/YCC-S indicators and
warning light .......................................... 3-5
FFinal gear oil.......................................... 6-12
Front and rear brake pads, checking .... 6-20
Front fork, adjusting .............................. 3-29
Front fork, checking...............................6-25
Front turn signal light............................. 6-30
Fuel ....................................................... 3-20
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-21
Fuel tank cap......................................... 3-20
Fuses, replacing .................................... 6-28GGrip warmer adjusting knob ..................3-32HHandlebar position, adjusting ................ 3-27
Handlebar switches ............................... 3-15
Hand shift control switch ....................... 3-16
Hand shift lever ..................................... 3-18
Hazard switch........................................ 3-16
Headlight beams, adjusting ................... 3-27
Headlight bulb ....................................... 6-30
High beam indicator light......................... 3-5
Horn switch ........................................... 3-16IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-33
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-6
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1
LLicense plate light bulb, replacing......... 6-31MMain switch/steering lock ........................ 3-3
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-7NNeutral indicator light .............................. 3-5OOil level warning light .............................. 3-5PPanels, removing and installing .............. 6-7
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-15
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch ......................... 6-20
Rear suspension, lubricating ................ 6-25
Rear view mirrors.................................. 3-28
Rider seat height, adjusting .................. 3-23SSafety information ................................... 1-1
Seats..................................................... 3-22
Shifting .................................................... 5-2
Shift pedal ............................................. 3-17
Shock absorber assembly, adjusting .... 3-30
Sidestand .............................................. 3-32
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Speedometer .......................................... 3-7
