2008 TOYOTA xD Accessories, Audio & Navigation (in English)

17

18
Listening to songs on
iPod
1AUX•iPod
Press the button repeatedly until the
source becomes iPod.
2MULTI SELECTOR
• TRK

Turn the MULTI SELECTOR clock-
wise or press it to the right to pro-
ceed to the next track.
• TRK
Turning the MULTI SELECTOR coun-
terclockwise or pressing it to the left
takes you back to the start of the
track currently playing. Turn the
MULTI SELECTOR counterclockwise
or press it to the left once more to
return to the previous track.
NOTICE
If an iPod is not connected, it
will not switch to iPod even if
you press the AUX•iPod but-
ton.
3Random
8AUDIO CONT
6
54Repeat
7TEXT
1AUX·iPod
MENU TRK
3MULTI
SELECTOR
TRK

19
• MENU
This calls up the iPod MENU. If you
first press the MULTI SELECTOR up,
play lists are displayed. Each time
you press the MULTI SELECTOR up
the display changes to one level up
from the current level.
If you turn the MULTI SELECTOR
counterclockwise or clockwise or
press to the left or right, the MENU
changes as follows:
PlaylistsArtistsAlbums
Songs
• Category (Sub Menu)
Each MENU has SUB MENUS called
Categories that you can call up. If
you select a MENU and press the
MULTI SELECTOR in the center, you
move to one level lower. Each of the
SUB MENUS has the following lev-
els:
• Playlists =List name =Track title
• Artists =Artists name =Album title
=Track title
• Albums =Album title =Track title
• Songs =Track title
With each SUB MENU, turning the
MULTI SELECTOR or pressing it to
the left or right changes the selected
item.
3PRESET 1 (Random)
If you press this, is indicat-
ed in the display and starts to play
tracks on the iPod being played in
random order. Press again to cancel.
After playback finishes of the track
playing when PRESET 1 was
pressed, random playback begins.
4PRESET 2 (Repeat)
If you press this, is indicated
in the display and starts to repeat
the track being played. Press again
to cancel.
5PRESET 5 (1)
While this is pressed, play of the
track is reversed.
Only this track is reversed. (There is
sound.)
6PRESET 6 (¡)
While this is pressed, play of the
track is fast forwarded.
Only this track is fast forwarded.
(There is sound.)
7TEXT
Text information recorded on the
iPod can be displayed.
Up to 16 characters can be displayed
at once.
Press and display indications change
as follows:
ELAPSED TIME =ALB TITLE (Album
Title) =TR TITLE (Track Title) =ART
NAME (Artist Name)
When 3is displayed, if you press
and hold until you hear a beep, the
display will change to the next page.
A maximum of 2 pages (32 charac-
ters) can be displayed.
8AUDIO CONT
When the AUDIO CONT is held
while the power is in “OFF” posi-
tion, switches to the iPodDirect
Control ON/OFF setting Mode.
When the AUDIO CONT is pressed,
the setting item of the PodDirect
Control ON/OFF setting MENU will
switch in the following order:
DirectContON DirectContOFFThe “iPodDirect Control ON/OFF set-
ting Mode” returns to the “PWR
OFF’ after you leave the button for 6
sec.

20
NOTICE
An additional Genuine Toyota
satellite receiver and antenna
must be purchased and installed
to listen to Satellite radio broad-
cast in your vehicle.
NOTICE
•You may hear noise if you
disconnect during iPod play-
back.
•The SCAN operation is not
availabie when listening to
the iPod.CAUTION
This equipment has been tested and found to comply with the limits
for a class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harm-
ful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful inter-
ference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
•This XM tuner supports “Audio Services” (Music and Talk) of
only XM Satellite Radio and *“Text Information” linked to the
respective “Audio Service”.
*“Text Information” includes, Station Name, (Artist) Name, (Song) Title and
Category Name.
•XM Satellite Radio Inc. is solely responsible for providing ser-
vices over the air to XM receivers.
•This XM tuner is awarded a Type Approval Certificate from XM
Satellite Radio Inc. as a proof of compliance for the services XM
Satellite Radio provides.

21
How to Subscribe to
XM Satellite Radio

Listeners can subscribe by visiting XM
on the Web at www.xmradio.com
or by
calling XM’s Listener Care toll-free at
(800)852-9696. Customers should have
their Radio ID ready; the Radio ID can
be found by selecting channel 000 on
the radio.
All fees and programming are the
responsibility of XM Satellite Radio
and are subject to change.

22
Listening to a XM
Satellite Radio broad-
cast
1AM•SAT
Switches between the AM mode and
SAT1/2/3 modes. (must have Satellite
Radio receiver and antenna installed
at an additional charge to listen to
Satellite Radio.)
2MULTI SELECTOR
The channel preset in PRESET 1-6
switches each time you press the
MULTI SELECTOR in the center.
• TUNE
Turning the MULTI SELECTOR
clockwise or pressing it to the right
selects the next higher channel.
If you press and hold, you can rapidly
scroll forward through the channels.
While displaying Channel Category
by TYPE UP/DOWN, you can select
the next channel forward within the
currently selected type (Channel
Category) by pressing the MULTI
SELECTOR to the right.
5TEXT
4SCAN
TYPE UP 2MULTI SELECTOR
TUNE UP
TYPE DOWN
TUNE DOWN
3PRESET1-6
1AM·SAT

23
• TUNE
Turn the MULTI SELECTOR counter-
clockwise or press to the left to
select the previous channel.
If you press and hold, you can rapidly
scroll down through the channels.
While displaying Channel Category
by TYPE UP/DOWN, you can select
the previous channel within the cur-
rently selected type (Channel
Category) by pressing the MULTI
SELECTOR to the left.
• TYPE
Press the MULTI SELECTOR up to
see the Channel Category of the
channel that is currently received.
When Channel Category is displayed
(TYPEis indicated), press again to
switch to the next category.
• TYPE
Press the MULTI SELECTOR down
to see Channel Category of channel
that is currently received.
When Channel Category is displayed
(TYPEis indicated), press again to
switch to the previous category.
3PRESET 1-6
Press to recall previously stored
channels (Preset Channels).
Press and hold until you hear a beep,
and the channel you are currently
receiving will be stored as a Preset
Channel.
4SCAN
Press and SCAN of the currently
selected type (Channel Category)
starts. At this time,
SCANis indicat-
ed in the display.
If you press and hold until you hear a
beep, SCAN of preset channels
starts.
Also at this time,
SCANis indicated
in the display.
5TEXT
Press and indication in the display
changes as follows:
CH NAME =TITLE (SONG/PROGRAM
TITLE) =NAME (ARTIST NAME/FEA-
TURE) =CH NUMBER =CH NAME
NOTICE
About the display
Up to a maximum of 16 alphanu-
meric characters can be displayed.
(Some information will not be
fully displayed.)
NOTICE
You can store up to 6 chan-
nels per band.

24

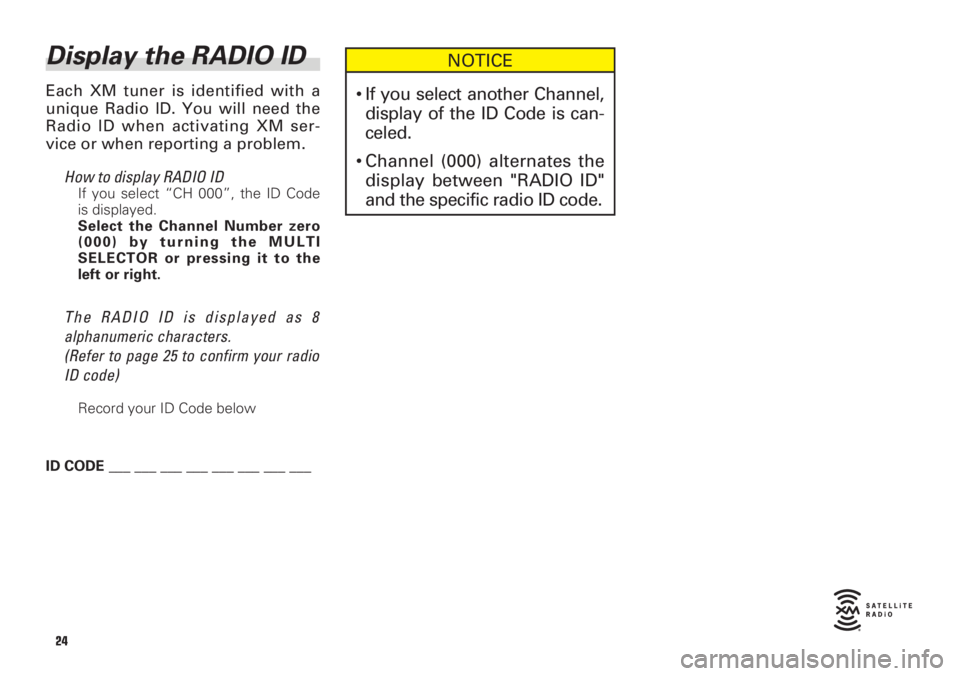

Display the RADIO ID
Each XM tuner is identified with a
unique Radio ID. You will need the
Radio ID when activating XM ser-
vice or when reporting a problem.
How to display RADIO ID
If you select “CH 000”, the ID Code
is displayed.
Select the Channel Number zero
(000) by turning the MULTI
SELECTOR or pressing it to the
left or right.
The RADIO ID is displayed as 8
alphanumeric characters.
(Refer to page 25 to confirm your radio
ID code)
Record your ID Code below
ID CODE ___ ___ ___ ___ ___ ___ ___ ___
NOTICE
• If you select another Channel,
display of the ID Code is can-
celed.
• Channel (000) alternates the
display between "RADIO ID"
and the specific radio ID code.
