2008 TOYOTA TUNDRA CD player

AUDIO/VIDEO SYSTEM
2152008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) 1918
Serbian
1919Siswati
1920Sesotho
1921Sundanese
1923Swahili
2001Tamil
2005Telugu
2007Tajik
2008Thai
2009Tigrinya
2011Turkmen
2012Tagalog
2014Setswana
2015Tonga
2018Turkish
2019Tsonga
2020Tatar
2023Tw i
2111Ukrainian
2118Urdu
2126Uzbek
2209Vietnamese
2215Volapük
2315Wolof
2408Xhosa
2515Yoruba
2621Zulu
SETUP OPERATION FROM THE REAR
SEAT
6U5034aG

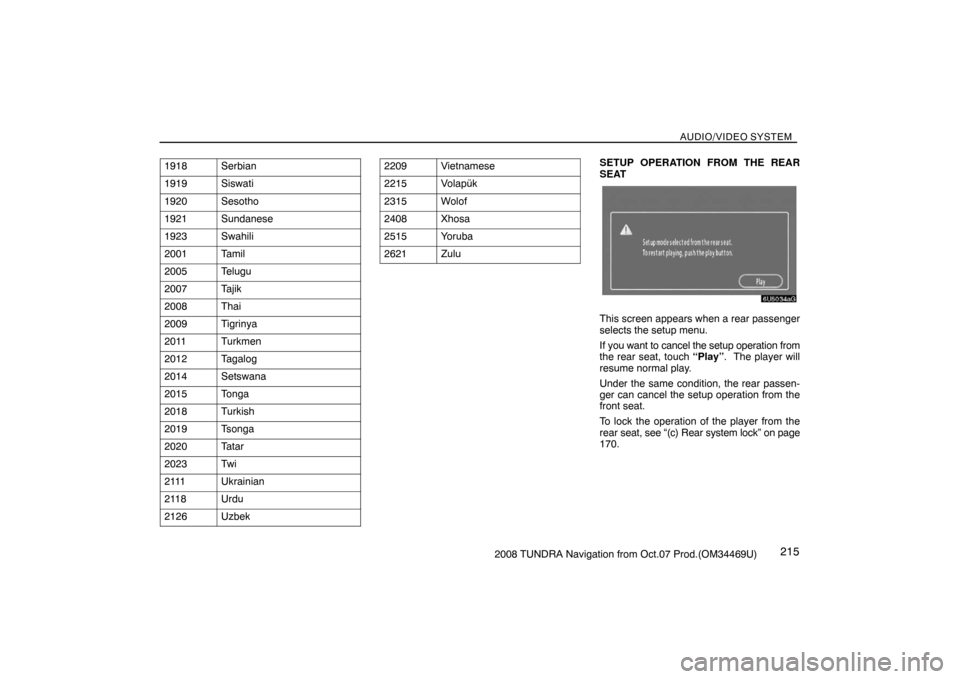

This screen appears when a rear passenger
selects the setup menu.
If you want to cancel the setup operation from
the rear seat, touch “Play”. The player will
resume normal play.
Under the same condition, the rear passen-
ger can cancel the setup operation from the
front seat.
To lock the operation of the player from the
rear seat, see “(c) Rear system lock” on page
170.

AUDIO/VIDEO SYSTEM
2162008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
RS02022a
(g) Operating a video CD
PLAYING A VIDEO CD
Push the “AUDIO” button to display this
screen.
When you touch “WIDE”, the screen mode
can be changed.
If you touch “PICTURE” when the vehicle is
completely stopped and the parking brake is
applied, the video screen returns.
6U5046aG
6U5047aG
DISPLAYING VIDEO CD CONTROLS
If you touch the part where controls are not lo-
cated while you are watching video on the vid-
eo CD, video CD controls will appear.
“Page2”: Touching this will display on the
second page of video CD controls.
“Page1”: Touching this will display on the top
page of video CD controls.“Hide Buttons”: Touching this will turn off the
controls from the screen.
If “
” appears on the display when you touch
a control, the operation is not permitted.
DESCRIPTION OF VIDEO CD CONTROLS
Controls on top page
“Select Number”: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 217.)
“Prev. Menu”: When you touch this while the
disc menu is displayed, the previous page ap-
pears on the screen. If you touch this while
the player is playing video, the previous track
is searched and played.
“Next Menu”: When you touch this while the
disc menu is displayed, the next page ap-
pears on the display. If you touch this while
the player is playing video, the next track is
searched and played.
“Main/Sub”: A multiplex transmission
changing control. The mode changes from
Main/Sub to Main, to Sub and back to Main/
Sub by touching this control.
“Return”: Touching this will display the pre-
determined scene and start playing from
there.

AUDIO/VIDEO SYSTEM
2172008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Controls on second page
: Use this to pause the video screen.
: Touch this to fast reverse during play-
back.
: Touch this to resume playing during
pause.
: Touch this to fast forward during the
playback and start playing frame by frame du-
ring pause.
6U5048aG
SEARCHING BY TRACK
Enter the track numbers and touch
“Enter”. The player starts playing video
for that title number.
You can select a track number by pushing
“” or “” on the “SEEK/TRACK” button.
If you enter the wrong numbers, touch “Clear”
to delete the numbers.
Touch
, and the previous screen re-
turns.(h) If the player malfunctions
If the player or another unit equipped with the
player malfunction, your audio system will
display following messages.
If “Disc Check” appears on the display: It
indicates that the disc dirty, damaged, or it
was inserted upside down. Clean the disc or
insert it correctly. If a disc which is not
playable is inserted, “Disc Check” will also
appear on the screen. For appropriate discs
for this player, see “Audio/video system
operating hints” on page 221.
If “Region Code Error” appears on the dis-
play: It indicates that the DVD region code is
not set properly.
If “DVD Error” appears on the display: It in-
dicates that the inside of the player unit may
be too hot due to the very high ambient tem-
perature. Remove the disc from the player
and allow the player to cool down.
If the malfunction is not rectified: Take
your vehicle to your dealer.
If an MP3 disc contains CD−DA files, only
CD−DA files are played. If an MP3 disc con-
tains files other than CD−DA, only MP3 files
are played.

AUDIO/VIDEO SYSTEM
2182008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) (i) DVD player and DVD video disc infor-
mation
DVD VIDEO DISCS
This DVD player conforms to NTSC color
TV formats. The DVD video disc conform-
ing to another formats such as PAL or SE-
CAM cannot be used.
Region codes: Some DVD video discs have
a region code indicating a country where you
can use the DVD video disc on this DVD
player. If the DVD video disc is not labeled as
“ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate
DVD video disc on this player, “Region Code
Error” appears on the screen. Even if the
DVD video disc does not have a region code,
there is a case that you cannot use it.Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code by
which this video disc can be
played.
ALL: in all countries
Number: region code
DVD VIDEO DISC GLOSSARY
DVD video discs: Digital versatile Disc that
holds video. DVD video discs have adopted
“MPEG2”, one of the world standards of digi-
tal compression technologies. The picture
data is compressed by 1/40 on average and
stored. Variable rate encoded technology in
which the volume of data assigned to the pic-
ture is changed depending on the picture for-
mat has also been adopted. Audio data is
stored using PCM and Dolby digital, which
enables higher quality of sound. Further-
more, multi−angle and multi−language fea-
tures will also help you enjoy the more ad-
vanced technology of DVD video.
Viewer restrictions: This feature limits what
can be viewed in conformity with a level of re-
strictions of the country. The level of restric-
tions varies depending on the DVD video
disc. Some DVD video discs cannot be
played at all, or violent scenes are skipped or
replaced with other scenes.
Level 1: DVD video discs for children can be
played.
Level 2 − 7: DVD video discs for children and
G−rated movie can be played.
Level 8: All types of the DVD video discs can
be played.
Multiangle feature: You can enjoy the
same scene at different angles.

AUDIO/VIDEO SYSTEM
2192008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) Multilanguage feature: You can select a
language of the subtitle and audio.
Region codes: The region codes are pro-
vided on DVD players and DVD discs. If the
DVD video disc does not have the same re-
gion code as the DVD player, you cannot play
the disc on the DVD player. For region codes,
see page 218.
Audio: This DVD player can play liner PCM,
Dolby digital and MPEG audio format DVD.
Other decoded type cannot be played.
Title and chapter: Video and audio pro-
grams stored in DVD video disc are divided in
parts by title and chapter.
Title: The largest unit of the video and audio
programs stored on DVD video discs. Usual-
ly, one piece of movie, one album, or one au-
dio program is assigned as a title.
Chapter: The unit smaller than that of title. A
title comprises plural chapters.
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the doubleD symbol are trademarks of
Dolby Laboratories. Confidential unpub-
lished works.
19921997 Dolby Laboratories. All
rights reserved.This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectural property rights owned
by Macrovision Corporation and other
rights owners. Use of this copyright
protection technology must be authorized
by Macrovision Corporation, and is in-
tended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engi-
neering or disassembly is prohibited.
“DTS” and “DTS Digital Surround” are
registered trademarks of Digital Theater
Systems, Inc.
Audio remote controls
(steering switches)
XS18008a
Some parts of the audio system can be ad-
justed using the switches on the steering
wheel.
Details of the specific switches, controls, and
features are described below.
1. Volume control switch
2.“MODE” switch
3.“” switch

AUDIO/VIDEO SYSTEM
2202008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) 1. Volume control switch
Push “+” side to increase the volume. The
volume continues to increase while the switch
is being pushed.
Push “” side to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. “MODE” switch
Push “MODE” switch to select an audio
mode. Each push changes the mode sequen-
tially if the desired mode is ready to use.
To turn the audio system on, push the
“MODE” switch.
To turn the audio system off, push and hold
the “MODE” switch until the system turns off.
3. “” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “” or “”
side of the switch. Do this again to select the
next preset station.
To seek a station:
Push and hold the “” or “” side of the
switch until you hear a beep. Do this again to
find the next station. If you push the switch on
either side during the seek mode, seeking will
be cancelled.To step up or down the frequency, push and
hold the switch even after you hear a beep.
When you release from the switch, the radio
will begin seeking up or down for a station. Do
this again to find the next station.
XM
 Satellite Radio∗—
To select a preset channel, push the “” or
“” side of the switch. Repeat until a desired
channel is found.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota dealer
for details.
Compact disc player
Use this switch to skip up or down to a differ-
ent track in either direction.
Quickly push and release the “” or “”
side of the switch until the track you want to
listen to is set. If you want to return to the be-
ginning of the current track, push the “”
side of the switch once, quickly.
With compact disc changer only—
Push and hold the “” or “” side of the
switch until the disc you want to listen to is set.
MP3/WMA player
To select a desired file:
Quickly push and release the “” or “”
side of the switch until the file you want to lis-
ten to is set. If you want to return to the begin-
ning of the current file, push the “” side of
the switch once, quickly.To select a desired folder:
Push and hold the “” or “” side of the
switch until you hear a beep. Repeat this until
the folder you want to listen to is set.
With compact disc changer only—
To select a desired disc:
Push and hold the “” or “” side of the
switch until you hear a beep. Repeat this until
the disc you want to listen to is set.

AUDIO/VIDEO SYSTEM
2212008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
Audio/video system operating
hints
NOTICE
To ensure correct audio/video system
operations:
Be careful not to spill beverages over
the audio system.
Do not put anything other than a com-
pact disc into the slot.
Do not put anything other than an ap-
propriate disc into the DVD player.
The use of a cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio sys-
tem which you are listening to. How-
ever, this does not indicate a mal-
function.
RADIO RECEPTION
Usually, a problem with radio reception does
not mean there is a problem with your radio —
it is just the normal result of conditions outside
the vehicle.For example, nearby buildings and terrain
can interfere with FM reception. Power lines
or telephone wires can interfere with AM sig-
nals. And of course, radio signals have a lim-
ited range. The farther you are from a station,
the weaker its signal will be. In addition, re-
ception conditions change constantly as your
vehicle moves.
Here are some common reception problems
that probably do not indicate a problem with
your radio:
FM
Fading and drifting stations — Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may no-
tice fading and drifting, which increase with
the distance from the radio transmitter. They
are often accompanied by distortion.
Multi−path — FM signals are reflective, mak-
ing it possible for two signals to reach your an-
tenna at the same time. If this happens, the
signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering — These occur when sig-
nals are blocked by buildings, trees, or other
large objects. Increasing the bass level may
reduce static and fluttering.Station swapping — If the FM signal you are
listening to is interrupted or weakened, and
there is another strong station nearby on the
FM band, your radio may tune in the second
station until the original signal can be picked
up again.
AM
Fading — AM broadcasts are reflected by the
upper atmosphere — especially at night.
These reflected signals can interfere with
those received directly from the radio station,
causing the radio station to sound alternately
strong and weak.
Station interference — When a reflected sig-
nal and a signal received directly from a radio
station are very nearly the same frequency,
they can interfere with each other, making it
difficult to hear the broadcast.
Static — AM is easily affected by external
sources of electrical noise, such as high ten-
sion power lines, lightening, or electrical mo-
tors. This results in static.
XM∗
Alternation or modifications carried out with-
out appropriate authorization may invalidate
the user’s right to operate the equipment.
∗: Use of satellite radio requires XM tuner
and service. Contact your Toyota dealer for
details.

AUDIO/VIDEO SYSTEM
2222008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) CARING FOR YOUR CD CHANGER, DVD
PLAYER AND DISCS
Your CD changer is intended for use with
12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your CD changer and DVD player from
working. On hot days, use the air condi-
tioning to cool the vehicle interior before
you use the changer and player.
Bumpy roads or other vibrations may
make your CD changer and DVD player
skip.
If moisture gets into your CD changer and
DVD player, you may not play even
though they appear to be working. Re-
move the disc from the changer and play-
er and wait until it dries.
CAUTION
CD changers and DVD player use an in-
visible laser beam which could cause
hazardous radiation exposure if di-
rected outside the unit. Be sure to oper-
ate the changers and players correctly.
XS18016
CD changer
Use only discs marked as shown above.
The following products may not be play-
able on your changer.
Copy−protected CD
CD−ROM
Audio CDs
DVD video
discs
Video CDs
DVD player
Use only discs marked as shown above.
The following products may not be play-
able on your player.
SACD
Copy−protected CD
CD−ROM
DVD−R
DVD+R
DVD−RW
DVD+RW
DVD−ROM
DVD−RAM
