2008 TOYOTA SIENNA steering

08 SIENNA_U (L/O 0801)
127
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or dashboard (shaded in the illustra-
tion) is scratched, cracked, or other-
wise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain shield air-
bags are designed to provide further
protection for the driver and all win-
dowside passengers in addition to the
primary safety protection provided by
the seat belts.
In response to a severe side impact, the
SRS side airbags and curtain shield air-
bags work with the seat belts to help
reduce injury by inflating. The SRS side
airbags help reduce injuries mainly to the
driver ’s or front passenger ’s chest and the
SRS curtain shield airbags help reduce
injuries mainly to the driver’s and all win-
dow −side passengers’ heads.
—SRS side airbags and
curtain shield airbags

08 SIENNA_U (L/O 0801)
163
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt and telescopic steering wheel164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 164
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Anti −glare inside rear view mirror 167
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 167
. . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
SECTION 1 4

08 SIENNA_U (L/O 0801)
164
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
To adjust the steering wheel position,
push down the lock release lever. Then
tilt the steering wheel to the desired
angle, push or pull it to the desired
steering column length and pull up the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down or for-
ward and rearward to make sure it
is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt and telescopic steering
wheelOutside rear view mirrors—

08 SIENNA_U (L/O 0801)
204
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
“START”—Starter motor on. The key
will return to the “ON” position when
released.
For starting tips, see page 451 in Section
3.
“ON”—Engine on and all accessories
on.
This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the engine is off.
If you leave the engine switch in the
“ACC” or “LOCK” position and open the
driver ’s door, a buzzer will remind you to
remove the key.“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn the
engine switch from “ACC” to the “LOCK”
position. The selector lever must be put
in the “P” position before pushing the key.
Vehicles with engine immobilizer system—
Once you remove the key, the engine im-
mobilizer system is automatically set. (See
“Engine immobilizer system” on page 13
in Section 1−
2.)
When starting the engine, the engine
switch may seem stuck at the “LOCK”
position. To free it, first be sure the key
is pushed all the way in, and then rock
the steering wheel slightly while turning
the key gently.
Approximately five hours after the engine
is turned off, you may hear sound coming
from under the floor around the driver ’s
seat for several minutes. This is normal
operation and does not indicate a malfunc-
tion. (See “Leak detection pump” on page
viii.)
It is not a malfunction if the needle on all
meters and gauges move slightly when the
engine switch is turned to the “ACC”,
“ON” or “START” position.
NOTICE
Do not leave the engine switch in the
“ON” position if the engine is not
running. The battery will discharge
and the ignition could be damaged.
Engine (ignition) switch

08 SIENNA_U (L/O 0801)
213
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The vehicle stability control system
helps provide integrated control of the
systems such as an antilock brake
system, brake assist system, traction
control, engine control, etc. This sys-
tem automatically controls the brakes
and engine to help prevent the vehicle
from skidding when cornering on a slip-
pery road surface or operating steering
wheel abruptly.
The vehicle stability control system is acti-
vated when the vehicle speed is about
more than 15 km/h (9 mph).
You may hear a sound in the engine
compartment for a few seconds just after
the vehicle begins to move. This means
that the system is in the self−check mode,
but does not indicate a malfunction.CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
flashes, an alarm sounds, special
care should be taken while driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 526 in Section 72.)
In situations where the road surface
is covered with ice or snow, your
vehicle should be fitted with snow
tires or tire chains.
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the engine switch is turned
to “ON”. If the indicator light does not
come on when the engine switch is turned
on, contact your Toyota dealer.
Vehicle stability control
system

08 SIENNA_U (L/O 0801)
225
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Dynamic laser cruise control allows you
to drive at a selected cruising speed
over about 45 km/h (28 mph) with your
foot off the accelerator pedal, maintain-
ing an appropriate vehicletovehicle
distance.
CAUTION
Do not rely excessively on dynamic
laser cruise control in order to avoid
serious injury or death, or to prevent
accidents or to control the vehicle’s
speed in emergency situations. Do
not use cruise control except in ap-
propriate road and traffic conditions.
Always drive carefully and attentively.
Before using dynamic laser cruise
control, read and understand the fol-
lowing instructions.
Steering wheel
Instrument cluster
1. Cruise control switch
2. Distance switch
3. Display
4. “NORM.” indicator light (conventional cruise control mode
indicator light)
5. “CRUISE” indicator light
6. “READY” indicator light (ready mode indicator light)
7. Master warning light
Dynamic laser cruise control—

08 SIENNA_U (L/O 0801)
229
2008 SIENNA from Aug. ’08 Prod. (OM45455U)

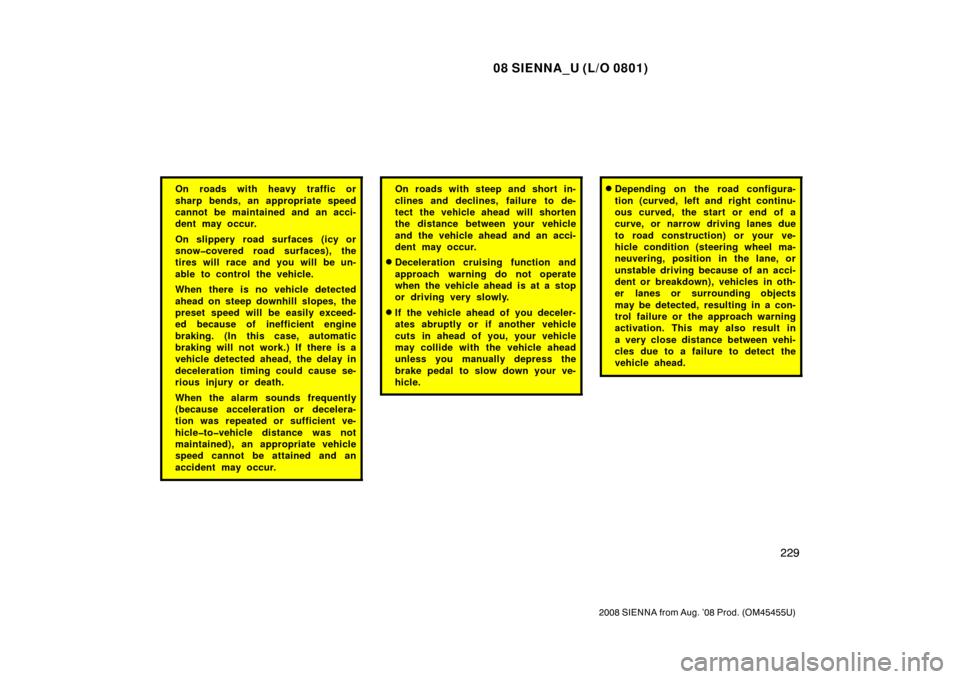

On roads with heavy traffic or
sharp bends, an appropriate speed
cannot be maintained and an acci-
dent may occur.
On slippery road surfaces (icy or
snowcovered road surfaces), the
tires will race and you will be un-
able to control the vehicle.
When there is no vehicle detected
ahead on steep downhill slopes, the
preset speed will be easily exceed-
ed because of inefficient engine
braking. (In this case, automatic
braking will not work.) If there is a
vehicle detected ahead, the delay in
deceleration timing could cause se-
rious injury or death.
When the alarm sounds frequently
(because acceleration or decelera-
tion was repeated or sufficient ve-
hicletovehicle distance was not
maintained), an appropriate vehicle
speed cannot be attained and an
accident may occur.On roads with steep and short in-
clines and declines, failure to de-
tect the vehicle ahead will shorten
the distance between your vehicle
and the vehicle ahead and an acci-
dent may occur.
Deceleration cruising function and
approach warning do not operate
when the vehicle ahead is at a stop
or driving very slowly.
If the vehicle ahead of you deceler-
ates abruptly or if another vehicle
cuts in ahead of you, your vehicle
may collide with the vehicle ahead
unless you manually depress the
brake pedal to slow down your ve-
hicle.
Depending on the road configura-
tion (curved, left and right continu-
ous curved, the start or end of a
curve, or narrow driving lanes due
to road construction) or your ve-
hicle condition (steering wheel ma-
neuvering, position in the lane, or
unstable driving because of an acci-
dent or breakdown), vehicles in oth-
er lanes or surrounding objects
may be detected, resulting in a con-
trol failure or the approach warning
activation. This may also result in
a very close distance between vehi-
cles due to a failure to detect the
vehicle ahead.

08 SIENNA_U (L/O 0801)
265
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.1. Volume control switch
2. “ ” switch
3. “MODE” switch
Audio remote controls (steering switches)
