2008 TOYOTA SIENNA engine

08 SIENNA_U (L/O 0801)
378
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading south.
The direction display is updated every 2
seconds.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The engine switch is turned off immedi-
ately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)
The battery has been disconnected.
The compass works to calibrate the direc-
tion automatically while the vehicle is in
motion, if deviation is small.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below. If the direction is not indicated or the
system does not operate pr
operly, contact
your Toyota dealer.
—Compass

08 SIENNA_U (L/O 0801)
383
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The engine switch must be in the “ACC”
or “ON” position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
When the instrument panel lights are
turned on, the brightness of the time in-

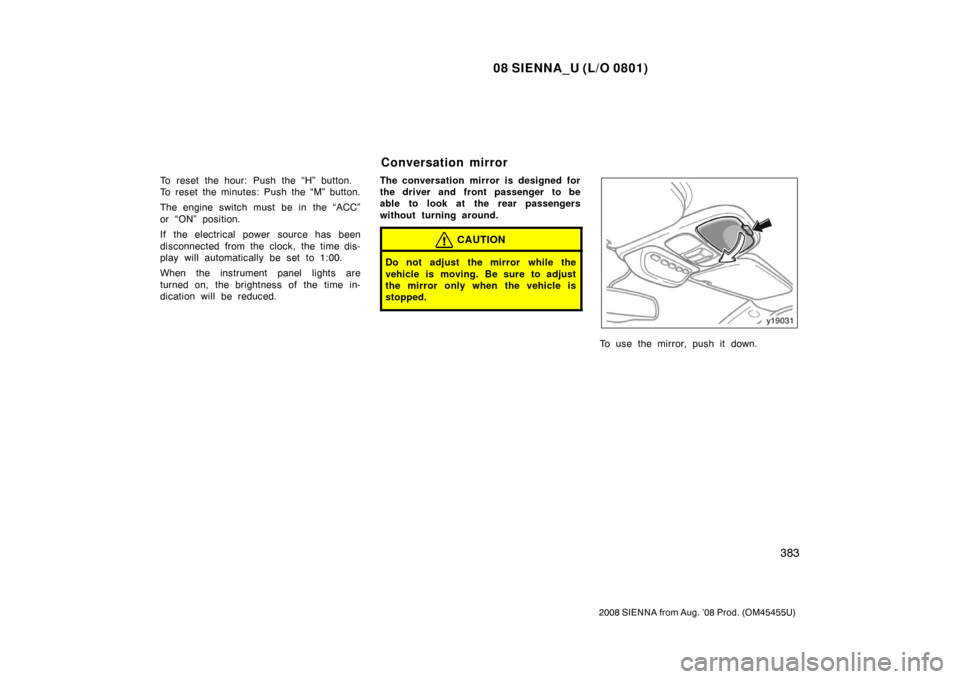

dication will be reduced.The conversation mirror is designed for
the driver and front passenger to be
able to look at the rear passengers
without turning around.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Be sure to adjust
the mirror only when the vehicle is
stopped.
To use the mirror, push it down.
Conversation mirror

08 SIENNA_U (L/O 0801)
385
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The Toyota park assist system is de-
signed to inform you of the approxi-
mate distance between your vehicle and
an obstruction by indicator and buzzer
when parking the vehicle. This system
uses sensors to detect obstructions.
This system works when the engine
switch is in the “ON” position and the
transmission is not in the “P” position.
Rear and rear corner sensors work
only when the transmission is in the
“R” position.
Front corner sensors works when the
transmission is in the “R” position.
Front corner sensors works when the
transmission is not in the “P” or “R”
position and vehicle speed is approxi-
mate 10 km/h (6 mph) or less.
To turn on: Push the switch.
The indicator comes on and the buzzer
will sound.
To turn off: Push the switch again.In the following cases, the buzzer will
sound several times and the indicator
will stay on to indicate that the system
is not working properly.
When the temperature is extremely low.
When any of the sensors are malfunc-
tion.
If the indicator is continuously on, have
your Toyota dealer check the system.
If the indicator remains blinking but
you do not hear the buzzer sound,
clean the sensors with soft cloth.

08 SIENNA_U (L/O 0801)
388
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
CAUTION
The Toyota park assist system is
intended as an aid to assist you to
park and is not a substitute for
your personal judgment. Make your
driving decisions based on your ob-
servations.
Do not attach accessories or other
objects to the vehicle within the
sensor perceptible area. Doing so
may cause the system to malfunc-
tion, which might result in an acci-
dent.
In certain situations, the system
will not function properly and when
the vehicle approaches certain ob-
jects, the system will not detect
those objects. Therefore, always ob-
serve the area around the vehicle
and do not rely solely on the sys-
tem.
For vehicles sold in Canada
This ISM device compiles with
Canadian ICES001.
In the following cases, the system may
not work properly.
When ice, snow, mud or other objects
build up on the sensor.
When the vehicle is parked in extreme-
ly high or extremely low temperature
for a long period.
When driving on bumpy or graveled
roads or on grass
When a device such as a horn from
another vehicle, motorcycle engine, or
an air brake sound from a heavy −duty
vehicle, issues ultrasonic waves, near
your vehicle
When attaching a two −way radio anten-
na
When rain or water splashes on the
sensor.
When operating the vehicle on an in-
clined surface
When a radio antenna or fender pole
is mounted on your vehicle.
When a towing hitch is mounted on
your vehicle.

08 SIENNA_U (L/O 0801)
389
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The system may not detect the follow-
ing.
Thin objects such as a wire or rope
Objects with a surface area too small
to reflect ultrasonic waves such as
wire gauze
Sound wave absorbing objects or mate-
rial such as cotton or snow
A person near the vehicle (depending
on the type of clothes worn)
Objects with a sharp edge
Small or short objects
Tall objects with an upper part project-
ing toward the vehicle
Objects just under the bumper
Objects very close to your vehicle
In the following cases, have your
Toyota dealer check the system.
When the bumper is damaged.
When the indicator is continuously on.
1: Rear sensors
2: Rear corner sensors
The Toyota park assist system is de-
signed to inform you of the approxi-
mate distance between your vehicle and
an obstruction by indicator and buzzer
when parking the vehicle. This system
uses sensors to detect obstructions.
This system works when the engine
switch is in the “ON” position and the
transmission is in the “R” position.
The sensors work only when the transmis-
sion is in the “R” position.
To turn on: Push the switch.
The indicator comes on and the buzzer
will sound.
To turn off: Push the switch again.
Toyota park assist system
(type B)

08 SIENNA_U (L/O 0801)
392
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
For vehicles sold in Canada
This ISM device compiles with
Canadian ICES001.
In the following cases, the system may
not work properly.
When ice, snow, mud or other objects
build up on the sensor.
When the vehicle is parked in extreme-
ly high or extremely low temperature
for a long period.
When driving on bumpy or graveled
roads or on grass
When a device such as a horn from
another vehicle, motorcycle engine, or
an air brake sound from a heavy −duty
vehicle, issues ultrasonic waves, near
your vehicle
When attaching a two −way radio anten-
na
When rain or water splashes on the
sensor.
When operating the vehicle on an in-
clined surface
When a radio antenna or fender pole
is mounted on your vehicle.
When a towing hitch is mounted on
your vehicle. The system may not detect the follow-
ing.
Thin objects such as a wire or rope
Objects with a surface area too small
to reflect ultrasonic waves such as
wire gauze
Sound wave absorbing objects or mate-
rial such as cotton or snow
A person near the vehicle (depending
on the type of clothes worn)
Objects with a sharp edge
Small or short objects
Tall objects with an upper part project-
ing toward the vehicle
Objects just under the bumper
Objects very close to your vehicle
In the following cases, have your
Toyota dealer check the system.
When the bumper is damaged.
When the indicator is continuously on.

08 SIENNA_U (L/O 0801)
393
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
The rear view monitor system assists
the driver by displaying an image of
the view behind the vehicle while back-
ing up. The image is displayed in re-
verse on the screen. This allows the
image to appear in the same manner as
that of the rear view mirror.
To display the rear view image on the
screen, place the selector lever in the
“R” position when the engine switch is
in the “ON” position.
If you move the selector lever out of the
“R” position, the screen returns to the
previous screen. Operating another func-
tion of the navigation system will display
another screen.
The rear view monitor system is a supple-
ment device intended to assist back up.
When backing up, be sure to check be-
hind and all around the vehicle visually.CAUTION
Never depend on the rear view
monitor system entirely when back-
ing up. Always make sure your in-
tended path is clear.
Use caution just as you would when
backing up any vehicle.
Never back up while looking only at
the screen. The image on the
screen is different from actual con-
ditions. Depicted distances between
objects and flat surfaces will differ
from actual distances. If you back
up while looking only at the screen,
you may hit a vehicle, a person or
an object. When backing up, be
sure to check behind and all around
the vehicle visually and with mir-
rors before proceeding.
Do not use the system when the
back door is not completely closed.
If the back of the vehicle is hit, the
position and mounting angle of the
camera may change. Be sure to
have the camera’s position and
mounting angle checked at your
Toyota dealer.
If the temperature changes rapidly,
such as when hot water is poured
on the vehicle in cold weather, the
system may not operate normally.
If the camera lens becomes dirty, it
cannot transmit a clear image. If
water droplets, snow, or mud ad-
here to the lens, rinse with water
and wipe with a soft cloth. If the
lens is extremely dirty, wash it with
a mild cleanser and rinse.
Use your own eyes to confirm the
vehicle’s surroundings, as the dis-
played image may become faint or
dark, and moving images will be
distorted, or not entirely visible
when the outside temperature is
low. When backing up, be sure to
check behind and all around the ve-
hicle visually and with mirror before
proceeding.
Rear view monitor system

08 SIENNA_U (L/O 0801)
396
2008 SIENNA from Aug. ’08 Prod. (OM45455U)
Check surroundings for safety.
If a bright light (for example, sunlight re-
flected off the vehicle body) is picked up
by the camera, the smear effect
∗ peculiar
to the camera may occur.
∗: Smear effect—A phenomenon that oc-
curs when a bright light (for example, sun-
light reflected off the vehicle body) is
picked up by the camera; when trans-
mitted by the camera, the light source
appears to have a vertical streak above
and below it.
Front
Rear
The power outlets (12 VDC) are de-
signed for power supply for car acces-
sories.
The engine switch must be in the “ACC”
or “ON” position for the power outlets to
be used.
NOTICE
 To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of 12
VDC/120W (front and rear outlets
together).
 To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
 Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
Power outlets (12 VDC)
