2008 TOYOTA SEQUOIA Owners Manual

393
3-7. Other interior features
3
Interior features

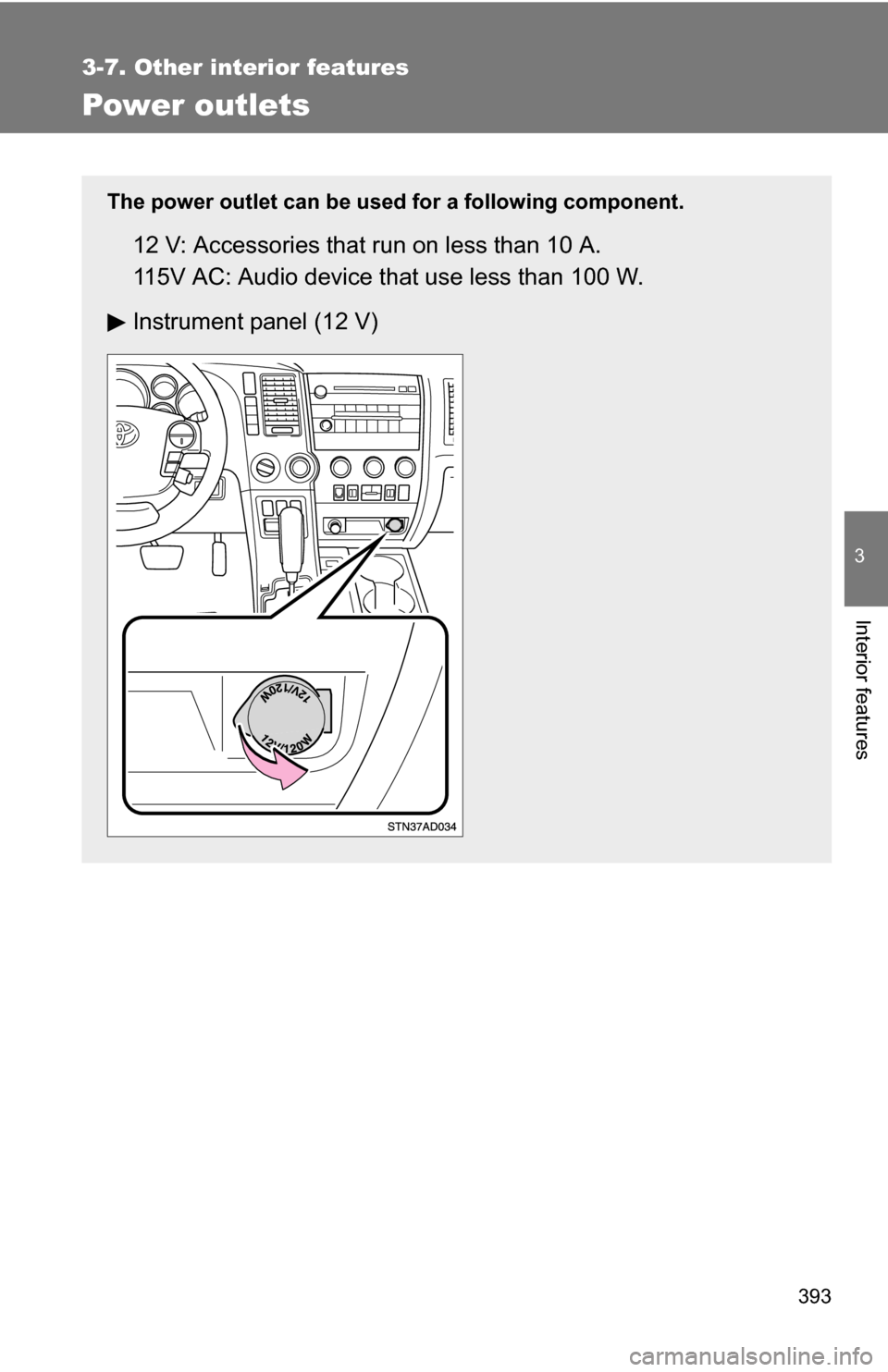

Power outlets
The power outlet can be used for a following component.
12 V: Accessories that run on less than 10 A.
115V AC: Audio device that use less than 100 W.
Instrument panel (12 V)

394 3-7. Other interior features

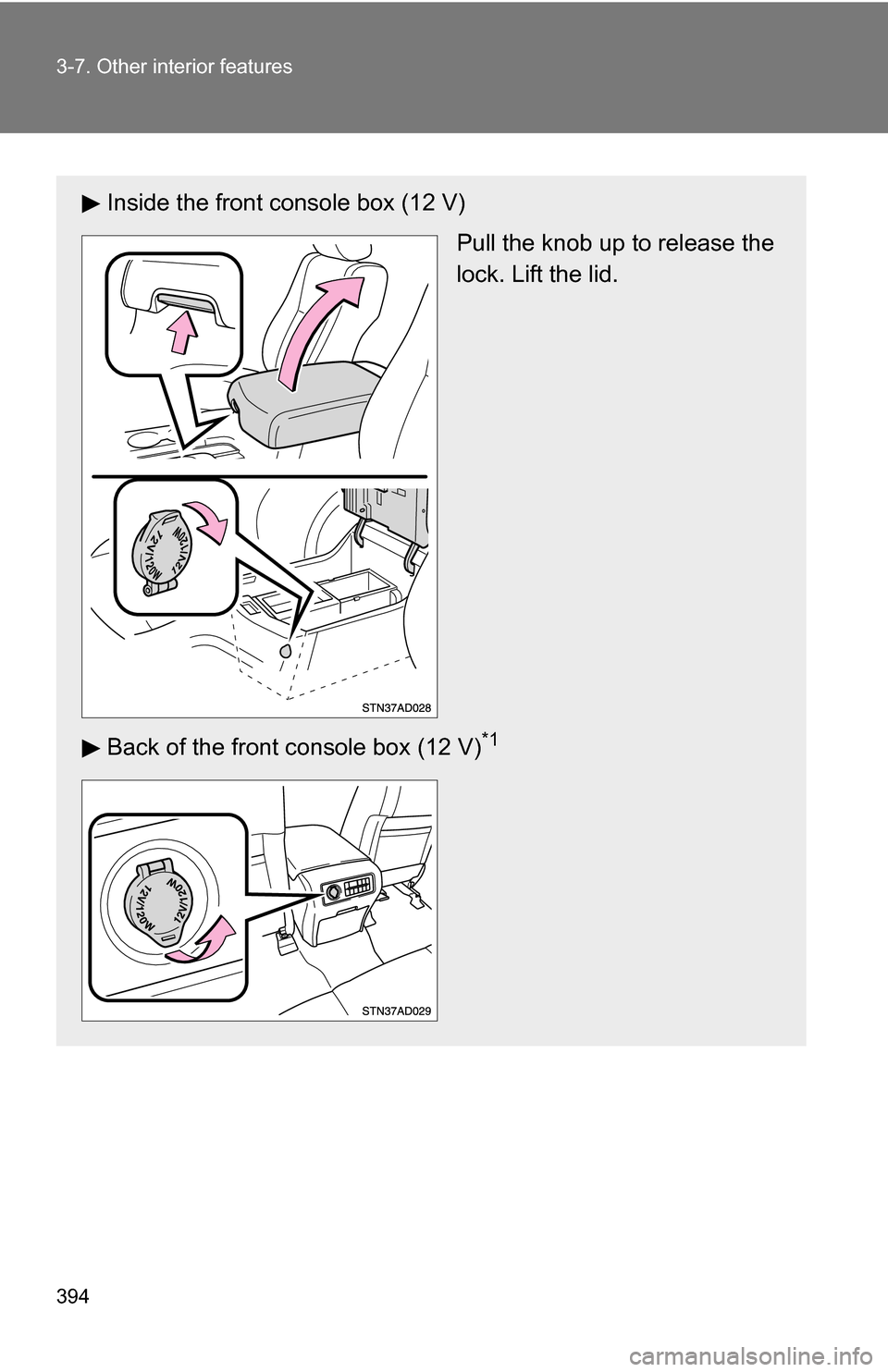

Inside the front console box (12 V)Pull the knob up to release the
lock. Lift the lid.
Back of the front console box (12 V)
*1

395
3-7. Other interior features
3
Interior features
*1: Vehicles without rear
seat entertainment system*2: Vehicles with rear seat entertainment system

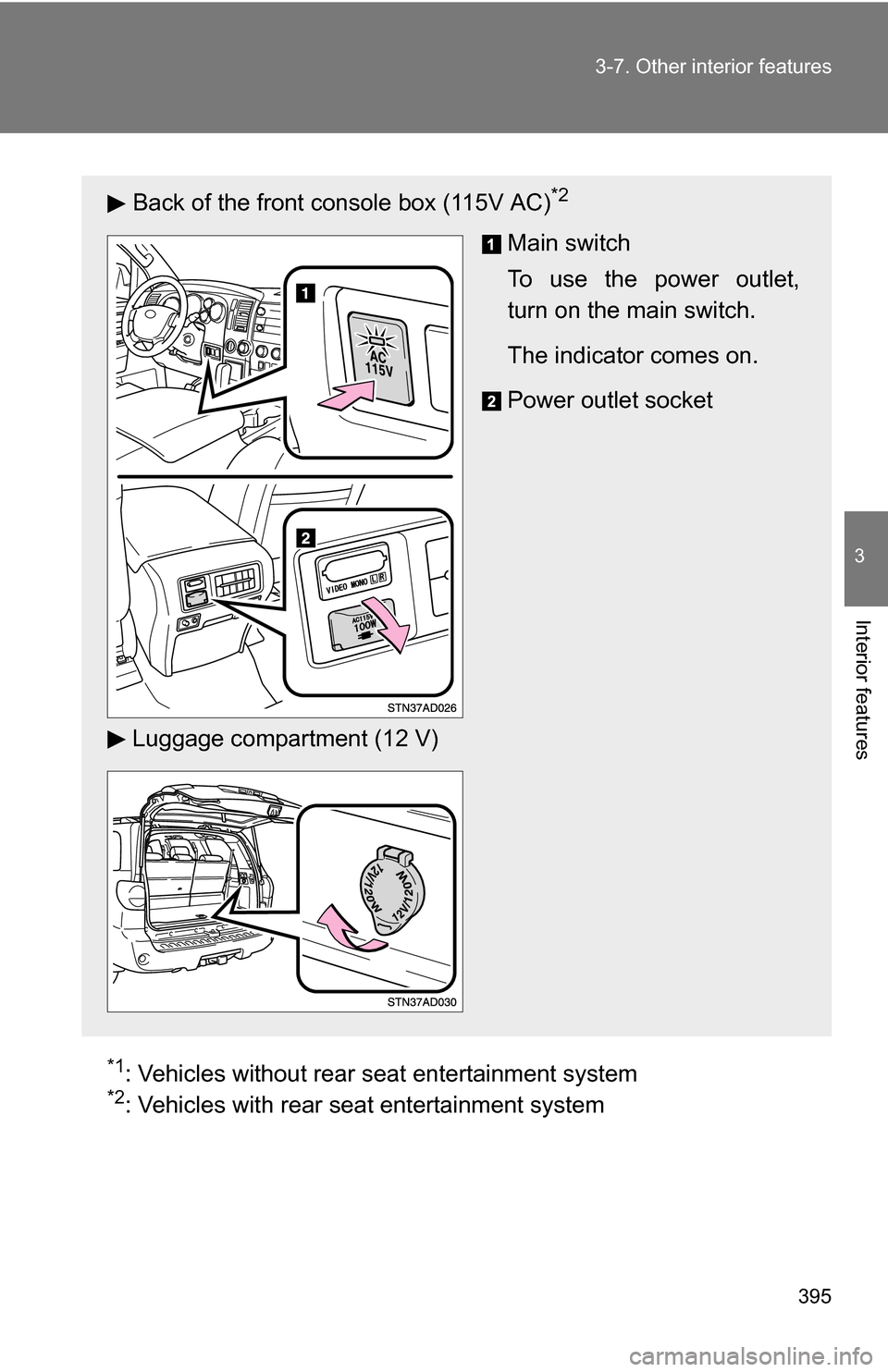

Back of the front console box (115V AC)*2
Main switch
To use the power outlet,
turn on the main switch.
The indicator comes on.
Power outlet socket
Luggage compartment (12 V)

396 3-7. Other interior features
■The power outlet can be used when
12V
The engine switch is in the ACC or ON position.
115V AC
The engine switch is in the ON position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12V
Do not use an accessory that uses more than 12 V 10 A.
115V AC
Do not use a 115V AC appliance that requires more than 100 W.
If a 115V AC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is
stopped.
■ Appliances that may not ope rate properly (115V AC)
The following 115V AC appliances may not operate properly even if their
power consumption is under 100 W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

397
3-7. Other interior features
3
Interior features
Seat heaters (if equipped)
■Front seat
On
The indicator comes on.
Adjusts the seat tempera-
ture.
The further you turn the dial
upward, the warmer the seat
becomes.

398 3-7. Other interior features
■Rear seat (vehicles with rear console box)
Press the LO or HI switch to warm the seats to a low or high
temperature respectively.
High temperature
The indicator (yellow) comes
on.
Low temperature
The indicator (green) comes
on.

399
3-7. Other interior features
3
Interior features
■
The seat heaters can be used when
The engine switch is in the ON position.
■ When not in use
Front seat: Turn the dial fully downward. The indicator turns off.
Rear seat (vehicles with rear console box): Push lightly on the opposite side.
The indicator turns off.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp
objects (needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the switches off when the engine is not running.

400
3-7. Other interior features
Seat heaters and ventilators (if equipped)
■The seat heaters can be used when
The engine switch is in the ON position.
■ When not in use
Set the dial to 0. The indicator turns off.
Blows air from the seats
The indicator comes on. The
higher the number, the stron-
ger the airflow becomes.
Heats the seats
The indicator comes on. The
higher the number, the warmer
the seats become.
