2008 TOYOTA RAV4 Owners Manual

’08 Rav4_U (L/O 0802)
97
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To remove the convertible seat:
Press the buckle release button and allow
the belt to retract completely. The belt will
move freely again and be ready to work
for an adult or older child passenger.Rear/second center seat: If the seat in
which a child restraint system is installed
in the rear most position, release the cen-
ter seat belt after removing the child re-
straint system. Otherwise, the rear center
seat belt may not work properly.(C) BOOSTER SEAT INSTALLATION
A booster seat must be used in for-
wardfacing position only.

’08 Rav4_U (L/O 0802)
98
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

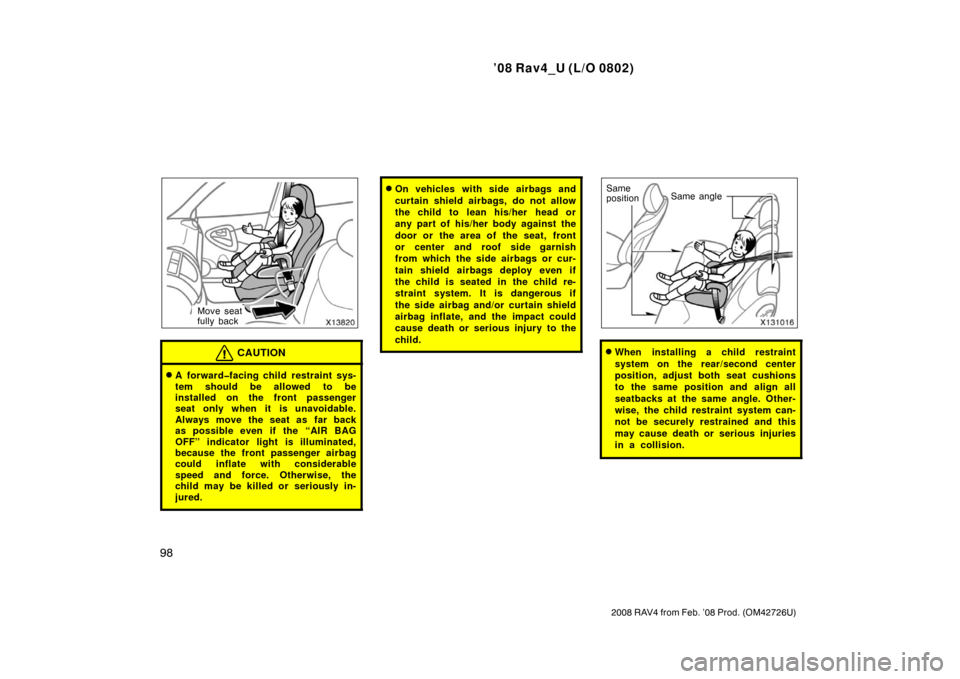

Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible even if the “AIR BAG
OFF” indicator light is illuminated,
because the front passenger airbag
could inflate with considerable
speed and force. Otherwise, the
child may be killed or seriously in-
jured.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean his/her head or
any part of his/her body against the
door or the area of the seat, front
or center and roof side garnish
from which the side airbags or cur-
tain shield airbags deploy even if
the child is seated in the child re-
straint system. It is dangerous if
the side airbag and/or curtain shield
airbag inflate, and the impact could
cause death or serious injury to the
child.Same
positionSame angle
When installing a child restraint
system on the rear/second center
position, adjust both seat cushions
to the same position and align all
seatbacks at the same angle. Other-
wise, the child restraint system can-
not be securely restrained and this
may cause death or serious injuries
in a collision.

’08 Rav4_U (L/O 0802)
99
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To install the booster seat:
Sit the child on a booster seat. Run the
lap and shoulder belt through or around
the booster seat and across the child fol-
lowing the instructions provided by its
manufacturer and insert the tab into the
buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on the child’s hips. See “Seat belts” on
page 53 in this Section for details.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder.
Otherwise, the child may be killed
or seriously injured in case of sud-
den braking or a collision.
Both highpositioned lap belts and
loosefitting belts could cause
death or serious injuries due to
sliding under the lap belt during a
collision or other unintended event.
Keep the lap belt positioned as low
on a child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from death or serious injury.
Contact your Toyota dealer immedi-
ately. Do not install the child
restraint system on the seat until
the seat belt is fixed.

’08 Rav4_U (L/O 0802)
100
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
To remove the booster seat:
Press the buckle release button and allow
the belt to retract.Rear/second center seat: If the seat in
which a child restraint system is installed
in the rear most position, release the cen-
ter seat belt after removing the child re-
straint system. Otherwise, the rear center
seat belt may not work properly.Outside position
Center position
— U sin g a to p st rap

’08 Rav4_U (L/O 0802)
101
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Symbol mark
Outside position
Symbol mark
Center position
Use one anchor bracket on the roof and
two anchor brackets on the rear/second
seatbacks to attach the top strap.
Anchor brackets are installed for each
rear/second seating position.
This symbol indicates the locations of the
anchor brackets.

’08 Rav4_U (L/O 0802)
102
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
TO USE THE OUTSIDE ANCHOR
BRACKET:1. Remove the head restraint.Hold the center of the lever and pull it
up. Then slide the rear/second seats
forward slightly if it is in the rearmost
position.2. Fix the child restraint system with the seat belt.
Widen the slit of the cover slightly
and confirm the position of the an-
chor fitting. Latch the hook onto the
anchor bracket and tighten the top
strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 85 in this Section.

’08 Rav4_U (L/O 0802)
103
2008 RAV4 from Feb. ’08 Prod. (OM42726U)

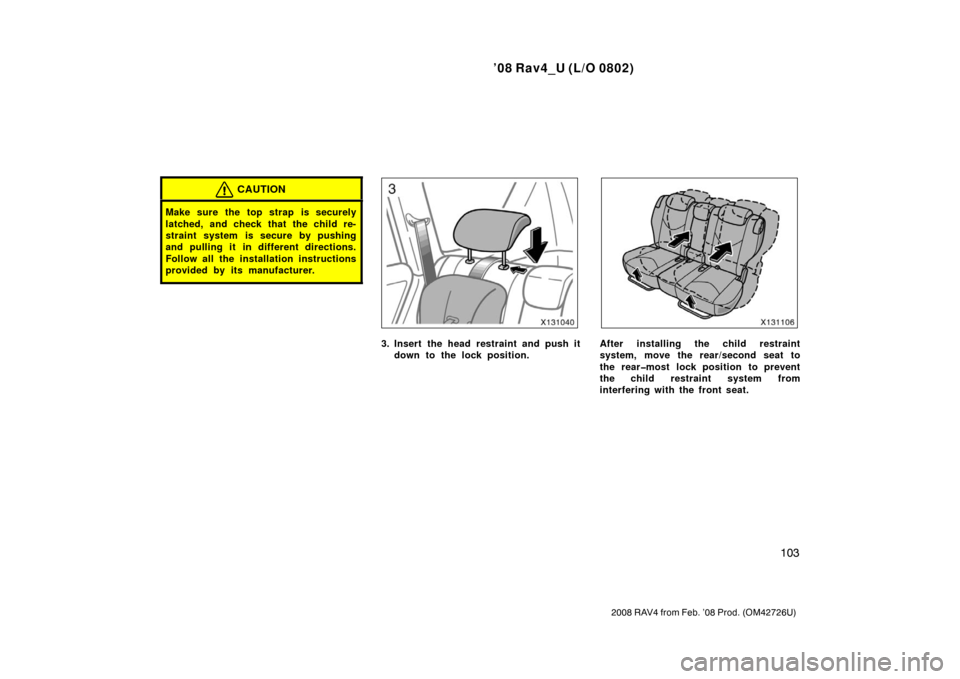

CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
3. Insert the head restraint and push itdown to the lock position.After installing the child restraint
system, move the rear/second seat to
the rearmost lock position to prevent
the child restraint system from
interfering with the front seat.

’08 Rav4_U (L/O 0802)
104
2008 RAV4 from Feb. ’08 Prod. (OM42726U)
TO USE THE CENTER ANCHOR
BRACKET:1. Open the lid of the anchor bracket.2. Fix the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 85 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear/second seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear/second seating position.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
—Installation with child
restraint lower anchorages
