2008 TOYOTA HIGHLANDER HYBRID mirror

Interior features3
247
3-4. Using the hands-free phone system (for
cellular phone) ............. 330
Hands-free phone system (for cellular phone)
features .......................... 330
Using the hands-free phone system (for
cellular phone) ............... 334
Making a phone call ......... 342
Setting a cellular phone ............................. 346
Security and system setup .............................. 351
Using the phone book ...... 354
3-5. Using the interior lights ............................. 361
Interior lights list ............... 361
• Personal/interior light main switch .................... 362
• Personal/interior lights .............................. 362
• Interior light .................... 363 3-6. Using the storage
features ......................... 364
List of storage features .......................... 364
• Glove box....................... 365
• Console box ................... 365
• Overhead console .......... 366
• Cup holders ................... 368
• Bottle holders ................. 372
• Auxiliary boxes ............... 373
• Side table ....................... 376
3-7. Other interior features ......................... 378
Sun visors ........................ 378
Vanity mirror..................... 379
Conversation mirror ......... 380
Power outlet ..................... 381
Seat heaters..................... 384
Armrests........................... 386
Floor mat .......................... 387
Luggage compartment features .......................... 388
Garage door opener......... 394
Compass .......................... 399

267
3-1. Using the air conditioning system and defogger
3
Interior features
Rear window and outside rear view mirror defoggers
Clear the rear window using the defogger.
Vehicles with manual air conditioning systemOn/off
Press the button to turn on the
rear window defogger. The
indicator light will come on.
The defoggers will automati-
cally turn off after 15 to 60 min-
utes. The operation time
changes according to the
ambient temperature and vehi-
cle speed. Pressing the button
again also turns the defogger
off.
Vehicles without outside rear view mirror defoggers
Vehicles with outside rear view mirror defoggers
Vehicles with automatic air conditioning systemOn/off
Press the button to turn on the
rear window defogger. The
indicator light will come on.
The defoggers will automati-
cally turn off after 15 to 60 min-
utes. The operation time
changes according to the
ambient temperature and vehi-
cle speed. Pressing the button
again also turns the defogger
off.
Vehicles without outside rear view mirror defoggers
Vehicles with outside rear view mirror defoggers

268 3-1. Using the air conditioning system and defogger
■The defogger can be operated when
The “POWER” switch is in the ON mode.
■ Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
■ Outside rear view mirror defoggers (vehicles with outside rear view
mirror defoggers)
The surfaces of the outside rear view mirrors become hot. Do not touch
them to prevent from burning yourself.

379
3-7. Other interior features
3
Interior features

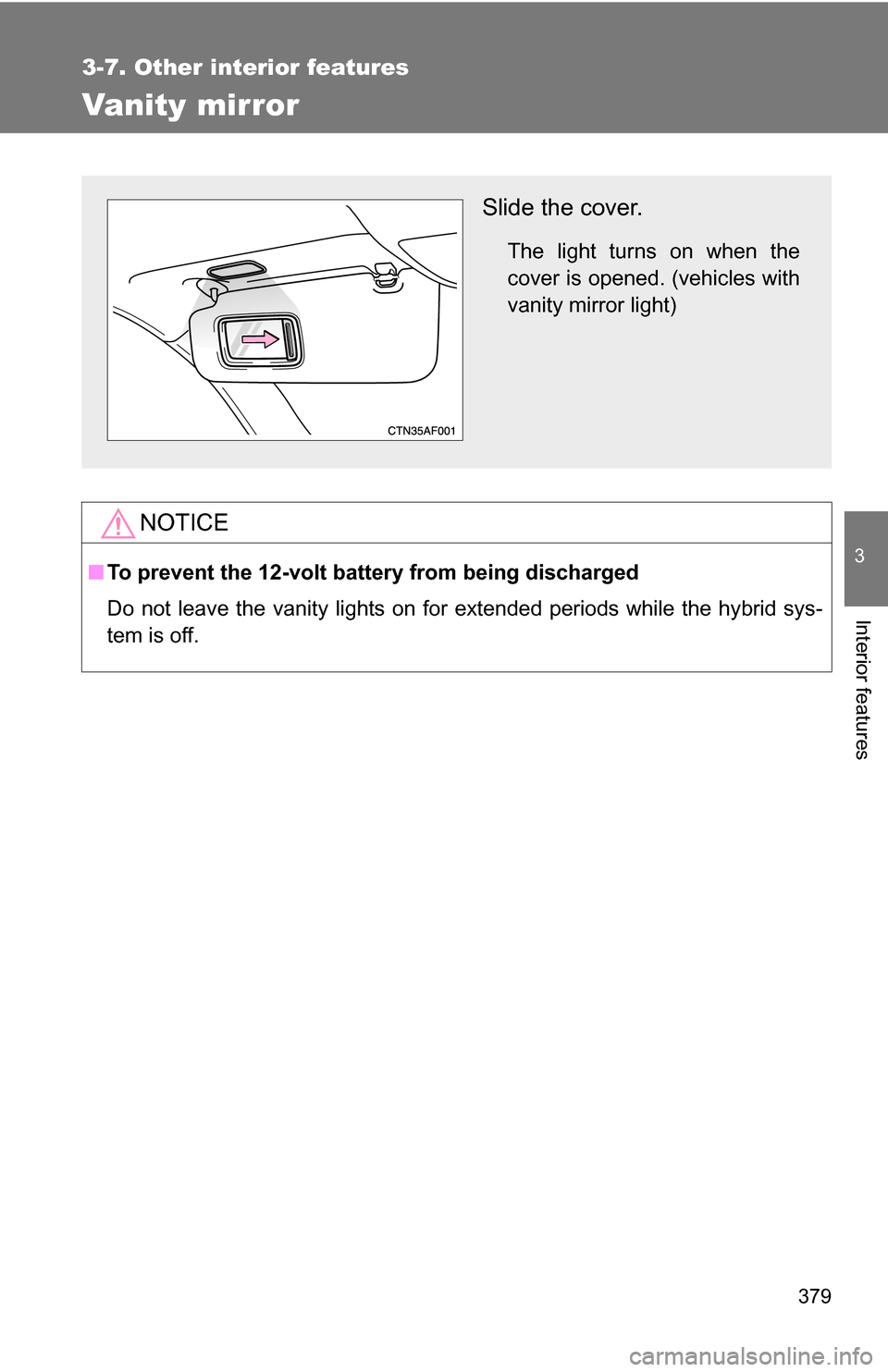

Vanity mirror
NOTICE
■To prevent the 12-volt battery from being discharged
Do not leave the vanity lights on for extended periods while the hybrid sys-
tem is off.
Slide the cover.
The light turns on when the
cover is opened. (vehicles with
vanity mirror light)

380
3-7. Other interior features

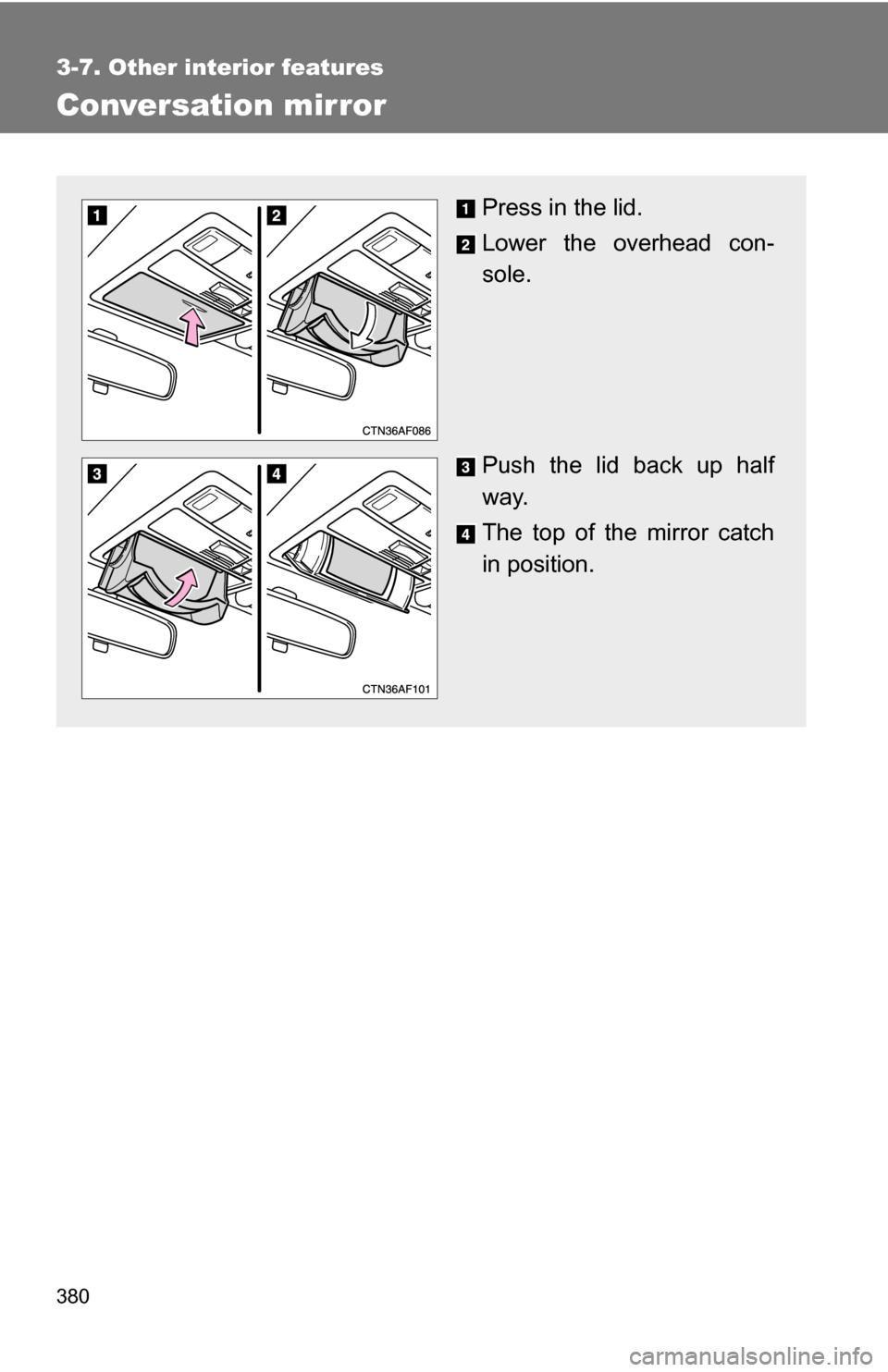

Conversation mirror
Press in the lid.
Lower the overhead con-
sole.
Push the lid back up half
way.
The top of the mirror catch
in position.

399
3-7. Other interior features
3
Interior features
Compass (if equipped)
The compass on the inside rear view mirror indicates the direction in
which the vehicle is heading.
■ Operation
To turn the compass on or off,
press the switch.
■ Displays and directions
DisplayDirection
NNorth
NE Northeast EEast
SE Southeast S South
SW Southwest
WWest
NW Northwest

401
3-7. Other interior features
3
Interior features
■
Circling calibration
When C appears on the display,
drive the vehicle at 5 mph
(8 km/h) or less in a circle until a
direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
● The vehicle is on an inclined surface.
● The vehicle is in a place where the earth's magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
● The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
● The 12-volt battery has been disconnected.
● A door is open.
CAUTION
■While driving the vehicle
Do not adjust the display. Be sure to adjust the display only when the vehicle
is stopped.
■ When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the
neighborhood. Do not violate any local traffic rules while performing circling
calibration.

402 3-7. Other interior features
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■ To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the
earth's magnetic field is subject to interference by artificial magnetic fields.
● During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.
