12-4
GENERAL INFORMATION
80J21-03E
Reporting Safety DefectsIf you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying American Suzuki Motor Corp.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Suzuki Motor
Corp.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-
888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to: Administrator, NHTSA, 400 Sev-
enth Street, SW., Washington, D.C.
20590. You can also obtain other infor-
mation about motor vehicle safety
from http://www.safercar.gov.To contact American Suzuki, owners
in the continental United States can
call toll-free 1-800-934-0934, or write
to:
American Suzuki Motor Corporation
Automotive Customer Relations
3251 East Imperial Highway
Brea, CA 92821-6795
For owners outside the continental
United States, please refer to the dis-
tributor’s address listed in your War-
ranty Information booklet.
For vehicles registered for use and
principally operated in Canada please
contact Suzuki Canada Inc. at 1-905-
889-2677 extension 2254 or write to:
Suzuki Canada Inc.
Customer Relations
100 East Beaver Creek Road
Richmond Hill, On
L4B 1J6

12-5GENERAL INFORMATION
80J21-03E
MEMO

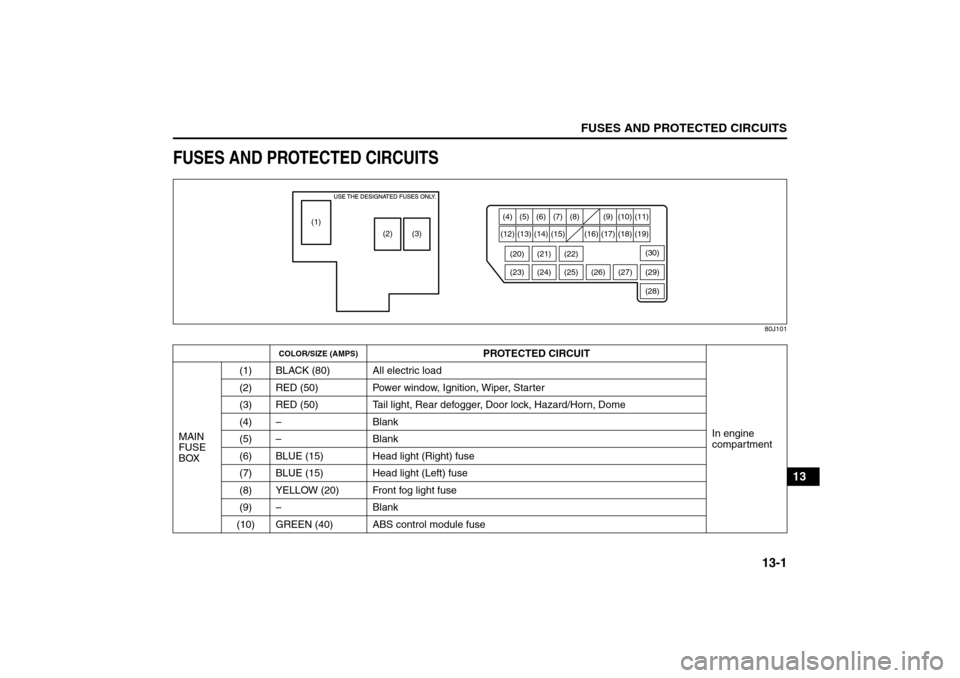

13-1
FUSES AND PROTECTED CIRCUITS
80J21-03E
13
FUSES AND PROTECTED CIRCUITS
80J101
COLOR/SIZE (AMPS)
PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX(1) BLACK (80) All electric load
(2) RED (50) Power window, Ignition, Wiper, Starter
(3) RED (50) Tail light, Rear defogger, Door lock, Hazard/Horn, Dome
(4) – Blank
(5) – Blank
(6) BLUE (15) Head light (Right) fuse
(7) BLUE (15) Head light (Left) fuse
(8) YELLOW (20) Front fog light fuse
(9) – Blank
(10) GREEN (40) ABS control module fuse
(1)
(2) (3)
(28) (27) (26) (25) (6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8) (4) (5) (10)
(22) (21)
(23)(20)(12) (13) (14)
(30)
(29)
Fuses and Protected Circuits: 7

13-2FUSES AND PROTECTED CIRCUITS
80J21-03E
80J101
COLOR/SIZE (AMPS)
PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX(11) PINK (30) Radiator fan fuse
(12) PINK (30) ABS control module fuse
(13) PINK (30) Starting motor fuse
(14) RED (50) Ignition switch fuse
(15) PINK (30) Blower fan fuse
(16) YELLOW (20) Air compressor fuse
(17) BLUE (15) Throttle motor fuse
(18) BLUE (15) Automatic transaxle fuse
(19) BLUE (15) Fuel injection fuse
(20) – Automatic transaxle relay
(1)
(2) (3)
(28) (27) (26) (25) (6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8) (4) (5) (10)
(22) (21)
(23)(20)(12) (13) (14)
(30)
(29)
Fuses and Protected Circuits: 7

13-3
FUSES AND PROTECTED CIRCUITS
80J21-03E
80J101
COLOR/SIZE (AMPS)
PROTECTED CIRCUIT
In engine
compartment MAIN
FUSE
BOX(21) – Air compressor relay
(22) – Fuel pump relay
(23) – Condensor fan relay
(24) – Front fog light relay
(25) – Throttle motor relay
(26) – FI MAIN
(27) – Starting motor relay
(28) – Radiator fan relay
(29) – Radiator fan relay 2
(30) – Radiator fan relay 3
(1)
(2) (3)
(28) (27) (26) (25) (6) (7) (9) (11)
(15) (16) (17) (18) (19)
(24)
(8) (4) (5) (10)
(22) (21)
(23)(20)(12) (13) (14)
(30)
(29)
Fuses and Protected Circuits: 7

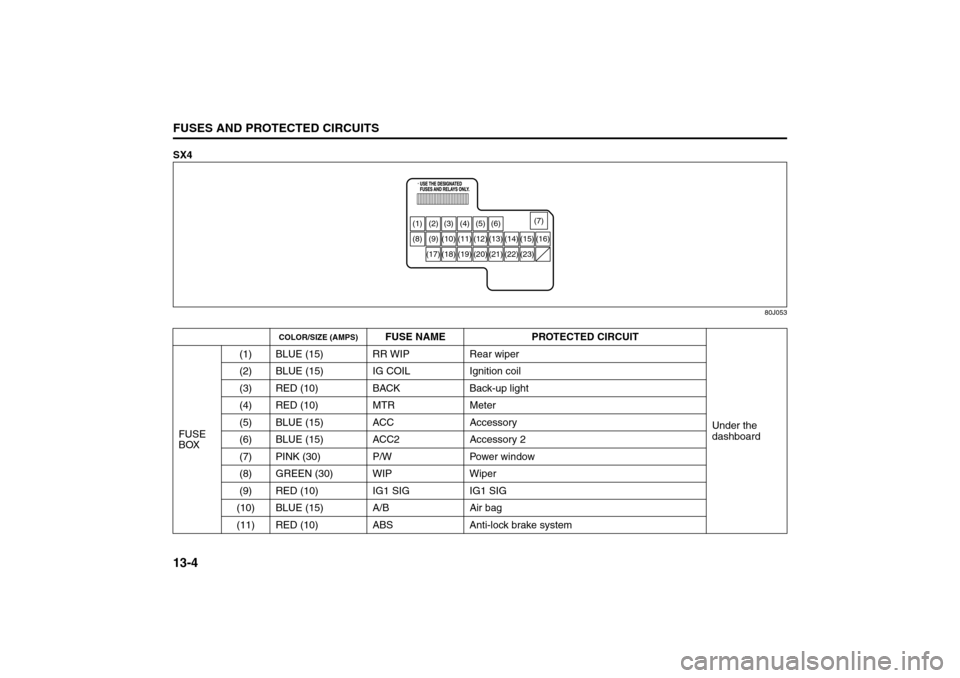

13-4FUSES AND PROTECTED CIRCUITS
80J21-03E
SX4
80J053
COLOR/SIZE (AMPS)
FUSE NAME PROTECTED CIRCUIT
Under the
dashboard FUSE
BOX(1) BLUE (15) RR WIP Rear wiper
(2) BLUE (15) IG COIL Ignition coil
(3) RED (10) BACK Back-up light
(4) RED (10) MTR Meter
(5) BLUE (15) ACC Accessory
(6) BLUE (15) ACC2 Accessory 2
(7) PINK (30) P/W Power window
(8) GREEN (30) WIP Wiper
(9) RED (10) IG1 SIG IG1 SIG
(10) BLUE (15) A/B Air bag
(11) RED (10) ABS Anti-lock brake system
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13) (14) (15) (16)
(18) (17) (19) (20) (21) (22) (23)(7)
Fuses and Protected Circuits: 7

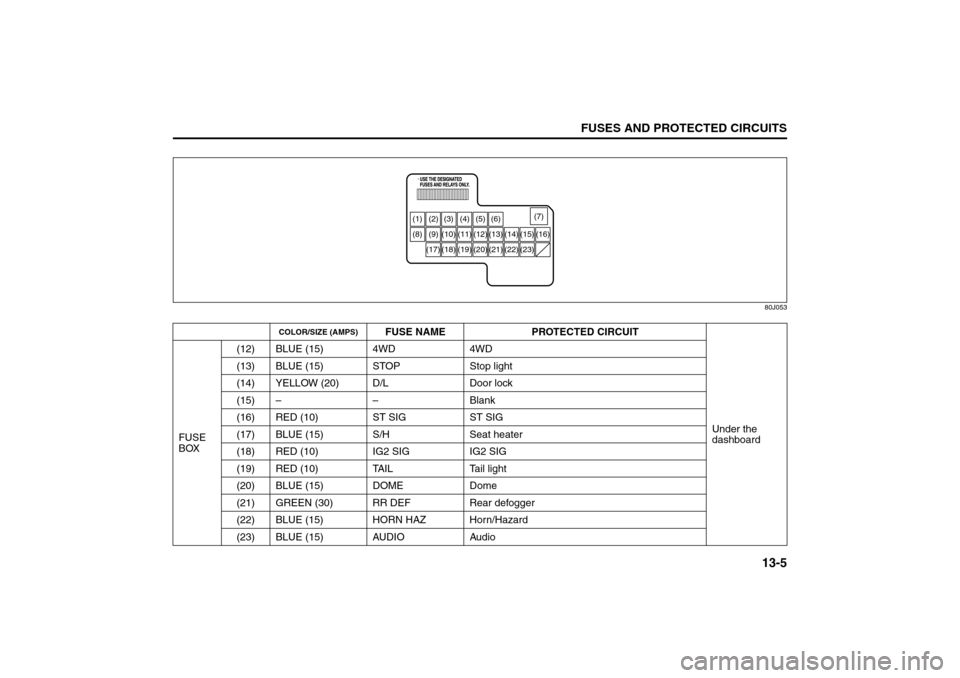

13-5
FUSES AND PROTECTED CIRCUITS
80J21-03E
80J053
COLOR/SIZE (AMPS)
FUSE NAME PROTECTED CIRCUIT
Under the
dashboard FUSE
BOX(12) BLUE (15) 4WD 4WD
(13) BLUE (15) STOP Stop light
(14) YELLOW (20) D/L Door lock
(15) – – Blank
(16) RED (10) ST SIG ST SIG
(17) BLUE (15) S/H Seat heater
(18) RED (10) IG2 SIG IG2 SIG
(19) RED (10) TAIL Tail light
(20) BLUE (15) DOME Dome
(21) GREEN (30) RR DEF Rear defogger
(22) BLUE (15) HORN HAZ Horn/Hazard
(23) BLUE (15) AUDIO Audio
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13) (14) (15) (16)
(18) (17) (19) (20) (21) (22) (23)(7)

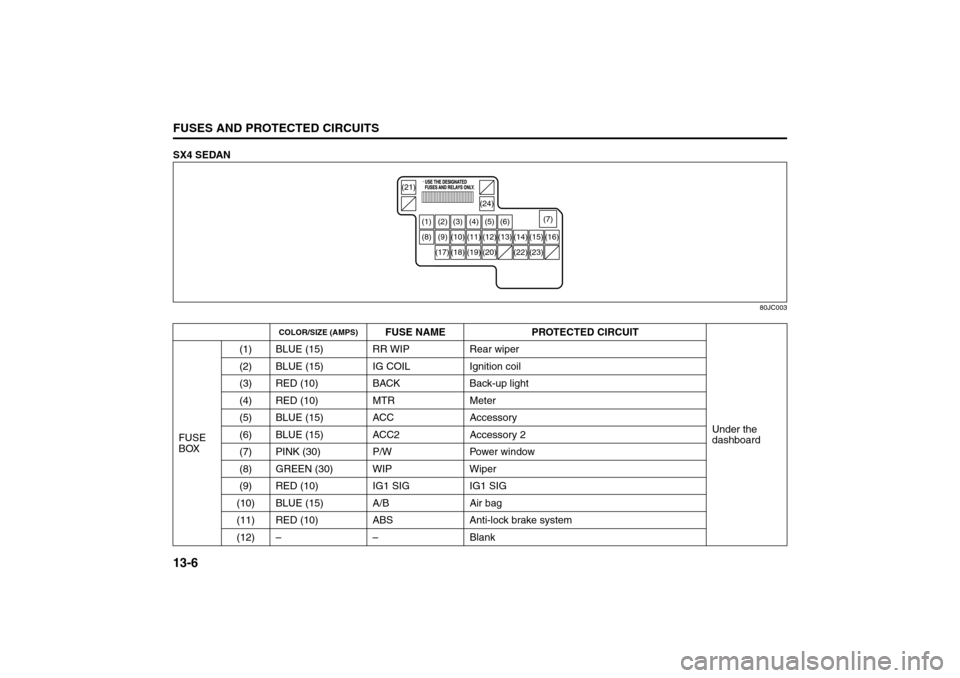

13-6FUSES AND PROTECTED CIRCUITS
80J21-03E
SX4 SEDAN
80JC003
COLOR/SIZE (AMPS)
FUSE NAME PROTECTED CIRCUIT
Under the
dashboard FUSE
BOX(1) BLUE (15) RR WIP Rear wiper
(2) BLUE (15) IG COIL Ignition coil
(3) RED (10) BACK Back-up light
(4) RED (10) MTR Meter
(5) BLUE (15) ACC Accessory
(6) BLUE (15) ACC2 Accessory 2
(7) PINK (30) P/W Power window
(8) GREEN (30) WIP Wiper
(9) RED (10) IG1 SIG IG1 SIG
(10) BLUE (15) A/B Air bag
(11) RED (10) ABS Anti-lock brake system
(12) – – Blank
(1) (2) (3) (4) (5) (6)
(8) (9) (10) (11) (12) (13)
(21)
(24)
(14) (15) (16)
(18) (17) (19) (20) (22) (23)(7)
