2008 SUZUKI GRAND VITARA clock

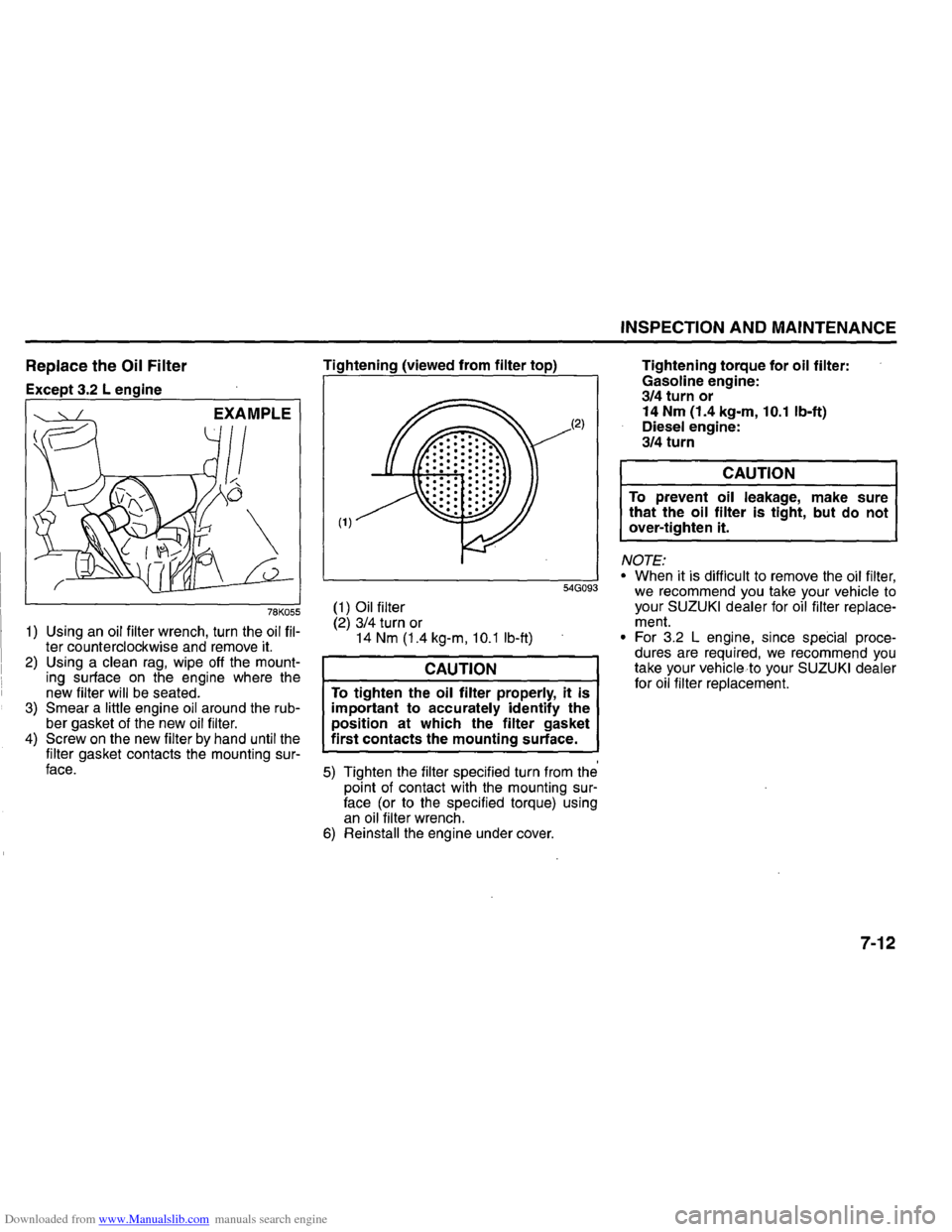

Downloaded from www.Manualslib.com manuals search engine Replace the Oil Filter
Except 3.2 L engine
EXAMPLE
~U
1:0
78K055
1) Using an oil filter wrench, turn the oil fil­ter counterclockwise and remove it. 2) Using a clean rag, wipe off the mount­ing surface on the engine where the
new filter will be seated. 3) Smear a little engine oil around the rub­ber gasket of the new oil filter. 4) Screw on the new filter by hand until the filter gasket contacts the mounting sur­face.
Tightening (viewed from filter top)
(1)
(1) Oil filter (2) 3/4 turn or
14 Nm (1.4 kg-m, 10.1Ib-ft)
CAUTION
(2)
54G093
To tighten the oil filter properly, it is important to accurately identify the
position at which the filter gasket
first contacts the mounting surface.
5) Tighten the filter specified turn from the
point of contact with the mounting sur­face (or to the specified torque) using an oil filter wrench. 6) Reinstall the engine under cover.
INSPECTION AND MAINTENANCE
Tightening torque for oil filter: Gasoline engine: 3/4 turn or 14 Nm (1.4 kg-m, 10.1 Ib-ft)
Diesel engine: 3/4 turn
CAUTION
To prevent oil leakage, make sure
that the oil filter is tight, but do not
over-tighten it.
NOTE: • When it is difficult to remove the oil filter, we recommend you take your vehicle to your SUZUKI dealer for oil filter replace­ment. • For 3.2 L engine, since spedal proce­dures are required, we recommend you take your vehicle to your SUZUKI dealer for oil filter replacement.
7-12

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE
CAUTION
• The mixture you use should con­tain 50% concentration of anti­freeze. • ~f the lowest ~mbient temperature In your area IS expected to be -35°C (-31°F) or below, use higher con~entrati~ns up to 60% following the instructions on the antifreeze
container.
• When putting the cap on the reser­voir tank, line up the arrow on the
cap and the arrow on the tank. Fail­ure to follow this can result in cool­ant leakage.
A. WARNING
Engine coolant is harmful or fatal if swallowed or inhaled. Do not drink antifreeze or coolant solution. If swal­I~wed, do not induce vomiting. Imme­
diately contact a poison control c~nter or a physician. Avoid inhaling mist or hot vapors; if inhaled remove to fresh air. Wash thoroughly after handling. Solution can be poisonous to animals. Keep out of the reach of children and animals.
7-15
Coolant Replacement
(For Gasoline Engine Model)
Close
64J189
1) Wh~n the engine is cool, remove the radiator cap by turning it slowly to the left until ~ "stop:' is felt. Do not press
down while turning the cap. Wait until any pressure is released, then press down on the cap and continue turning it
anticlockwise.
.A. WARNING
It is hazardous to remove the radiator c~p when the water temperature is high, because scalding fluid and
steam may be blown out under pres­sure. Wait until the coolant tempera­ture has lowered before removing the
cap.
2) Redmov~ the reservoir by lifting it up, an drain the reservoir completely.

Downloaded from www.Manualslib.com manuals search engine Center Interior Light (if equipped)
64J159
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown. To install it, simply push it back in.
The bulb can be removed by simply pulling it out. When replacing the bulb, make sure
that the contact springs are holding the bulb securely.
Rear Interior Light (if equipped)
64J160
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown. To install it, simply push it back in. .
The
bulb can be removed by simply pulling it out.
INSPECTION AND MAINTENANCE
Spot Light (if equipped) . Pull down the lens by using a plane screw
driver covered with a soft cloth as shown.
Ceiling-mount type (if equipped)
79K061
Remove the bulb holder by turning it coun­terclockwise. Pull out the bulb.
7-36

Downloaded from www.Manualslib.com manuals search engine Open the engine hood. Disconnect the Front Fog Light coupler. Remove the sealing rubber.
Push the retaining spring forward and
unhook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.
•
Discharge head lamp
Since special procedures are required, we recommend you take your vehicle to your SUZUKI dealer for bulb replacement.
High beam
78F072
Open the engine hood. Disconnect the coupler while pushing the lock release. Turn the bulb holder counterclockwise to remove it.
II~
~1
79K090
1) Insert a flat blade screw driver into the hole (2) and remove the clips (1) by twist the driver as shown in the illustra-tion. .
2) Remove the bolt (3) by a Phillips-head screw driver. .
INSPECTION AND MAINTENANCE
79K091
3) Remove the clip (4) with the same way as No.1).
7-38

Downloaded from www.Manualslib.com manuals search engine INSPECTION AND MAINTENANCE
78F072
4) Open the fender cover. Disconnect the
coupler with pushing the lock release.
Turn the bulb holder counterclockwise
and remove it.
7-39
Other General Lights
Bulb holder
EXAMPLE 0 "'"
o (2~
~
(2) ,~
(1) ~.
(1) Removal (2) Installation
54G123
To remove a bulb holder from a light hous­
ing, turn the holder counterclockwise and
pull
it out. To install the holder, push the
holder in and turn it clockwise.
Bulb
EXAMPLE~
.. O~y
X?3
-< ~~
~& "~d
(1) • B>~
.(3) r<0' Q(4) V-=-(2)
(3) Removal
(4) Installation
54G124
There are two types of bulb, "Full glass type" (1) and "Glass/metal type" (2).
To remove and install a full glass type bulb
(1), simply pull out or push in the bulb.
To remove a glass metal type bulb (2) from
a bulb holder, push in the bulb and turn it
counterclockwise. To install a new bulb,
push it in and turn it clockwise.
You can access the individual bulb or bulb
holders as follows.

Downloaded from www.Manualslib.com manuals search engine Parking light Front turn signal light
For 3 door model
64J193
For 5 door model
To replace the bulb of parking/turn signal
light, follow the procedure for the bulb
replacement of the "Front Fog Light".
Rear combination light
78K124
Side turn signal light
64J195
INSPECTION AND MAINTENANCE
As the bulb is built-in type, the light assem­bly must be replaced. Remove the light
assembly by sliding the light housing left­ward with your finger.
License plate light
65J345
Turn the cover (1) counterclockwise to
remove it.
NOTE: When reinstalling, put the packing . (2)
between the cover and bulb holder.
7-40
