2008 SKODA SUPERB technical data

Technical Data259
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare60/9
Reservoir for windscreen washer system/ with headlight cleaning system3/5,5
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 211, “Check engine oil level”.
3,0
Cooling system of the vehicle5,5
M6
Permissible gross weight2074
Unloaden weight ready for work1454
Loading capacity620
Loading capacity when using the TLC545
Permissible front axle load1200
Permissible rear axle load1250
Permissible trailer load, trailer braked/unbraked1500a)
1700b)
a)Uphills up to 12 %b)Uphills up to 8%
NKO B6 20.book Page 259 Wednesday, March 26, 2008 3:15 PM

Technical Data
260

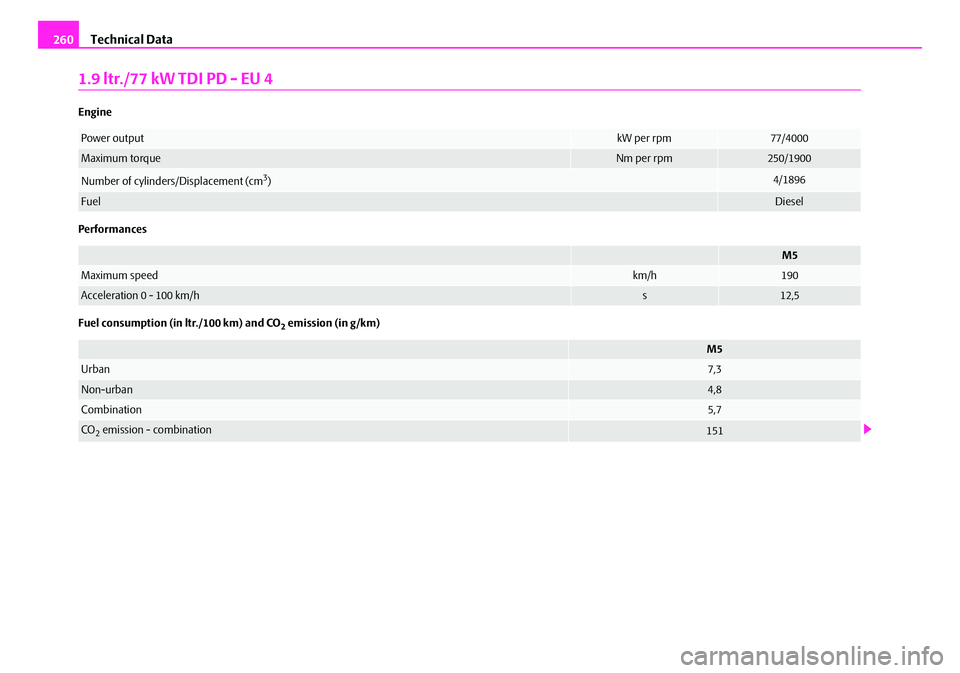

1.9 ltr./77 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm77/4000
Maximum torqueNm per rpm250/1900
Number of cylinders/Displacement (cm3)4/1896
FuelDiesel
M5
Maximum speedkm/h190
Acceleration 0 - 100 km/hs12,5
M5
Urban7,3
Non-urban4,8
Combination5,7
CO2 emission - combination151
NKO B6 20.book Page 260 Wednesday, March 26, 2008 3:15 PM

Technical Data261
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare60/9
Reservoir for windscreen washer system/ with headlight cleaning system3/5,5
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 211, “Check engine oil level”.
3,8
Cooling system of the vehicle5,5
M5
Permissible gross weight2076
Unloaden weight ready for work1456
Loading capacity620
Loading capacity when using the TLC545
Permissible front axle load1200
Permissible rear axle load1250
Permissible trailer load, trailer braked/unbraked1500a)
1700b)
a)Uphills up to 12 %b)Uphills up to 8%
NKO B6 20.book Page 261 Wednesday, March 26, 2008 3:15 PM

Technical Data
262
2.0 ltr./103 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO
2 emission (in g/km)
Power outputkW per rpm103/4000
Maximum torqueNm per rpm320/1800-2500
Number of cylinders/Displacement (cm3)4/1968
FuelDiesel
M6DQ6
Maximum speedkm/h207205
Acceleration 0 - 100 km/hs10,210,2
M6DQ6
Urban7,58,9
Non-urban5,05,5
Combination5,96,8
CO2 emission - combination155177
NKO B6 20.book Page 262 Wednesday, March 26, 2008 3:15 PM

Technical Data263
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare60/9
Reservoir for windscreen washer system/ with headlight cleaning system3/5,5
Engine oila)
a)Oil capacity with oil filter change. Inspec
t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 211, “Check engine oil level”.
3,8
Cooling system of the vehicle5,5
M6DQ6
Permissible gross weight21102132
Unloaden weight ready for work14901512
Loading capacity620620
Loading capacity when using the TLC545545
Permissible front axle load12001200
Permissible rear axle load12501250
Permissible trailer load, trailer braked/unbraked18001800
NKO B6 20.book Page 263 Wednesday, March 26, 2008 3:15 PM

Technical Data
264
NKO B6 20.book Page 264 Wednesday, March 26, 2008 3:15 PM
