2008 SKODA FABIA technical data

Seats and Stowage67
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
The variable loading floor makes it easier to handle bulky goods and
creates a flat floor when the rear seats are folded forward. The maximum
permissable surface load of the loading floor is 75 kg.
Remove variable loading floor
– Unlock the loading floor by turning the locking bolts by approx.
180° to the left ⇒fig. 68.
– You can fold together the loading floor by moving in the direction of
arrow.
– Lift up the loading floor in direction of arrow ⇒fig. 69 and take out
the loading floor by pulling in direction of arrow ⇒fig. 69.
Install variable loading floor
– Place the loading floor once folded together onto the carrier rail.
– Fold open the loading floor.
– Lock the loading floor by turning the locking bolts by approx. 180°
to the right.
WARNING
Pay attention when installing that the carrier rails and the variable loading floor are correctly fixed, otherwise the occupants are at risk.
Note
If the variable loading floor* is installed ⇒page 66 in the luggage compartment, no flexible storage compartment or fixing net* ⇒page 63 can be installed.
Remove carrier rails
Remove carrier rail
– Slacken the check points on the carrier rails using the vehicle key
or a flat screwdriver ⇒fig. 70.
– Grasp the carrier rail at the position ⇒fig. 71 and slacken it by
pulling in the direction of arrow. You can take out the removable
storage compartments* in order to facilitate the removal ⇒page 81,
“Removeable storage compartments in the luggage compartment*”.
– Grasp the carrier rail at the position , slacken it by pulling in the
direction of arrow and take it out.
AA
A1
A2
AA
Fig. 70 Luggage compart-ment: Slacken check points
Fig. 71 Luggage compart-ment: Remove carrier rails
AB
AAA1
AAA2
NKO A05F 20.book Page 67 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage69
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Insert the cross rod into one of the mounts .
– Insert the other end of the cross rod by pressing into the second
mount.
– Press both ends of the cross rod forward into the function position.
– Then push the seat backrest back into the upright position until the
locking button clicks into place - check by pulling on the rear seat
backrest ⇒.
Rolling up
– Pull the cross rod back slightly, first on the one side then on the other
side and take the cross rod out of the mount ⇒fig. 74.
–Hold the cross rod in such a way that the net partition can roll up
slowily and without damage into housing .
If you wish to use the entire luggage compartment, you can remove the luggage compartment cover ⇒page 65.
WARNING
•Ensure that the seat backrest on the rear seats is securely interlocked in position when the vehicle is fitted with three-point safety belts for the middle rear seat. It is only then that the three-point seat belt can reliably fulfil its function.
•First check for yourself that the cross road is inserted into the mounts in the front position!
•If the net partition is located behind the rear seats, then always make sure that the rear seat backrest is correctly interlocked.
Use behind the front seats
Unrolling
– Open the right rear door.
– Fold the surfaces of the seats and seat backrests of the rear seats
forward.
– Pull the net partiton net at the plate out of the housing
⇒fig. 75.
– First of all insert the cross rod into the mount on one side.
AC
AC
AB
AC
Fig. 75 Unrolling net parti-tion
Fig. 76 Rolling up net parti-tion
AAAB
AC
NKO A05F 20.book Page 69 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage71
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Release the fixtures at the ends of the cross member by slightly
pulling up the securing screws . The fixtures open when they are
not already opened.
– Position the cross member with the fixed (not pulled out) part onto
the right (in direction of travel) lashing eye and then the pull out part
onto the left lashing eye.
– Press the fixtures on both sides of the cross member until they lock
in place and tighten the securing screws .
– Check the attachment of the cross member by pulling it.
WARNING
When transporting the bicycles in the luggage compartment, ensure the safety of the passengers transported.
Install bicycle carrier
– Position the approved bicycle carrier on the middle of the cross
member, after pulling up the screw push the frame side rail (alu-
part) towards the cross member and screw the screw into the nut
⇒fig. 79.
– Slacken the screw and take it out of the moveable part of the
fixture; position the moveable part of the carrier, depending on
bicycle size, into one of the possible positions, so that it does not
come in contact with the boot lid. We recommend to place the move-
able part of the fixture in such a position that the holes are visible
between the screw and the moveable part.
– Insert the screw into the desired position and tighten.
Put bicycle into the bicycle carrier
– Remove the front wheel before putting the bicycle into the vehicle.
AB
AC
AA
AB
AC
Fig. 79 Install bicycle carrier
AA
AA
AB
AA
AB
Fig. 80 Put in the bicycle
Fig. 81 Fastening the front wheel
NKO A05F 20.book Page 71 Wednesday, April 2, 2008 1:02 PM

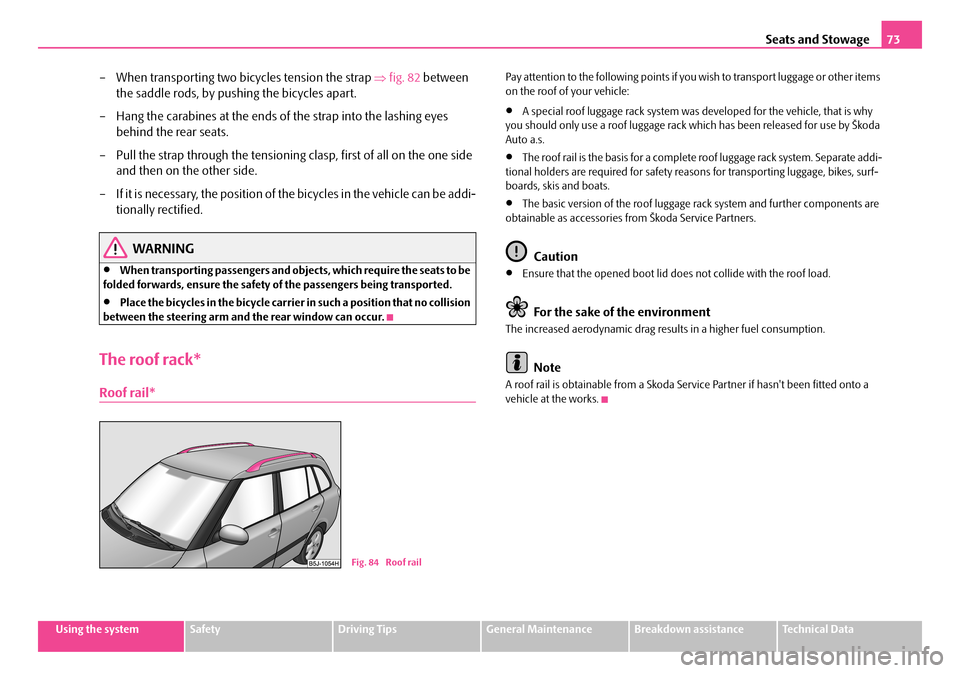

Seats and Stowage73
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– When transporting two bicycles tension the strap ⇒fig. 82 between
the saddle rods, by pushing the bicycles apart.
– Hang the carabines at the ends of the strap into the lashing eyes
behind the rear seats.
– Pull the strap through the tensioning clasp, first of all on the one side
and then on the other side.
– If it is necessary, the position of the bicycles in the vehicle can be addi-
tionally rectified.
WARNING
•When transporting passengers and objects, which require the seats to be folded forwards, ensure the safety of the passengers being transported.
•Place the bicycles in the bicycle carrier in such a position that no collision between the steering arm and the rear window can occur.
The roof rack*
Roof rail*
Pay attention to the following points if you wish to transport luggage or other items on the roof of your vehicle:
•A special roof luggage rack system was developed for the vehicle, that is why you should only use a roof luggage rack which has been released for use by Škoda Auto a.s.
•The roof rail is the basis for a complete roof luggage rack system. Separate addi-tional holders are required for safety reasons for transporting luggage, bikes, surf-boards, skis and boats.
•The basic version of the roof luggage rack system and further components are obtainable as accessories from Škoda Service Partners.
Caution
•Ensure that the opened boot lid does not collide with the roof load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption.
Note
A roof rail is obtainable from a Skoda Service Partner if hasn't been fitted onto a vehicle at the works.
Fig. 84 Roof rail
NKO A05F 20.book Page 73 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage75
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Rear cup holder*
You can place one cup or beverage can into the recess ⇒fig. 87.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Note holder
The note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to restrict the driver's vision.
WARNING (continued)
Fig. 87 Centre console: Cup holder
Fig. 88 Windscreen: Note holder
NKO A05F 20.book Page 75 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage77
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Take care when using the cigarette lighter! Not paying proper attention or incorrect use the cigarette lighter in an uncontrolled manner may result in burns.
•The cigarette lighter and the power socket also operates when the igni-tion is switched off or the ignition key withdrawn. This is why you should never leave children unattended in the vehicle!
Caution
Always use matching plugs to avoid damaging the power socket.
Note
Connecting electrical components when the engine is not running will drain the battery of the vehicle - risk of battery draining!
Power socket in the luggage compartment
– Open the cover of the power socket ⇒fig. 92.
– Connect the plug of the electrical appliance to the socket.
You can only use the power socket for the connection of approved electrical acces-sories with a power uptake up to 180 watts. The vehicle battery will be discharged in the process if the engine is stationary.
The same remarks apply here as for ⇒page 76.
Further information ⇒page 200, “Accessories, changes and replacement of parts”.
Storage compartments
Overview
You will find the following storage facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such objects might slide or fall down when driving (when accelerating or cornering) and may distract you from concentrating on the traffic situation - risk of acci-dent!
Fig. 92 Luggage compart-ment: Power socket
Storage compartments on the front passenger side*⇒page 78
Storage compartment on the driver's side⇒page 79
Stowage compartment for spectacles*⇒page 79
Stowage compartment in centre console⇒page 79
Storage compartment in the front seat*⇒page 79
Front seat armrest with stowage compartment*⇒page 80
Storage compartment in the front doors⇒page 80
Storage compartments in the luggage compartment⇒page 81
Flexible storage compartment*⇒page 81
Clothes hooks*⇒page 82
NKO A05F 20.book Page 77 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage79
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Storage compartment on the driver's side
Unlockable compartment below the steering wheel on the left.
Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage compart-
ment opens downwards ⇒fig. 96.
WARNING
The storage compartment must always be closed when driving for safety reasons - risk of head injury.
Stowage compartment in centre console
Unlocable compartment in the centre console.
Storage compartment in the front seat*
Fig. 95 Dash panel: Storage compartment on the driver's side
Fig. 96 Detail of the head-liner: Stowage compartment for spectacles
Fig. 97 Centre console: Storage compartment
Fig. 98 Front seat: Storage compartment
NKO A05F 20.book Page 79 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage81
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
Use the area ⇒fig. 101 of the storage compartment only for storing objects which do not project so that the effectiveness of the side airbag is not impaired.
Removeable storage compartments in the luggage
compartment*
A removeable storage compartment*⇒fig. 102 is located on both sides in the side trim panel of the luggage compartment.
The removeable storage compartments* are intended for storing small objects of up to 2.5 kg in weight.
Flexible storage compartment*
A flexible storage compartment is located on the right side of the luggage
compartment. The flexible storage compartment is foreseen for storing
small objects of up to 8 kg. in weight.
Removing
– Take hold of the flexible storage compartment at both upper corners.
– Press the upper corners to the inside and release the storage compart-
ment by pulling upwards.
– Remove by pulling towards you.
Installing
– Insert both ends of the flexible storage compartment into the open-
ings of the right side trim panel of the luggage compartment and push
it downwards until it locks.
Note
If the variable loading floor* is installed ⇒page 66 in the luggage compartment, no flexible storage compartment can be installed.
AA
Fig. 102 Removeable storage compartments
Fig. 103 Flexible storage compartment
NKO A05F 20.book Page 81 Wednesday, April 2, 2008 1:02 PM
