2008 Seat Exeo tailgate

Checking and refilling levels209
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
−
Insert the fuel nozzle into the mouth of the canister as far as
possible.
− If the spare fuel canister is made of metal, the filling nozzle must be
in contact with the canister during filling. This helps prevent an electro-
static charge building up.
− Never spill fuel in the vehicle or in the luggage compartment. Fuel
vapours are explosive. Danger of death.
Caution
•
Fuel spills should be removed from the paintwork immediately.
•
Never run the tank completely dry. An irregular fuel supply could cause
misfiring. As a result, unburnt fuel co uld enter the catalytic converter and
cause damage.For the sake of the environment
Do not try to put in more fuel after the automatic filler nozzle has switched off;
this may cause the fuel to overflow if it becomes warm.
Releasing the tank flap manuallyThe tank flap can be released manually if the central locking
system should fail to operate.–Open the tailgate.
– Open the cover in the right-hand side trim.
– Pull the ring in order to unlock the fuel tank ⇒fig. 161.
WARNING (continued)
Fig. 161 Luggage
compartment: Releasing
the fuel tank flap by hand
Exeo_EN.book Seite 209 Freitag, 17. Oktober 2008 11:24 11

If and when
236If and whenTools, tyre repair kit and spare wheelTools
The tools and jack are stored under the floor panel in the
luggage compartment.The tools and jack ⇒fig. 175 are stored under the floor panel
in the luggage compartment.
– Lift the floor panel using the plastic handle.
– Hook the handle onto the luggage compartment weather- strip.
– Release the toolbox by pulling up the handle on the box. – Take out the tools or jack.
– Replace the floor panel before closing the tailgate.
The tool kit includes:•
A hook for removing wheel covers* or hub caps
•
Box spanner for wheel bolts
•
A screwdriver with reversible blade
•
Towing eye
•
An adapter for the anti-theft wheel bolts*
Before replacing the jack in the storage bin, wind down the arm of the jack as
far as it will go.
Some of the tools listed are only provid ed in certain models or are optional
extras.
WARNING
•
Do not use the hexagonal socket in the screwdriver handle to tighten
the wheel bolts, as with this it is not possible to tighten the bolts to the
required torque. Risk of accident.
•
The jack supplied by the factory is only designed for changing wheels
on this model. On no account attempt to use it for lifting heavier vehicles
or other loads. Risk of injury.
•
Never start the engine when the vehicle is raised. Failure to do so could
result in an accident.
•
I f wo r k is t o b e ca r r i e d o u t un d e r n ea th the vehicle, this must be secured
by suitable stands. Otherwise, there is a risk of injury.
Fig. 175 Toolbox and jac
k
AA
ABAC
Exeo_EN.book Seite 236 Freitag, 17. Oktober 2008 11:24 11

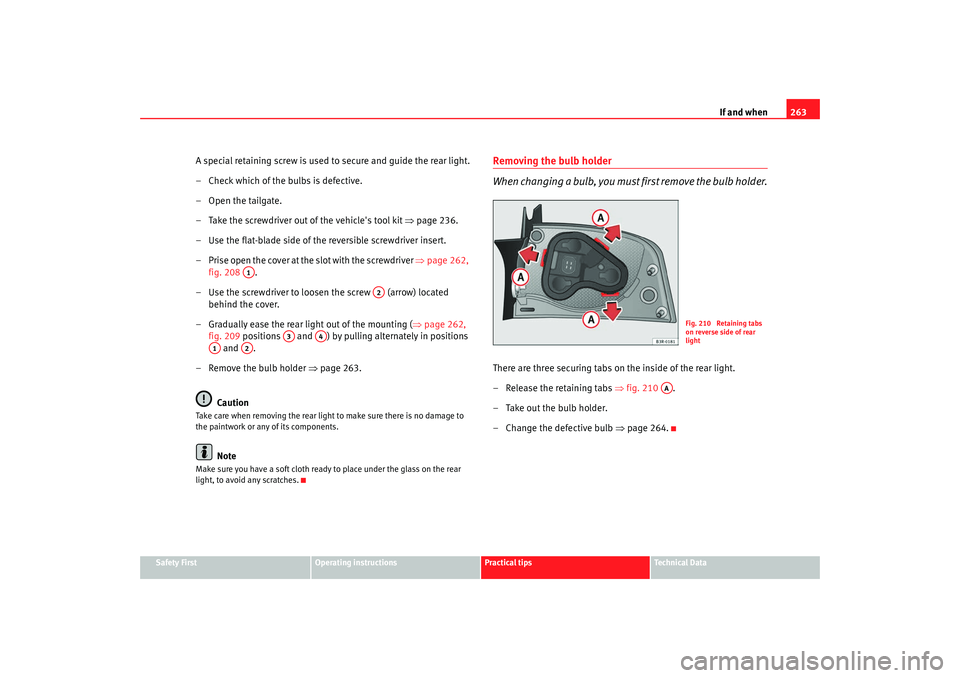

If and when263
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
A special retaining screw is used to secure and guide the rear light.
– Check which of the bulbs is defective.
– Open the tailgate.
– Take the screwdriver out of the vehicle's tool kit ⇒ page 236.
– Use the flat-blade side of the reversible screwdriver insert.
– Prise open the cover at the slot with the screwdriver ⇒page 262,
fig. 208 .
– Use the screwdriver to loosen the screw (arrow) located behind the cover.
– Gradually ease the rear li ght out of the mounting (⇒page 262,
fig. 209 positions and ) by pulling alternately in positions and .
– Remove the bulb holder ⇒page 263.
CautionTake care when removing the rear light to make sure there is no damage to
the paintwork or any of its components.
Note
Make sure you have a soft cloth ready to place under the glass on the rear
light, to avoid any scratches.
Removing the bulb holder
When changing a bulb, you must first remove the bulb holder.There are three securing tabs on the inside of the rear light.
– Release the retaining tabs ⇒fig. 210 .
– Take out the bulb holder.
– Change the defective bulb ⇒page 264.
A1
A2
A3
A4
A1
A2
Fig. 210 Retaining tabs
on reverse side of rear
light
AA
Exeo_EN.book Seite 263 Freitag, 17. Oktober 2008 11:24 11

If and when
266Changing rear light bulbs (in boot lid)Overview of rear lightsRear lights in the boot lid•
Rear light
•
Fog lights
•
Reversing light
Removing the bulb holder
The tailgate must be open to change the bulbs.
Fig. 214 Overview of rear
lights
Fig. 215 Remove the
cover in the tailgateFig. 216 Remove the bulb
holder
Exeo_EN.book Seite 266 Freitag, 17. Oktober 2008 11:24 11

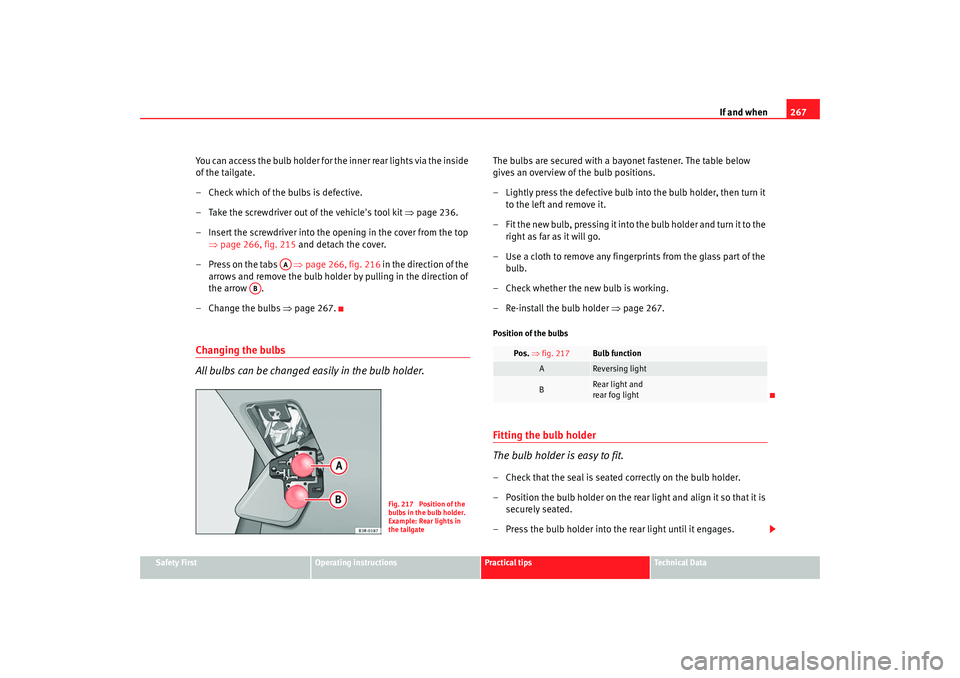

If and when267
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
You can access the bulb holder for the inner rear lights via the inside
of the tailgate.
– Check which of the bulbs is defective.
– Take the screwdriver out of the vehicle's tool kit ⇒ page 236.
– Insert the screwdriver into the opening in the cover from the top ⇒page 266, fig. 215 and detach the cover.
– Press on the tabs ⇒ page 266, fig. 216 in the direction of the
arrows and remove the bulb holder by pulling in the direction of
the arrow .
– Change the bulbs ⇒page 267.Changing the bulbs
All bulbs can be changed easily in the bulb holder.
The bulbs are secured with a bayonet fastener. The table below
gives an overview of the bulb positions.
– Lightly press the defective bulb into the bulb holder, then turn it
to the left and remove it.
– Fit the new bulb, pressing it into the bulb holder and turn it to the right as far as it will go.
– Use a cloth to remove any fingerprints from the glass part of the bulb.
– Check whether the new bulb is working.
– Re-install the bulb holder ⇒page 267.Position of the bulbsFitting the bulb holder
The bulb holder is easy to fit.– Check that the seal is seated correctly on the bulb holder.
– Position the bulb holder on the rear light and align it so that it is
securely seated.
– Press the bulb holder into the rear light until it engages.
AA
AB
Fig. 217 Position of the
bulbs in the bulb holder.
Example: Rear lights in
the tailgate
Pos. ⇒ fig. 217
Bulb function
A
Reversing light
B
Rear light and
rear fog light
Exeo_EN.book Seite 267 Freitag, 17. Oktober 2008 11:24 11
