2008 Seat Exeo ADAGIO

Mobile phone interface

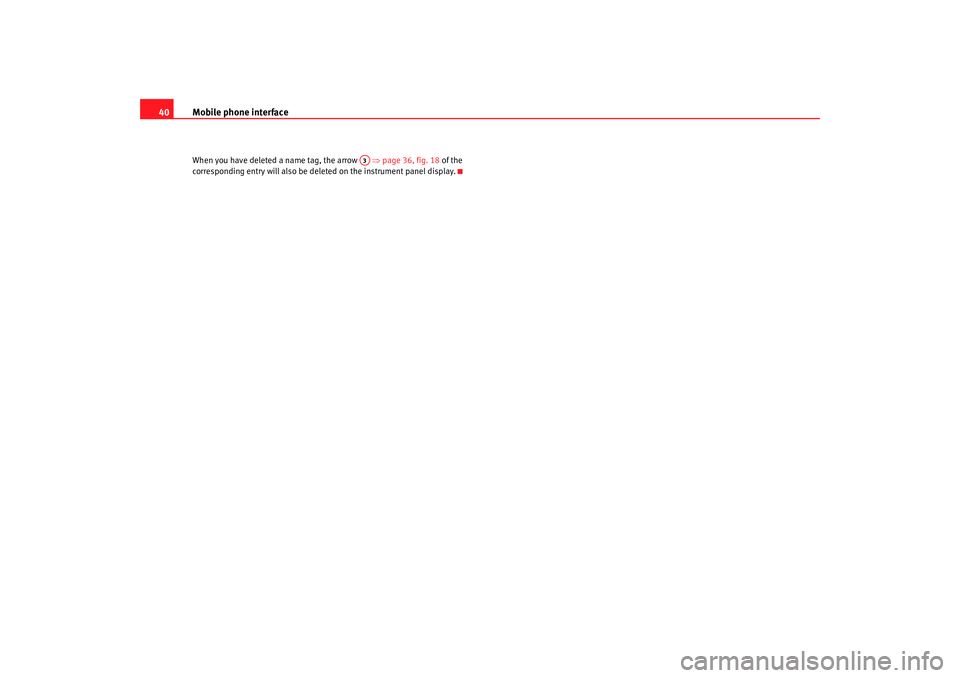

40When you have deleted a name tag, the arrow ⇒page 36, fig. 18 of the
corresponding entry will also be deleted on the instrument panel display.
A3
Adagio_EN Seite 40 Dienstag, 7. Oktober 2008 10:55 10

The multi-function steering wheel41
The multi-function steering wheelIntroductionYou can use the multi-function steering wheel for the simple
and efficient operation of selected functions of the radio, CD
and telephone*.
The functions are operated by pressing and scrolling the controls to on
the multi-function steering wheel ⇒fig. 19:•
Press the button to switch the display between the different
modes and the phone book* ⇒ fig. 20.
•
Scroll and press the left thumbwheel to select a function from one of
the menus.
•
The speech control system* for the mobile phone interface is enabled by
pressing the talk button . Press the talk button again to disable the speech
control system*.
•
Scroll the right thumbwheel up/down to raise/lower the volume as
desired.
Fig. 19 Controls on the
multi-function steering
wheel
Fig. 20 Display on the
instrument panel
AA
AD
MODE
AB
AA
AC
AD
Adagio_EN Seite 41 Dienstag, 7. Oktober 2008 10:55 10

The multi-function steering wheel
42Radio modeSelecting the radio
– Press the button ⇒page 41, fig. 19 until a
station/station name appears on the instrument panel display.
Changing station
– Use the left thumbwheel ⇒page 41, fig. 19 to scroll
up/down.
Tun i ng
– Press the left thumbwheel once to start the station search.
– Press the left thumbwheel again to stop the station search.If you hear only a hissing noise when you change stations, the current station
number has not been assigned or the selec ted station is currently not within
the reception range.CD modeSelecting a CD
– Press the button ⇒page 41, fig. 19 until a CD track
appears on the instrument panel display.
Next/previous track
– Use the left thumbwheel ⇒page 41, fig. 19 to scroll
up/down. Fast forward
– Press and hold the left thumbwheel to start the fast forward.
– Release the left thumbwheel again to continue listening to the
CD.
Scroll the left thumbwheel up or down several click stops to skip up or down
through the tracks.Te l e p h o n e m o d eSelecting a phone number
– Press the button ⇒page 41, fig. 19 until a phone number
appears on the instrument panel display.
Making a telephone call
– Use the left thumbwheel ⇒page 41, fig. 19 to scroll up and
down through the phone book.
– Press the left thumbwheel . The number is dialled and the audio system is muted automatically.
Answering or ending calls
–Press the left thumbwheel .
Rejecting a call
– Keep the left thumbwheel held down.
MODE
AAAAAA
MODE
AA
AA
MODE
AAAAAAAA
Adagio_EN Seite 42 Dienstag, 7. Oktober 2008 10:55 10

The multi-function steering wheel43
Replacing a call
– If a second call is received (call waiting), briefly press the left thumbwheel . The current call will be ended and you will be
connected with the second caller.
The following telephone status messages appear on the display in the instru-
ment pane:
Phone numbers can be stored in differ ent categories in the mobile phone
directory. These categories are displayed as follows:
P Private phone number
W Work phone number
M Mobile phone number
Scroll the left thumbwheel downwards to scroll down the list of stored names
from A to Z . Scroll the left thumbwheel upwards to scroll up the list of stored
names from Z to A. If you "flick" the left thumbwheel you can jump to the next
letter of the alphabet.
Note
The information shown on the instrument panel display depends on the type
of mobile phone used.
Please wait...
The SIM card memory is being scanned.
SIM CARD
There is no SIM card in the mobile phone.
PIN CODE
The PIN code has not yet been entered.
NO SERVICE
No network connection
CALL
A call is active or incoming. If the caller's telephone
number is available, the display will alternately
give the caller's number and the message CALL.
LINE ENGAGED
Number dialled is engaged.
TELEPHONE OFF
The telephone is switched off.
CALLING
The connection is being established.
NO ENTRIES
The phone book has no entries.
AA
Adagio_EN Seite 43 Dienstag, 7. Oktober 2008 10:55 10

Index
44Index
AAS (AutoStore) . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
AUX (external audio source) . . . . . . . . . . . . . . . . 26
Aux-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Connecting a portable player . . . . . . . . . . . . 23BBluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
BROWSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24CCDSee "Compact discs" . . . . . . . . . . . . . . . . . . . 24
CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CDs Ejecting a CD . . . . . . . . . . . . . . . . . . . . . . . . . 16
Loading a CD . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning and care Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Compact discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Functions: brief play . . . . . . . . . . . . . . . . . . . 26
Functions: shuffle mode . . . . . . . . . . . . . . . . 25
Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Playing a CD . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
EEqualising . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
External audio source . . . . . . . . . . . . . . . . . . . . . 26FFunctions
AS (AutoStore) . . . . . . . . . . . . . . . . . . . . . . . . 13
AUX (external audio source) . . . . . . . . . . . . . 26
BROWSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
GALA (volume control depending on speed) 11
MIX (playing a CD in shuffle mode) . . . . . . . 25
MUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
RDS-AF (alternative frequencies) . . . . . . . . . 13
RDS-REG (regional stations) . . . . . . . . . . . . . 14
SCAN (playing the tracks of a CD briefly) . . . 26
TP (traffic programme) . . . . . . . . . . . . . . . . . 14
VOL-ON (switch-on volume) . . . . . . . . . . . . . 11
Functions: fast forward/rewind . . . . . . . . . . . . . 25
Functions: selecting a track . . . . . . . . . . . . . . . . 25GGALA (volume control depending on speed) . . 11
IiPod Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Inserting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19MMedia drivesAux-in connection . . . . . . . . . . . . . . . . . . . . . 23
CD player . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
External audio source . . . . . . . . . . . . . . . . . . 26
iPod: interface . . . . . . . . . . . . . . . . . . . . . . . . 17
USB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
MIX (playing a CD in shuffle mode) . . . . . . . . . . 25
Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Adapter: removing and installing . . . . . . . . 28
Inserting/Removing the mobile phone . . . . 29
Phone book . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Mobile phone Bluetooth® . . . . . . . . . . . . . . . . . . . . . . . . . . 30
See "Mobile" . . . . . . . . . . . . . . . . . . . . . . . . . 27
Speech control . . . . . . . . . . . . . . . . . . . . . . . 31
Mobile phone adapter . . . . . . . . . . . . . . . . . . . . 28
MP3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adagio_EN Seite 44 Dienstag, 7. Oktober 2008 10:55 10

Index45
Multi-function steering wheel
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Radio mode . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Telephone mode . . . . . . . . . . . . . . . . . . . . . . 42
MUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9PPhone book . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 32RRadio Alternative frequencies . . . . . . . . . . . . . . . . . 13
Regional stations . . . . . . . . . . . . . . . . . . . . . . 14
Setting the bandwidth . . . . . . . . . . . . . . . . . . 12
Storing a station . . . . . . . . . . . . . . . . . . . . . . 13
Traffic programme . . . . . . . . . . . . . . . . . . . . . 14
Tuning a station . . . . . . . . . . . . . . . . . . . . . . . 12
Tuning a stored station . . . . . . . . . . . . . . . . . 13
Radio bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . 12
RDS-AF (alternative frequency function) . . . . . . 13
RDS-REG (regional station function) . . . . . . . . . . 14SSCAN (brief play mode) . . . . . . . . . . . . . . . . . . . . 26
SEEK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Settings Distribution (balance, fader) . . . . . . . . . . . . . 10
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Tone (bass, middle, treble) . . . . . . . . . . . . . . 10
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Sound Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Distribution (balance, fader) . . . . . . . . . . . . . 10
GALA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Tone (bass, middle, treble) . . . . . . . . . . . . . . 10
VOL-ON (switch-on volume) . . . . . . . . . . . . . 11
Speech control system . . . . . . . . . . . . . . . . . . . . 31 Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Dialling a number . . . . . . . . . . . . . . . . . . . . . 35
Entering a PIN . . . . . . . . . . . . . . . . . . . . . . . . 35
Phone book . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Storing name tags . . . . . . . . . . . . . . . . . . . . . 38
Switching on and off . . . . . . . . . . . . . . . . . . . 33
Switching the sound system on and off . . . . . . . . 9
TTP (traffic programme function) . . . . . . . . . . . . . 14
Traffic programme (TP function) . . . . . . . . . . . . . 14
Traffic safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7UUSB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
VVolumeAdjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
VOL-ON (switch-on volume) . . . . . . . . . . . . . 11
Adagio_EN Seite 45 Dienstag, 7. Oktober 2008 10:55 10

RADIO ADAGIOOWNER’S MANUAL · MANUAL DE INSTRUÇÕESInglés, Portugués 3R0012006A (09.08) (GT9)
3R0012006A
Portada Adagio_EN PT.qxd 9/10/08 10:00 Página 1
