2008 SATURN VUE HYBRID Owners Manual

Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors can be locked and unlocked from
about 3 feet (1 m) up to 65 feet (20 m) away with
the Remote Keyless Entry (RKE) transmitter.
There are other conditions which can affect the
performance of the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-4.
Q(Lock):PressQto lock all the doors, including
the liftgate.
"(Unlock):Press"to unlock the driver’s door. If"is
pressed again within ve seconds, all other doors will
unlock. The interior lamps will come on for 20 seconds
or until the ignition is turned on.
L(Vehicle Locator/Panic Alarm):Press and
release
Lto activate the alarm. The turn signal lamps
will ash and the horn will sound three times.
Press and hold
Lfor more than two seconds and the
turn signal lamps will ash and the horn will sound
for 30 seconds.
To turn the alarm off, press
Lagain or turn the
ignition to ON/RUN.
2-5
ProCarManuals.com

Matching Transmitter(s) to Your
Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter is
lost or stolen, a replacement can be purchased through
your dealer/retailer. All transmitters need to be re-coded
to match the new transmitters. The lost transmitter will
no longer work after the new transmitters are re-coded.
Up to eight transmitters can be matched.
To match a new transmitter, see “HOLD STEM TO
RELEARN REMOTE KEY” underDIC Operation and
Displays on page 3-44.
Battery Replacement
Replace the battery if the REPLACE BATTERY IN
REMOTE KEY message displays on the Driver
Information Center (DIC).
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery:
1. Separate the halves of the transmitter with a at
thin object inserted into the notch on the side.
2. Remove the old battery. Do not use a metal object.
3. Insert the new battery, positive side facing down.
Replace with a CR2032 or equivalent battery.
4. Put the transmitter back together tightly.
2-6
ProCarManuals.com

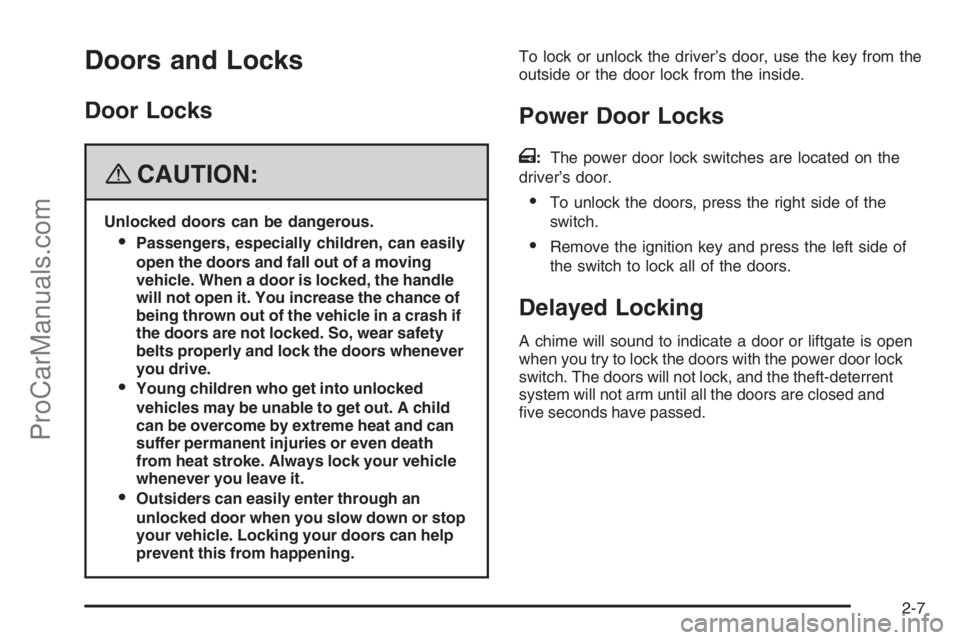

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving
vehicle. When a door is locked, the handle
will not open it. You increase the chance of
being thrown out of the vehicle in a crash if
the doors are not locked. So, wear safety
belts properly and lock the doors whenever
you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.To lock or unlock the driver’s door, use the key from the
outside or the door lock from the inside.
Power Door Locks
T:The power door lock switches are located on the
driver’s door.
To unlock the doors, press the right side of the
switch.
Remove the ignition key and press the left side of
the switch to lock all of the doors.
Delayed Locking
A chime will sound to indicate a door or liftgate is open
when you try to lock the doors with the power door lock
switch. The doors will not lock, and the theft-deterrent
system will not arm until all the doors are closed and
ve seconds have passed.
2-7
ProCarManuals.com

Rear Door Security Locks
Your vehicle has rear door security locks to prevent
passengers from opening the rear doors from the inside.
Open the rear doors to
access the security locks
on the inside edge of
each door.
To set the locks, insert a key into the slot and turn it to
the horizontal position. The door can only be opened from
the outside with the door unlocked. To return the door to
normal operation, turn the slot to the vertical position.
Lockout Protection
When you press the power door lock switch with the
key in the ignition, and any door is open, all the doors
lock and the driver’s door unlocks. When doors are
closed with the key in the ignition, the horn will sound
as a reminder.
If you lock the doors with the remote Keyless Entry
(RKE) transmitter, and the key is in the ignition, a chime
sounds and all except the driver’s door lock.
The lockout protection feature can be overridden by
holding the power door lock switch for three seconds.
2-8
ProCarManuals.com

Liftgate
{CAUTION:
It can be dangerous to drive with the liftgate or
liftglass open because carbon monoxide (CO)
gas can come into your vehicle. You cannot see
or smell CO. It can cause unconsciousness and
even death. If you must drive with the liftgate
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate or liftglass:
Make sure all other windows are shut.
Turn the fan on your climate control system
to its highest speed and select the control
setting that will force outside air into your
vehicle. See “Climate Control System” in
the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-29.To lock or unlock the liftgate, press the button on the
Remote Keyless Entry (RKE) transmitter twice or
the power door lock switch.
To open the liftgate, press the touchpad on the
underside of the liftgate handle and pull up.
To close the liftgate, pull down using the handle and
close until it latches.
Liftgate Operation with Loss of Power
To open the liftgate if
the vehicle’s battery is
disconnected or the voltage
is low, access the release
lever.
Remove the interior trim cover on the inside of the
liftgate. Use a tool to push the lever on the latch until
the liftgate releases.
2-9
ProCarManuals.com

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm
or hot weather.
2-10
ProCarManuals.com

Power Windows
{CAUTION:
Leaving children in a vehicle with the keys is
dangerous for many reasons, children or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
The windows will function and they could be
seriously injured or killed if caught in the path
of a closing window. Do not leave keys in a
vehicle with children.
When there are children in the rear seat use
the window lockout button to prevent
unintentional operation of the windows.The window switches for
all doors are located on
the driver’s door.
Each door also has a switch for its own window.
To open a window, pull up on the switch. To close a
window, press the switch.
The power windows operate when the ignition is in
ON/RUN or ACC/ACCESSORY, or while in Retained
Accessory Power (RAP). SeeRetained Accessory
Power (RAP) on page 2-18.
2-11
ProCarManuals.com

Express-Down Window
The driver’s window switch has an express-down
feature that allows the window to be lowered without
holding the switch. Press the switch part way, and
the driver’s window will open a small amount. Press the
switch down all the way and release it and the window
will go down automatically.
To stop the window while it is lowering, press and
release the switch.
Window Lockout
o
(Window Lockout):Your vehicle has a lockout
feature to prevent rear seat passengers from operating
the windows. Press the lockout button, located with the
power window switches, to turn the feature on and off.
Sun Visors
To block out glare, swing the sun visor down. You
can also detach the driver’s sun visor from the center
mount and slide it along the rod from side-to-side
for greater coverage.
Visor Vanity Mirrors
On vehicles with covered visor vanity mirrors, pull down
the sun visor to access the vanity mirror.
Lighted Visor Vanity Mirrors
On vehicles with lighted visor vanity mirrors, pull down
the sun visor to access the vanity mirror. The lights
will come on when you lift the cover.
2-12
