{CAUTION:
Never use oil or grease on studs or the
threads of the wheel nuts. If you do, the wheel
nuts might come loose and the wheel could
fall off, causing a crash.
{CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose and even come off. This could lead to a
crash. Be sure to use the correct wheel nuts.
If you have to replace them, be sure to get new
Saturn original equipment wheel nuts.Notice:Improperly tightened wheel nuts can lead
to brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specication.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has been
used or how far it has been driven. It could fail
suddenly and cause a crash. If you have to
replace a wheel, use a new Saturn original
equipment wheel.
5-71
ProCarManuals.com

Tire Chains
{CAUTION:
Do not use tire chains. There is not enough
clearance. Tire chains used on a vehicle without
the proper amount of clearance can cause
damage to the brakes, suspension, or other
vehicle parts. The area damaged by the tire
chains could cause you to lose control of your
vehicle and you or others may be injured in a
crash. Use another type of traction device only
if its manufacturer recommends it for use on
your vehicle and tire size combination and
road conditions. Follow that manufacturer’s
instructions. To help avoid damage to your
vehicle, drive slowly, re-adjust or remove the
device if it is contacting your vehicle, and do
not spin your wheels. If you do nd traction
devices that will t, install them on the
rear tires.
If a Tire Goes Flat
Your vehicle has a tire sealant and compressor kit.
SeeTire Sealant and Compressor Kit on page 5-74.
There is no spare tire, no tire changing equipment, and
no place to store a tire.
It is unusual for a tire to blow out while you are driving,
especially if you maintain your tires properly. See
Tires on page 5-50. If air goes out of a tire, it is much
more likely to leak out slowly. But, if you should
ever have a blow out, here are a few tips about what to
expect and what to do:
If a front tire fails, the at tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel rmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
5-72
ProCarManuals.com

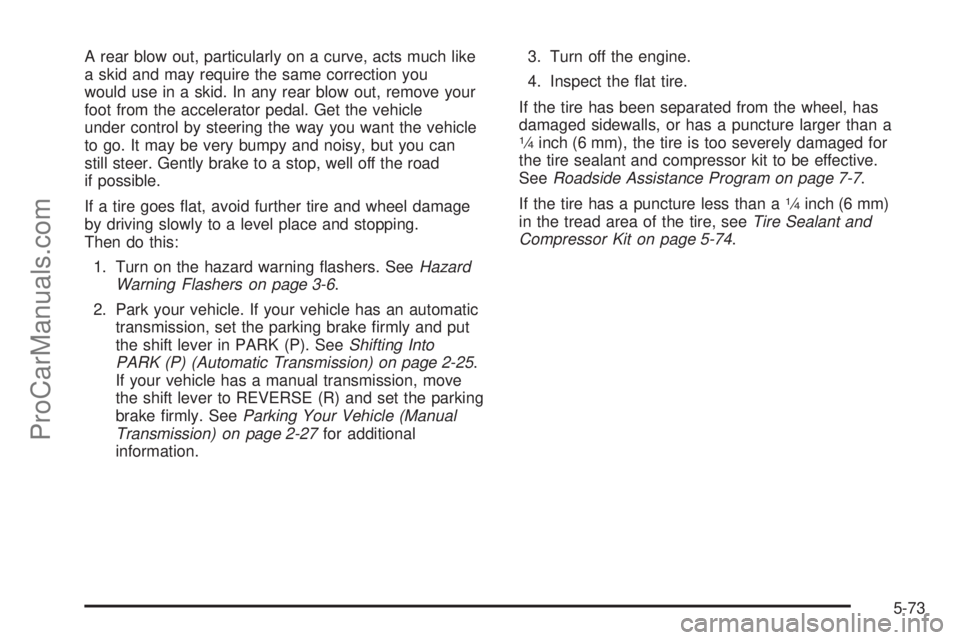

A rear blow out, particularly on a curve, acts much like
a skid and may require the same correction you
would use in a skid. In any rear blow out, remove your
foot from the accelerator pedal. Get the vehicle
under control by steering the way you want the vehicle
to go. It may be very bumpy and noisy, but you can
still steer. Gently brake to a stop, well off the road
if possible.
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place and stopping.
Then do this:
1. Turn on the hazard warning ashers. SeeHazard
Warning Flashers on page 3-6.
2. Park your vehicle. If your vehicle has an automatic
transmission, set the parking brake rmly and put
the shift lever in PARK (P). SeeShifting Into
PARK (P) (Automatic Transmission) on page 2-25.
If your vehicle has a manual transmission, move
the shift lever to REVERSE (R) and set the parking
brake rmly. SeeParking Your Vehicle (Manual
Transmission) on page 2-27for additional
information.3. Turn off the engine.
4. Inspect the at tire.
If the tire has been separated from the wheel, has
damaged sidewalls, or has a puncture larger than a
14inch (6 mm), the tire is too severely damaged for
the tire sealant and compressor kit to be effective.
SeeRoadside Assistance Program on page 7-7.
If the tire has a puncture less than a
14inch (6 mm)
in the tread area of the tire, seeTire Sealant and
Compressor Kit on page 5-74.
5-73
ProCarManuals.com

Tire Sealant and Compressor Kit
Your vehicle has a tire sealant and compressor kit that
is capable of temporarily sealing a puncture up to a
14inch (6 mm) in the tread of the tire. There is no
jack or spare tire. The kit inates the tire with liquid
sealant and air. The tire sealant and compressor kit can
also be used to inate an underinated tire. After the
tire is inated to the recommended ination pressure,
seeInflation - Tire Pressure on page 5-56for more
information, the vehicle must be driven for ve miles to
distribute the sealant in the tire and seal the puncture.
After driving ve miles, the tire pressure must be
rechecked and adjusted as needed. See Using the
Tire Sealant and Compressor later in this section.
Be sure to read and follow all of the tire sealant and
compressor kit instructions. The kit includes the
following:
A. Air Compressor
B. Tire Sealant Canister
C. Air Compressor
Accessory Plug
D. On/Off SwitchE. Air Pressure Gage
F. Air Compressor
Inator Hose
G. Sealant Filling Hose
After temporarily sealing a tire using the tire sealant and
compressor kit, it is recommended to take your vehicle
to an authorized dealer/retailer as soon as possible.
If the sealant is not removed from the tire within
100 miles (161 kilometers) of driving, the dealer/retailer
may recommend that the tire be replaced.
5-74
ProCarManuals.com

Accessing the Tire Sealant and
Compressor Kit
To access the tire sealant and compressor kit, do the
following:
1. Make sure the convertible top is in the up position
before accessing the tire sealant and compressor kit.
2. Open the trunk. SeeTrunk on page 2-8for more
information.
3. Locate the tire sealant and compressor kit on the
driver side of the vehicle, near the back corner of
the trunk.4. Remove the tire
sealant and
compressor kit strap by
squeezing the two
tabs of the quick
release buckle.
5. Remove the sealant and compressor kit from its
foam container.
5-75
ProCarManuals.com

Tire Sealant
Read and follow the safe handling instructions on the
sealant canister.
The sealant can temporarily seal a punctures up to
14inch (6 mm) in the tread area of the tire. The sealant
cannot seal sidewall damage, large punctures, or a
tire that has unseated from the wheel. SeeRoadside
Assistance Program on page 7-7if you need assistance.
The sealant can only be used to seal one tire.
After usage, the sealant canister and sealant lling
hose assembly must be replaced at a dealer/retailer.
See Removal and Installation of Sealant Canister later
in this section.
Check the tire sealant expiration date on the sealant
canister, if it has expired, see your dealer/retailer for
a replacement.
Using the Tire Sealant and Compressor
Kit to Temporarily Seal a Punctured Tire
Follow these directions closely for correct sealant usage.
1. Place the sealant and compressor kit on the ground
and unwrap the sealant lling hose from the
compressor.
2. Remove the air compressor accessory plug from
the unit. To do this, pull the top portion of the
wrapped cord out rst, then the bottom, and then
unsnap the plug. Do not insert the plug into an
accessory outlet yet.
3. Remove the valve stem or tire pressure monitoring
sensor cap from the at tire by turning it
counterclockwise.
If an object, such as a nail, has penetrated the tire,
do not remove it.
5-76
ProCarManuals.com

4. Attach the sealant lling hose (A) onto the tire valve
stem. Turn it clockwise until it is tight.
Make sure the sealant and compressor kit on/off
switch (B) is in the O (off) position.
5. Plug the air compressor accessory plug (C) into an
accessory power outlet in the vehicle. SeeAccessory
Power Outlet(s) on page 3-16for more information.
Do not slam door or close window on the
compressor accessory plug cord.
{CAUTION:
Idling the engine in a closed-in place or with
the climate control system off can cause
deadly carbon monoxide (CO). SeeEngine
Exhaust on page 2-27.
6. Start the vehicle. SeeStarting the Engine
(Key Access) on page 2-18for more information.
The vehicle must be running while using the
air compressor.
{CAUTION:
Inating something too much can make it
explode, and you or others could be injured.
Be sure to read the inator instructions, and
inate the tire to its recommended pressure.
Do not exceed 36 psi (248 kPa).
5-77
ProCarManuals.com

7. Push the On/Off switch to the I (on) position.
The sealant and compressor kit injects sealant and
air into the tire. Sealant could leak from the
puncture until the vehicle is driven and the puncture
has sealed.
8. The pressure gage will initially show a high pressure
while the compressor pushes the sealant into the
tire. Once the sealant is completely dispersed in
the tire, the pressure will quickly drop and start to
rise again as the tire inates.
9. Inate the tire to the recommended ination
pressure, found on the Tire and Loading Information
label located on the vehicle’s center pillar (B-pillar)
below the vehicle’s door latch, using the air
pressure gage on the top of the unit.
The pressure gage reads high while the compressor
is running. Turn the compressor off to get an
accurate pressure reading.
Notice:If the recommended pressure cannot be
reached after 15 minutes, the vehicle should not be
driven. The tire is too severely damaged and
cannot be inated or sealed with the tire sealant
and compressor kit. Remove the air compressor
accessory plug from the accessory power outlet and
unscrew the sealant lling hose from the tire
valve or tire pressure monitoring sensor valve.
SeeRoadside Assistance Program on page 7-7.10. Push the sealant and compressor kit switch to
the O (off) position.
11. The tire is not sealed and will continue to leak air
until the vehicle is driven and the sealant is
distributed in the tire.
Steps 12 through 20 must be done right after
Step 11.
12. Unplug the air compressor accessory plug from the
accessory power outlet in the vehicle.
13. Disconnect the sealant lling hose from the tire
valve stem, by turning it counterclockwise, and
replace the tire valve stem cap.
Be careful when handling the tire inator
components as they could be hot after usage.
14. Wrap the sealant lling hose around the air
compressor channel to stow it in its original location.
