2008 SAAB 9-5 remote start

172 Starting and drivingEngine block heater3
33 3The following are just some of the benefits
to the car and the environment of using an
engine block heater:
Lower fuel consumption.
Exhaust emissions substantially reduced
over short runs.
Reduced wear on the engine.
Inside of car warms up faster.
The engine heater is effective at outside
temperatures up to 58–68°F (+15–20°C).
The warmer it is outside, the shorter the time
the engine heater needs to be connected.
Longer than 1.5 hours is unnecessary.
If the car is equipped with a removable,
electrical cabin heater that is not in use, this
should be stored in the luggage compart-
ment.
Driving in cold weatherBefore starting a journey in cold weather
you should check the following:
That the wiper blades have not become
frozen to the windshield/glass.
Brush any snow away from the air intake
for the heater system (opening between
hood and windshield).
It may be advisable to lubricate the
door-lock cylinder (use molybdenum
disulphide, MoS
2) to prevent its freezing.
If the lock has frozen, take care not to
break the key (or use the remote control)
– heat it first or spray it with de-icer.
Periodically during the winter, add gaso-
line anti-freeze to the fuel to dispel any
condensation in the fuel tank which could
freeze and cause problems in the system.
Keep the tank well filled to reduce the risk
of condensation forming.
If the car is parked outside in freezing
weather, fuel additives (gasoline
anti-freeze) will not do any good as it
cannot remove water that has already
frozen. Park the car in a warm place so
that any ice that may have built up melts,
then add gasoline anti-freeze when filling
up the tank. Condensation is caused by
changes in the outdoor temperature or by
the car being parked alternately in a
garage and outside. It is particularly important when the roads
are slippery that the brakes and tires be in
good condition.
Check the anti-freeze in the engine cool-
ant, see page 195.
The car´s trip computer will warn you when
there is a risk of slippery conditions. For fur-
ther information on this function, see
page 68.
The car is equipped with tires designed to
provide optimum grip on both wet and dry
roads, although this has been achieved at
the expense of somewhat reduced grip on
snow and ice. For regular driving on snow
and ice, we therefore recommend that
winter (snow) tires be fitted.
Winter (snow) tires, particularly studded
tires (where use is legally permitted), gener-
ally make driving safer on snow and ice.
Acquaint yourself with the legal provi-
sions governing the use of different
types of winter tires and snow chains.
Studded tires are not allowed in some
countries.
95_US_M08.book Page 172 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

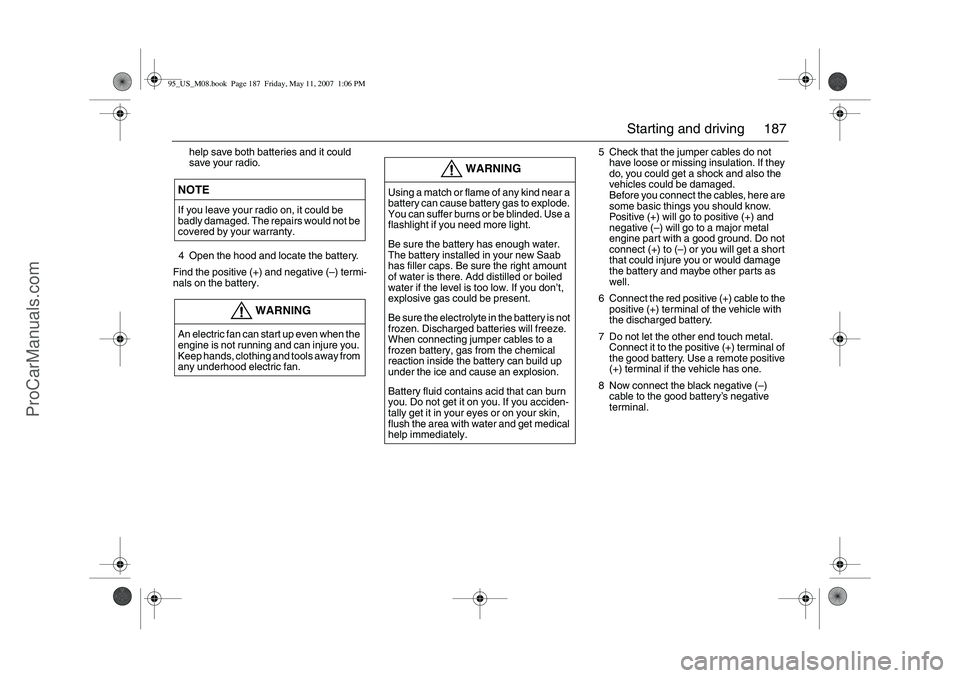

187 Starting and driving
help save both batteries and it could
save your radio.
4 Open the hood and locate the battery.
Find the positive (+) and negative (–) termi-
nals on the battery.5 Check that the jumper cables do not
have loose or missing insulation. If they
do, you could get a shock and also the
vehicles could be damaged.
Before you connect the cables, here are
some basic things you should know.
Positive (+) will go to positive (+) and
negative (–) will go to a major metal
engine part with a good ground. Do not
connect (+) to (–) or you will get a short
that could injure you or would damage
the battery and maybe other parts as
well.
6 Connect the red positive (+) cable to the
positive (+) terminal of the vehicle with
the discharged battery.
7 Do not let the other end touch metal.
Connect it to the positive (+) terminal of
the good battery. Use a remote positive
(+) terminal if the vehicle has one.
8 Now connect the black negative (–)
cable to the good battery’s negative
terminal.NOTEIf you leave your radio on, it could be
badly damaged. The repairs would not be
covered by your warranty.
WARNING
An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from
any underhood electric fan.
WARNING
Using a match or flame of any kind near a
battery can cause battery gas to explode.
You can suffer burns or be blinded. Use a
flashlight if you need more light.
Be sure the battery has enough water.
The battery installed in your new Saab
has filler caps. Be sure the right amount
of water is there. Add distilled or boiled
water if the level is too low. If you don’t,
explosive gas could be present.
Be sure the electrolyte in the battery is not
frozen. Discharged batteries will freeze.
When connecting jumper cables to a
frozen battery, gas from the chemical
reaction inside the battery can build up
under the ice and cause an explosion.
Battery fluid contains acid that can burn
you. Do not get it on you. If you acciden-
tally get it in your eyes or on your skin,
flush the area with water and get medical
help immediately.
95_US_M08.book Page 187 Friday, May 11, 2007 1:06 PM
ProCarManuals.com

276 IndexRain sensor
_____________________ 77
Random playback of MP3 files, CD
_103
Random playback, CD
____________ 99
Random playback, CD changer
____ 101
Rapid playing an MP3 file
_________ 103
RDS time
_____________________ 106
Rear fog light ___________________ 74
Rear seat, 9-5 Sedan, folding
______ 129
Rear seat, 9-5 SportCombi, folding
_132
Rear window heating
_____________ 82
Rear-seat head restraints __________ 21
Rear-view mirror, auto-dimming
____ 121
Rearview mirrors
________________ 116
Reclamation
___________________ 250
Recommendations for cars with
automatic transmission, towing a
camper or trailer
_______________ 175
Refuelling
_____________________ 146
Relay panel ____________________ 219
Remote control __________________ 44
Remote-control battery, changing
____ 49
Remove the key
________________ 140
Removing CDs
__________________ 99
Removing CDs, CD-changer
______ 100
Removing MP3 discs
____________ 102
Replacement, wheel
_____________ 227
Reporting safety defects
__________ 258
Reprogramming of systems _______ 274
Reservoir, power-steering fluid _____ 198
Rev counter
____________________ 64
Reversing lights _________________ 76
Rolling advertisements
____________ 94Roof load
______________________ 179
Running-in _____________________ 170
Saab Information Display (SID)
_____ 68
SSaab Parking Assistance
_________ 168
Safety belts
_____________________ 12
Safety belts, care of
_____________ 242
Safety-belt pretensioners
__________ 15
Safety-belt reminder
______________ 12
SDM
_________________________ 259
SID
___________________________ 68
Seats __________________________ 18
Securing a load
__________________ 47
Selecting and changing tracks, CD
___ 99
Selecting a radio station
___________ 93
Selecting/changing MP3 file _______ 103
Selector lever indication, automatic
transmission
___________________ 67
Sentronic, manual mode
__________ 156
Service costs
___________________ 257
Service information
______________ 258
Service intervals
________________ 256
Service record retention
__________ 257
Setting the clock
________________ 105
Setting the date _________________ 105
Settings, seats __________________ 18
Shadow effect
__________________ 110
Side airbags
____________________ 36
Signalling, horn _________________ 114Snow chains
___________________ 172
Sorting music ___________________ 103
Sound system __________________ 107
Sources of AM interference
________ 111
Sources of FM interference ________ 111
Spare wheel
___________________ 237
Spare wheel and tools
____________ 183
Spark plugs
____________________ 267
Speed dependent volume
compensation _________________ 106
Speedometer
_________________ 64
, 65
Starting in cold weather, ACC
_______ 84
Starting in hot weather, ACC ________ 84
Steering wheel adjustment
________ 114
Steering wheel controls
____________ 91
Steering, technical data ___________ 269
Steps for determining correct load
limit
_________________________ 233
Stone-chip damage, repairing
______ 245
Storage compartments
___________ 126
Storing radio stations
______________ 93
Sun visors
_____________________ 125
Suspension ____________________ 269
Suspension, technical data
________ 269
Switches
_______________________ 73
Symboler ________________________ 9
Systems, adjustment
_____________ 274
95_US_M08.book Page 276 Friday, May 11, 2007 1:06 PM
ProCarManuals.com
