2008 PONTIAC TORRENT Owners Manual

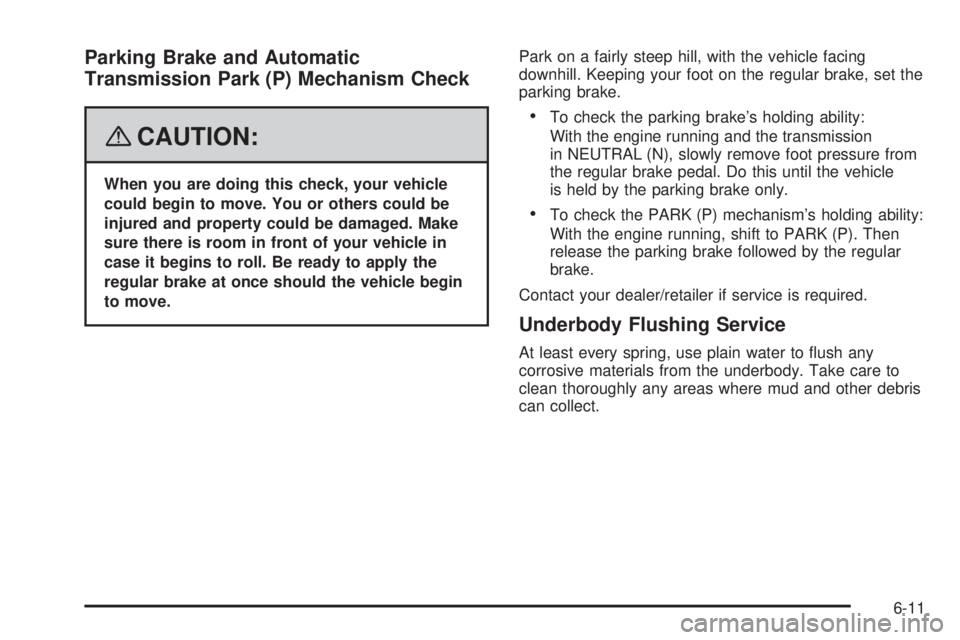

Parking Brake and Automatic
Transmission Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake’s holding ability:
With the engine running and the transmission
in NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal. Do this until the vehicle
is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Contact your dealer/retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-11

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on
page 5-15.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-22.
Usage Fluid/Lubricant
Hydraulic Brake
SystemDelco®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Hydraulic
Power Steering
System (3.6L
V6 engine only)GM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
5-speed
Automatic
Transmission
(3.4L V6
engine only)Use only T-IV Automatic
Transmission Fluid
(GM Part No. U.S. 88900925, in
Canada 22689186). SeeAutomatic
Transmission Fluid on page 5-22.
6-speed
Automatic
Transmission
(3.6L V6
engine only)DEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
6-12

Usage Fluid/Lubricant
Carrier
Assembly —
Differential
(Rear Drive
Module)Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678).
Transfer Case
(Power
Transfer Unit)With 3.4L V6 engine:
VERSATRAK
®Fluid
(GM Part No. U.S. 12378514,
in Canada 88901045).
With 3.6L V6 engine: SAE 75W-90
Synthetic Axle Lubricant
(GM Part No. U.S. 89021677, in
Canada 89021678) meeting GM
Specication 9986115.
Hood Latch
Assembly,
Secondary
Latch,
Pivots, Spring
Anchor, and
Release PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Usage Fluid/Lubricant
Hood and Door
Hinges, Rear
Folding SeatMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip
ConditioningWeatherstrip Lubricant
(GM Part No. U.S. 3634770,
in Canada 10953518) or
Dielectric Silicone Grease
(GM Part No. U.S. 12345579,
in Canada 992887).
6-13

Maintenance Replacement Parts
Replacement parts identied below by name, part number, or specication can be obtained from your dealer/retailer.
Part GM Part Number ACDelco®Part Number
Engine Air Cleaner/Filter 22676970 A1627C
Engine Oil Filter
3.4L V6 Engine 25010792 PF47
3.6L V6 Engine 89017524 PF48
Passenger Compartment Air Filter Element 15781507 CF137
Replacement Battery 15104967 75-6YR
Spark Plugs
3.4L V6 Engine 12568387 41-101
3.6L V6 Engine 12597464 41-990
Windshield Wiper Blades
Driver’s Side – 24 inches (60.0 cm) 22703508 —
Passenger’s Side – 19 inches (47.5 cm) 22703507 —
Rear – 15.2 inches (38.6 cm) 19120327 —
6-14

Engine Drive Belt Routing
3.4L V6 Engine
3.6L V6 Engine
6-15

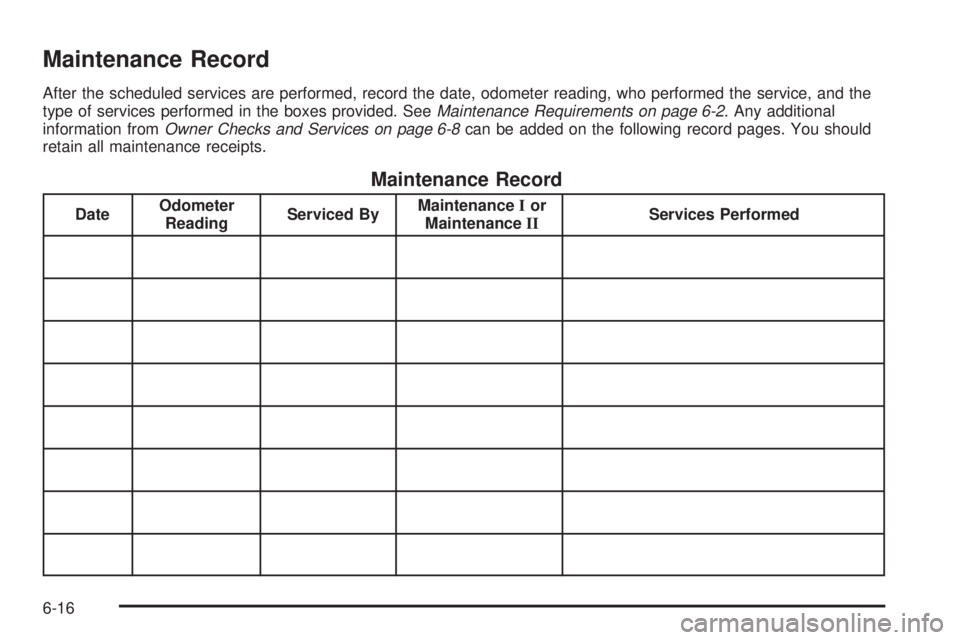

Maintenance Record
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. SeeMaintenance Requirements on page 6-2. Any additional
information fromOwner Checks and Services on page 6-8can be added on the following record pages. You should
retain all maintenance receipts.
Maintenance Record
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-16

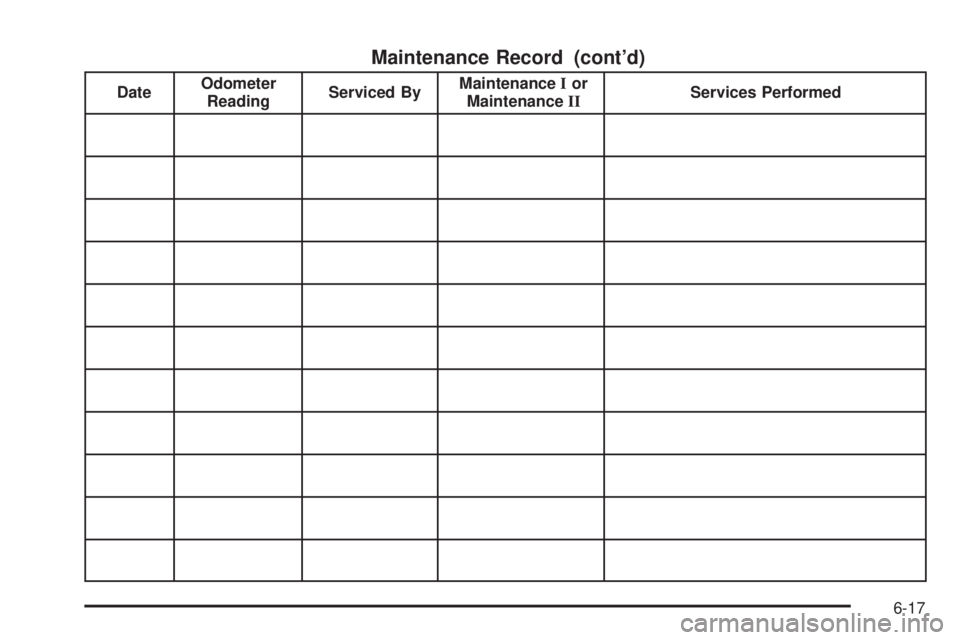

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-17

Maintenance Record (cont’d)
DateOdometer
ReadingServiced ByMaintenanceIor
MaintenanceIIServices Performed
6-18
