2008 PONTIAC GRAND PRIX seat adjustment

?(Recirculation):Press this button to turn the
recirculation mode on or off. This mode keeps outside air
from coming in the vehicle. It can be used to help reduce
the outside air and odors that may enter the vehicle or
help to cool the air inside the vehicle quicker.
Recirculation is not available in defrost or oor/defog
mode. Pressing the recirculation button will turn on the
indicator light.
Using recirculation for long periods of time may cause the
air inside your vehicle to become too dry. To prevent this
from happening, after the air in your vehicle has cooled,
turn the recirculation mode off.
z(Heated Seats):Press this button to turn the heated
seats on and off. The button on the left controls the
driver’s seat and the button on the right controls
the passenger’s seat. SeeHeated Seats on page 1-4
for additional information.
Sensors
The solar sensor on your vehicle monitors the solar
radiation and the air inside of your vehicle, then uses the
information to maintain the selected temperature by
initiating needed adjustments to the temperature, the fan
speed and the air delivery system. The system may
also supply cooler air to the side of the vehicle facing the
sun. The recirculation mode will also be activated, as
necessary. Do not cover the solar sensor located in the
center of the instrument panel, near the windshield,
or the system will not work properly.
Defogging and Defrosting
Fog on the inside of windows is a result of high humidity
(moisture) condensing on the cool window glass.
This can be minimized if the climate control system is
used properly. There are two modes to clear fog or
frost from your windshield. Use the oor/defog mode
to clear the windows of fog or moisture and warm
the passengers. Use the defrost mode to remove fog
or frost from the windshield more quickly.
3-34

Outlet Adjustment
Turn the air outlets, located in the middle and at each
outboard side of the instrument panel, to adjust the
direction of the airow.
Operation Tips

Clear away any ice, snow, or leaves from the air
inlets at the base of the windshield that may
block the ow of air into the vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of objects
to help circulate the air inside of the vehicle more
effectively.
If the airow seems low when the fan is at the
highest setting, the passenger compartment air
lter may need to be replaced. See “Passenger
Compartment Air Filter” following, for more
information.
Passenger Compartment Air Filter
The passenger compartment air lter is located near the
passenger’s side windshield wiper arm, under the
inlet grille.
The lter traps most of the pollen from entering the
climate control system. Similar to the engine’s air lter,
it may need to be changed periodically to insure
system performance. SeeScheduled Maintenance on
page 6-4for more information.
To change the passenger compartment air lter,
1. Turn the ignition to ACC/ACCESSORY and the
windshield wipers on.
2. Turn the ignition to LOCK/OFF when the windshield
wipers are in the upright position.
3. Raise the hood.
4. Disconnect the windshield washer pump hose from
the fender rail and the air inlet grille.
5. Remove the hood weather-strip from the
passenger’s side of the vehicle, peeling it back
halfway.
3-36

Headlamp Aiming
The visual optical headlamp aiming system has been
preset at the factory and should need no further
adjustment.
However, If the vehicle is damaged in an accident, the
headlamp aim may be affected and adjustment may
be necessary.
If oncoming vehicles ash their high beams at you, this
may also mean the vertical aim needs to be adjusted.
It is recommended that the vehicle is taken to your
dealer/retailer for service if the headlamps need to be
re-aimed. It is possible however, to re-aim the
headlamps as described in the following procedure.The vehicle should be properly prepared as follows:The vehicle should be placed so the headlamps are
25 ft. (7.6 m) from a light colored wall.
The vehicle must have all four tires on a perfectly
level surface which is level all the way to the wall.
The vehicle should be placed so it is perpendicular
to the wall.
The vehicle should not have any snow, ice, or
mudonit.
The vehicle should be fully assembled and all other
work stopped while headlamp aiming is being done.
The vehicle should be normally loaded with a
full tank of fuel and one person or 160 lbs (75 kg)
sitting on the driver’s seat.
Tires should be properly inated.
5-51

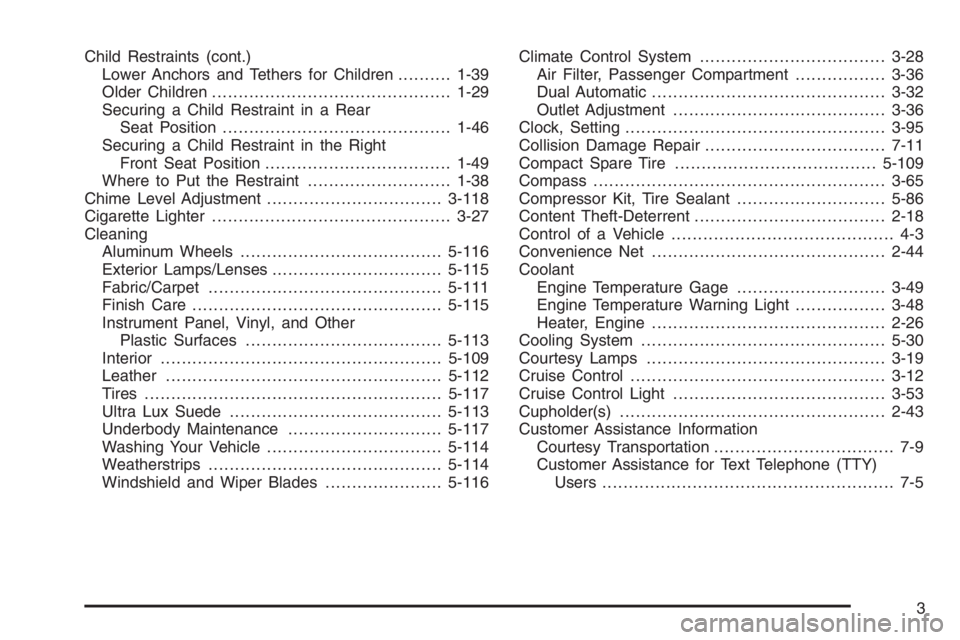

Child Restraints (cont.)
Lower Anchors and Tethers for Children..........1-39
Older Children.............................................1-29
Securing a Child Restraint in a Rear
Seat Position...........................................1-46
Securing a Child Restraint in the Right
Front Seat Position...................................1-49
Where to Put the Restraint...........................1-38
Chime Level Adjustment.................................3-118
Cigarette Lighter.............................................3-27
Cleaning
Aluminum Wheels......................................5-116
Exterior Lamps/Lenses................................5-115
Fabric/Carpet............................................5-111
Finish Care...............................................5-115
Instrument Panel, Vinyl, and Other
Plastic Surfaces.....................................5-113
Interior.....................................................5-109
Leather....................................................5-112
Tires........................................................5-117
Ultra Lux Suede........................................5-113
Underbody Maintenance.............................5-117
Washing Your Vehicle.................................5-114
Weatherstrips............................................5-114
Windshield and Wiper Blades......................5-116Climate Control System...................................3-28
Air Filter, Passenger Compartment.................3-36
Dual Automatic............................................3-32
Outlet Adjustment........................................3-36
Clock, Setting.................................................3-95
Collision Damage Repair..................................7-11
Compact Spare Tire......................................5-109
Compass.......................................................3-65
Compressor Kit, Tire Sealant............................5-86
Content Theft-Deterrent....................................2-18
Control of a Vehicle.......................................... 4-3
Convenience Net............................................2-44
Coolant
Engine Temperature Gage............................3-49
Engine Temperature Warning Light.................3-48
Heater, Engine............................................2-26
Cooling System..............................................5-30
Courtesy Lamps.............................................3-19
Cruise Control................................................3-12
Cruise Control Light........................................3-53
Cupholder(s)..................................................2-43
Customer Assistance Information
Courtesy Transportation.................................. 7-9
Customer Assistance for Text Telephone (TTY)
Users....................................................... 7-5
3

Maintenance Schedule (cont.)
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-50
Manual Seats................................................... 1-2
Manual, Using.................................................... iii
Message
DIC Warnings and Messages........................3-67
Mirrors
Manual Rearview Mirror................................2-38
Manual Rearview Mirror with OnStar
®.............2-38
Outside Convex Mirror.................................2-39
Outside Power Mirrors..................................2-39
MP3 ............................................................3-109
MyGMLink.com................................................ 7-4
N
Navigation System, Privacy..............................7-17
New Vehicle Break-In......................................2-23
O
Odometer......................................................3-40
Off-Road Recovery..........................................4-12
Oil
Engine.......................................................5-15
Pressure Light.............................................3-52
Oil, Engine Oil Life System..............................5-18
Older Children, Restraints................................1-29
Online Owner Center........................................ 7-4
OnStar, Privacy..............................................7-17
OnStar
®System, see OnStar®Manual...............2-40
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-36
Outlets
Accessory Power.........................................3-26
Outside
Convex Mirror.............................................2-39
Power Mirrors.............................................2-39
Overhead Console Reading Lamps....................3-21
Overheated Engine Protection Operating Mode.....5-29
Owner Checks and Services.............................. 6-8
Owners, Canadian............................................... ii
9
