2008 Peugeot Boxer Owner's Manual

02 CONTROL SHORT-CUTS
Change of source: CD/
MP3 or radio.Automatic search for a
higher radio frequency.
Selection of the next CD/
MP3 track.
Automatic search for a lower
frequency.
Selection of the previous CD/
MP3 track.
Mute/Restoring of the
sound (or by pressing +
or -).
Volume increase.
Volume decrease.
81
4
IN-CAR TECHNOLOGY
Audio equipment

RADIOAccess to and exit from the menus.
Confirmation and storing of the choices from
the current menu.
Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET).
Selection of the choices from the current menu.
Switching from one band to another on the
equaliser (EQ SET).
MENU
SELECTING A STATION
Press the source SRC button
several times in succession and
select the radio.
Press the band BN button to
select a waveband: FM1, FM2,
FMt, MW, LW.
Briefly press one of the buttons
to carry out an automatic search
of the radio stations.
Press one of the buttons to carry
out a manual search of the radio
stations.
STORING A STATION Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.
82
Audio equipment

RADIOAccess to and exit from the menus.
Confirmation and storing of the choices from
the current menu.
Scrolling of the menus.
Selection of the letters (CD NAME).
Increasing or decreasing of an
equaliser band (EQ SET).
Selection of the choices from the current menu.
Switching from one band to another on the
equaliser (EQ SET).
MENU
SELECTING A STATION
Press the source SRC button
several times in succession and
select the radio.
Press the band BN button to
select a waveband: FM1, FM2,
FMt, MW, LW.
Briefly press one of the buttons
to carry out an automatic search
of the radio stations.
Press one of the buttons to carry
out a manual search of the radio
stations.
STORING A STATION Press one of the buttons for
more than 2 seconds to store the
frequency of the current station.
82
Audio equipment

Scroll the
display
Select
Display
Select
Display
Select
Display
Select
DisplayEnables you to…
IGN TIME 20 MIN 00 MINSet the audio equipment play time after turning the
ignition key to the "STOP" position:
- 20 MIN to play for 20 minutes,
- 00 MIN to switch off immediately.
Place the key in the "RUNNING" position to switch t
he audio equipment back on.
NO HICUTHICUT
ON Select the dynamic reduction of the treble:
- ON,
- NO.
VOICE 22 21 ... OFF Select the volume setting:
- 1 to 66,
- OFF to cut off the sound.
SVC OFF SVC ON Select the automatic control of the volume in relat
ion
to the vehicle speed:
- ON,
- OFF.
CD NAME
XYZ23ABCSelect and programme the name of the CD, currently
being played, on the display:
- the name stored previously,
- 8 dashes if it does not have a name.
Use the 4 arrows to select letters then store using
MENU.
To clear the name, press and hold the "CLR"
button.
If a CD
has been
inserted,
this menu is
displayed.ouABCDEFG5MENU
_ _ _ _ _
_ _ _
83
4
TECHNOLOGIE À BORD
Audio equipment

84
Audio equipment
Scroll the
display
Select
Display
Select
Display
Select
Display
Select
DisplayEnables you
to…
SENS DX SENS LOSet the sensitivity of automatic reception of the r
adio
frequencies (tuner):
- DX (high) for a search of all of the surrounding transmitters,
- LO (low) for a search of the surrounding transmitters which have a strong signal.
MP3 DISP
If your
vehicle is
equipped
with MP3,
this menu is
displayed FILENAME TIME
TAG
INFODIRSelect the type of MP3 display for the current
track
- FILENAME for the name of the track (file),
- TIME for the time elapsed,
- TAG INFO for the title of the album and the name
of
the artist,
- DIR for the name of the directory (folder).
CD DISP NAME
Select the type of display for the current CD:
- for the name attributed to the CD,
- TIME for the time elapsed since the beginning of
the track.
TIME
REG OFF REG ON Select the reception of local or regional programme
s
(different from one region to another):
- ON for local programmes,
- OFF for no programmes.

Scroll the
display
Select
Display
Select
Display
Select
Display
Select
DisplayEnables you to…
PRESET USERCLASSICROCK JAZZSelect pre-defined equaliser settings.
Select USER to set the equaliser manually then go t
o
the EQ SET menu.
Bass and Treble adjustments are always possible.
EQ SET
EQ SET
If USER is
selected in
PRESET,
this
menu is
displayed. Programme the 7 bands of the equaliser manually.
To store the settings, press MENU.
85
4
IN-CAR TECHNOLOGY
Audio equipment

2
1
86
Audio equipment
CD
The MP3 format, an abbreviation of MPEG 1.2 & 2.5 A
udio
Layer 3, is an audio compression standard which per mits the
recording of several tens of music files on a singl e disc.
MP3
In order to be able to play a recorded CDR or CDRW, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may n ot be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a s peed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the J oliet
standard is recommended.
The audio equipment will only play files with the e xtension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z.
No other type of file (.wma, .mp4, m3u...) can be p layed.
It is advisable to restrict file names to 20 charac ters without
using special characters (e.g.: " " ? ; ù) to avoid any playing
or displaying problems.
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no
reflection on the quality of the original player.
Insert a CD or an MP3 compilation in the player, pl ay begins
automatically.
If the player already contains a disc,
press the source SRC button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.

KEY
Indicates that a maintained press is required to start the action described.
Voice mode Press the control to start the voice recognition, a n audible signal confirms that the function has bee n activated, do not speak until
you hear this signal.
For further information regarding the voice command s, say "Help" or refer to the tables at the end of this document.

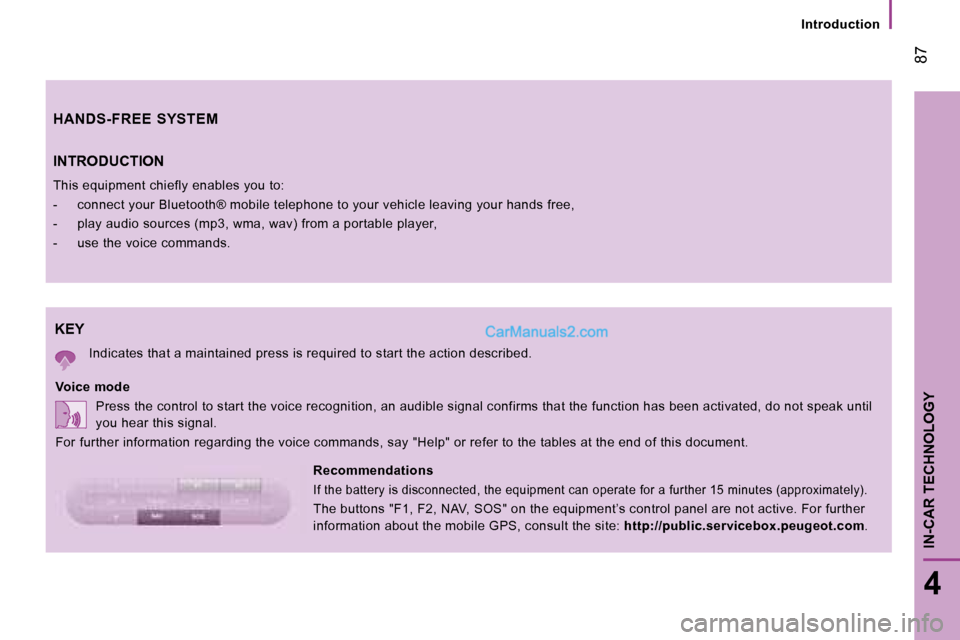

INTRODUCTION
This equipment chiefly enables you to:
- connect your Bluetooth® mobile telephone to your vehicle leaving your hands free,
- play audio sources (mp3, wma, wav) from a portabl e player,
- use the voice commands.
Recommendations
If the battery is disconnected, the equipment can o perate for a further 15 minutes (approximately).
The buttons "F1, F2, NAV, SOS" on the equipment’s c ontrol panel are not active. For further
information about the mobile GPS, consult the site: http://public.servicebox.peugeot.com .
HANDS-FREE SYSTEM
87
4
IN-CAR TECHNOLOGY
Introduction
