2008 Peugeot Boxer Owner's Manual

140Fuses A (amps) Allocation54 - Not used
55 15 Heated seats
56 15 Rear 12 V socket - Lighter
57 10 Ventilation/heating motor under the driver's seat
58 10 Direction indicators
59 - Not used
60 - Not used
61 - Not used
62 - Not used
63 10 Programmable additional heating switch
64 - Not used
65 30 Rear blower
DRIVER'S PILLAR FUSES
- Unclip the cover.
When you have finished, close the cover
carefully.Changing a fuse

141
TROUBLESHOOTING
8

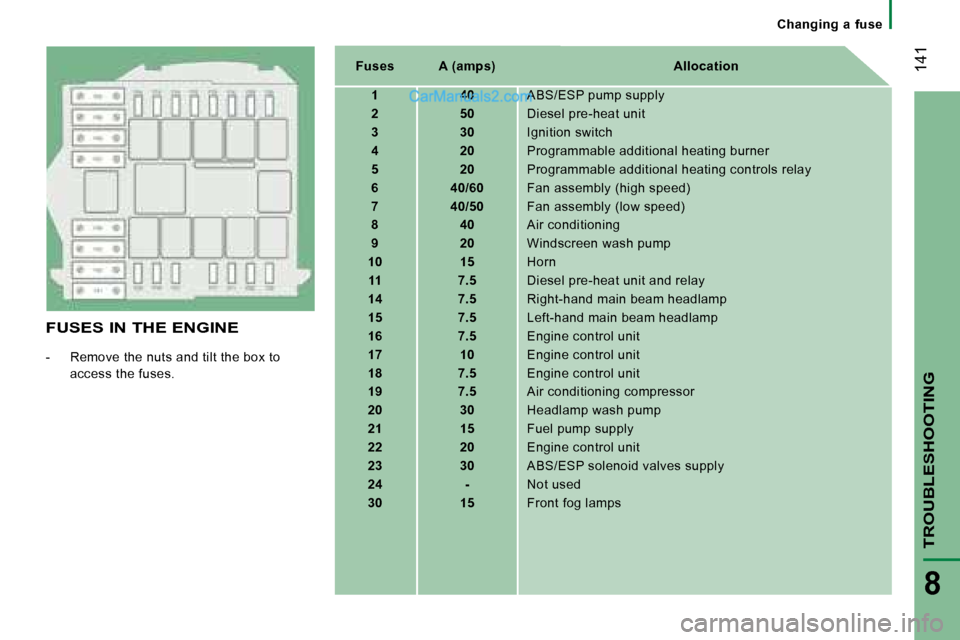

FUSES IN THE ENGINE
- Remove the nuts and tilt the box to access the fuses. Fuses A (amps) Allocation
1 40 ABS/ESP pump supply
2 50 Diesel pre-heat unit
3 30 Ignition switch
4 20 Programmable additional heating burner
5 20 Programmable additional heating controls relay
6 40/60 Fan assembly (high speed)
7 40/50 Fan assembly (low speed)
8 40 Air conditioning
9 20 Windscreen wash pump
10 15 Horn
11 7.5 Diesel pre-heat unit and relay
14 7.5 Right-hand main beam headlamp
15 7.5 Left-hand main beam headlamp
16 7.5 Engine control unit
17 10 Engine control unit
18 7.5 Engine control unit
19 7.5 Air conditioning compressor
20 30 Headlamp wash pump
21 15 Fuel pump supply
22 20 Engine control unit
23 30 ABS/ESP solenoid valves supply
24 - Not used
30 15 Front fog lamps Changing a fuse

142
CHANGING A WIPER BLADE
The sills, located in the lower front panel,
enable you to access the blades and the
wash-wipe nozzles.Changing a front wiper blade
Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade
Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk. Check that the wash-wipe or headlamp wash
nozzles are not blocked.
Changing a wiper blade

143
TROUBLESHOOTING
8
BEING TOWED
Without lifting
(four wheels on the ground)
You must always use a towbar.
From the rear
Hook the bar onto the rigid eye located
under the bumper.
From the front
The removable towing eye is located in the
box under the front passenger seat.
Unclip the cover using a flat tool.
Screw the removable towing eye in fully.
Place the gear lever in neutral. Failure to
observe this special condition may result in
damage to certain braking components and
the absence of braking assistance when the
engine is re-started.
With lifting
(2 wheels only on the ground)
It is preferable to lift the vehicle using
professional lifting equipment.When being towed with the engine
off, there is no braking or steering
assistance.
Being towed

145
9
TECHNICAL DATA
Environment
ENVIRONMENT
With you, PEUGEOT acts to protect the
environment.
On the www.peugeot.com site, you are
invited to consult, PEUGEOT’s clean HDi Diesel engines
(Common Rail diesel direct injection)
have the characteristic of offering low
consumption and minimising emissions of
CO
2. In addition to this contribution, these
engines provide a highly acclaimed level of
driving pleasure. - observe the service intervals; we
recommend that services are carried out
by a PEUGEOT dealer, authorised to
collect used batteries and fluids,
- in order to preserve the reliability of the engine and emission control system, do
not use engine oil additives.
the "PEUGEOT Universe" tab, the
"Environment" item and then specifically to
visit the nursery of "Opération Carbone".
the "PEUGEOT Universe" tab, the
"Environment" item and then speciically to
visit the nursery of the Fazenda via "Opération
Carbone" (the carbon sink project). As the driver, you also can contribute to
protecting the environment by following
certain rules:
- adopt a preventive style of driving,
without frequent and sharp acceleration. Refer to the starting and stopping
"good practice" advice in this handbook
at the end of chapter 2.

146
Dimensions

147
9
TECHNICAL DATA
Dimensions
DIMENSIONS
The Boxer is available in 4 lengths (L1..) and 3 heights (H1..), refer to the tables:
VAN
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
L Overall length 4 963 5 413 5 998 6 363
H Overall height 2 254 2 254 2 524 2 524 2 764 2 524 2 764
A Wheelbase 3 000 3 450 4 035
B Front overhang 948
C Rear overhang 1 0151 380
D Overall width (excluding mirrors) 2 050
E Width of front tracks 1 810
F Width of rear tracks 1 790
G Height of load sill 535 to 565
I Length of interior floor 2 670 3 120 3 705 4 070
J Maximum interior load height 1 662 1 662 1 932 1 932 2 172 1 932 2 172
K Maximum interior width 1 870
M Interior width between wheel arches 1 422
Volume (m 3
) 8 10 11.5 13 15 15 17

148
Dimensions
REAR DOORS
L1 L2 L3 L4
H1 H1 H2 H2 H3 H2 H3
N Useful height of the rear doors 1 520 1 520 1 790 1 7 90 2 030 1 790 2 030
O Useful width of the rear doors 1 562
