4 PRESENTATION

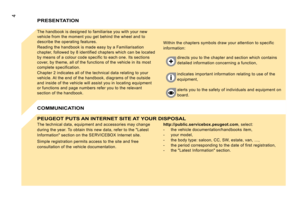

The handbook is designed to familiarise you with your new
vehicle from the moment you get behind the wheel an d to
describe the operating features.
Reading the handbook is made easy by a Familiarisa tion
chapter, followed by 8 identified chapters which ca n be located
by means of a colour code specific to each one. Its sections
cover, by theme, all of the functions of the vehicl e in its most
complete specification.
Chapter 2 indicates all of the technical data rela ting to your
vehicle. At the end of the handbook, diagrams of th e outside
and inside of the vehicle will assist you in locati ng equipment
or functions and page numbers refer you to the rele vant
section of the handbook. Within the chapters symbols draw your attention to
specific
information:
COMMUNICATION
The technical data, equipment and accessories may change
during the year. To obtain this new data, refer to the "Latest
Information" section on the SERVICEBOX Internet sit e.
Simple registration permits access to the site and free
consultation of the vehicle documentation.
http://public.servicebox.peugeot.com , select:
- the vehicle documentation/handbooks item,
- your model,
- the body type: saloon, CC, SW, estate, van, …,
- the period corresponding to the date of first registration,
- the "Latest Information" section. directs you to the chapter and section which conta
ins
detailed information concerning a function,
indicates important information relating to use of the
equipment,
alerts you to the safety of individuals and equipm ent on
board.
PEUGEOT PUTS AN INTERNET SITE AT YOUR DISPOSAL

5
FAMILIARISATION
Familiarisation
EXTERIOR
Roof rack and roof bars
Fixing points are provided on each side of the
roof for securing the roof rack or the transverse
roof bars.

 95
Opening the rear doors to 180°
Once the vehicle has been unlocked, the
rear doors can be opened to 180° to make
unloading/loading operations easier.

 31
"Follow me home" lighting
After switching off the ignition, when you leave
your vehicle, the front lights remain on briefl y.

 36 Rear parking assistance
This equipment warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.

 57

6
Familiarisation Fuel tank
OPEN

A. Unfolding/Folding of the key.

B. Unlocking of the front doors (Light van) or
of the front and side doors (Combi)
(two fl ashes of the direction indicators).

C. Central locking of the vehicle
(one press; one fl ash of the direction
indicators).
or
Deadlocking of the vehicle
(two consecutive presses; one fl ash of the
direction indicators).

D. Unlocking of the load space (Light van) or
of the hinged rear doors (Combi).
If a door is open or has not been closed
properly, the failed locking is indicated by three
fl ashes of the direction indicators. Opening to 180°
Press the catch while opening the door.

 27
 31
Remote control key

1. Opening of the fuel fi ller fl ap.

2. Opening and hooking of the fuel tank cap.
Capacity of the tank: approximately 45 litres.

 114

7
FAMILIARISATION
Familiarisation
INTERIOR
Trip computer
By means of the MENU button, this system
permits management or consultation of the
various vehicle confi gurations/information such
as the disarming of the passenger air bag, the
automatic locking of the doors, the language,
etc.

 53
Retractable multifunction passenger seat
(Light van)
This equipment enables you to confi gure your
passenger seat in three positions:
- seat for the transportation of a passenger,
- table to accommodate your various documents, ...
- retracted for the transportation of long objects.

 65

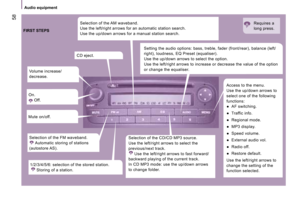

Audio system
This equipment benefi ts from the latest
technology: MP3 compatible audio equipment
and Bluetooth® hands-free kit.

 58
Piloted manual gearbox
This equipment guarantees perfect driving
by combining a fully automatic mode and a
manual mode.

 40

8
Familiarisation
INSTRUMENTS AND CONTROLS

1. Steering wheel adjustment control.

2. Lights and direction indicators controls.

3. Instrument panel.

4. Driver's air bag.
Horn.

5. Gear lever.

6. Handbrake.

7. Bonnet release.

8. Exterior mirror controls.

9. Fuse box.

10. Manual headlamp height adjustment.

11. Side adjustable and closing vent.

12. Front side window demisting vent.

13. Windscreen demisting vent.

14. Steering lock and ignition.

15. Wipers/wash-wipe/trip computer controls.

16. Central adjustable and closing vents.

17. Passenger air bag.

18. MENU button.

19. Glove box.

20. Lighter.

21. Ashtray.

22. Heating/air conditioning controls.

23. Audio equipment.

24. Electric window controls.

25. 12 V socket.

FAMILIARISATION
Familiarisation
LOAD SPACE (LIGHT VAN)

1. Stowing rings.

2. Storage tray.

3. Torch.

4. Partition.

5. Spare wheel.

 74 It is advisable to immobilise the load by
fi xing it securely using the stowing rings

1 on the fl oor.

10
Familiarisation
REAR LAYOUT (COMBI)

1. Stowing rings.

2. Luggage retaining net.

3. Tool kit.

4. Rear shelf.

 76

11
FAMILIARISATION
Familiarisation
SIT COMFORTABLY
Driver's seat adjustment
Forwards-backwards Height Seat back angle (A)
Lumbar support (B)

 63
