1. Multifunction display.
2. Audio and telematics system.
3. Automatic air conditioning controls.
4. Deactivation of the parking assistance.
Central locking from the inside.
Alarm control.
Hazard warning lights.
SPORT suspension control.
Deactivation of the ESP system.
5. Front ashtray/lighter (100 W max).
6. Gear lever.
7. Handbrake.
8. Retractable cup/can holder.
9. Armrest with storage compartment.
10. 12 volt accessories socket
(100 W max).
11. Rear ashtray.
130
159
WIP Sound
WIP Com
Page 12 of 211
The position is indicated on the instrument panel by the corresponding indicator light.
Ring A
Automatic switching on of
the lights
Activate or deactivate the
function from the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
Ring B
Front fog lamps
(one press)
Front fog lamps and rear
fog lamps (two presses)
74
2. Fast wipe.
1. Normal wipe.
I. Intermittent wipe.
0. Park.
AUTO. Automatic wipe then single
wipe.
A. Wash-wipe.
77
Wipers Lighting
Lights off
Automatic switching on of
the lights.
Side lights
Dipped headlamps/
Main beam headlamps
Page 14 of 211
20 With the ignition on, the orange and red
warning lights come on.
With the engine running, these warning
lights should switch off.
If a warning light remains on, refer to the
page concerned.
Lighting of the indicator light indicates the
status of the corresponding function.
A. With the ignition on, the fuel gauge
needle should rise.
B.
With the engine running, the associa-
ted low level warning light should
switch off.
C. With the ignition on, the oil level indica-
tor should display "OIL OK" for a few
seconds.
If the levels are not correct, top up the level
which is low.
Warning lights
22
Controls bar Instrument panel
100
A. Deactivation of the front and/
or rear parking assistance.
B. Central locking.
C. Deactivation of the interior
protection alarm.
D. Hazard warning lights.
E.
Selection of the electronically
controlled suspension.
F. Deactivation of the electronic
stability programme ESP.
70
68
83
95
84
Page 21 of 211
1
24
T y r e u n d e r - i n fl a t i o n
warning light
This indicates that the tyre
pressure is too low.
A message on the multifunction display
indicates the wheel(s) concerned.
R e f e r t o t h e i n f o r m a t i o n l a b e l a f fi x e d t o
the central pillar of the driver's door. For
your safety, check the tyre pressures
as soon as possible.
Electronic stability control system
(ESP) warning lights
Activation warning light
Operation warning light
Deactivation warning light
Malfunction warning light
Handbrake warning light
This indicates that the hand-
brake is still applied or has
not been released correctly.
It is linked with the braking system
warning light.
Low wash-wipe and
h e a d l a m p w a s h fl u i d l e v e l
warning light
When the wipers are switched
o n , t h i s i n d i c a t e s t h a t t h e fl u i d
level is too low.
Fill the wash-wipe and headlamp wash
fl u i d r e s e r v o i r .
Battery charge warning
light
When the engine is running,
this indicates a charging circuit
malfunction (battery terminals,
alternator belt).
Consult a PEUGEOT dealer. Engine oil level warning
light
This indicates a low engine
oil level.
Stop immediately.
Consult a PEUGEOT dealer.
WARNING LIGHTS WHICH ARE DISPLAYED ON THE INSTRUMENT PANEL SCREEN
STOP warning light
It comes on linked with the
engine oil pressure, cool-
ant temperature, power
steering, braking system
or punctured tyre warning lights.
Stop immediately.
Consult a PEUGEOT dealer.
Low coolant level warning
light (according to
version)
This warning light indicates
a n i n s u f fi c i e n t c o o l i n g c i r c u i t
level.
Stop immediately.
Consult a PEUGEOT dealer.
Warning: the cooling circuit is pres-
surised, wait for the engine to cool
down before topping up the level.
When topping up, and in order
to prevent any risk of scalding,
unscrew the cap by two turns
to allow the pressure to drop.
When the pressure has dropped, re-
move the cap and top up the level with
coolant. Power steering warning
light
This indicates a power steering
fault.
It is linked with the STOP warning light.
Consult a PEUGEOT dealer.
Page 24 of 211
1
27
Coolant temperature indicator
When the needle is in zone A , the
temperature is correct.
When the needle is in zone B , the
temperature is too high.
If the coolant temperature
warning light comes on (linked
with the STOP warning light),
stop immediately.
Wait for the engine to cool
down before topping up the level, if
necessary.
As the cooling circuit is pres-
surised, in order to prevent
any risk of scalding, unscrew
the cap by two turns to allow
the pressure to drop.
When the pressure has dropped, remove
the cap and top up the level with coolant,
if necessary.
Consult a PEUGEOT dealer.
This indicates an automatic
gearbox programme fault.
Automatic gearbox lever position indicator lights
Automatic gearbox fault
warning light
This indicates an automatic
gearbox fault.
The gearbox will operate in down-grade
mode, locked in 3rd gear.
Never force the selector lever.
Consult a PEUGEOT dealer.
6 speed automatic gearbox
"Park" indicator
lights
"Reverse" indicator
lights
"Neutral" indicator
lights
"Drive" indicator
lights
The letter S or the symbol
, associa-
ted with the gate lever position indicator
lights, corresponds to the Sport or Snow
programme selected intentionally. "Manual" indicator lights
These correspond to the manual control
of the gearbox.
When the engine speed is too low or too
high in relation to the gear engaged, the
g e a r s e l e c t e d fl a s h e s f o r a f e w s e c o n d s ,
then the actual gear is displayed, the
auto-adaptive programme having taken
control temporarily.
Page 82 of 211
5
74
LIGHTS STALK
Lights off
Side lights Dipped/main beam head-
lamps Lights on
With the ignition and the automatic
lights function switched off, on open-
ing the driver's door a buzzer sounds
to warn you that you have left your
lights on.
Front and rear fog lamps (ring B)
Turn ring B forwards to switch on
and backwards to switch off. The
p o s i t i o n i s c o n fi r m e d b y t h e l i g h t
on the instrument panel.
Front fog lamps (one press)
These operate with the side lights, dipped
headlamps or main beam headlamps. Rear fog lamps (two presses)
These operate with the side lights and
the front fog lamps, or with the dipped
or main beam headlamps.
Left: downwards.
Right: upwards
D i r e c t i o n i n d i c a t o r s ( fl a s h e r s )
If you forget to return the di-
rection indicator to its normal
position, the volume of the au-
dible signal will increase, if you
are driving at a speed greater
than 45 mph (70 km/h).
Parking lights *
The side lights are lit on the side the
t r a f fi c i s o n f o r a f e w h o u r s .
With the engine switched off and with-
in 45 seconds maximum, place the in-
d i c a t o r l i g h t s s t a l k o n t h e t r a f fi c s i d e
(for example: for parking on the right;
switching on of the lights on the left).
This is indicated by an audible sig-
nal and lighting of the corresponding
direction indicator on the instrument
panel for a few seconds.
If the parking lights are activat-
ed when your vehicle switches
to economy mode, they will re-
main on. However, you cannot
activate the parking lights if your ve-
hicle is already in economy mode.
Dipped/main beam change
Pull the stalk fully towards you.
* According to version.
Automatic switching on of
the lights.
In the case of vehicles which
a r e n o t fi t t e d w i t h a l i g h t s s t a l k
with the "AUTO" position,
you can deactivate or activate
the automatic lighting via the multi-
function display "Personalisation-
C o n fi g u r a t i o n " menu.
Front and rear lights (ring A)
Turn ring A to the position re-
quired
Page 89 of 211
5
79
COURTESY LIGHTS
1 . F r o n t c o u r t e s y l i g h t
2 . Front map reading lights
With the ignition on, operate the relevant switch.
3 . R e a r c o u r t e s y l i g h t
4 . Rear map reading lights
With the ignition on, operate the relevant switch. Deactivation
The courtesy lights can be deacti vated
by pressing switch
1 for more than
three seconds. Pressing switch 1 or
3 b r i e fl y s w i t c h e s t h e c o r r e s p o n d i n g
courtesy light on and off.
The map reading lights are not affected
by this and can still be switched on.
Activation
To re-activate the automatic lighting,
press switch 1 again.
S i l l i l l u m i n a t i o n
The sill lighting is at the bottom of each
door trim.
The lights come on automatically
when a door is opened and switch off
automatically when all of the doors are
closed.
Boot light
The boot light is located in the right-
hand boot trim.
It comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
Pressing switch 1 or 3 switches on the
corresponding courtesy light for ten
minutes.
The front and rear courtesy lights come
on automatically when the ignition key
is removed, on unlocking the vehicle
or on opening one of the doors.
They gradually go off after the ignition
has been switched on or the vehicle
is locked.
Page 94 of 211
7
84

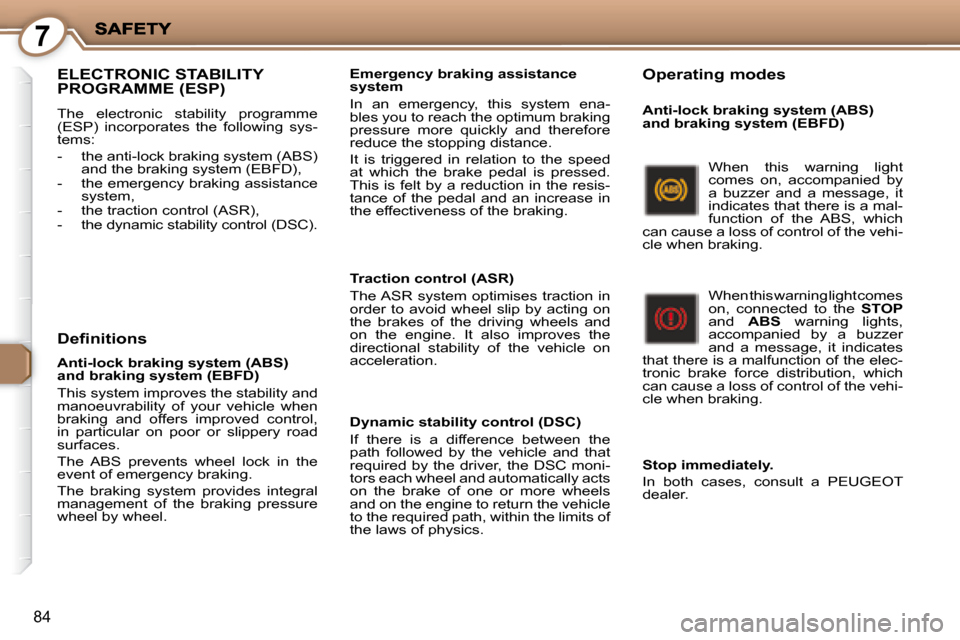

ELECTRONIC STABILITY PROGRAMME (ESP)
The electronic stability programme
(ESP) incorporates the following sys-
tems:
- the anti-lock braking system (ABS) and the braking system (EBFD),
- the emergency braking assistance system,
- the traction control (ASR),
- the dynamic stability control (DSC).
Traction control (ASR)
The ASR system optimises traction in
order to avoid wheel slip by acting on
the brakes of the driving wheels and
on the engine. It also improves the
directional stability of the vehicle on
acceleration.
Dynamic stability control (DSC)
If there is a difference between the
path followed by the vehicle and that
required by the driver, the DSC moni-
tors each wheel and automatically acts
on the brake of one or more wheels
and on the engine to return the vehicle
to the required path, within the limits of
the laws of physics.
Operating modes
Definitions
Emergency braking assistance
system
In an emergency, this system ena-
bles you to reach the optimum braking
pressure more quickly and therefore
reduce the stopping distance.
It is triggered in relation to the speed
at which the brake pedal is pressed.
This is felt by a reduction in the resis-
tance of the pedal and an increase in
the effectiveness of the braking. When this warning light
comes on, accompanied by
a buzzer and a message, it
indicates that there is a mal-
function of the ABS, which
can cause a loss of control of the vehi-
cle when braking.
When this warning light comes
on, connected to the STOP
and ABS warning lights,
accompanied by a buzzer
and a message, it indicates
that there is a malfunction of the elec-
tronic brake force distribution, which
can cause a loss of control of the vehi-
cle when braking.
Stop immediately.
In both cases, consult a PEUGEOT
dealer.
Anti-lock braking system (ABS)
and braking system (EBFD)
This system improves the stability and
manoeuvrability of your vehicle when
braking and offers improved control,
in particular on poor or slippery road
surfaces.
The ABS prevents wheel lock in the
event of emergency braking.
The braking system provides integral
management of the braking pressure
wheel by wheel. Anti-lock braking system (ABS)
and braking system (EBFD)
