FAMILIARISATION
10
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Exterior mirror controls.
Electric window and rear electric
window deactivation controls.
3. Lights and direction indicators
controls. Headlamp wash control.
4. Central adjustable and closing
vents.
5. Sunshine sensor.
6. Upper glove box with air
conditioning.
7. Lower glove box with lock.
Passenger air bag disarming.
Fuse box.
8. Heated seat controls.
9. Armrest with storage
compartments.
12 volt socket (120 W max).
10. Cup holder.
11. Four wheel drive system position
selector.
12. Removable ashtray/Lighter/
12 volt socket (120 W max).
13. Automatic air conditioning controls.
14. Temperature sensor.
15. Hazard warning lights switch.
16. Colour display/Audio equipment.
Page 13 of 226

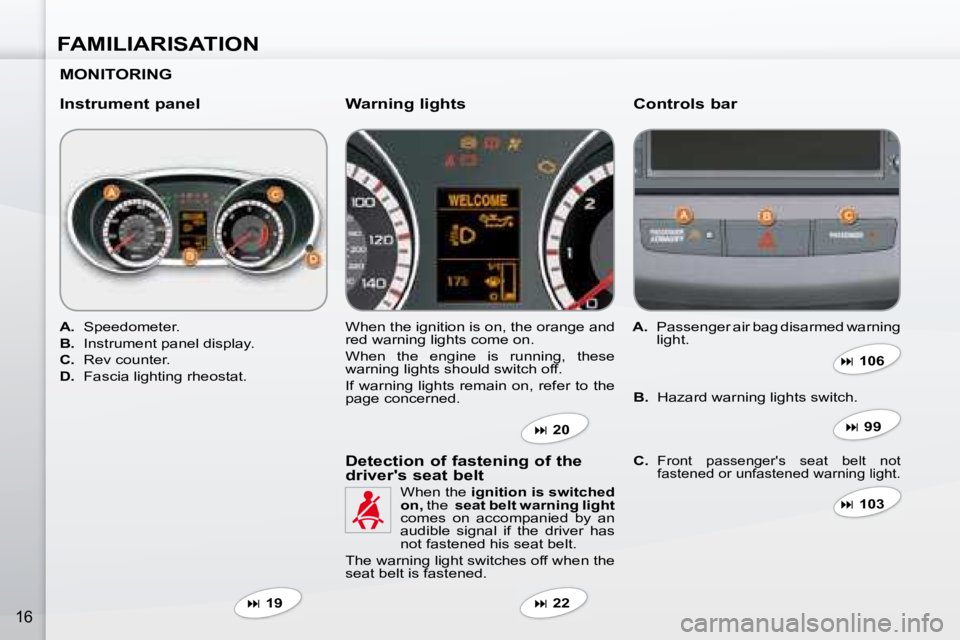

FAMILIARISATION
16
MONITORING
Instrument panel Controls bar
A. Speedometer.
B. Instrument panel display.
C. Rev counter.
D. Fascia lighting rheostat. W h e n t h e i g n i t i o n i s o n , t h e o r a n g e a n d
red warning lights come on.
W h e n t h e e n g i n e i s r u n n i n g , t h e s e
warning lights should switch off.
I f w a r n i n g l i g h t s r e m a i n o n , r e f e r t o t h e
page concerned.
Warning lights
19
A. Passenger air bag disarmed warning
light.
106
B. Hazard warning lights switch.
99
C.
Front passenger's seat belt not
fastened or unfastened warning light.
103
20
Detection of fastening of the
driver's seat belt When the ignition is switched
on, the seat belt warning light
comes on accompanied by an
audible signal if the driver has
not fastened his seat belt.
The warning light switches off when the
seat belt is fastened.
22
Page 16 of 226
1
INSTRUMENTS and CONTROLS
1. Speedometer.
2. Left-hand direction indicator and
hazard warning lights indicator light.
3.
Main beam headlamps indicator light.
4. Diesel pre-heating indicator light.
5. Side lights indicator light.
6. Front fog lamps indicator light.
7. Seat belt not fastened/unfastened
warning light.
DIESEL MANUAL GEARBOX INSTRUMENT P DIESEL MANUAL GEARBOX INSTRUMENT PANEL
18. Instrument panel display:
- Warning and status displays.
- Total and trip distance recorders.
- Service indicator.
- Coolant temperature.
- Displaying of the trip computer information.
- Cruise control reference value.
- Fascia lighting and parameter settings.
- Fuel level.
- Exterior temperature.
- Transmission mode.
8. Rear fog lamps indicator light.
9.
Anti-lock braking system (ABS)
warning light.
10. Battery charge fault warning light.
11. H a n d b r a k e a p p l i e d a n d b r a k e fl u i d
level warning light.
12. Cruise control mode indicator light.
13. Air bags warning light.
14. Engine management warning light.
15. Indicator light for right-hand
direction indicator,
Hazard warning lights indicator light.
16. Rev counter.
17. Fascia lighting rheostat.
Panel grouping together the dials and
warning/indicator lights. These inform
the driver of the activation of a system
(operation or deactivation indicator
lights) or of the occurrence of a fault
(warning lights).
Page 18 of 226

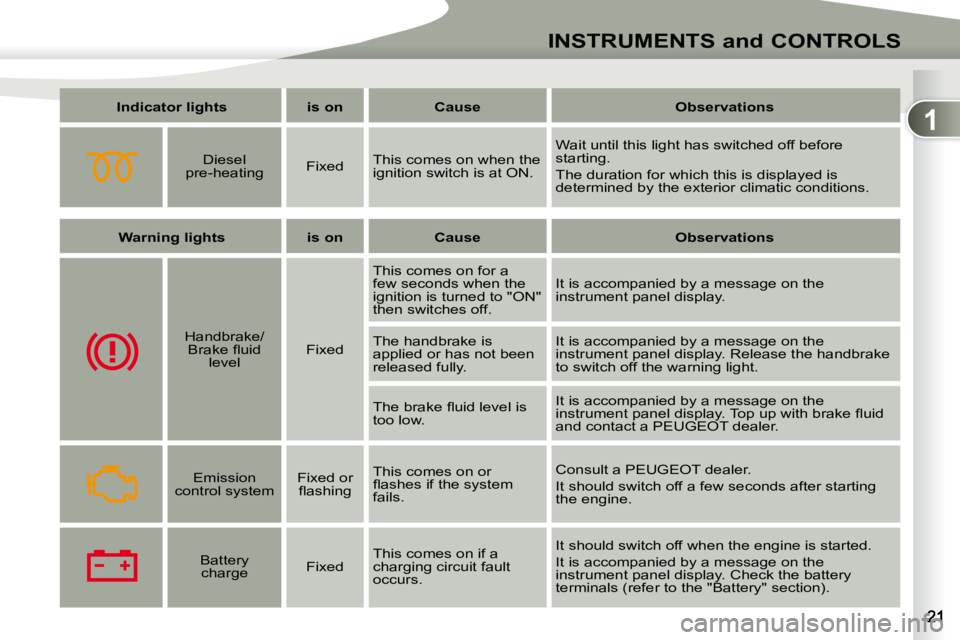

1
INSTRUMENTS and CONTROLS
Indicator lights is on Cause Observations
Diesel
pre-heating Fixed This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.
Warning lights is on Cause Observations
Handbrake/
B r a k e fl u i d level Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a PEUGEOT dealer.
It should switch off a few seconds after starting
the engine.
Battery
charge Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the "Battery" section).
Page 19 of 226
1
INSTRUMENTS and CONTROLS
Warning lights is on Cause Solution - action
Driver’s
seat belt not fastened Fixed The driver has not
fastened or has
unfastened his seat belt. This is accompanied by a message on the
instrument panel display.
Fasten the driver’s seat belt.
ABS Fixed This comes on if an
anti-lock braking system
failure occurs. It is accompanied by a message on the instrument
panel display. The vehicle retains conventional
braking without assistance but you are advised to
stop. Have it checked by a PEUGEOT dealer.
Air bags and
pretensioners Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It should switch off when the engine is started. If it
does not switch off, contact a PEUGEOT dealer.
This comes on if an air
bag or pretensioner
failure occurs. It is accompanied by a message on the instrument
panel display. Have the system checked by a
PEUGEOT dealer without delay.
Page 20 of 226

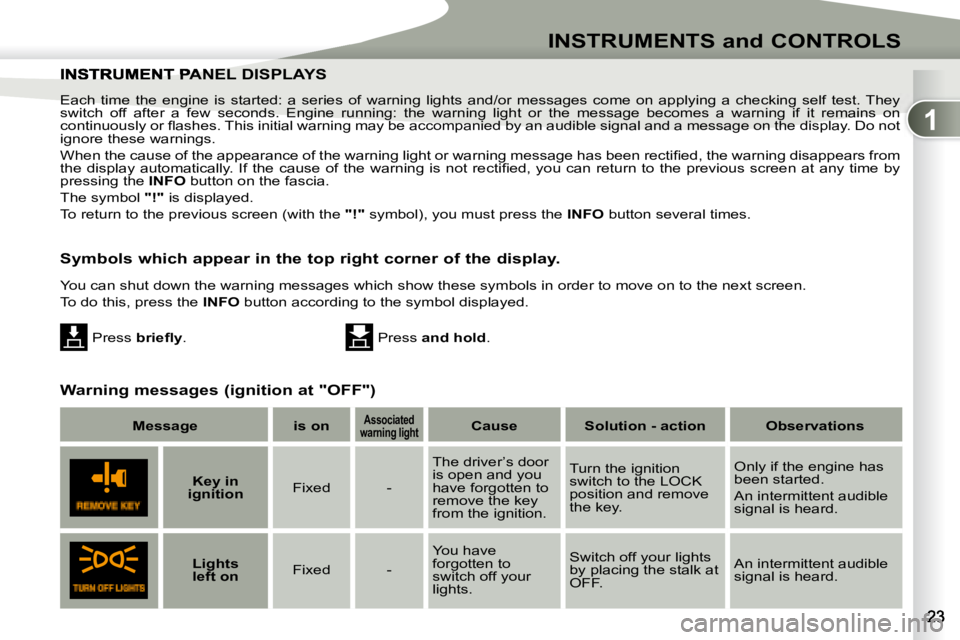

1
INSTRUMENTS and CONTROLS
Each time the engine is started: a series of warning lights and/or messages come on applying a checking self test. They
switch off after a few seconds. Engine running: the warning light or the message becomes a warning if it remains on
c o n t i n u o u s l y o r fl a s h e s . T h i s i n i t i a l w a r n i n g m a y b e a c c o m p a n i e d b y a n a u d i b l e s i g n a l a n d a m e s s a g e o n t h e d i s p l a y . D o n o t
ignore these warnings.
W h e n t h e c a u s e o f t h e a p p e a r a n c e o f t h e w a r n i n g l i g h t o r w a r n i n g m e s s a g e h a s b e e n r e c t i fi e d , t h e w a r n i n g d i s a p p e a r s f r o m
t h e d i s p l a y a u t o m a t i c a l l y . I f t h e c a u s e o f t h e w a r n i n g i s n o t r e c t i fi e d , y o u c a n r e t u r n t o t h e p r e v i o u s s c r e e n a t a n y t i m e b y
pressing the INFO button on the fascia.
The symbol "!" is displayed.
To return to the previous screen (with the "!" symbol), you must press the INFO button several times.
INSTRUMENT PANEL DISPLAYS
Warning messages (ignition at "OFF")
You can shut down the warning messages which show these symbol
s in order to move on to the next screen.
To do this, press the INFO button according to the symbol displayed.
Press b r i e fl y . Press and hold .
S y m b o l s w h i c h a p p e a r i n t h e t o p r i g h t c o r n e r o f t h e d i s
p l a y .
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
K e y i n
ignition Fixed - The driver’s door
is open and you
have forgotten to
remove the key
from the ignition. Turn the ignition
switch to the LOCK
position and remove
the key.
Only if the engine has
been started.
An intermittent audible
signal is heard.
Lights
l e f t o n Fixed - You have
forgotten to
switch off your
lights. Switch off your lights
by placing the stalk at
OFF.
An intermittent audible
signal is heard.
Page 21 of 226

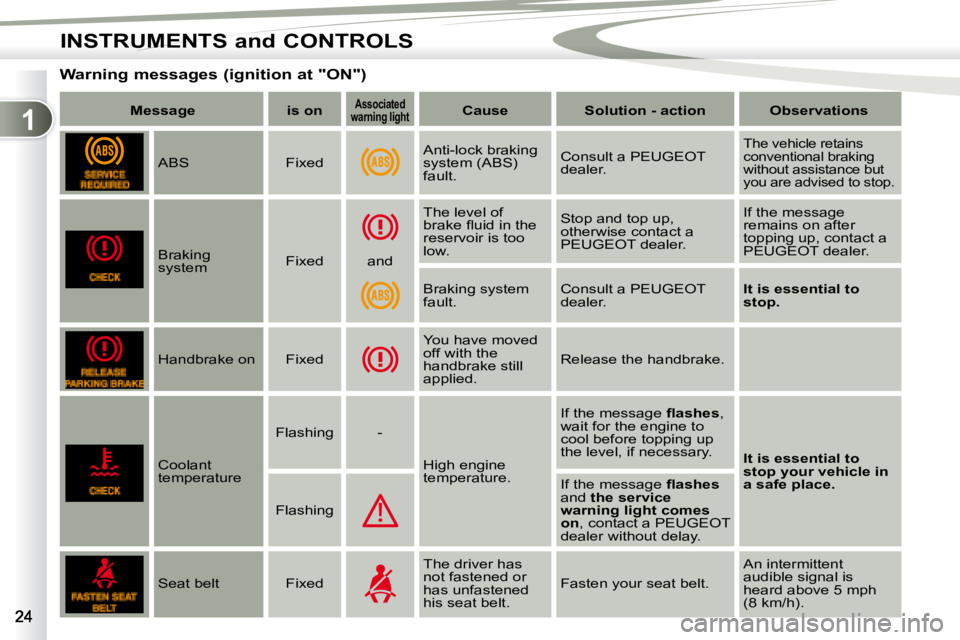

1
INSTRUMENTS and CONTROLS
Warning messages (ignition at "ON")
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
ABS Fixed
Anti-lock braking
system (ABS)
fault. Consult a PEUGEOT
dealer.
The vehicle retains
conventional braking
without assistance but
you are advised to stop.
Braking
system
Fixed and The level of
b r a k e fl u i d i n t h e
reservoir is too
low.
Stop and top up,
otherwise contact a
PEUGEOT dealer. If the message
remains on after
topping up, contact a
PEUGEOT dealer.
Braking system
fault. Consult a PEUGEOT
dealer.
It is essential to
s t o p .
Handbrake on Fixed
You have moved
off with the
handbrake still
applied.
Release the handbrake.
Coolant
temperature Flashing -
High engine
temperature. If the message
fl a s h e s ,
wait for the engine to
cool before topping up
the level, if necessary.
It is essential to
s t o p y o u r v e h i c l e i n
a s a f e p l a c e .
Flashing If the message
fl a s h e s
and the service
w a r n i n g l i g h t c o m e s
on , contact a PEUGEOT
dealer without delay.
Seat belt Fixed
The driver has
not fastened or
has unfastened
his seat belt.
Fasten your seat belt. An intermittent
audible signal is
heard above 5 mph
(8 km/h).
Page 22 of 226

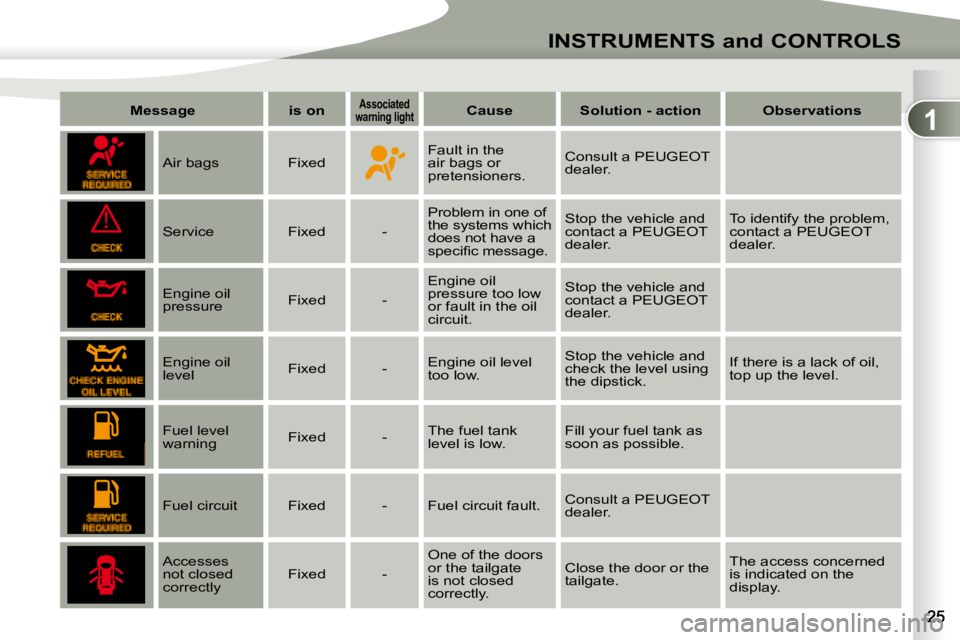

1
!
INSTRUMENTS and CONTROLS
Message is on
Associated
w a r n i n g l i g h t
Cause Solution - action Observations
Air bags Fixed
Fault in the
air bags or
pretensioners. Consult a PEUGEOT
dealer.
Service Fixed - Problem in one of
the systems which
does not have a
s p e c i fi c m e s s a g e . Stop the vehicle and
contact a PEUGEOT
dealer.
To identify the problem,
contact a PEUGEOT
dealer.
Engine oil
pressure
Fixed - Engine oil
pressure too low
or fault in the oil
circuit. Stop the vehicle and
contact a PEUGEOT
dealer.
Engine oil
level
Fixed - Engine oil level
too low. Stop the vehicle and
check the level using
the dipstick. If there is a lack of oil,
top up the level.
Fuel level
warning
Fixed - The fuel tank
level is low. Fill your fuel tank as
soon as possible.
Fuel circuit Fixed - Fuel circuit fault. Consult a PEUGEOT
dealer.
Accesses
not closed
correctly
Fixed - One of the doors
or the tailgate
is not closed
correctly. Close the door or the
tailgate.
The access concerned
is indicated on the
display.
