1
INSTRUMENTS and CONTROLS
Indicator lights is on Cause Observations
Diesel
pre-heating Fixed This comes on when the
ignition switch is at ON. Wait until this light has switched off before
starting.
The duration for which this is displayed is
determined by the exterior climatic conditions.
Warning lights is on Cause Observations
Handbrake/
B r a k e fl u i d level Fixed This comes on for a
few seconds when the
ignition is turned to "ON"
then switches off.
It is accompanied by a message on the
instrument panel display.
The handbrake is
applied or has not been
released fully. It is accompanied by a message on the
instrument panel display. Release the handbrake
to switch off the warning light.
T h e b r a k e fl u i d l e v e l i s
too low. It is accompanied by a message on the
i n s t r u m e n t p a n e l d i s p l a y . T o p u p w i t h b r a k e fl u i d
and contact a PEUGEOT dealer.
Emission
control system Fixed or
fl a s h i n g This comes on or
fl a s h e s i f t h e s y s t e m
fails. Consult a PEUGEOT dealer.
It should switch off a few seconds after starting
the engine.
Battery
charge Fixed This comes on if a
charging circuit fault
occurs. It should switch off when the engine is started.
It is accompanied by a message on the
instrument panel display. Check the battery
terminals (refer to the "Battery" section).
Page 52 of 226
2
i
COMFORT
Electric mode (driver’s seat only)
F o r w a r d s - b a c k w a r d s a d j u s t m e n t
Push the control forwards or rearwards to
m o v e t h e s e a t t o t h e p o s i t i o n r e q u i r e d .
Driver’s seat cushion height and
angle adjustment
P u l l o r p u s h t h e f r o n t o f t h e c o n t r o l t o r a i s e
o r l o w e r t h e f r o n t o f t h e s e a t c u s h i o n .
P u l l o r p u s h t h e r e a r o f t h e c o n t r o l t o r a i s e
o r l o w e r t h e r e a r o f t h e s e a t c u s h i o n .
P u l l o r p u s h t h e e n t i r e c o n t r o l t o r a i s e o r
l o w e r t h e e n t i r e s e a t c u s h i o n . Seat back angle adjustment
Tilt the control forwards or rearwards to
s t r a i g h t e n o r t i l t t h e s e a t b a c k .
FRONT SEATS FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
b e a d j u s t e d t o y o u r o p t i m u m d r i v i n g
a n d c o m f o r t p o s i t i o n .
To avoid discharging the battery,
use the electric mode with the
e n g i n e r u n n i n g .

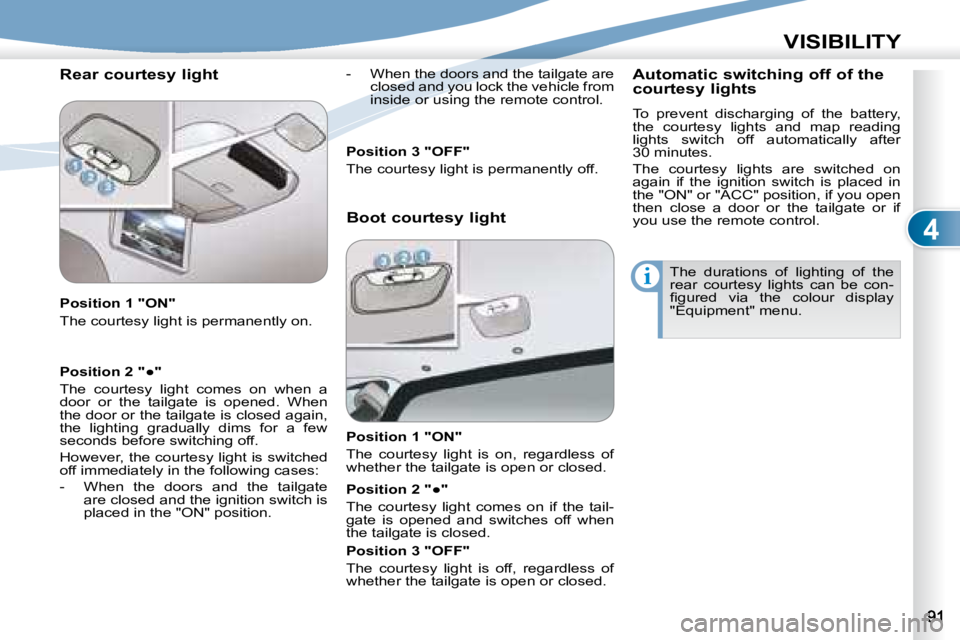

Page 101 of 226
4
i
VISIBILITY
Rear courtesy light
Position 1 "ON"
The courtesy light is permanently on. - When the doors and the tailgate are
closed and you lock the vehicle from
inside or using the remote control.
Automatic switching off of the
courtesy lights
To prevent discharging of the battery,
the courtesy lights and map reading
lights switch off automatically after
30 minutes.
The courtesy lights are switched on
again if the ignition switch is placed in
the "ON" or "ACC" position, if you open
then close a door or the tailgate or if
you use the remote control.
Boot courtesy light
Position 1 "ON"
The courtesy light is on, regardless of
whether the tailgate is open or closed.
P o s i t i o n 2 "

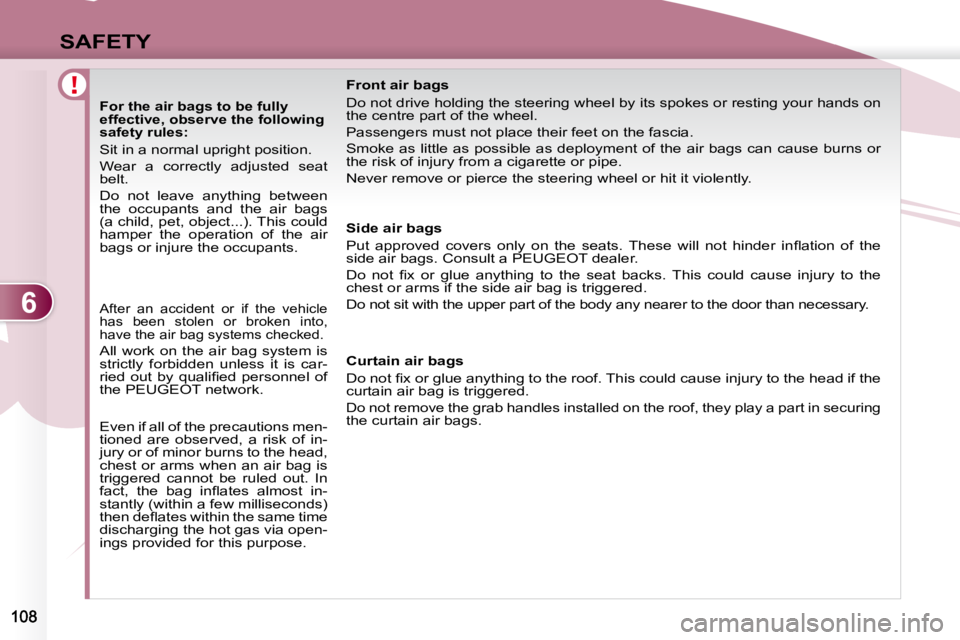

Page 118 of 226
6
SAFETY
For the air bags to be fully
effective, observe the following
safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat
belt.
Do not leave anything between
the occupants and the air bags
(a child, pet, object...). This could
hamper the operation of the air
bags or injure the occupants. Front air bags
Do not drive holding the steering wheel by its spokes or resti
ng your hands on
the centre part of the wheel.
Passengers must not place their feet on the fascia.
Smoke as little as possible as deployment of the air bags can ca use burns or
the risk of injury from a cigarette or pipe.
Never remove or pierce the steering wheel or hit it violently.
Side air bags
P u t a p p r o v e d c o v e r s o n l y o n t h e s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
side air bags. Consult a PEUGEOT dealer.
D o n o t fi x o r g l u e a n y t h i n g t o t h e s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y t o t h e
chest or arms if the side air bag is triggered.
Do not sit with the upper part of the body any nea rer to the door than necessary.
After an accident or if the vehicle
has been stolen or broken into,
have the air bag systems checked.
All work on the air bag system is
strictly forbidden unless it is car-
r i e d o u t b y q u a l i fi e d p e r s o n n e l o f
the PEUGEOT network.
Even if all of the precautions men-
tioned are observed, a risk of in-
jury or of minor burns to the head,
chest or arms when an air bag is
triggered cannot be ruled out. In
f a c t , t h e b a g i n fl a t e s a l m o s t i n -
stantly (within a few milliseconds)
t h e n d e fl a t e s w i t h i n t h e s a m e t i m e
discharging the hot gas via open-
ings provided for this purpose.
Curtain air bags
D o n o t fi x o r g l u e a n y t h i n g t o t h e r o o f . T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f t h e
curtain air bag is triggered.
Do not remove the grab handles installed on the roof, they play a part in securing
the curtain air bags.

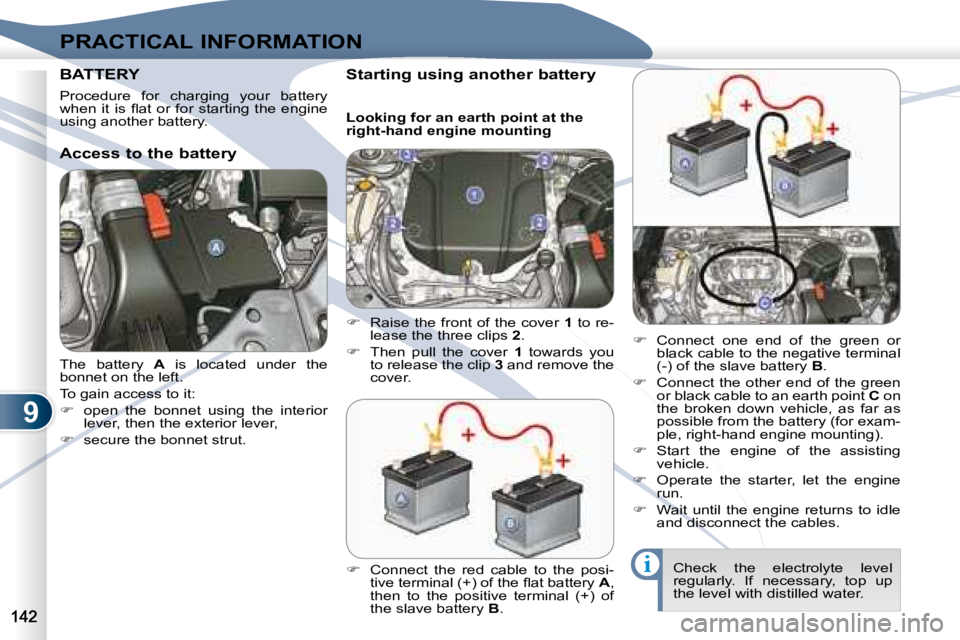

Page 154 of 226
9
i
PRACTICAL INFORMATION
The battery A is located under the
bonnet on the left.
To gain access to it:
open the bonnet using the interior
l e v e r , t h e n t h e e x t e r i o r l e v e r ,
secure the bonnet strut.
BATTER BATTERY
Access to the battery
Connect the red cable to the posi-
t i v e t e r m i n a l ( + ) o f t h e fl a t b a t t e r y A ,
then to the positive terminal (+) of
the slave battery B .
Connect one end of the green or
black cable to the negative terminal
(-) of the slave battery B .
Connect the other end of the green
or black cable to an earth point C on
the broken down vehicle, as far as
p o s s i b l e f r o m t h e b a t t e r y ( f o r e x a m -
ple, right-hand engine mounting).
Start the engine of the assisting
vehicle.
Operate the starter, let the engine
run.
Wait until the engine returns to idle
and disconnect the cables.
Raise the front of the cover 1 to re-
lease the three clips 2 .
Then pull the cover 1 towards you
to release the clip 3 and remove the
cover.
Check the electrolyte level
regularly. If necessary, top up
the level with distilled water.
Starting using another battery
Looking for an earth point at the
right-hand engine mounting
Procedure for charging your battery
w h e n i t i s fl a t o r f o r s t a r t i n g t h e e n g i n e
using another battery.
Page 155 of 226
9
i
i
PRACTICAL INFORMATION
The batteries contain harmful
substances such as sulphuric
acid and lead. They must be
disposed of in accordance with
regulations and must not, in any
circumstances, be discarded
with household waste.
Take used remote control bat-
teries and vehicle batteries to a
special collection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Remove the battery and place it in a
ventilated area.
Remove the top-up caps and top
up the level with distilled water if
necessary.
Connect the battery to the charger
observing the instructions for use
provided by the manufacturer and
start charging.
Disconnect the battery from the
charger and let it to cool.
If necessary, top up the level with
distilled water.
Clean the top of the battery care-
fully.
Put the top-up caps back in place.
Check that the terminals and con-
nectors are clean. If they are covered
with sulphate (whitish or greenish de-
posit), remove them and clean them.
Reconnect the battery starting with
the positive terminal (+). It is advisable to disconnect the
battery if the vehicle is to be
left unused for more than one
month.
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries with-
out disconnecting the terminals
fi r s t . Following reconnection of the
battery
Following reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to permit initialisation
of the electronic systems. However, if
s l i g h t d i f fi c u l t i e s a r e e n c o u n t e r e d f o l l o w -
ing this operation, contact a PEUGEOT
dealer.
Referring to the corresponding section,
you must yourself reinitialise:
- the one-touch electric windows,
- the sunroof,
- the satellite navigation system.
Avoid prolonged contact of the
electrolyte with the skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l
to health and very corrosive. When charging the battery, it is
normal to observe an increase
in temperature and bubbling of
the electrolyte.
Before disconnecting the battery
Wait 2 minutes after switching off the ig-
nition before disconnecting the battery.
Close the windows, the sunroof, the
doors and the tailgate before discon-
necting the battery.
