2008 Peugeot 308 SW BL Dag bulb
[x] Cancel search: bulbPage 80 of 260
i
i
92
VISIBILITY Follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting after the
vehicle's ignition has been switched off
m a k e s t h e d r i v e r ' s e x i t e a s i e r w h e n t h e
light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lever B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The follow-me-home lighting switches
off automatically after a set time.
Daytime lights
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
the corresponding lights comes on
when the vehicle is started * .
* According to country.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are not
l i t , e x c e p t o n s w i t c h i n g t o t h e a u t o m a t i c
switching on of the lights mode or when
the lights are switched on manually.
Exterior welcome lighting
The remote switching on of the lights
makes your approach to the vehicle
easier in poor light when in automatic
switching on of the lights mode.
Switching on
Press the open padlock on the re-
mote control.
The dipped headlamps and the side
lights come on; your vehicle is also un-
locked.
Switching off
T h e e x t e r i o r w e l c o m e l i g h t i n g s w i t c h e s
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Programming
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
Programming The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
In other countries, this function is
deactivated by default.
Only the daytime lights, incorporat-
ed in the side light bulbs, come on
when the function is activated. The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting.
In countries in which this function is im-
posed by regulations * , it is activated by
default.
The side lights and the number plate
lights are also switched on.
Page 82 of 260
i
i
92
VISIBILITY Follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting after the
vehicle's ignition has been switched off
m a k e s t h e d r i v e r ' s e x i t e a s i e r w h e n t h e
light is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e h e a d -
lamps using the lever B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The follow-me-home lighting switches
off automatically after a set time.
Daytime lights
O n v e h i c l e s fi t t e d w i t h d a y t i m e l i g h t s ,
the corresponding lights comes on
when the vehicle is started * .
* According to country.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are not
l i t , e x c e p t o n s w i t c h i n g t o t h e a u t o m a t i c
switching on of the lights mode or when
the lights are switched on manually.
Exterior welcome lighting
The remote switching on of the lights
makes your approach to the vehicle
easier in poor light when in automatic
switching on of the lights mode.
Switching on
Press the open padlock on the re-
mote control.
The dipped headlamps and the side
lights come on; your vehicle is also un-
locked.
Switching off
T h e e x t e r i o r w e l c o m e l i g h t i n g s w i t c h e s
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Programming
The function is activated or
deactivated via the multi-
f u n c t i o n d i s p l a y c o n fi g u r a -
tion menu.
Programming The duration of maintaining
of the lighting is selected
via the multifunction dis-
p l a y c o n fi g u r a t i o n m e n u .
In other countries, this function is
deactivated by default.
Only the daytime lights, incorporat-
ed in the side light bulbs, come on
when the function is activated. The duration of the welcome light-
ing is associated with and identical
to that of the automatic follow-me-
home lighting.
In countries in which this function is im-
posed by regulations * , it is activated by
default.
The side lights and the number plate
lights are also switched on.
Page 163 of 260
11
i
!
!
168
PRACTICAL INFORMATION
* According to country. Risk of electrocution
Xenon bulbs (D1S-35W) must be
replaced by a PEUGEOT dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb
with a new bulb without the use of
tools.
Front lights
Model with halogen lights
1. Direction indicators
(PY 21 W amber).
2. Dipped headlamps (H7-55 W).
3. Main beam headlamps (H1-55 W).
4. Daytime * /side lights (P21/5 W).
5. Fog lamps (H8-35 W).
1. Direction indicators
(PY 21 W SV silver).
2. Dipped/main beam headlamps
(D1S-35 W).
3. Additional main beam headlamps
(H1-55 W).
4. Daytime*/side lights (P21/5 W).
5. Fog lamps (H8-35 W).
Model with xenon lights and
directional headlamps
In certain climatic conditions (low
temperature, humidity), the pres-
ence of condensation on the in-
side of the headlamp and light
glass is normal ; it disappears
a few minutes after the lights are
switched on.
Handle the bulbs using a dry
cloth.
T h e h e a d l a m p s a r e fi t t e d w i t h p o l y -
carbonate lenses, coated with a
protective varnish:
do not clean them with a dry
or abrasive cloth or using a
detergent or solvent prod-
uct,
use a sponge and soapy water,
when using a high pressure
washer on stubborn dirt, do not
spend too long on the head-
lamps, lights and their sur-
rounds to avoid damaging their
varnish and their seals.

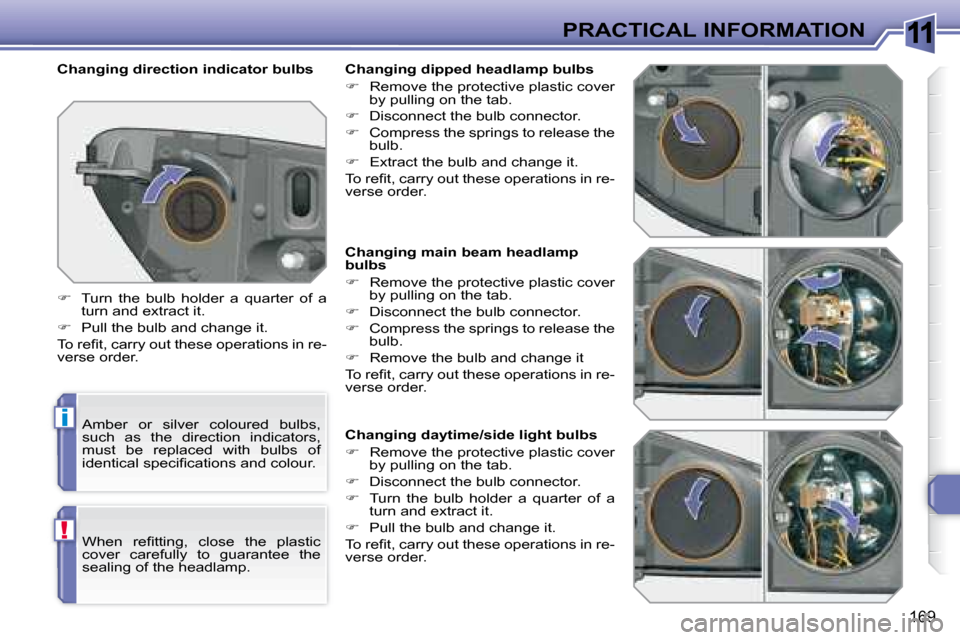

Page 164 of 260
11
i
!
169
PRACTICAL INFORMATION
Changing main beam headlamp
bulbs
Remove the protective plastic cover
by pulling on the tab.
Disconnect the bulb connector.
Compress the springs to release the
bulb.
Remove the bulb and change it
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing daytime/side light bulbs
Remove the protective plastic cover
by pulling on the tab.
Disconnect the bulb connector.
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Changing direction indicator bulbs
Amber or silver coloured bulbs,
such as the direction indicators,
must be replaced with bulbs of
i d e n t i c a l s p e c i fi c a t i o n s a n d c o l o u r .
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
W h e n r e fi t t i n g , c l o s e t h e p l a s t i c
cover carefully to guarantee the
sealing of the headlamp. Changing dipped headlamp bulbs
Remove the protective plastic cover
by pulling on the tab.
Disconnect the bulb connector.
Compress the springs to release the
bulb.
E x t r a c t t h e b u l b a n d c h a n g e i t .
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.

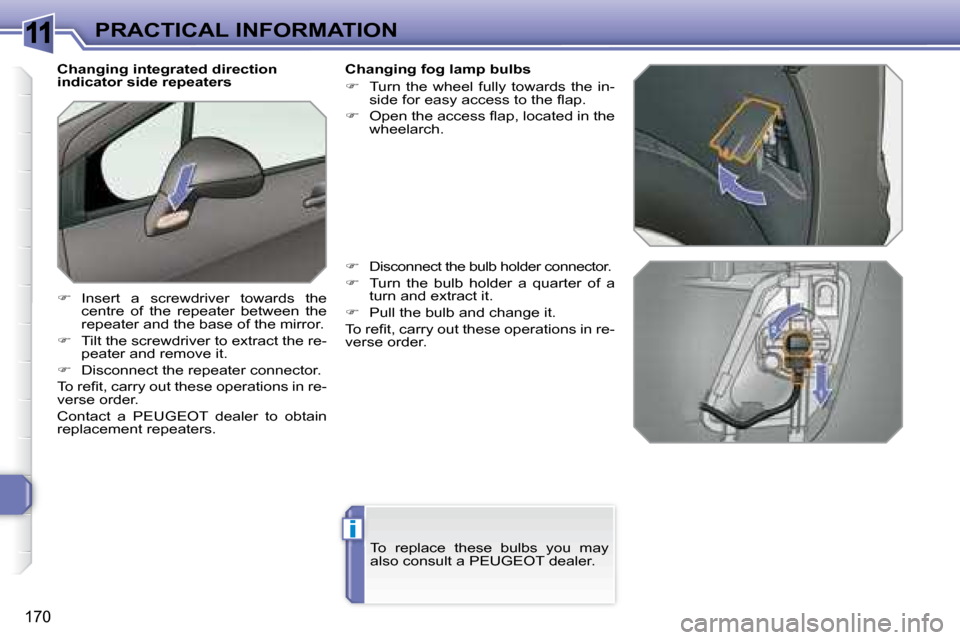

Page 165 of 260
11
i
170
PRACTICAL INFORMATION
Changing integrated direction
indicator side repeaters
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
T i l t t h e s c r e w d r i v e r t o e x t r a c t t h e r e -
peater and remove it.
Disconnect the repeater connector.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters. Changing fog lamp bulbs
Turn the wheel fully towards the in-
s i d e f o r e a s y a c c e s s t o t h e fl a p .
O p e n t h e a c c e s s fl a p , l o c a t e d i n t h e
wheelarch.
Disconnect the bulb holder connector.
Turn the bulb holder a quarter of a
t u r n a n d e x t r a c t i t .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
To replace these bulbs you may
also consult a PEUGEOT dealer.
Page 166 of 260
11
i
171
PRACTICAL INFORMATION
Rear lights
1. Brake/side lights (P21/5 W).
2. Side lights (P21/5 W).
3. Fog lamp, left-hand side (P21 W).
Reversing light, right-hand side
(P21 W).
4. Direction indicators (P21 W). Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
side the boot:
r e m o v e t h e t w o l i g h t fi x i n g n u t s ,
e x t r a c t t h e l i g h t c a r e f u l l y f r o m t h e
outside,
disconnect the light connector,
press the four tabs and remove the
bulb holder,
turn the bulb a quarter of a turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
I f t h e v e h i c l e i s fi t t e d w i t h t h e J B L
audio system, on the right-hand
s i d e , fi r s t r e m o v e t h e t h r e e fi x i n g
b o l t s , t h e n m o v e t h e b o x .
on the right-hand side; remove the
a c c e s s fl a p ,
o n t h e l e f t - h a n d s i d e ; t u r n t h e fi x i n g
bolt a quarter of a turn and remove
t h e s t o r a g e b o x c o v e r ,
u n c l i p t h e s t o r a g e b o x ,
Page 167 of 260
11
172
PRACTICAL INFORMATION
Changing third brake light bulbs
(4 bulbs W 5 W)
Unclip the tailgate upper trim from
left to right.
U n s c r e w t h e t w o l i g h t fi x i n g n u t s A .
Unclip the light's central pin.
E x t r a c t t h e l i g h t f r o m t h e o u t s i d e .
Disconnect the bulb holder connec-
tor and the wash-wipe pipe.
Unclip the bulb holder from the light
by pressing on the two tabs B .
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Do not apply force to the light when
tightening the nuts. Changing the number plate light
bulbs (W 5 W)
Insert a thin screwdriver into one of
the outer holes of the lens.
Push it outwards to unclip.
Remove the lens.
Pull the bulb and change it.

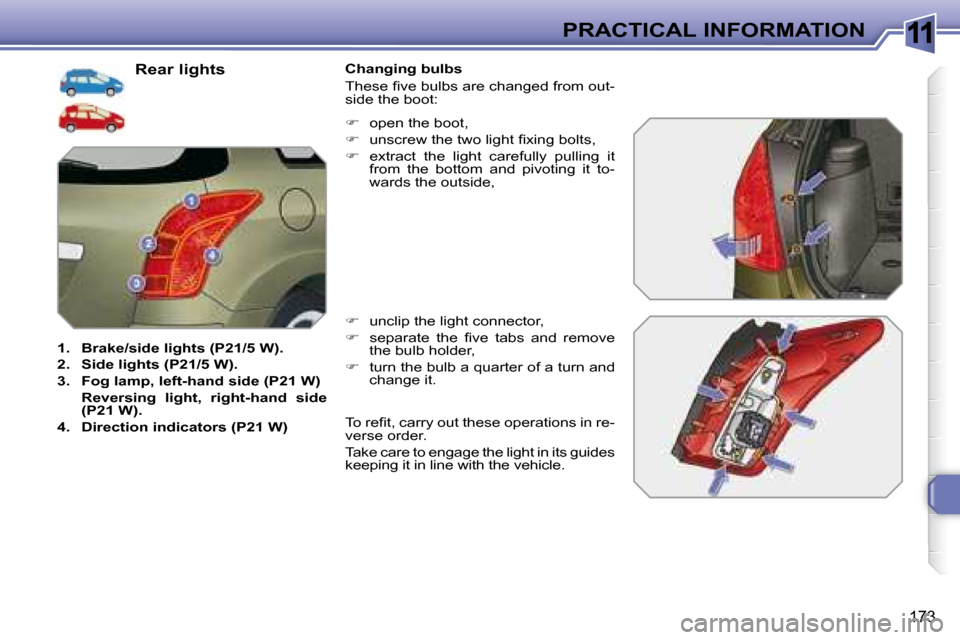

Page 168 of 260
11
173
PRACTICAL INFORMATION
Rear lights
1. Brake/side lights (P21/5 W).
2. Side lights (P21/5 W).
3. Fog lamp, left-hand side (P21 W)
Reversing light, right-hand side
(P21 W).
4. Direction indicators (P21 W) Changing bulbs
T h e s e fi v e b u l b s a r e c h a n g e d f r o m o u t -
side the boot:
unclip the light connector,
s e p a r a t e t h e fi v e t a b s a n d r e m o v e
the bulb holder,
turn the bulb a quarter of a turn and
change it.
open the boot,
u n s c r e w t h e t w o l i g h t fi x i n g b o l t s ,
e x t r a c t t h e l i g h t c a r e f u l l y p u l l i n g i t
from the bottom and pivoting it to-
wards the outside,
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Take care to engage the light in its guides
keeping it in line with the vehicle.
