2008 Peugeot 308 SW BL Dag Owner's Manual

i
60
COMFORT
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.
Forwards-backwards adjustment


Push the control forwards or rearwards
to slide the seat. Seat cushion height and angle
adjustment

 Tilt the rear part of the control up-
wards or downwards to obtain the
required height.

 Tilt the front part of the control up-
wards or downwards to obtain the
required angle. Seat back angle adjustment

 Tilt the control forwards or rearwards
to adjust the angle of the seat back.
Driver's seat electric
adjustments The electrical functions of the driv-
er's seat are deactivated approxi-
mately one minute after the ignition
is switched off.
To reactivate them, switch on the
ignition.

!
!
61
COMFORT
No person or object should prevent
the seat slide from returning to its
initial position; the return to this po-
sition is necessary for longitudinal
locking.


Access to the rear seats (3-door)

 Pull the control upwards to fold the
seat back and move the seat for-
ward.
When put back in place, the seat re- turns to its initial position.
Head restraint height and angle
adjustment


To raise the head restraint, pull it for-
wards and upwards at the same time.


To remove the head restraint, press the lug

A and pull the head restraint upwards.

 To put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the
seat back.

 To lower the head restraint, press the lug A
and the head restraint at the same time.


To adjust the angle of the head restraint,
tilt its lower part forwards or rearwards.
The head restraint is fi tted with a
frame with notches which prevents
it from lowering; this is a safety de-
vice in case of impact.

The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Lumbar adjustment

 Turn the dial to obtain the correct
lumbar position.
Additional adjustments

 Lower the support B incorporated in
the control to rest the seat belt on
it. It enables you to retrieve the seat
belt more easily when you need to
put it back on.

i
62
COMFORT

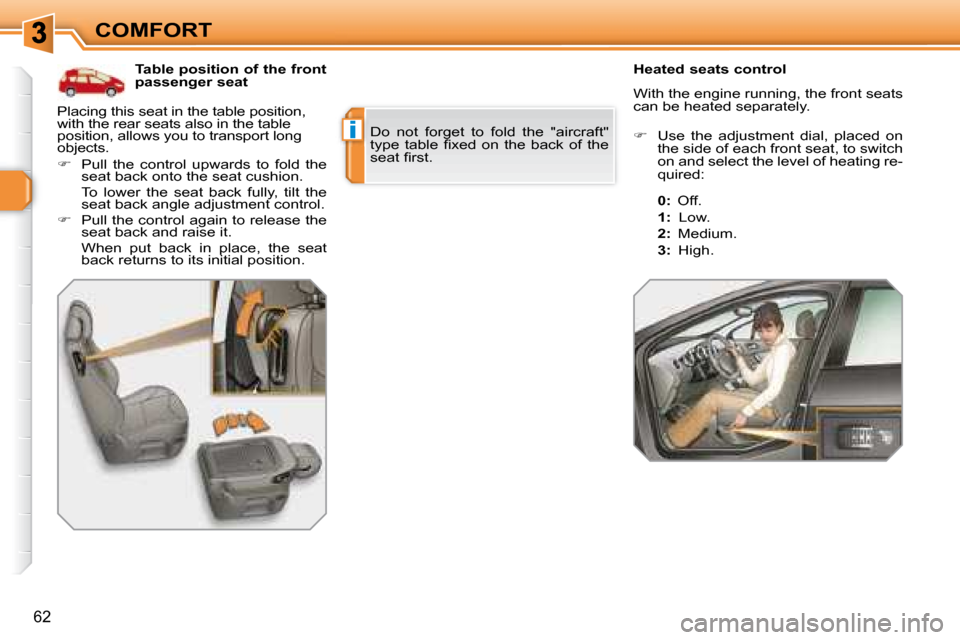

Table position of the front
passenger seat Heated seats control
With the engine running, the front seats
can be heated separately.
Do not forget to fold the "aircraft"
type table fi xed on the back of the
seat fi rst.
Placing this seat in the table position,
with the rear seats also in the table
position, allows you to transport long
objects.

 Pull the control upwards to fold the
seat back onto the seat cushion.
To lower the seat back fully, tilt the seat back angle adjustment control.

 Pull the control again to release the
seat back and raise it.
When put back in place, the seat back returns to its initial position.
 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0
: Off.
1
: Low.
2
: Medium.
3
: High.

i!
63
COMFORT
Storing driving positions
System which takes into account the
electrical settings of the driver's seat
and exterior mirrors. It enables you to
store up to two positions using the but-
tons on the side of the driver's seat and
two further driving positions using the
two remote control keys.
Recalling a stored position
When the vehicle is unlocked, the driv-
er's seat and the exterior mirrors return
to the position stored by the remote
control key.
Storing a position Storing a new position cancels the
previous position.
When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using the remote control keys
When the vehicle is locked, the remote
control key stores the position of the
driver's seat and exterior mirrors.
Each remote control key can store one
specifi c setting.
Ignition on

 Briefl y press button 1 or 2 to recall
the corresponding position.
An audible signal is heard indicating the end of the adjustment. Vehicle moving

 Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.
Using buttons M/1/2

 Switch on the ignition.

 Adjust your seat and your exterior
mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the storing has been taken into
account.

!
64
COMFORT
REAR SEATS
Never drive with the head restraints
removed; they must be in place
and in the high position when pas-
sengers are seated in the rear.
Rear head restraints
These have a high position (comfort
and safety) and a low position (rear vis-
ibility).
They can also be removed.
To remove a head restraint:

 pull the head restraint fully forwards
and upwards at the same time,

 then, press the lug A . Removing the seat cushion

 Move the corresponding front seat
forwards if necessary.

 Pull the handle 1 forwards to raise
the seat cushion 2 .

 Tilt the seat cushion 2 fully against
the front seat.

 Remove the seat cushion 2 from its
fi xings by pulling upwards.
Refitting the seat cushion

 Position the seat cushion 2 vertically
in its fi xings.

 Fold down the seat cushion 2 .

 Press on the seat cushion to secure it.
Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be fold-
ed to adapt the boot load space.

!
i
65
COMFORT
Folding the seat
In order to fold a rear seat without any
risk of damage, always start with the
seat cushion, never with the seat
back:

 move the corresponding front seat
forwards if necessary,

 pull the handle 1 forwards to raise
the seat cushion 2 ,

 tilt the seat cushion 2 fully against
the front seat,
Returning the seat back to its
original position
When returning the rear seat back to its
original position:

 put the seat back 4 in the upright po-
sition and secure it,

 fold the seat cushion 2 ,

 refi t the head restraints or put them
back in place.

 check that the seat belt is positioned
correctly on the side of the seat back,

 lower or remove the head restraints
if necessary,

 pull the control 3 forwards to release
the seat back 4 ,

 tilt the seat back 4 .
When returning the rear seat back
to its original position, take care not
to trap the seat belts and ensure
that their buckles are positioned
correctly. The seat cushion
2 can be removed
to increase the loading volume.

ii
i
66
COMFORT

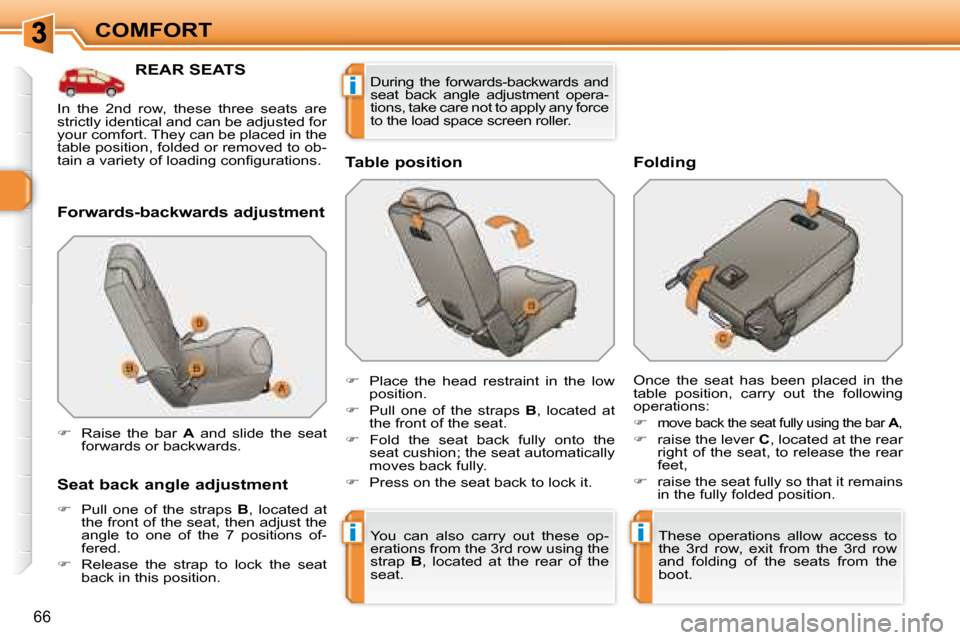

REAR SEATS
Forwards-backwards adjustment
Seat back angle adjustment

 Pull one of the straps B , located at
the front of the seat, then adjust the
angle to one of the 7 positions of-
fered.

 Release the strap to lock the seat
back in this position. Table position

 Raise the bar A and slide the seat
forwards or backwards.
 Place the head restraint in the low
position.

 Pull one of the straps B , located at
the front of the seat.

 Fold the seat back fully onto the
seat cushion; the seat automatically
moves back fully.

 Press on the seat back to lock it. Folding
Once the seat has been placed in the
table position, carry out the following
operations:


move back the seat fully using the bar A ,

 raise the lever C , located at the rear
right of the seat, to release the rear
feet,

 raise the seat fully so that it remains
in the fully folded position.
You can also carry out these op-
erations from the 3rd row using the
strap B , located at the rear of the
seat. These operations allow access to
the 3 rd row, exit from the 3 rd row
and folding of the seats from the
boot.
In the 2nd row, these three seats are
strictly identical and can be adjusted for
your comfort. They can be placed in the
table position, folded or removed to ob-
tain a variety of loading confi gurations.
During the forwards-backwards and
seat back angle adjustment opera-
tions, take care not to apply any force
to the load space screen roller.

!
67
COMFORT

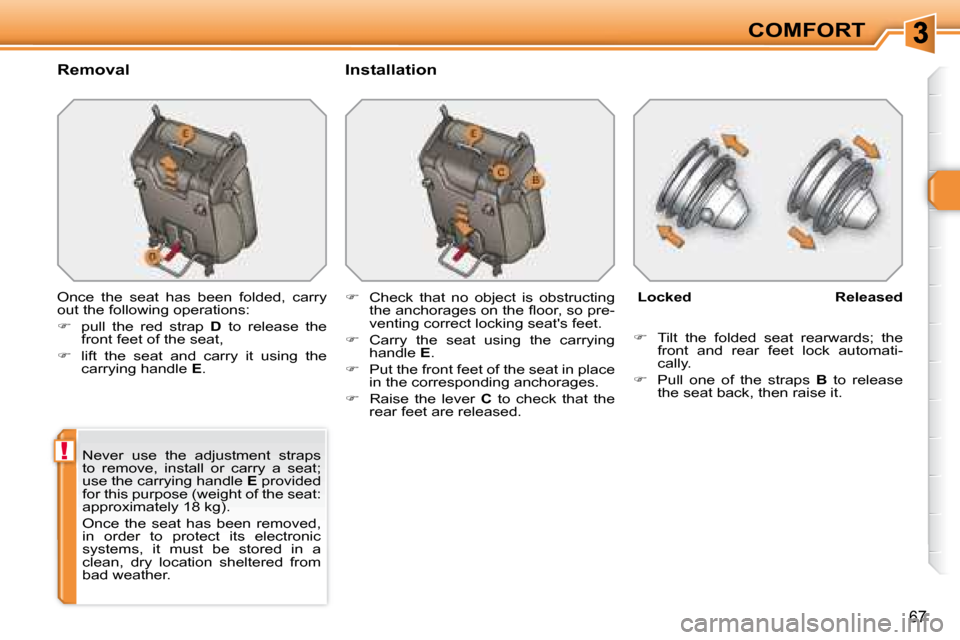

Removal Installation
Once the seat has been folded, carry
out the following operations:

 pull the red strap D to release the
front feet of the seat,

 lift the seat and carry it using the
carrying handle E .
Never use the adjustment straps
to remove, install or carry a seat;
use the carrying handle E provided
for this purpose (weight of the seat:
approximately 18 kg).
Once the seat has been removed,
in order to protect its electronic
systems, it must be stored in a
clean, dry location sheltered from
bad weather.
Locked Released

 Tilt the folded seat rearwards; the
front and rear feet lock automati-
cally.

 Pull one of the straps B to release
the seat back, then raise it.

 Check that no object is obstructing
the anchorages on the fl oor, so pre-
venting correct locking seat's feet.

 Carry the seat using the carrying
handle E .

 Put the front feet of the seat in place
in the corresponding anchorages.

 Raise the lever C to check that the
rear feet are released.
