77
ACCESS
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the cour-
tesy lights and dipped headlamps and
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r a
few seconds. Lost keys
Visit a PEUGEOT dealer with the vehi-
c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
Your PEUGEOT dealer will be able to re-
trieve the key code and the transponder
code to order a replacement key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Folding the key
First press button A to fold the key.
Page 65 of 260
i
ACCESS
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
If the problem persists, contact a PEUGEOT
dealer as soon as possible.
Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n f o r m e d b y
lighting of this warning light, an audible
signal and a message on the multifunc-
tion display.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.

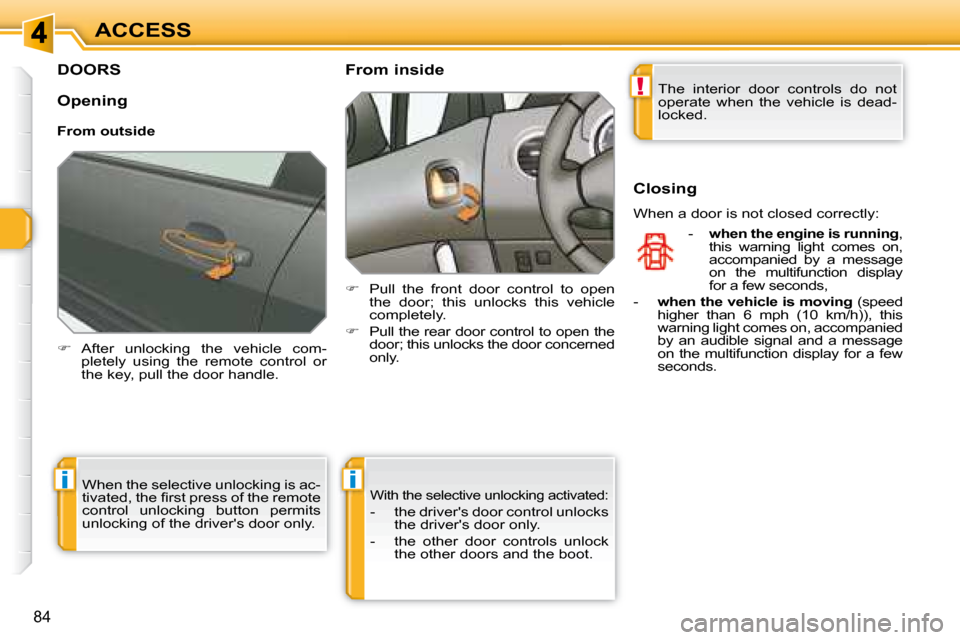

Page 70 of 260
!
ii
84
ACCESS
DOORS
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the door handle. From inside
Pull the front door control to open
the door; this unlocks this vehicle
completely.
Pull the rear door control to open the
door; this unlocks the door concerned
only. The interior door controls do not
operate when the vehicle is dead-
locked.
Closing
When a door is not closed correctly: - when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
higher than 6 mph (10 km/h)), this
warning light comes on, accompanied
by an audible signal and a message
on the multifunction display for a few
seconds.
When the selective unlocking is ac-
t i v a t e d , t h e fi r s t p r e s s o f t h e r e m o t e
control unlocking button permits
unlocking of the driver's door only.
With the selective unlocking activated:
- the driver's door control unlocks the driver's door only.
- the other door controls unlock the other doors and the boot.
Opening
From outside
Page 72 of 260
i
86
ACCESS
Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunction
of the battery or of the central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the handle and raise
the tailgate.
BOOT
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole
A of the lock to unlock the tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly: When the selective unlocking is acti-
vated, the boot can be opened at the
second press of the unlocking button
on the remote control.
Page 73 of 260
i
86
ACCESS
Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunction
of the battery or of the central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn . Opening
After unlocking the vehicle com-
pletely using the remote control or
the key, pull the handle and raise
the tailgate.
BOOT
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole
A of the lock to unlock the tailgate.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly: When the selective unlocking is acti-
vated, the boot can be opened at the
second press of the unlocking button
on the remote control.
Page 74 of 260
ii
87
ACCESS
BOOT
Opening
After unlocking the vehicle completely
using the remote control or the key,
with the rear screen closed, pull on
the handle A and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle.
REAR SCREEN
Opening
After unlocking the vehicle completely
using the remote control or the key,
with the boot closed, press the control
B and raise the rear screen using the
base C of the wiper arm. Closing
Lower the rear screen guiding it with
the wiper arm until it is closed.
If the rear screen is not closed correctly:
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. -
when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds.
If the tailgate is not closed correctly:
The boot and the rear screen cannot
both be open at the same time. If the rear screen is unlocked, the
central locking does not take place.
Page 75 of 260
ii
87
ACCESS
BOOT
Opening
After unlocking the vehicle completely
using the remote control or the key,
with the rear screen closed, pull on
the handle A and raise the tailgate.
Closing
Lower the tailgate using the interior
grab handle.
REAR SCREEN
Opening
After unlocking the vehicle completely
using the remote control or the key,
with the boot closed, press the control
B and raise the rear screen using the
base C of the wiper arm. Closing
Lower the rear screen guiding it with
the wiper arm until it is closed.
If the rear screen is not closed correctly:
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. -
when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds.
If the tailgate is not closed correctly:
The boot and the rear screen cannot
both be open at the same time. If the rear screen is unlocked, the
central locking does not take place.
Page 77 of 260
i
89
ACCESS
The key cannot be removed from
the lock until the cap is put back on
the tank.
FUEL TANK
Capacity of the tank: approximately
60 litres.
T o fi l l t h e t a n k s a f e l y :
it is essential that the engine is
switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
W h e n fi l l i n g i s c o m p l e t e :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
remove the cap and secure it on the
hook, located on the inside of the
fl a p ,
fi l l t h e t a n k , b u t do not continue af-
ter the 3rd cut-off of the nozzle ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used according to your engine.
Operating fault
A fuel gauge malfunction is indicated by
the return of the fuel level indicator nee-
dle to zero.
Consult a PEUGEOT dealer. When the fuel tank minimum
level is reached, this warning
light comes on on the instru-
ment panel, accompanied by
an audible signal and a message on the
multifunction display.
You have enough fuel left to drive ap-
proximately 30 miles (50 km).
If you run out of fuel, refer to the "Practi-
cal information" section also.
